The full-size crossover Nissan Pathfinder has been produced since 1986 in 4 generations. The 1st and 2nd were produced until 2003. In 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014, the 3rd generation of Nissan Pathfinder marked r51 was supplied to the markets. And from 2015 to the present, the 4th generation has been assembled. We suggest that you familiarize yourself with the description of the fuse boxes and relays of the Nissan Pathfinder r51 (3rd generation) and 4. Their photographs, diagrams, locations. And we will also show which of the elements are responsible for the operation of the cigarette lighter.

Depending on the region of delivery, year of manufacture and configuration, various versions of these units are possible.

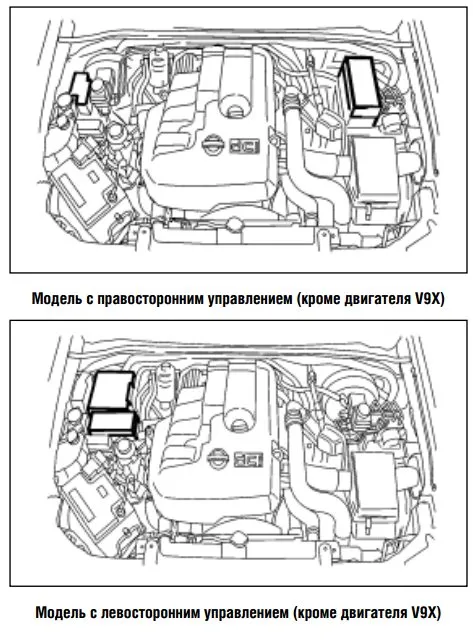

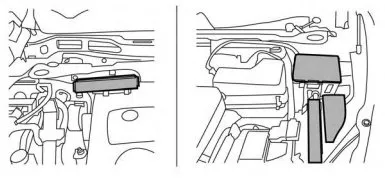

Blocks under the hood

For r51

Block with relay

Photo scheme

Fuse blocks

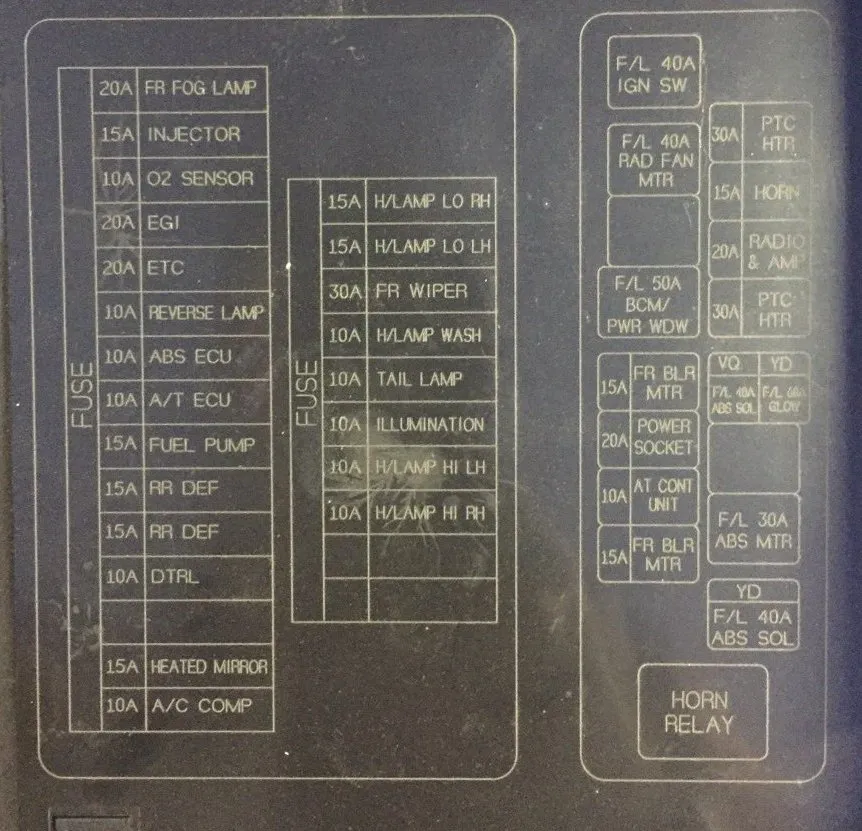

Current diagram from the back of the protective cover

  • 20A FR FOG LAMP – front fog light
  • 10A ABC ECU – ABS Electronic Control Unit
  • 10A A/T ECU – electronic control unit of automatic transmission
  • 15A FUEL PUMP – fuel pump
  • 15A RR DEF – rear window heating
  • 15A RR DEF – rear window heating
  • 10A DTRL – Daytime Running Lights
  • 15A HEATED MIRROR – mirror heating
  • 10A A/C COMP – air conditioning compressor (activation of the air conditioning clutch)
  • 15A H/LAMP LO RH – low beam, right headlight
  • 15A H/LAMP LO LH – low beam, left headlight
  • 30A FR WIPER – windshield wipers
  • 10A H/LAMP WASH – headlight washer
  • 10A TAIL LAMP – rear lights
  • 10A ILLUMINATION – interior lighting
  • 10A H/LAMP HI LH – high beam, left headlight
  • 10A H/LAMP HI RH – high beam, right headlight
  • 15A FR BLR MTR – front heater motor.
  • 20A POWER SOCKET – additional 12 Volt socket
  • 10A AT CONT UNIT – control unit
  • 15A FR BLR MTR – front heater motor
  • 30A. PTC HTR – electric heater in the stove (diesel warms up slowly, for comfort, electric heating is installed in the stove)
  • 15A HORN – signal
  • 20A RADIO AMP – power supply for radio/audio amplifier

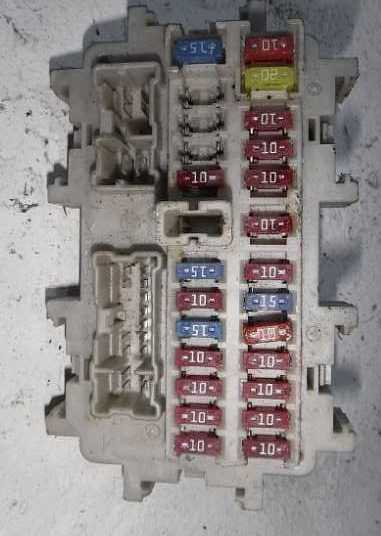

Block in the cabin

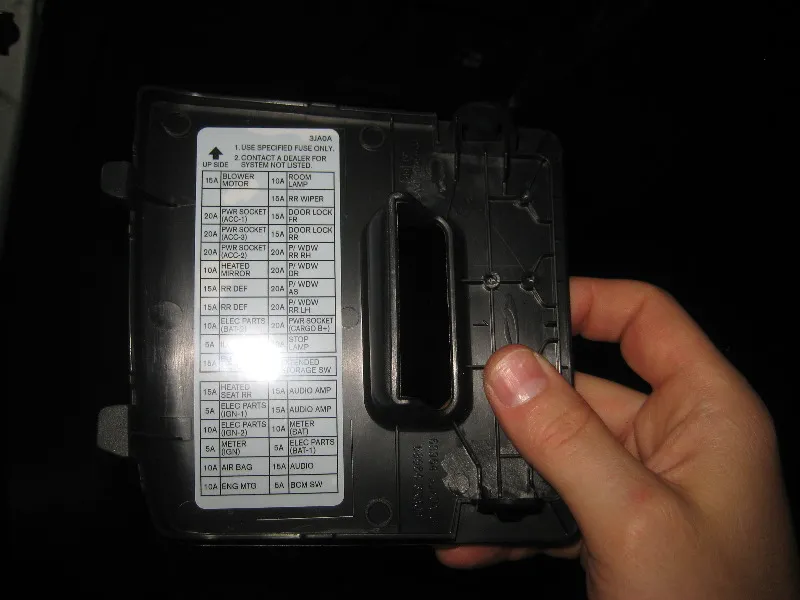

It is located in the instrument panel, behind the protective cover. If you have any difficulties, watch the video a little higher.

Option 1.

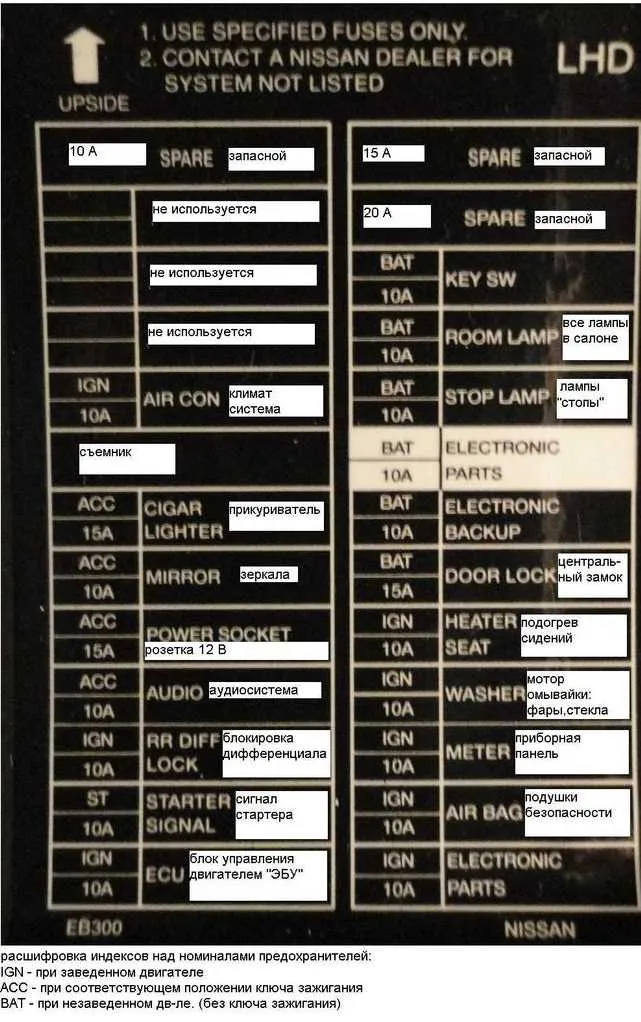

The fuses located in this block are responsible for the operation of the cigarette lighter, which ones exactly you can see on your diagram. In English they are designated as cigar lighter. If they are intact, pay attention to the fuse under the hood.

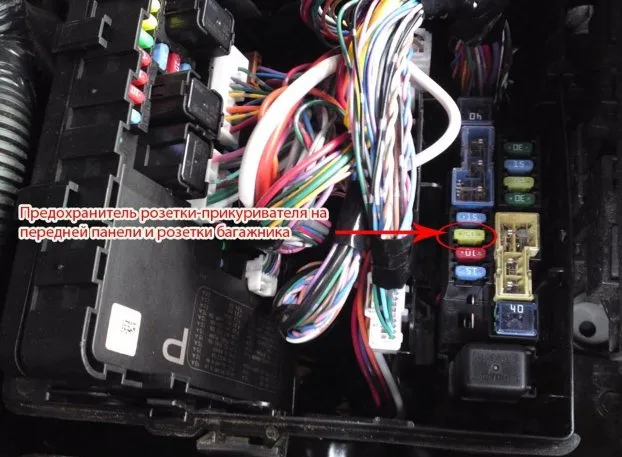

Cigarette lighter fuses under the hood
