Hyundai Equus also known as Hyundai Centennial luxury car was produced in two generations. In our material you will find a description of fuses and relays Hyundai Equus with block diagrams for models produced in 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016. We will also show the locations of these control units.
Blocks in the cabin
Fuses on the right side of the panel
This unit is located on the right side of the instrument panel (passenger side) behind a protective cover.
Description
Option 1
P/DOOR(FR) 15A Passenger door electric lock
ESCL 25A PDM
ICE BOX 15A Rear console switch, refrigerated compartment
HTD STRG 15A Heated steering wheel
S/HTD ECU(FR) 15A Passenger seat CCS control unit (for vehicles, passenger seat heating module (for vehicles without CCS system))
AUDIO(ACC) 10A Camera module, rear audio switch, audio system, front view monitor, multimedia control unit, main audiovisual module, MTS unit, RR MTS MIC H
/REST (FR) 10A Passenger seat electric switch
P/DOOR(RR) 15A Right rear door electric lock, right rear door curtain
P/OUTLET(FR) 10A Engine compartment fuse and relay box (front power outlet relay)
ECM 10A Upper assembly (electric motor sunroof), rain sensor, rear curtain module
P/SEAT(FR) 20A Passenger seat IMS control unit (for vehicles with IMS), passenger seat power relay box (for vehicles without IMS)
S/ROOF 20A Overhead console assembly (sunroof motor)
A/CON(ACC) 10A Air conditioning control unit, IPM, PDM, center dash switch
P/OUTLET(RR) 15A Rear auxiliary socket
P/SEAT(RR) 20A Left seat power relay box
BODY UNIT 10A Instrument cluster (MICOM), rheostat, driver/passenger seat CCS control unit, passenger presence sensor, rear left/right seat CCS control unit, PDM, IPM

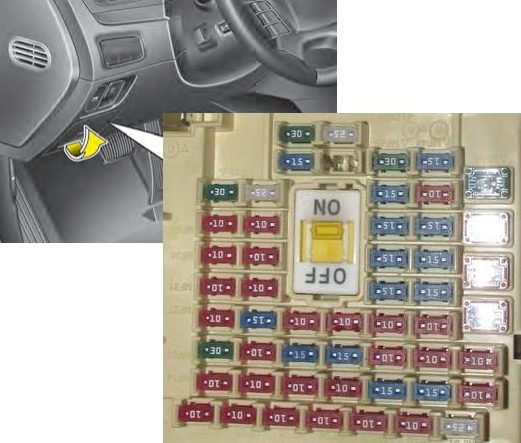

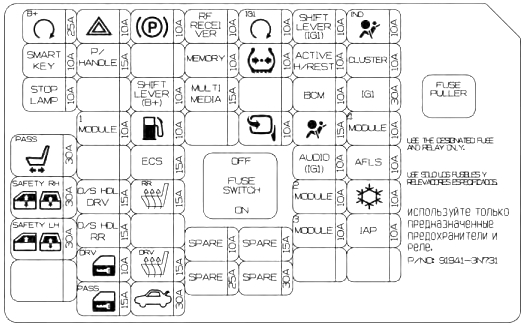

Fuses on the left side of the panel
Option 1
Located on the left end of the instrument panel (driver’s side) behind a protective cover.
Marking
P/WDW(RH) 30A Right rear power window module, passenger power window module
P/WDW(LH) 30A Left rear power window module, driver power window module
CHASSIS UNIT 10A Steering wheel angle sensor, left/right console switch,
ECS control unit, left/right Pre-Safe seat belts, tire pressure monitoring unit
CRUISE SW 10A Multifunction switch (Remocon), front panel switch, center panel switch
ESCL SW 10A
FOB holder 10A Instrument cluster
A/CON(IG1) 10A Air conditioning control unit, FOB holder
KEY ILLUMINATION 10A Start/stop button, FOB holder
P/DOOR(RL) 15A Left rear door electric lock, left rear
door window blind 30A Junction box in engine compartment (fuses: EHPS 10A, ECU(IG1) 10A
, TCU 15A, ESP 10A, STOP LP 10A, AFLS 10A, INHIBITOR SW 10A, CRUISE 10A)
DR LOCK(
(FL) 15A Decorative lighting of the front left door, switch of the electric drive of the driver’s seat adjustment, electric lock of the driver’s door
A/BAG IND 10A Instrument cluster (airbag indicator)
AFLS 10A Automatic headlight range correction sensor (for cars without adaptive front light system) ), control unit of the adaptive front light system (for cars with AFLS system), left/right headlight
ESCL-1 10A PDM RR
DOOR MDL 10A Diagnostic connector, intelligent external handle of the left/right rear door, module of the left/right rear door
10A Module of the rear curtains
Option 2
Located under the dashboard.

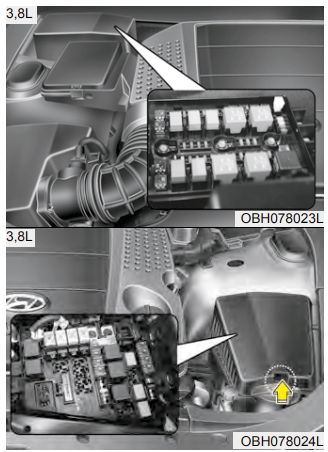

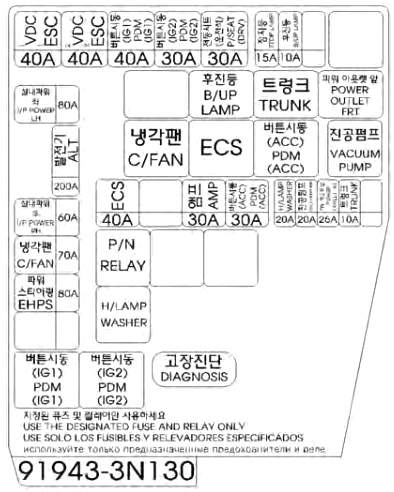

Blocks under the hood
One is located on the left side, the other on the right under the engine compartment.
Option 1
General decoding
ALT 200A Generator
I/P POWER(LH) 60A Left instrument panel junction box
I/P POWER(RH) 60A Right instrument panel junction box
COOLING FAN 60A EHPS cooling fan relay 80A
EHPS electric motor 4 A JBL audio-visual amplifier AMP-2 30A ESCL(ACC) amplifier 30A ESCL (ACC) relay ESP-1 30A ESP control unit, ESP-2 universal diagnostic connector 30A ESP control unit ESCL(IGN1) 30A ESCL( IGN2) relay 30A ESCL (IGN2) relay P/SEAT(FR-LH) 30A Driver lumbar support control valve, driver IMS control unit, driver lumbar support switch H/LP WASHER 20A Headlight washer relay P/OUTLET (FR) 25A Front socket relay, cigarette lighter TRUNK OPEN 10A IMS trunk open relay 10A IMS STOP LP relay 10A Brake light relay, brake light switch, IPM, ESP control unit, upper brake light B/UP LP (G8BA) 10A Reverse light relay B/UP LP-2 (G6DA) 10A Left/right rear combination lamp, chrome electric rearview mirror, rear curtain module, audio system, main audiovisual module
WIPER 30A Wiper ECU
FAM POWER-2 40 A FAM
FAM POWER-1 40 A FAM
START 30A
WASHER start relay 15A AQS washer relay
10A Air quality sensor (AQS), fan relay, wiper ECU HTD
GL
IPM 10A IPM, low beam headlight relay
HORN 15A Horn relay
EPB-1 15A EPB brake control unit
EPB-2 15A EPB brake control unit
A/CON 10A Air conditioning control unit
BLOWER MOTOR
40 A Pre-Safe safety relay left seat
HTD GLASS(RR) 40 A Heated rear window relay
PRESAFETY(RH) 40 A Pre-Safe seat belt right seat
ECU(IG1) 10A
ESP ECU 10A ESP control unit, relay and fuse box in the engine compartment (universal diagnostic connector)
EHPS 10A EHPS module
AFLS 10A Left/right headlight
TCU 15A TCM
MIRROR HTD 10A Air conditioning control unit, left/right electric outside rearview mirror
FUEL PUMP 20A Fuel relay

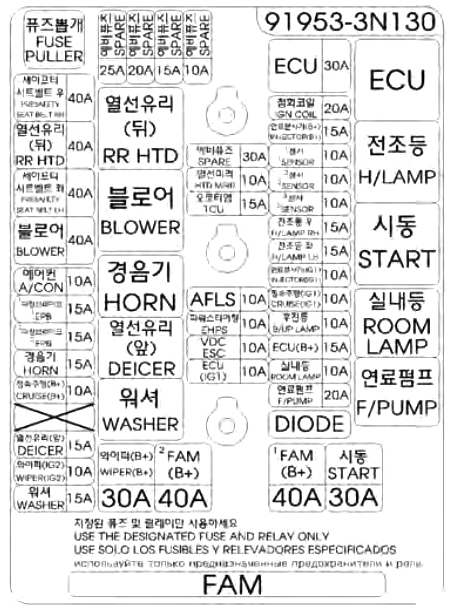

Option 2
Scheme 1
