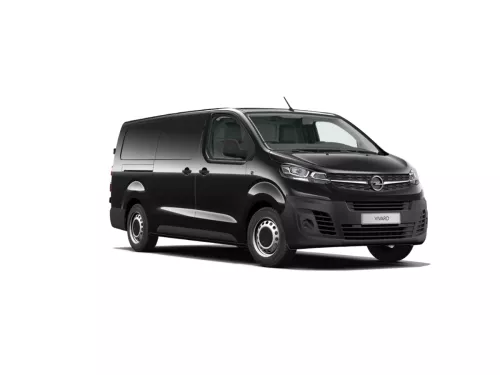

Opel Vivaro C represents the 3rd generation of the model range, Vivaro which was assembled in 2020, 2021, 2022, 2023, 2024, 2025. In our material you can find a description of the fuses and relays of the Opel Vivaro 3 with block diagrams, photo examples of execution and locations. Let’s highlight the cigarette lighter fuse.
The purpose of the fuses in the blocks, as well as their number, may differ from that shown and depends on the year of manufacture, the level of electrical equipment (ECO / FULL) and the region of delivery of your car.
Blocks in the cabin
Fuse box

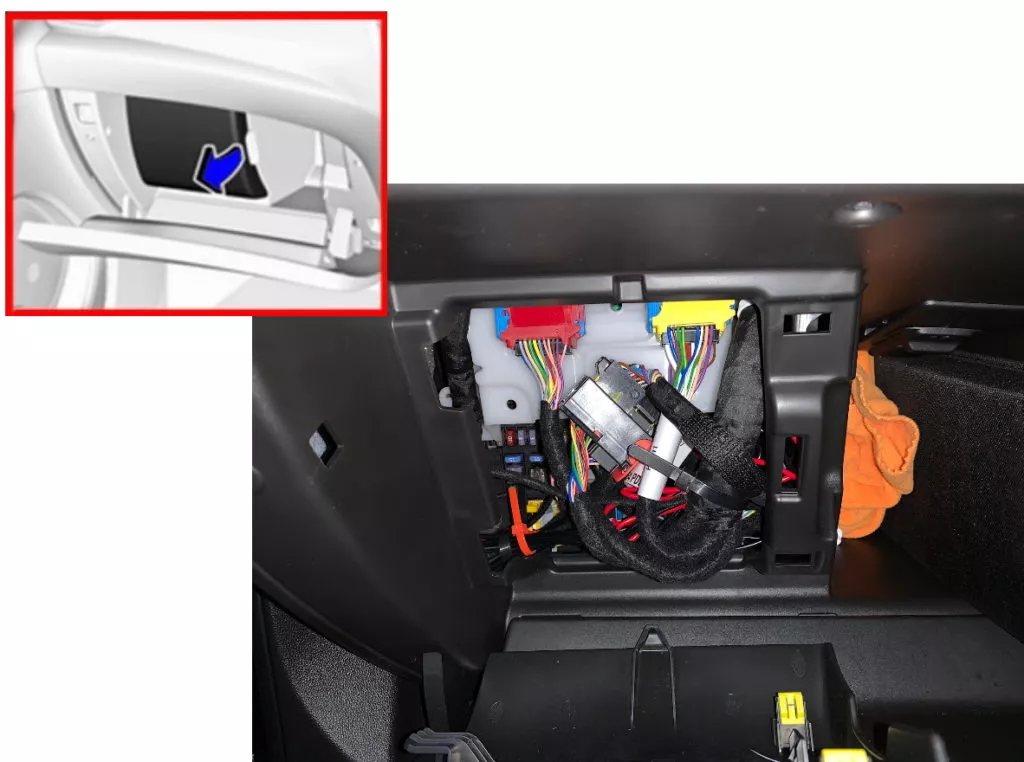

The main fuse box is located on the left side at the bottom of the instrument panel.

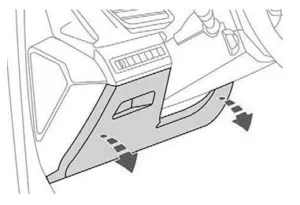

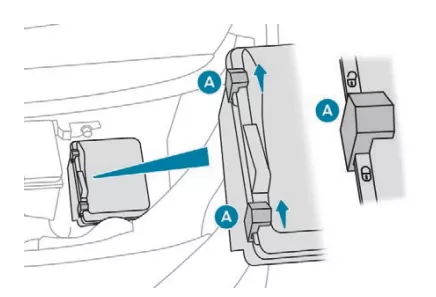

To access it, you need to remove the protective cover or the small box. In right-hand drive cars, this unit is located in the glove compartment.

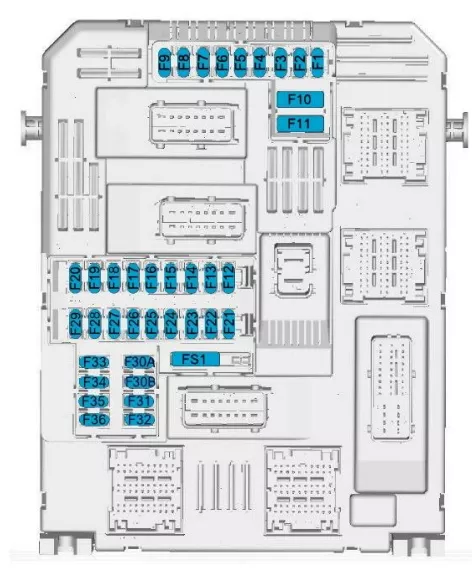

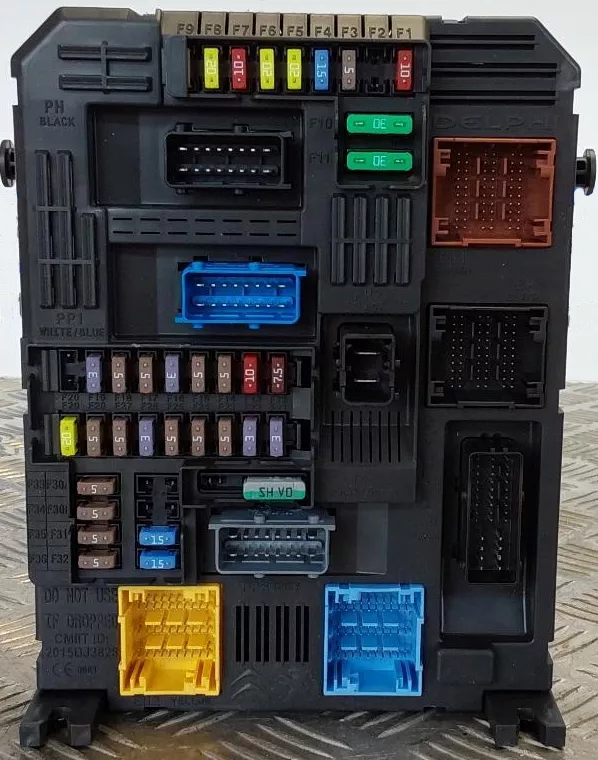

The fuse box itself will look something like this.
| No. | A | Description |
|---|---|---|
| F1 | 30 | Full: Ignition switch, push-button starter ADML. |
| 10 | ECO: photochromic interior mirror, fuel additive pump, DAEH, ASR+ knurled wheel, CTC clutch. | |
| F2 | 3 | Full: Steering wheel angle sensor. |
| F3 | 3 | Full: Appliance Socket, Joystic Comelec |
| 5 | ECO:BSGTC | |
| F4 | 7.5 | Full: instrument socket, diagnostic socket, dual-function brake switch, central voltage maintenance device. |
| 15 | ECO: Signal | |
| F5 | 5 | Full: multifunctional screen, rear view camera, parking assistance with ECU. |
| 20 | ECO: Windscreen washer pump front/rear | |
| F6 | 15 | Full: |
| 20 | ECO: Windscreen washer pump front/rear | |
| F7 | 10 | Full: Audio Amplifier, Rear BCC |
| 10 | ECO: Front 12V socket. | |
| F8 | Rear wiper | |
| F9 | Interior lamp | |
| F10 | Front and rear external/internal engine locks with power drive + fuel catch can | |
| F11 | Front and rear inner/outer fuel locks Fuel catch can | |
| F12 | 3 | Full: Alarm, APV alarm voltage. |
| 7.5 | ECO: CTC main stop, DMTC, diagnostic connector. | |
| F13 | 3 | Full: Boiler control module, APV voltage |
| 10 | ECO: Front Multiplexer, CRT, BCC, VTH, MCP | |
| F14 | 15 | Full: |
| 5 | ECO: BTA, alarm | |
| F15 | 5 | ECO: Diagnostic connector |
| F16 | 5 | Full: |
| 3 | ECO: Stop Switch, DMTR | |
| F17 | 10 | Full: 12V power outlet in the trunk or cargo area. |
| 5 | ECO: CMB | |
| F18 | 5 | Full: autonomous telematics unit. |
| 5 | ECO: Cabin coolant circuit heater. | |
| F19 | 5 | Full: Rastreador |
| 3 | ECO: BSG, HDC, VCI | |
| F20 | 15 | Full: fuse box in relay compartment 3. |
| F21 | 3 | Full: Nomadic lamp charging, card reader |
| 3 | ECO: Steering Lock, Push DEM (ADML) | |
| F22 | 3 | Full: glove compartment lighting, card reader. |
| 3 | ECO: CDPL, CVM | |
| F23 | 3 | Full: Platinum mirrors for driver gate control, taxi, parking assistance with blind spot monitoring. |
| 5 | ECO: The seat belt reminder light is displayed. | |
| F24 | 5 | Full: General Case of Servitude, Communication Module sous volant (CV00) |
| 5 | ECO: AAS, rear camera | |
| F25 | 5 | Full: projector corrector switch, electrochromic rearview mirror. |
| 5 | ECO: Airbag | |
| F26 | 3 | Full: instrument sockets, driver and passenger release indicator, APV voltage. |
| 3 | ECO: Electronic Stability Control | |
| F27 | 3 | Full: Rain sensor, Switch under the steering wheel. |
| 5 | ECO: Heater Control Module | |
| F28 | 10 | Full: MCP-BCC front shift, front panel multiplexer, audio system and head-up display. |
| 5 | ECO: Rastreador | |
| F29 | 5 | Full: Engine Wiring Housing (PSF1) |
| 20 | ECO: RD6, NAC, RCC | |
| F30A | 15 | Full: Audio strain APV |
| F30B | 15 | Full: Audio strain APV |
| F31 | 5 | Full: ECU airbag |
| 15 | ECO: Second Assembly Audio System | |
| F32 | 5 | Full: left and right sliding side door. |
| 15 | ECO: cigarette lighter or 12V socket. | |
| F33 | 15 | Full: cigarette lighter or 12V socket. |
| F34 | 3 | Full: Residential Common Easement, Trailer Switchgear |
| 5 | ECO: Taxi unit, AAS with SAM, adjustable rear-view mirrors, APC-transformer body. | |
| F35 | 5 | Full: Trailer Switching Unit Combined ECU, Instrument Cluster Control Computer |
| 5 | ECO: headlight height adjustment, BCP, coolant temperature level, diagnostic connector. | |
| F36 | 20 | Full: Audio |
| 5 | ECO: glove compartment light, recharger, map reading light. | |
| Relay | ||
| R1 | Food + accessories | |
| R2 | Power + CAN | |
| R3 | Full: Clear the back screen. | |
| ECO: Supply +APC | ||
| R4 | Full: Front and rear outer/inner engine locks. | |
| R9 | ||
| R4 | ECO:Rear Wiper Relay | |
| R5 | ECO: Windscreen washer pump | |
| R6 | ECO: Rear window washer pump | |
| R7 | ECO: Beep | |
| R8 | ECO: Front and rear outer/inner engine locks. | |
| R13 | ||
Fuse 32 or 33 is responsible for the operation of the cigarette lighter.
Fuse and relay box

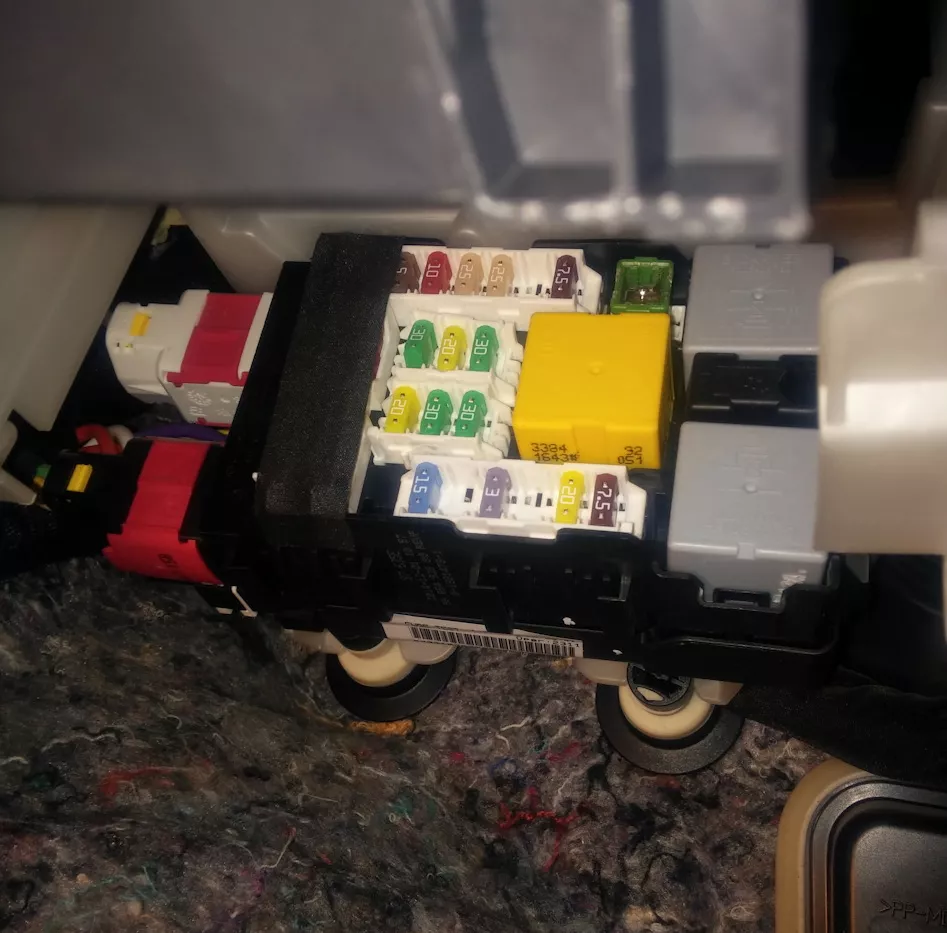

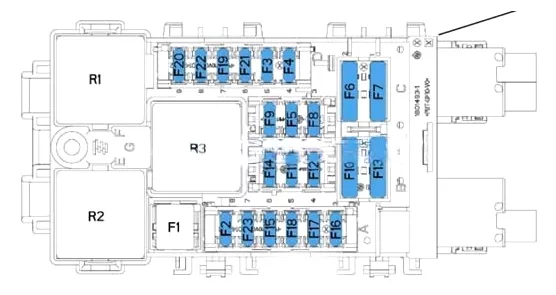

This block is located behind the main fuse box and is mounted on the front wall of the passenger compartment.
| No. | A | Designation |
|---|---|---|
| F1 | 40 | Rear window heating |
| F2 | 7.5 | Full: Full: heated mirror |
| 10 | ECO: Heated mirror | |
| F3 | 20 | Full: 230V power socket. |
| 30 | ECO: Electric front windows | |
| F4 | 15 | Full: folding rear view mirror. |
| 30 | Full: Folding rear view mirror, Si 2 LVE | |
| 20 | ECO: 12V socket, 230V APV kit. | |
| F5 | 30 | Full: |
| 20 | ECO: BSG RQ | |
| F6 | 30 | Full: Front Electric Window Motor |
| 10 | ECO: Folding mirrors | |
| F7 | 30 | Full: heated seat |
| 10 | ECO: Folding mirrors | |
| F8 | 25 | Full: audio amplifier |
| 40 | ECO: | |
| F9 | 20 | Full: AR cleaning from two screens |
| 15 | ECO: 12V RG2 socket | |
| F10 | 15 | Full: 12V power socket. |
| 3 | ECO: BSG | |
| F11 | 5 | Full: Common Cause of Slavery with a Trailer, 7/13 tracks |
| 20 | Full: Common Cause of Slavery with a Trailer, 7/13 tracks | |
| 20 | ECO: heated cover, dual rear window wiper. | |
| F12 | 30 | Full: Driver’s seat with electric adjustment |
| 20 | ECO: Heated seat or heated bench seat. | |
| F13 | 40 | Full: |
| F14 | 30 | Full: electrically adjustable passenger seat. |
| F15 | 25 | Full: |
| F16 | 5 | Full: |
| F17 | 10 | Full: |
| F18 | 25 | Full: |
| F19 | 7.5 | Full: |
| F20 | 3 | Full: |
| F21 | 3 | Full: left and right sliding side door with electric drive. |
| F22 | 20 | Full: 12V glove box, 230V APV kit. |
| F23 | 3 | Full: General case on trailer easement |
| Relay | ||
| R1 | Full: right folding mirror. | |
| ECO: rear window fogging + mirrors | ||
| R2 | Full: left folding mirror. | |
| ECO: Electric windows | ||
| R3 | Full: heated mirrors and rear view. | |
| ECO: Folding mirrors | ||
| R4 | ECO: Folding mirrors | |
| R5 | ECO: Heated lid | |
| R6 | ECO: 12V socket. | |
| R7 | ECO: Heated seat. | |
Blocks under the hood
Fuse and relay box

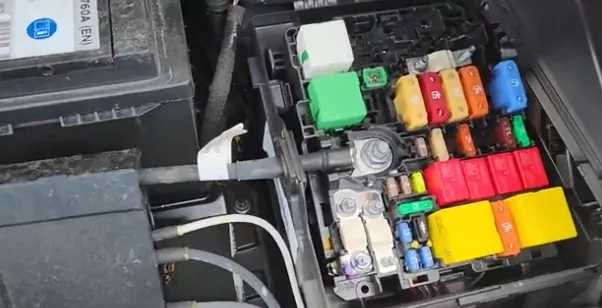

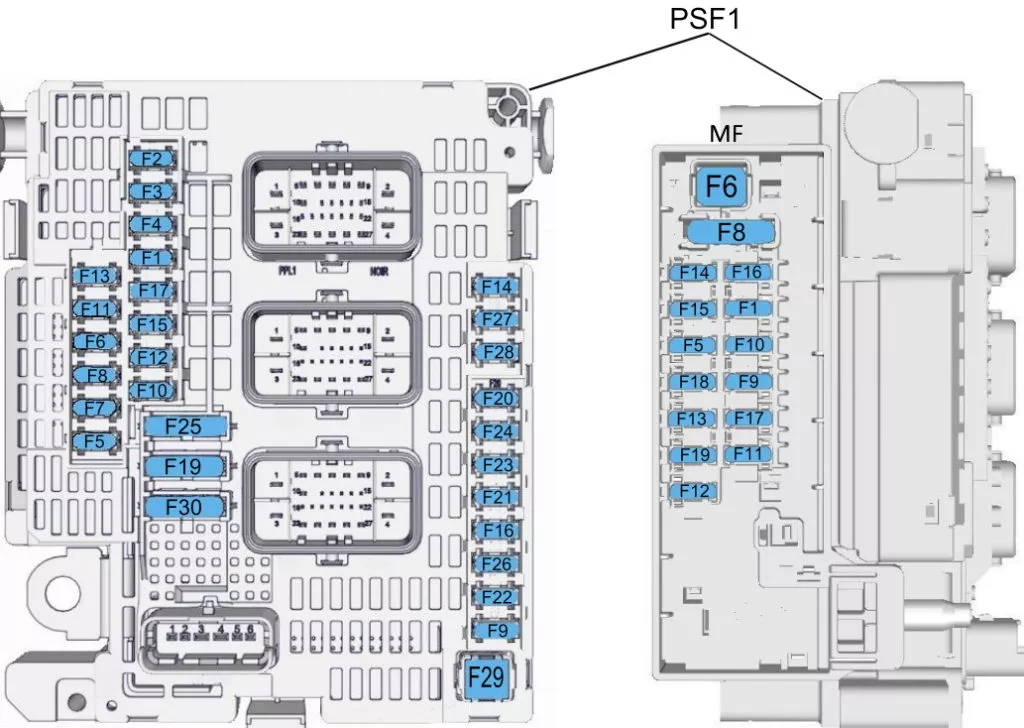

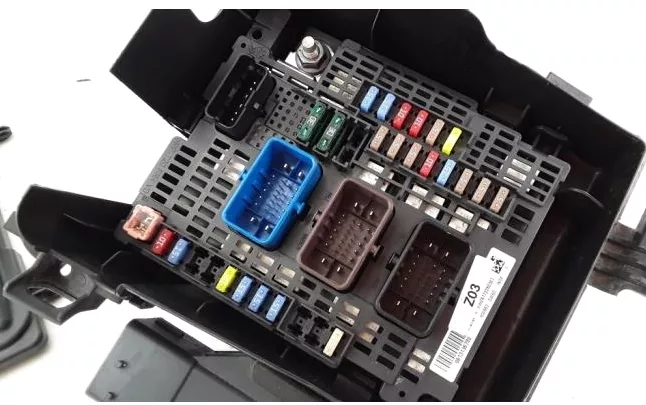

In the engine compartment, under the hood, on the left side, next to the battery, there is a fuse and relay box. An example of access is shown in the model.
Option 1 (Full)
| No. | Purpose |
|---|---|
| MF1 | – |
| MF5 | – |
| MF6 | – |
| MF8 | Diesel Euro 6: NOX and SCR Sensors |
| MF9 | – |
| MF10 | – |
| MF11 | – |
| MF12 | Windscreen wiper, manual transmission, ECU Ax6 III |
| MF13 | Coolant and cabin heater |
| MF14 | ECU COMELEC Ax6 III |
| MF15 | – |
| MF16 | – |
| MF17 | – |
| MF18 | Dual Function Brake Switch |
| MF19 | – |
| F1 | Central Power Switch Relay Control 1032, Diesel Injectors |
| F2 | Cooling Fan Block Relay Control, Bicycle Fan, Block |
| F3 | Steering relay, Centralized voltage maintenance device, Reversible generator |
| F4 | SCR injector |
| F5 | Pump driven gate valve |
| F6 | Intake Air Flow Meter, EGR Solenoid Valve Replacement |
| F7 | Diesel Pump Flow Control Electromagnetic, Proportional Electromagnetic TGV |
| F8 | Water in Diesel Fuel Detection Sensor Electromagnetic Oil Pump |
| F9 | Electronic immobilizer |
| F10 | – |
| F11 | 3-way steering protection switch housing, engine correction microprojector, fuel additive pump. Electric sliding side door. |
| F12 | Heating nozzle |
| F13 | Rastreador DMTR |
| F14 | Powerful mass pump Front and rear window washer |
| F15 | ARTIV Calculation, Diagnostic Connector, Clutch Switch, Coolant Level Sensor, Power Steering ECU |
| F16 | Pump group of air conditioner AR |
| F17 | Built-in system interface |
| F19 | Wiping the front glass |
| F20 | Pump power, front and rear window washer |
| F21 | Headlight washer pump |
| F22 | Sonor signaling |
| F23 | Right road light |
| F24 | Left road lights |
| F25 | – |
| F26 | – |
| F27 | – |
| F28 | – |
| F29 | Starter |
| F30 | Diesel heater |
| Relay | |
| R1 | Diesel Engine ECU |
| R2 | Driving BSM |
| R3 | Driving BSM |
| R4 | Engine ECU, CPC (1032) steering relay, centralized voltage maintenance device, reversible alternator, engine fan |
| R5 | Engine ECU, FAP additive pump (DV6C-DV6D) |
| R6 | Supply + APC |
| R7 | Starter |
| R8 | Wiping the front glass |
| R9 | |
| R10 | Front and rear window washer pump |
| R11 | Headlight washer pump |
| R12 | Sonor signaling |
| R13 | – |
| R14 | Left road lights |
| R15 | Right road light |
| R16 | |
| R17 | |
Option 2 (ECO)
| No. | A | Designation |
|---|---|---|
| F1 | 40 | Air conditioner fan |
| F2 | 60 | ABS/ESP system computer |
| F3 | 80 | Passenger compartment fuse box 3 |
| F4 | 30 | ABS/ESP system computer |
| F5 | 50 | Intelligent Switch Unit (Right direction indicators, front right side lights, right brake lights, left reversing lights, right fog lights.) 20A Heated windshield |
| F6 | 60 | 20A Dual Speed Cooling Fan (GMV) Control Unit BVA AxN8 Calculator – BVA Ax6III Calculator (Thermal) |
| F7 | 70 | Intelligent Switching Unit |
| F8 | 15 | Fuel Pump Engine Control, Pilot-controlled Thermostat – Oil Pump Solenoid Valve (EC Flush – Electric Solenoid Valve – Intake Air Flow Meter – Oxygen Sensors (EP6FADTX), Pilot-controlled Thermostat – Switchable Water Supply, Electric Solenoid Valve (EP6FDT) 20A Engine Computer (for EB2DT or EP6FDT) l Controlled Lift Pump (for DV6F or DW10F) |
| F9 | 15 | Pilot-controlled booster pump (DW10F), inlet and outlet valves v solenoid valves – Pilot-controlled thermostat – Oil pump solenoid valve (EC flushing – Electric solenoid valve – Intake air flow meter – Oxygen sensors (EP6FADTX), Pilot-controlled thermostat – Switchable water supply Electric solenoid valve (EP6FDT) |
| F10 | 15 | Engine Computer – Diesel Fuel Flow Control Pump Magnet – Turbocharger Pressure Control Solenoid Valve (DV5R and DW10F) – Thermostat S (DV5R) – Purge Heater – Inlet and Outlet Adjustable Solenoid Valves (EP6FADTX) – Cylinder Purge – Oxygen Sensors Raised (EB2ADTS) |
| F11 | 20 | Engine computer |
| F12 | 5 | Instrumentation – GMV relay – Istars – DMTC, turbocharged electric water cooling (EB2ADTS and EP6FADTX), intelligent service unit (EP6FADTX) |
| F13 | 5 | Intelligent Switching Unit |
| F14 | 5 | Battery charge level block |
| F15 | 20 | Electric heated windshield |
| F16 | 15 | Fog lights 10A Daytime running lights |
| F17 | 10 | Diagnostics of the GMP BFRM relay – BSI1 — Engine computer — Lower Nox sensor (injectors DV5R and DW10 (DV5R) |
| F18 | 10 | Right headlights high beam |
| F19 | 10 | Left headlights high beam |
| F20 | 30 | Engine Computer l Booster Pump (for ER6EDT) – Ignition Coils (EB2ADTS and EP6FADTX) |
| F21 | 30 | Starter |
| F22 | 40 | Reserve – Taxi |
| F23 | 40 | Starter / Generator |
| F24 | 40 | Passenger compartment fuse box 5 |
| F25 | 40 | Passenger compartment fuse box 3 |
| F26 | 15/20 | Heater |
| F27 | 25 | Intelligent Switch Unit (Right Low Beam Headlight – Right Reversing Lights – Left Fog Lights – Left Rear Side Lights – Third Brake Light.) |
| F28 | 30 | Urea pump power supply and urea tube heating resistor (UCE or DV5R) – Nox sensor (DW10F) – Engine computer (EP6FADTX) – (BlueInjection, AdBlue) |
| F29 | 40 | Windscreen wiper |
| F30 | 80 | Preheating block |
| F31 | 80 | Switching and protection unit |
| F32 | 80 | Power steering, Left low beam headlight – Static cornering lights – Side repeater turn signals – Left turn signals – Front left and rear right side lights – Left brake lights – Number plate lights. |
| Relay | ||
| R1 | Engine Management Computer / Diesel Euro6 (SCR module supply) | |
| R2 | Air Conditioning Compressor / Windscreen Heated | |
| R3 | Starter / Thermal pre-treatment | |
| R4 | Fog lights / daytime running lights | |
| R5 | Air conditioner fan | |
| R6 | Starter | |
| R7 | Front windshield wiper | |
| R8 | Front windshield wiper | |
| R9 | Headlights | |
Block on the battery
A high-power fuse block is attached to the positive terminal of the battery.
| No. | A | Purpose |
|---|---|---|
| 1 | 60 | Electric control unit for two-speed fan motor |
| 2 | 100 | Fuse box |
| 3 | 80 | Power steering |
| 4 | 80 | Fuse box in the passenger compartment |
| 5 | 80 | Fuse box in the passenger compartment |
