Dodge Viper (2004, 2005, 2006, 2007) Fuse Box and Relay Diagram.

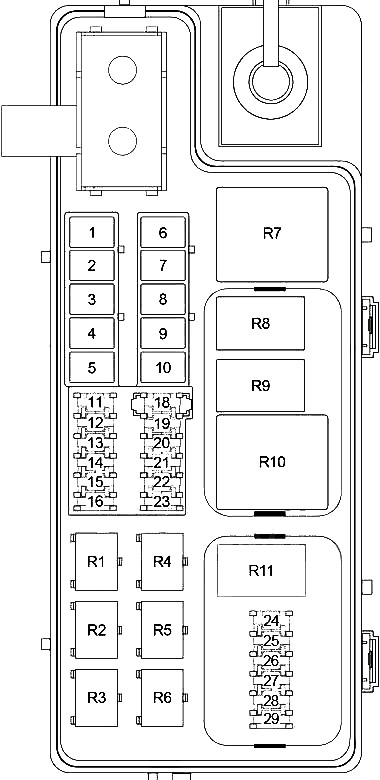

Engine Compartment Fuse Box Diagram

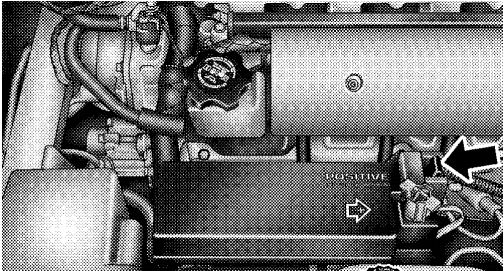

The power distribution center is located in the engine compartment. This center contains fuses and relays
| No. | A | Protected component |
|---|---|---|
| 1 | 40 | Fan Motor Relay |
| 2 | 40 | Starter relay, ABS |
| 3 | 30 | Body control module |
| 4 | 20 | Sound amplifier |
| 5 | 30 | Adjustable pedal switch, passenger window up relay, passenger window down relay |
| 6 | 40 | Headlight relay, body control unit |
| 7 | 30 | ABS |
| 8 | 30 | Operation/auxiliary equipment relay |
| 9 | 40 | Headlight relay (fuse: “24”, “25”) |
| 10 | 30 | Ignition switch (fuses: “27”, “28”, “29”) |
| 11 | 20 | Automatic Shutdown Relay, Transmission Control Module, Fuel Injectors, Oxygen Sensor, Hydraulic Cooling Module, Ignition Coil Pack |
| 12 | 20 | Cigarette lighter, data port |
| 13 | 15 | Multi-function switch (flasher, danger) |
| 14 | 15 | Oxygen Sensor Relay, Shift Skip Solenoid, Reverse Lock Solenoid |
| 15 | 20 | Rear Window Defogger Relay |
| 16 | 20 | Socket |
| 18 | 15 | Radio, power mirror switch |
| 19 | 15 | Horn relay |
| 20 | 15 | A/C Compressor Clutch Relay, Interior Light, Dome Light, Sun Visor Amplifier, Illuminated Entry, Reading Light |
| 21 years old | 15 | Brake light switch |
| 22 | 15 | Fuel pump relay |
| 23 | 10 | Airbag control module |
| 24 | 20 | Right headlight (HID) |
| 25 | 20 | Left headlight (HID) |
| 26th year | 20 | Windscreen wiper control module, windscreen wiper motor |
| 27 | 10 | Airbag control module |
| 28 year | 15 | Pressure gauge block, tire pressure monitoring module, body control module, push-button starter switch |
| 29 | 15 | Powertrain Control Module, A/C Compressor Clutch Relay, EVAP/Purge Solenoid, Oxygen Sensor Relay, Fuel Pump Relay |
| Relay | ||
| R1 | Starter | |
| R2 | Horn | |
| R3 | Air conditioning compressor clutch | |
| R4 | Automatic shutdown | |
| R5 | Headlamp | |
| R6 | Oxygen sensor | |
| R7 | Fan motor | |
| R8 | Fuel pump | |
| R9 | Rear window heating | |
| R10 | — | |
| R11 | Launch / Accessory | |
