Renault Megane 2 generation was produced in 2002, 2003, 2004, 2005, 2006, 2007, 2008 and 2009 with hatchback, sedan, station wagon bodies. The sedan was assembled at a plant in Turkey, and the remaining modifications in France. In some countries, Megane 2 station wagons were sold under a different name – Megane Grand Tour. We will show where the fuse boxes and relays are located in the Renault Megane 2 generation and how to get to them. Also, photos of the boxes and diagrams with a description of the purpose of the elements, we will separately note the cigarette lighter fuse.
The execution of the units and the number of elements may differ from those presented and depend on the year of manufacture and the level of equipment. The current diagrams should be applied to the back of the protective cover of the unit.
Blocks under the hood
Under the hood of the 2nd generation Renault Megane there are 3 fuse boxes.

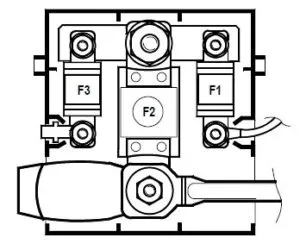

Fuse links on the battery
This block is located on the positive terminal of the battery.
- 30A – Electronic control unit in the cabin
- 350 A – gasoline engine vehicle, generator, 400 A – diesel engine vehicle – Engine compartment switchgear unit
- 30A – Engine compartment junction box
Switching block

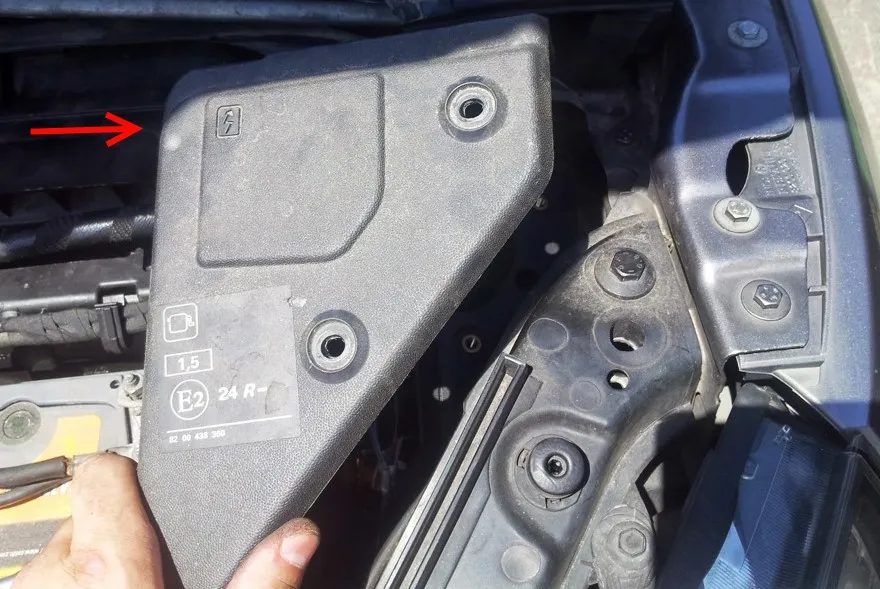

Installed in the left part of the engine compartment. Covered with a protective cover.
In one version, by removing the cover you will gain access to the block where it is possible to replace the fuse in another, the block will be located in another case and access to it will be difficult.

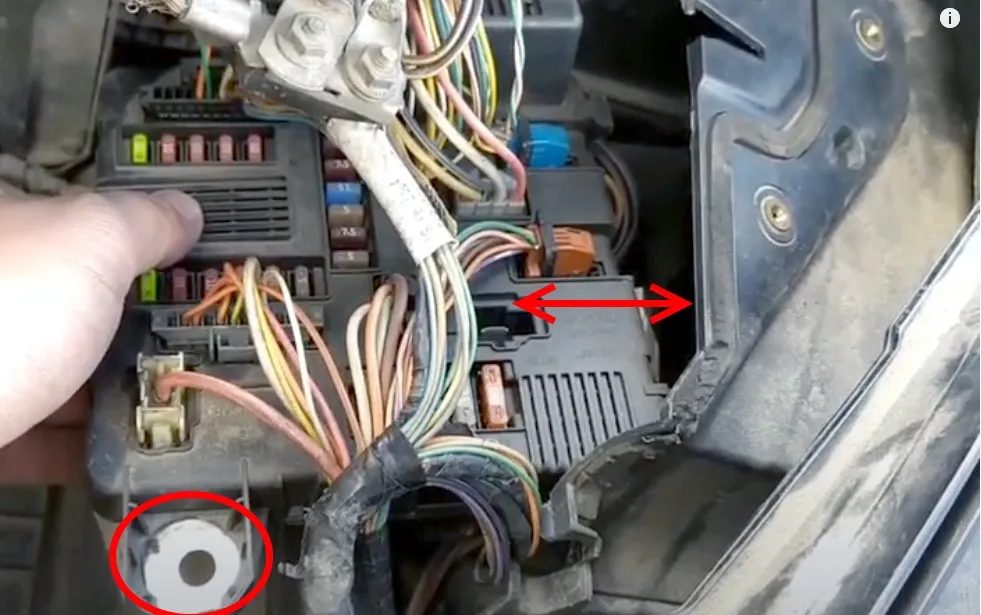

How to get to the fuse box under the hood of a Renault Megane 2

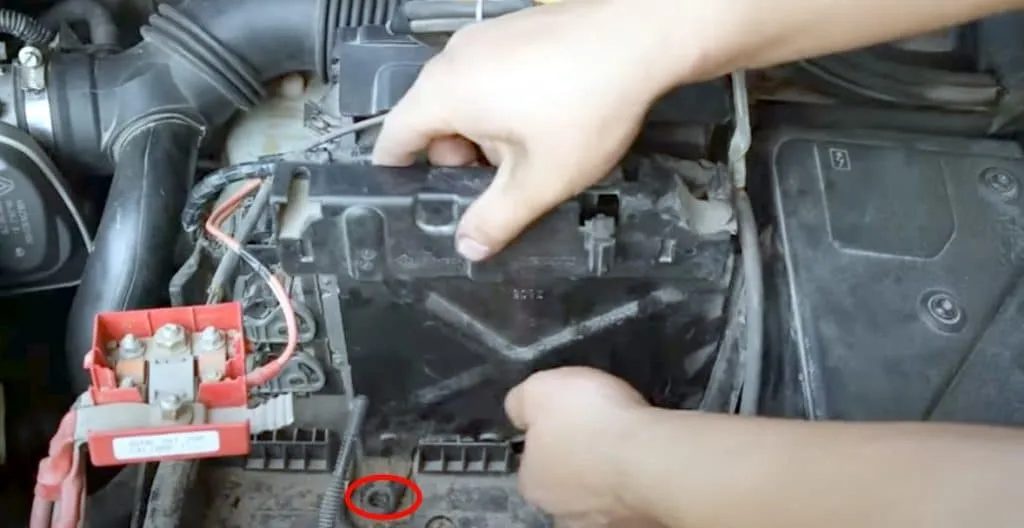

First, you need to remove the battery and unscrew the fasteners from its stand to get to the ECU.
Next, unscrew its fastening and move it aside. Remove the air duct near the radiator and lift the ECU holder up.

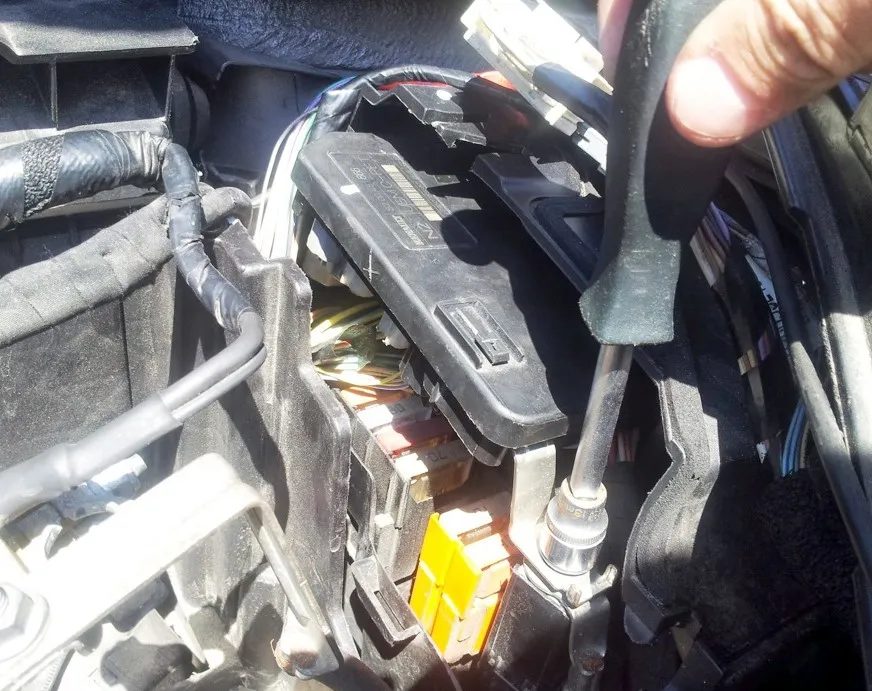

In the block itself we unlearn the bolt. And now we can move the block out. Don’t forget to disconnect the power connectors.

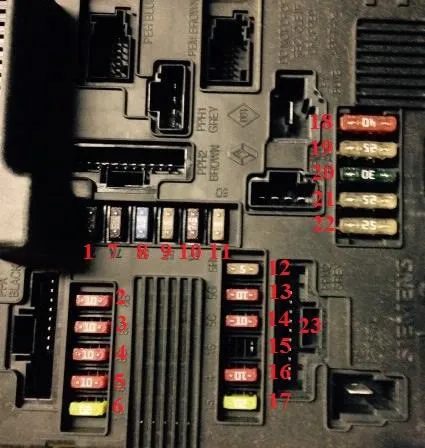

Option 1

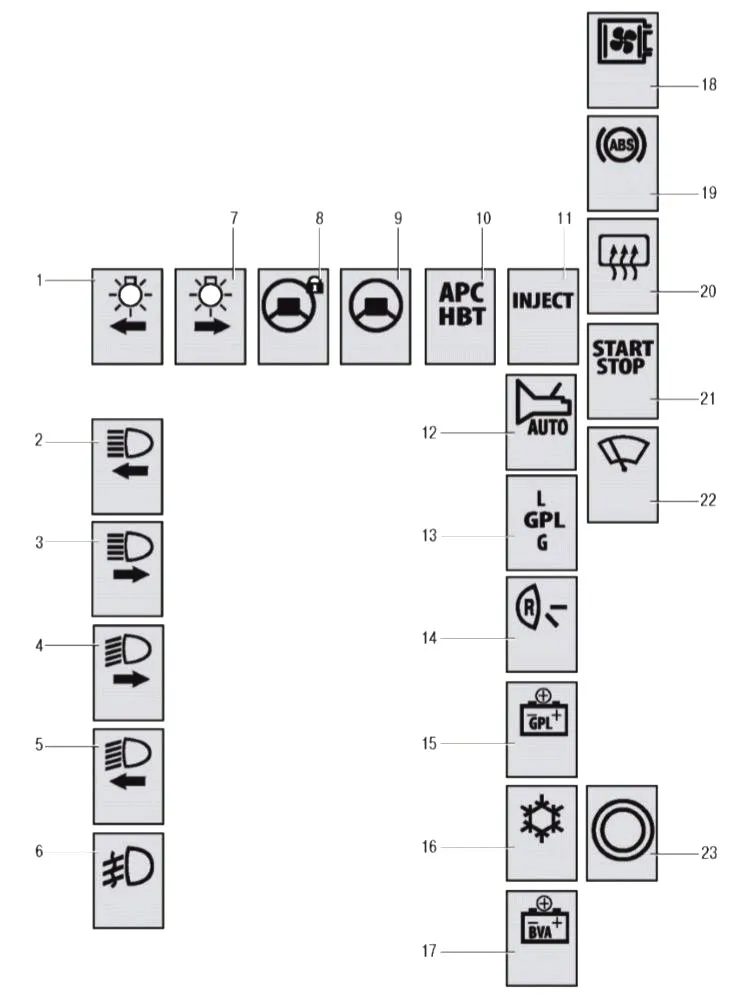

Photo – diagram
Description
| 1 | 7.5A Left headlight side light, cigarette lighter, central locking and hazard warning switch, headlight range control regulator, heating (air conditioning) and ventilation system control unit |
| 2 | 10A Left headlight high beam lamp |
| 3 | 10A Right headlight high beam lamp |
| 4 | 10A Right headlight low beam lamp, front and rear body height sensors, headlight beam corrector regulator, right headlight corrector motor |
| 5 | 10A Low beam lamp left headlight, left headlight corrector motor |
| 6 | 20A Fog Light Bulbs |
| 7 | 7.5A Right low beam headlight, right side light, automatic transmission selector position indicator, all door window lifter control unit |
| 8 | 15A Steering Column Anti-Theft Device Electric Locking Mechanism |
| 9 | 5A Driver Airbag Module, Electric Power Steering |
| 10 | 7.5A Automatic transmission selector position indicator, diagnostic connector |
| 11 | 5A Steering column anti-theft device electric mechanism |
| 12 | 5A Automatic transmission |
| 13 | 10A LPG Fuel System Control Unit |
| 14 | 10A Reverse Light Bulbs |
| 15 | 20A Relay for the electromagnetic valve of the liquefied gas supply system |
| 16 | 10A Air Conditioning Compressor Electromagnetic Clutch |
| 17 | 10A Reserve |
| 18 | 40A Electric fan of engine cooling system |
| 19 | 25A ABS Control Unit |
| 20 | 30A Rear door glass heating |
| 21 | 25A Starter Relay |
| 22 | 25A Windscreen Wiper Motor |
| 23 | 25A Reserve |

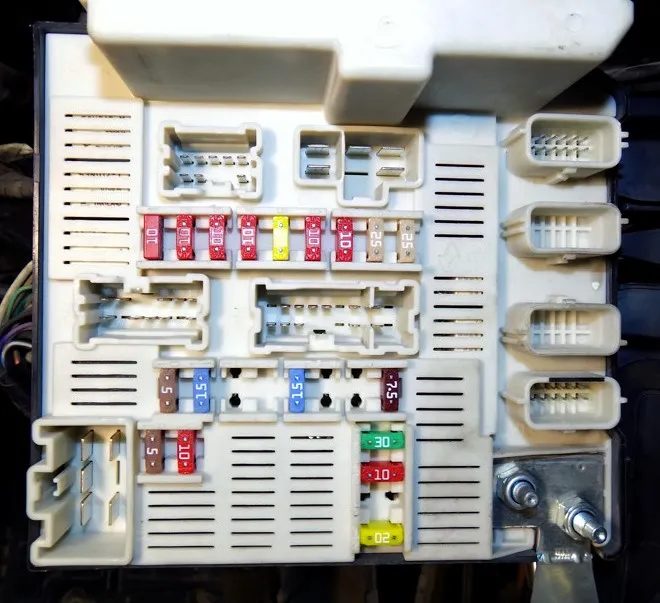

Option 2

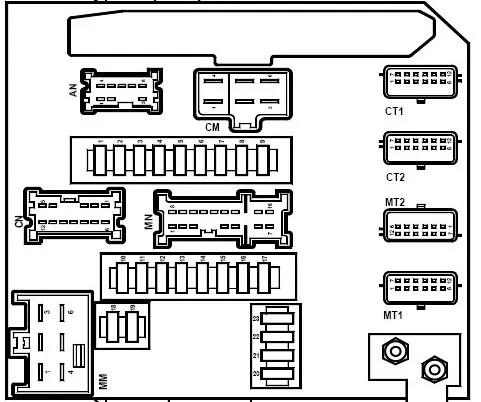

Example of execution
| 1 | 10A Right side light fuse (172-226) – Speed limiter switch (1081) – ESC switch (1106) – Automatic transmission selector lever position indicator (1129) – Left seat heating switch (1514) – Right seat heating switch (1513) – Hardtop switch |
| 2 | 10A Fuse for left lamps of the central electronic communication unit of the parking light (173-227) – cigarette lighter (101) – switches of electric door locks and hazard warning lights (1391) – headlight range control switch (1390) – climate control panel (319) – audio system (281) – multifunction display (653) – central electronic communication unit |
| 3 | 10A Right headlight fuse (low beam) (226) – rear body height sensor (1372) – front body height sensor (1373) – headlight range control switch (1360) – right headlight range control motor (538) |
| 4 | 10A Fuse for left headlight (low beam) (227) – left headlight corrector motor (537) |
| 5 | 20A Fuse for right and left fog lights (176-177) |
| 6 | 10A Left Headlight Fuse (High Beam) |
| 7 | 10A Right Headlight Fuse (High Beam) |
| 8 | 25A ABS ECU fuse (113) or electronic stability control system (1094) |
| 9 | 25A Windshield Wiper Motor |
| 10 | 5A Fuse for the “+” circuit after the ignition switch for airbags and electric power steering (756-1232) |
| 11 | 15A Steering Column Lock Electric Fuse |
| 12 | Reserve |
| 13 | Reserve |
| 14 | 15A Injection Systems, Protection Relay |
| 15 | 10A Reserve |
| 16 | 5A automatic transmission |
| 17 | 7.5A Fuse ‘+’ after ignition switch in the passenger compartment: selector lever position indicator (1128) – automatic transmission gear shift mode switch (129) – speed limiter/regulator switch (1081) – instructor controls on the training vehicle (459) – fuse and relay box in the passenger compartment (260) – additional heating relay 1 (1067) – additional heating relay 2 (1088) – diagnostic connector (225) – headset microphone ‘ free |
| 18 | 5A Electric steering column lock |
| 19 | 10A Reverse Lights |
| 20 | 20A Fuel Heating Relay |
| 21 | 15A Fuel washer pump |
| 22 | 10A Air Conditioning Compressor Clutch |
| 23 | 30A Rear window heating elements |

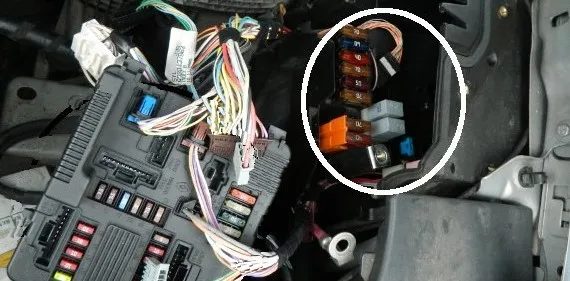

Power fuse box

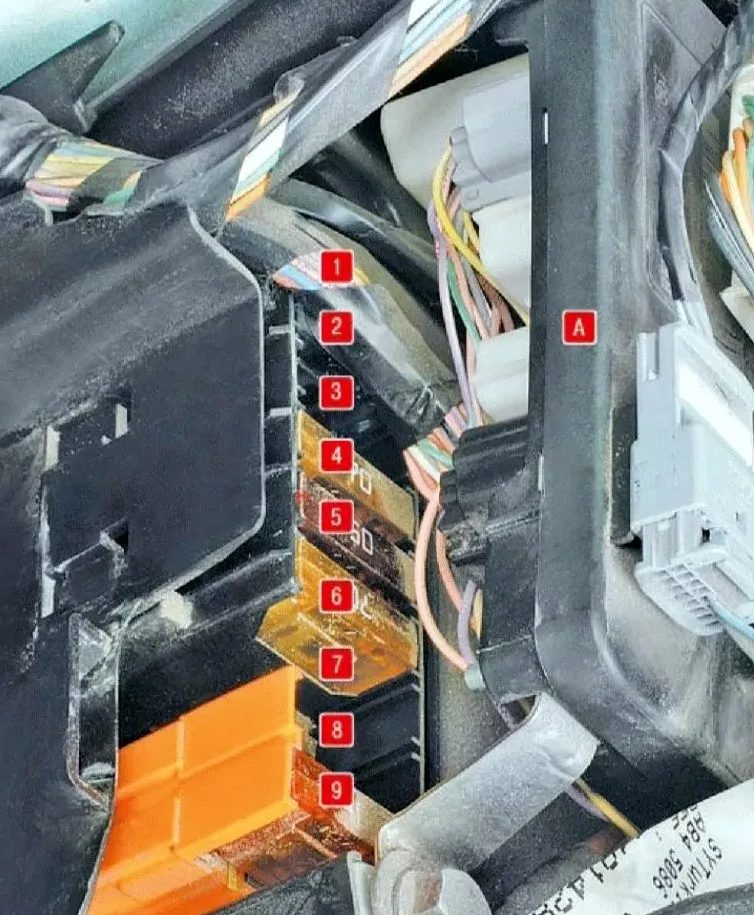

It is located under the switching block.
Scheme
| 1 | 70A Additional heating relay 2 |
| 2 | 60A Passenger Compartment Fuse and Relay Box / 70A Glow Plugs |
| 3 | 40A Additional heating relay 1 |
| 4 | 70A Electric Power Steering |
| 5 | 50A ABS Control Unit |
| 6 | 70A Passenger compartment fuse and relay box |
| 7 | 20A Diesel Engine Fuel Filter Heating Relay |
| 8 | 70A Pre-heating control unit |
| 9 | 70A Additional Heater Relay 2 |
Additional elements

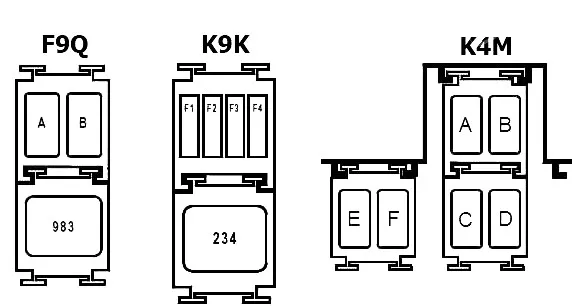

Additional elements may be installed next to the power fuse box.
| Engine F9Q | |
| A | F9Q: 20A Diesel Heater |
| IN | F9Q814: 20A Electric Coolant Pump |
| 983 | F9Q814: 50A Fuel injection control unit supply relay |
| K9K Engine | |
| F1 | Not used |
| F2 | Not used |
| F3 | Not used |
| F4 | 15A + main injector relay power supply (air flow meter power supply protection) |
| 234 | K9K724: 40A Engine Cooling Fan Relay 460W (with A/C) |
| 234 | K9K732: 50A Engine Cooling Fan Relay 550W (with A/C) |
| K4M Engine | |
| A | 20A Fuel Pump |
| IN | 20A LPG Fuel Pump Shutdown |
| WITH | 20A LPG Solenoid Valve |
| D | 20A Liquefied Petroleum Gas Tank |
| E | 20A Gas Expansion Valve Solenoid Valve |
| F | Not used |
Some elements are mounted outside the above blocks, for example the headlight washer pump and others.
Block in the cabin

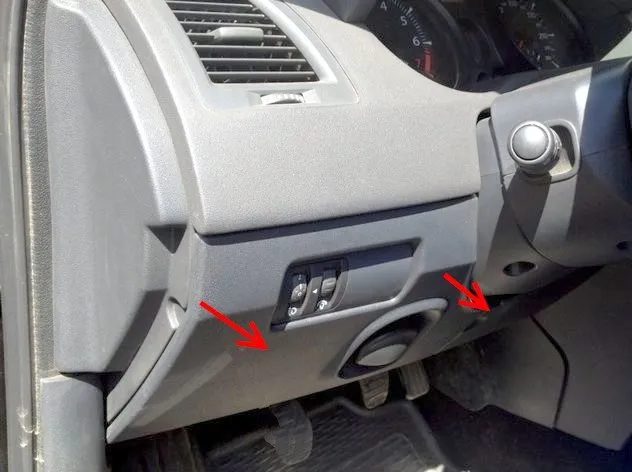

The main fuse box in the passenger compartment is located in the lower left part of the instrument panel, behind the protective cover.

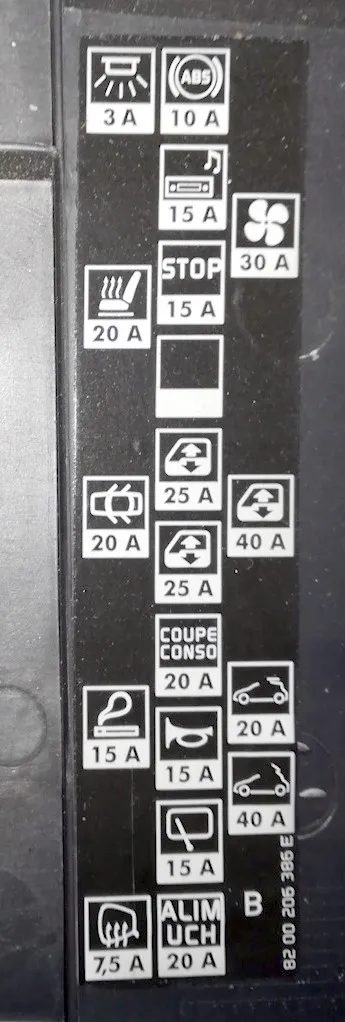

On its reverse side there will be up-to-date information with a decoding of the diagram.

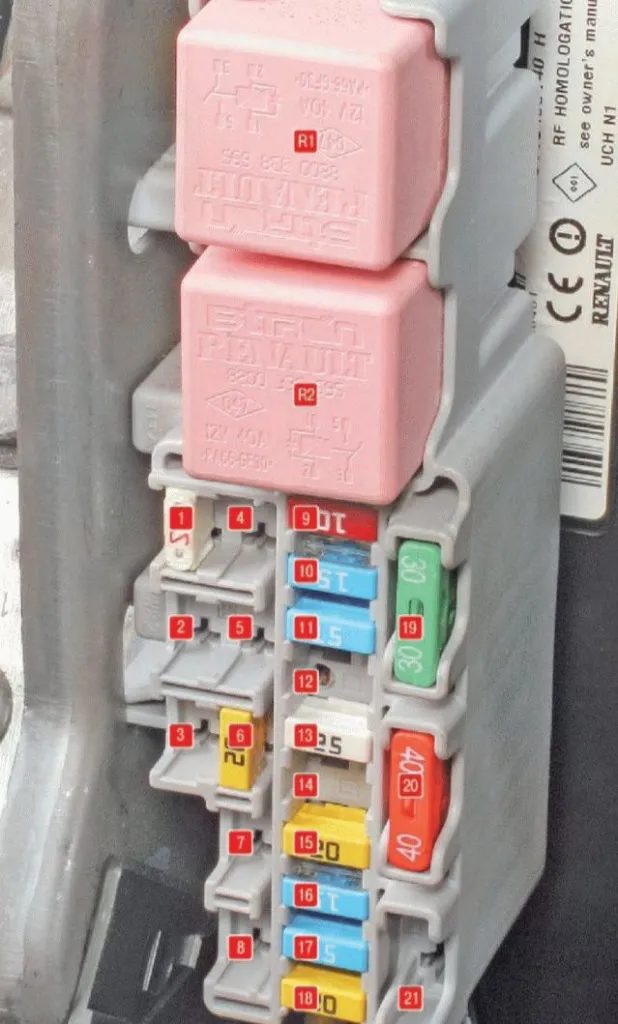

Example of a diagram
| 1 | Reserve |
| 2 | Reserve |
| 3 | Reserve |
| 4 | 3A Fan motor and cabin air temperature sensor, interior rearview mirror, rain and light sensors |
| 5 | 20A Driver and front passenger seat heating |
| 6 | 20A Electric locks for all doors |
| 7 | 15A Cigarette Lighter |
| 8 | 7.5A Heated exterior mirrors |
| 9 | 10A ABS Control Unit |
| 10 | 15A Head unit of the audio system, trip computer, electric motor for headlight washers, windshield and rear door glass (hatchback, station wagon), fuel heater (engine K9K), control unit for the heating (air conditioning) and ventilation system of the passenger compartment, control unit for the security alarm |
| 11 | 15A Stop light |
| 12 | Reserve |
| 13 | 25A Electric motor for driver’s door window lift |
| 14 | 25A Electric motor for window lift, front passenger door |
| 15 | 20A Instrument cluster, electric exterior mirrors |
| 16 | 15A Horn, Diagnostic Connector, Windscreen Wiper Motor |
| 17 | 15A Rear Door Wiper Motor |
| 18 | 20A Interior electrical equipment control unit, auxiliary equipment relay |
| 19 | 30A Electric motor for the heating (air conditioning) and ventilation system |
| 20 | 40A Electric motors for rear door window lifts |
| 21 | 20A 40A Electric sunroof motor, electric folding roof motor |
| R1 | Relay for electric motors of glass lifts of all doors |
| R2 | Additional equipment relay |
Fuse number 7, 15A, is responsible for the cigarette lighter.
Under the panel, individual relays can be installed outside this block, for example on the accelerator pedal holder No. 1524 – 40A – Brake light illumination, controlled by the ESP ECU or additional heating relay – on the left side of the cabin fan block.
