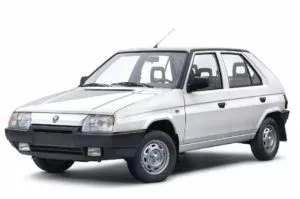

Skoda Favorit was produced in 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 and 1995 with hatchback, 5-door station wagon ( Skoda Forman ) and 2-seater pickup (van) bodies. In this article we will show the location of the fuse box and relay in the Skoda Favorit (Forman) with a diagram and a description of the purpose of its elements.

Block in the cabin

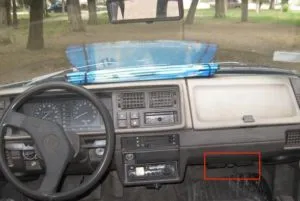

The fuse and relay box is located under the instrument panel, on the passenger side, and is covered by a lid.

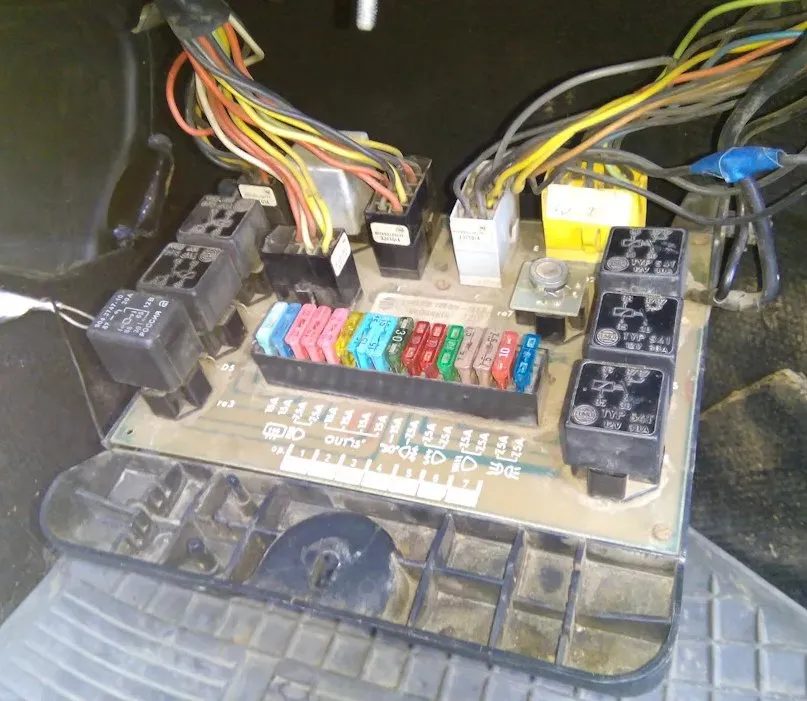

After unscrewing the fastener, you will see the block itself. It will also have the fuse designations on it.

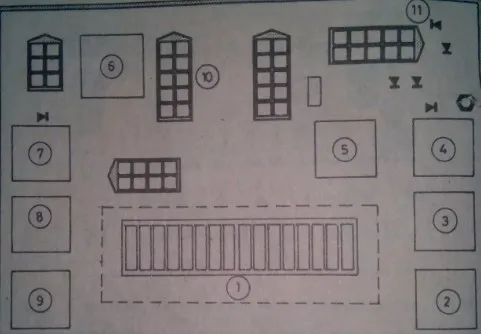

  1. Fuses
  2. Rear Fog Light Relay
  3. Front Fog Light Relay
  4. Low beam headlight relay
  5. Backup relay
  6. Windscreen Wiper Interrupter Relay
  7. Rear Window Defogger Relay
  8. High beam headlight relay
  9. Fuse relay 5,6,7 according to vehicle specifications
  10. Terminal block
  11. Diode

Purpose of fuses

Option 1

  1. 15A – Repair light socket, interior lights, brake light, horn, emergency brake lights
  2. 7.5A/15A – Front and rear window wiper motors, consumer motors, reversing lights, carburetor
  3. 7.5A – Direction indicators, instrument panel lighting and control lamps
  4. 15A – Radiator fan motor
  5. 15A – Rear window defroster
  6. 15A – Heater blower motor
  7. 7.5A – Left side lights, number plate light
  8. 7.5A – Right side lights
  9. 7.5A – Low beam left headlight
  10. 7.5A – Right low beam headlight
  11. 15A – Front and rear fog lights
  12. 7.5A – Right headlight high beam
  13. 7.5A – Left headlight high beam
  14. 15A – Spare

Option 2

  1. 15A – Spare
  2. 15A – Rear window defroster
  3. 7.5A – Left headlight high beam and indicator lamp
  4. 7.5A – Right headlight high beam
  5. 15A – Front and rear window wiper motors and reversing lights
  6. 15A – Low brake fluid warning system, hazard warning switch, rear window defogger switch, instrument cluster, seat belt warning system, digital clock
  7. 15A – Radiator fan motor and carburetor
  8. 15A – Heater blower motor
  9. 15A – Hazard warning lights switch, low beam headlight switch, brake light, interior light and instrument panel
  10. 7.5A – Rear fog lights and indicator lamp
  11. 7.5A – Left front fog light and indicator lamp
  12. 7.5A – Right front fog light
  13. 7.5A – Low beam left headlight
  14. 7.5A – Right low beam headlight and indicator lamp
  15. 7.5A – Left side lights and switch illumination
  16. 7.5A – Right side lights and instrument panel lighting
