Renault Kaptur is a compact crossover, manufactured specifically for Russia. It is an improved version of the basic Captur model. Years of production 2015, 2016, 2017, 2018, 2019 and to the present. We will show the location of the fuse boxes and their diagrams for the Renault Kaptur car with a description of the purpose of the elements. We will also highlight the fuses responsible for the cigarette lighter and add an operating manual for review.

Depending on the configuration, year of manufacture and country of destination, there may be differences in the presented material and your unit.

Fuses and relays under the hood

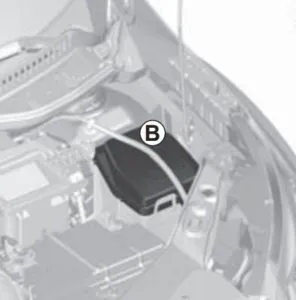

The location of this block in the engine is shown in the diagram.

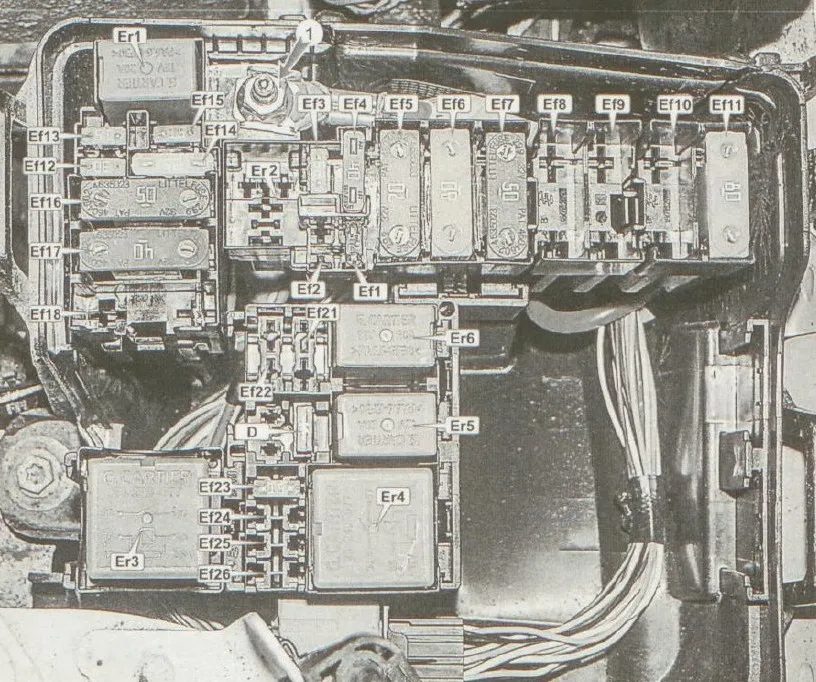

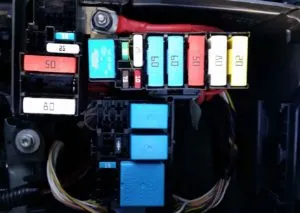

It looks something like this.

Ef17.5A Electrical Equipment Control Unit, Battery Current Sensor
Ef2Reserve
Ef325A ABS/ESP Electronic Stability Program Control Unit
Ef440A Rear Window Defogger, Exterior Mirror Defoggers, Fuse Circuits F38 and F47
Ef570A Passenger compartment fuse and relay box, fuse circuits F5/ F23/ F24/ F25/ F26/ F27/ F42/ F44
Ef680A Passenger compartment fuse and relay box
Ef750A ABS/ESP Electronic Stability Control Unit
Ef8Reserve
Ef980A Additional heater*1
Ef1040A Heated Windscreen, Right Side*1
Ef1140A Heated Windscreen, Left Side*1
Ef1230A Starter*3
Ef1215A Automatic transmission control unit*2
Ef1315A Automatic transmission control unit*3
Ef1330A Starter *2
Ef1425A Electronic Engine Management System, Fuel Pump
Ef1515A A/C Compressor Clutch Relay, A/C Compressor Clutch
Ef1650A Electric cooling fan
Ef1740A Electric fan for cooling the working fluid of the automatic transmission*3
Ef1880A Electric Power Steering Pump
Ef19Reserve
Ef20Reserve
Ef21Reserve
Ef22Reserve
Ef2315A Engine Management System
Ef24Reserve
Ef25Reserve
Ef26Reserve

*1 – Depending on the configuration, *2 – with 1.6 engine, *3 – with 2.0 engine.

Relay

Er120A Starter Relay
Er120A Reverse Light Relay
Er220A Security Alarm Siren Relay
Er320/35A Starter Relay / Cooling Fan Relay
Er435A Engine Management System Main Relay
Er520A Air Conditioning Compressor Clutch Relay
Er620A Fuel Pump Relay

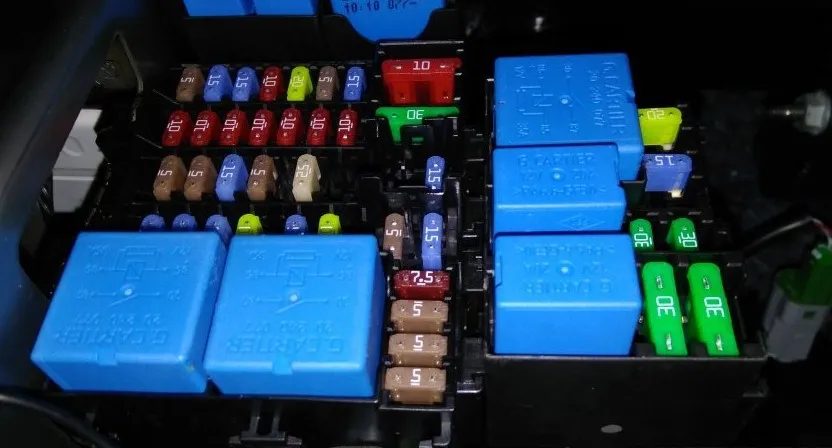

Fuse box in the passenger compartment

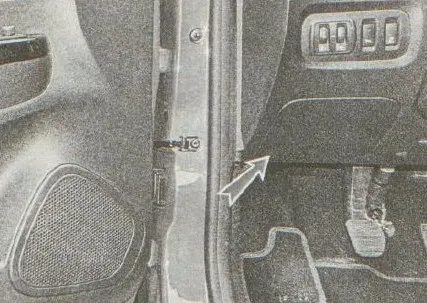

It is located on the left side behind the protective cover at the bottom of the instrument panel.

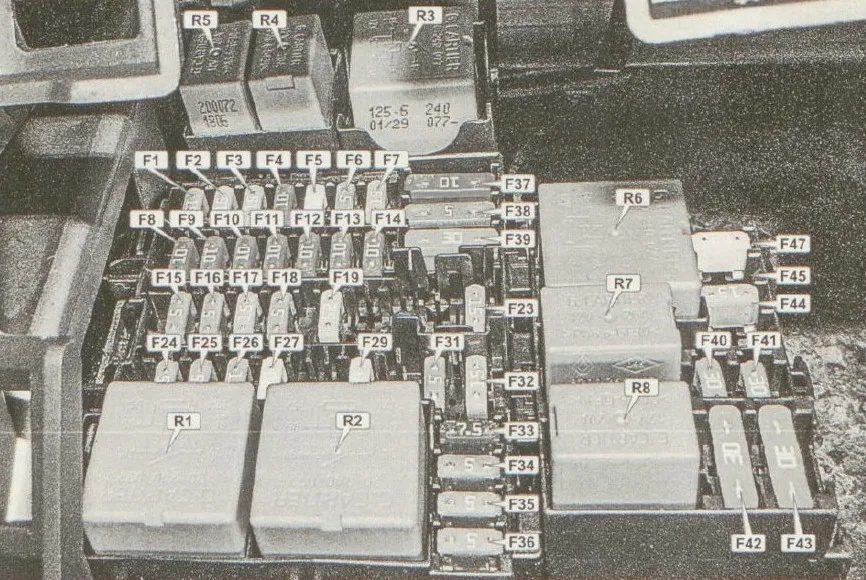

F115A Cruise control, rear window heating relay, seat belt sensor, electric headlight range control, additional heater, airbags
F215A Front and rear windscreen washers. rear windscreen wiper
F315A Heated front seats, audio system
F410A Daytime Running Lights
F55/20A Low beam headlights
F65A Engine Start Button, Rear Window Lock Relay, Light/Rain Sensor
F715A Sound signal
F810A High beam (left headlight)*
F910A High beam (right headlight)*
F1010A Low beam (right headlight)*
F1025A Fog lights/daytime running lights*
F1110A Low beam (left headlight)*
F1210A Front Parking Lights*
F1310A Tail lights, number plate lights, instrument lighting
F1410A Brake lights
F155A Engine Control Unit (ECU), Fuel Pump Relay (Coil), Starter Relay (Coil), Additional Electrical Equipment Control Unit’
F165A Airbag control unit
F1715A Automatic transmission control unit, reversing lights, 4WD control unit
F185A Power steering pump
F1925A High beam headlights, side direction indicators, horn
F2025A Additional electrical control unit*, fog lights/daytime running lights*, tail lights*
F2125A Instrument lighting, number plate lights, additional electrical equipment control unit
F2230A Additional electrical control unit*. Front wiper*
F2315A Audio system, navigation system control unit, diagnostic socket
F2415A Electrical Equipment Control Unit, Fuse Circuits F6. F34. F36
F2515A Electric steering column lock, additional electrical equipment control unit
F2615A Direction indicators, electrical equipment control unit
F2720A Door locks, electrical control unit
F2815A Additional electrical control unit*, unloading relay*
F2920A Additional socket
F3015A Additional electrical control unit*, horn*
F315A Instrument cluster
F3215A Cigarette Lighter
F337.5A Rear Fog Light
F345A Electric outside mirrors
F355A Heated exterior mirrors
F365A Anti-lock braking system (ABS), electronic stability program (ESP)
F3710A Interior light, glove compartment light, luggage compartment light, auxiliary equipment relay, climate control unit
F385A 4WD Control Unit
F3930A Front Windscreen Wiper
F4030A Rear door windows
F4130A Front passenger door window lifter
F4230A Electric fan for air conditioning system
F4330A Driver’s door window lifter
F44Reserve
F4515A Audio System
F46Reserve
F4720A Rear Window Defogger

* Depending on the configuration

Please note that fuse number 32 is responsible for the cigarette lighter, 29 is an additional socket.

Relay designation

  1. 35A – Unloading relay 2
  2. 35A – Air conditioning fan relay
  3. 35A – Rear door and front passenger window lift relay
  4. 20A – Additional equipment relay
  5. 20A – Unloading relay 1
  6. 35A – Rear window lifter lock relay
  7. 20A – Driver’s door lock relay
  8. 20A – Rear window heating relay
