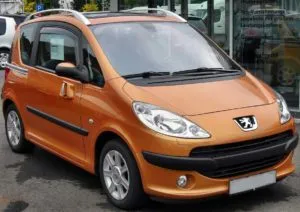

The subcompact car Peugeot 1007 was produced in 2004, 2005, 2006, 2007, 2008 and 2009. We will present a description of the fuse boxes of the Peugeot 1007.

Fuses under the hood

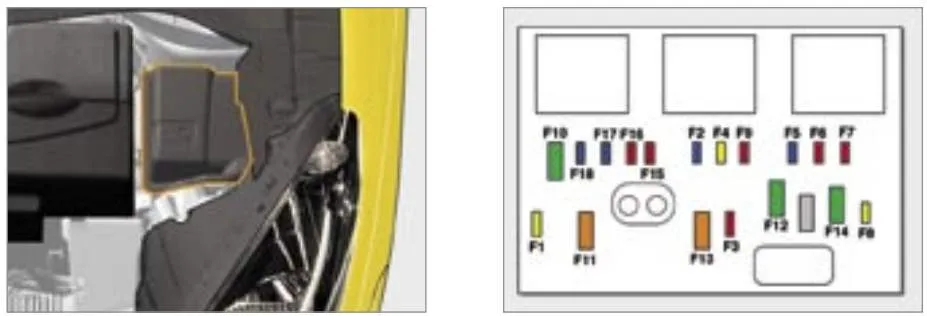

It is located on the left side under the protective cover.

Block diagram and its location

Description

  1. 20A Engine microprocessor supply and cooling fan switch – CMM main protection relay – Injection system microprocessor (diesel) – Unit injector (diesel) – Air heater solenoid valves (diesel) – Air flow sensor (diesel).
  2. 15A Sound signal.
  3. 10A Front and rear window washer pump.
  4. 20A Headlight washer pump.
  5. 15A Fuel pump (petrol).
  6. 10A Power Steering Microprocessor – Water in Diesel Sensor – Vehicle Speed ​​Sensor.
  7. 10A Protective switching unit (diesel) – Coolant level sensor (diesel).
  8. 20A Starter.
  9. 10A ABS/ESP Microprocessor – ABS Cut-off Relay – Brake Light Sensor.
  10. 30A Components of the electronic engine management system (petrol: ignition coils, oxygen sensors, injectors, EVAP and fuel injection system solenoid valves, electronic thermostat) (diesel: injection microprocessor, air flow sensor, high-pressure fuel pump, fuel pressure regulator, EGR solenoid valves and turbocharger pressure regulator) – Blow-by heaters.
  11. 40A Fans for microclimate control system.
  12. 30A Windscreen wiper (normal and fast modes).
  13. 40A (+ from ignition switch) Intelligent switching unit.
  14. 30A Diesel Fuel Heater.
  15. 10A Right high beam headlight.
  16. 10A Left high beam headlight.
  17. 15A Left low beam headlight.
  18. 15A Right low beam headlight.

Additional fuses designed for high voltage are located separately on the side of the unit.

MF1 50 A Engine cooling fan.
MF2 30 A ABS / ESP computer.
MF3 30 A ABS / ESP computer.
MF4 60 A Power supply for the intelligent switching unit. MF5
60 A Power supply for the intelligent switching unit. MF6
30 A Microprocessor for the “2 Tronic” gearbox.
MF7 80 A Passenger compartment fuse box – “Sésame” door microprocessor.
MF8 80 A Electric power steering.

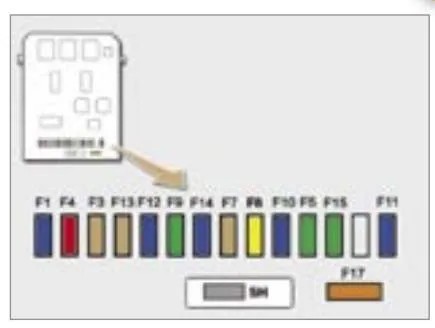

Fuse box in the passenger compartment

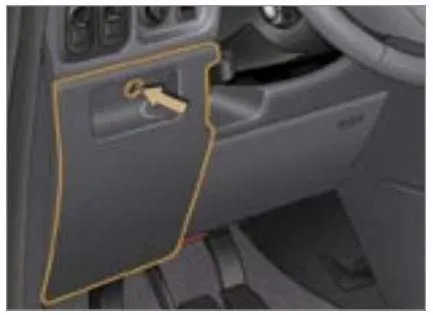

It is located on the left side of the instrument panel.

  • 1 – 15 A Rear window wiper.
  • 3 – 5 A Microprocessor for the airbag system and pyrotechnic belt tensioners.
  • 4 – 10 A Diagnostic connector – Clutch sensor – Crankshaft flywheel position sensor – Diesel particulate filter additive pump.
  • 5 – 30 A Electric windows – Sunroof
  • 6 – Not used.
  • 7 – 5 A Ceiling light – Glove compartment light.
  • 8 – 20 A Tyre pressure sensor – Electric folding mirrors – Steering column switches – Multifunction display – Anti-theft alarm system microprocessor – Radio – Radiotelephone – CD changer.
  • 9 – 30 A Car radio – Cigarette lighter / 12V socket (no more than 100 W).
  • 10 – 15 A Security alarm siren.
  • 11 – 15 A Diagnostic connector – Ignition switch low current circuit – Electric lock strikers.
  • 12 – 15 A Microprocessor for the airbag system and pyrotechnic belt tensioners – Rain/light sensor.
  • 13 – 5 A ABS relay – speed sensor – Engine switching unit – 2 Tronic gearbox selector lever – Brake light sensor.
  • 14 – 15 A Parking sensors microprocessor – Microprocessor and “Sésame” door switches – Instrument cluster – Seat belt warning lamp panel – Air conditioning control panel – Headlamp range control – Hands-free kit.
  • 15 – 30 A Locking – Superlocking – Unlocking.
  • 17 – 40 A Heated rear window and exterior rear-view mirrors.
  • SH – PARC shunt.

Fuse number 9, 30A, is responsible for the cigarette lighter.

High voltage fuses

FH1* – Not used.
FH2* 40 A Trailer Switch Box.
FH3* 20 A Electric Seat Heating.
FH4* 20 A Audio Amplifier.
FH5* 5 A Sesame Door Microprocessor.
