Nissan X Trail T31 is a compact crossover that was produced in 2008, 2009, 2010, 2011, 2012 and 2013. During this time, the model has undergone restyling. In this article you will find information describing the fuse and relay blocks of the Nissan X Trail T31, as well as their photos and diagrams. We will separately highlight the fuse responsible for the cigarette lighter.
Please note that the number of fuses and relays, as well as the block diagrams, may differ from this material and depend on the electrical equipment, year of manufacture and country of delivery of the car. Check the actual purpose of the diagram elements with your description on the back of the block protective cover.
Cabin block

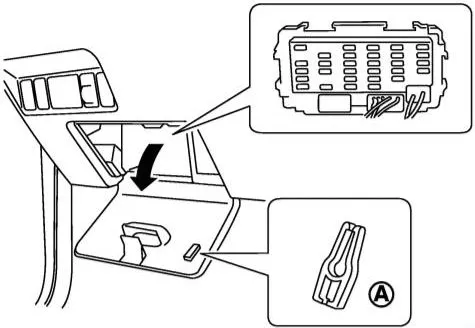

It is located in the instrument panel behind a protective cover, in the same place as in previous generations.
Option 1

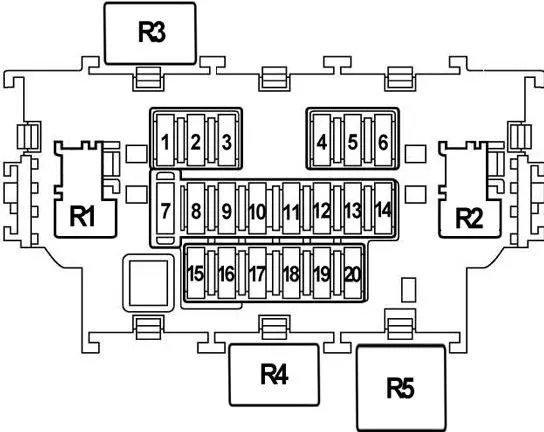

| № | A | Marking |
|---|---|---|
| 1 | 10 | Electric mirrors, audio system |
| 2 | 10 | Sockets |
| 3 | 15 | Cigarette lighter |
| 4 | Not used | |
| 5 | 15 | Air conditioning fan |
| 6 | 15 | Air conditioning fan |
| 7 | 10 | Keyless access system |
| 8 | 15 | Additional headlights |
| 9 | 10 | All-wheel drive control unit |
| 10 | 10 | Stop signals |
| 11 | 10 | Interior lighting |
| 12 | 10 | Instrument combination |
| 13 | 10 | Body Control Module (BCM) |
| 14 | 10 | Audio system |
| 15 | 10 | Heated mirrors |
| 16 | 20 | Audio system |
| 17 | 10 | Windshield washer pump |
| 18 | 10 | Instrument combination |
| 19 | 10 | Airbags |
| 20 | 10 | Diagnostic connector, engine control unit, headlight range control |
| Relay | ||
| R1 | Auxiliary equipment relay | |
| R2 | Air conditioning fan relay | |
| R3 | Auxiliary headlight relay | |
| R4 | Seat heating relay | |
| R5 | Auxiliary headlight relay | |
Fuse number 3 at 15A is responsible for the cigarette lighter.
Option 2

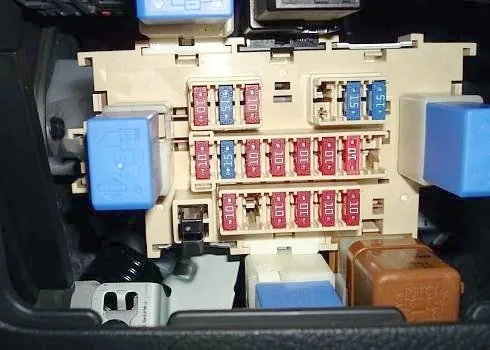

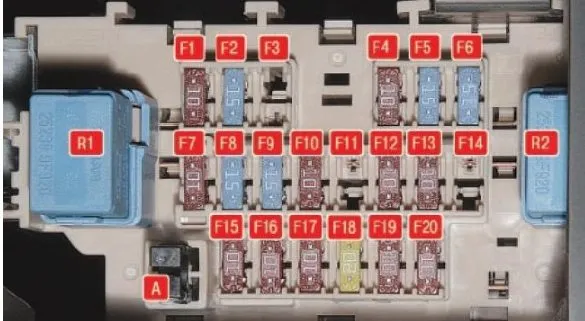

| № | A | Marking |
|---|---|---|
| F1 | 10 | Audio system, electric exterior mirrors |
| F2 | 15 | Front socket (cigarette lighter) |
| F3 | 15 | Cigarette lighter |
| F4 | 10 | Air conditioning, electric interior heater |
| F5 | 15 | Heater electric motor |
| F6 | 15 | Heater electric motor |
| F7 | 10 | Additional equipment |
| F8 | 15 | CVT sensors (manual transmission) |
| F9 | 15 | Audio system |
| F10 | 10 | Brake light bulbs |
| F11 | Reserve | |
| F12 | 10 | Interior electrical equipment control unit |
| F13 | 10 | Electrical equipment |
| F14 | 15 | Rear socket (if installed) |
| F15 | 10 | Heated mirrors |
| F16 | 10 | Interior electrical equipment control unit |
| F17 | 15 | Electrical equipment |
| F18 | 20 | Windshield wiper motor reducer |
| F19 | 10 | SRC airbags |
| F20 | 10 | Seat heating |
| Relay | ||
| R1 | Relay additional interior equipment | |
| R2 | Heater electric fan relay | |
If the cigarette lighter does not work, check fuses numbers 2 and 3 at 15A.
Blocks under the hood

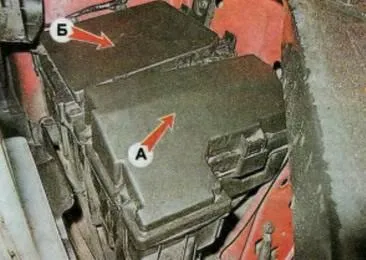

In the second generation Nissan X-Trail T31, there are 2 fuse blocks located next to the battery. To access them, you need to remove the air duct.

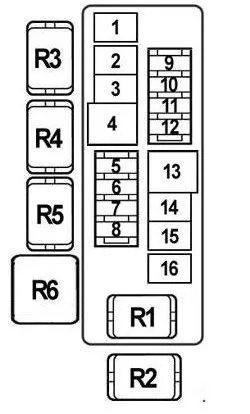

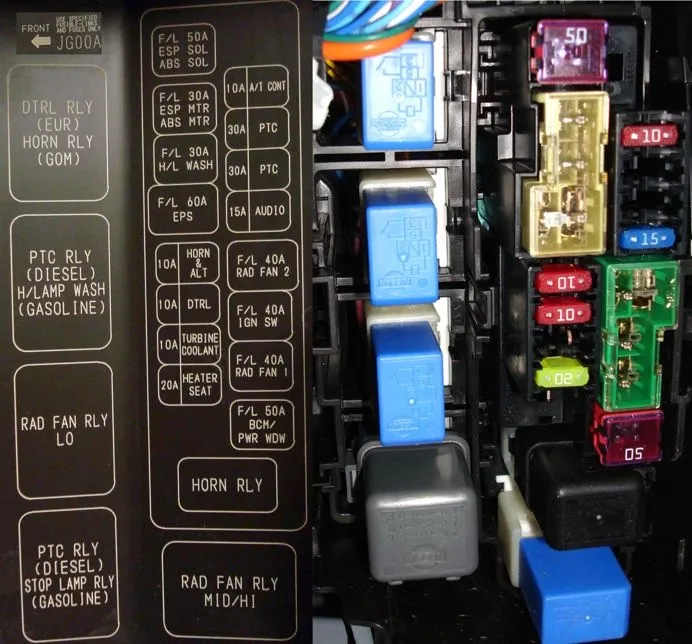

Block A
Option 1
| № | A | Marking |
|---|---|---|
| 1 | 50 /40 | ABS, ESP (50A with ESP, 40A without ESP) |
| 2 | 30 | ABS, ESP |
| 3 | 30 | Headlight wash |
| 4 | 60 | Electric power steering |
| 5 | 10 | Sound signal, generator |
| 6 | 10 | Daytime running lights |
| 7 | 10 | Turbocharger cooling pump |
| 8 | 20 | Seat heating |
| 9 | 10 | Transmission control unit |
| 10 | 30 | Additional heater |
| 11 | 30 | Additional heater |
| 12 | 15 | Audio system |
| 13 | 40 | Engine cooling system fan 2 |
| 14 | 40 | Ignition switch |
| 15 | 40 | Engine cooling system fan 1 |
| 16 | 50 | Window lift control unit, body electrical control unit |
| Relay | ||
| R1 | Horn relay | |
| R2 | Cooling system fan relay (high speed) | |
| R3 | Daytime running light relay (Europe) Horn relay | |
| R4 | Headlight washer relay (petrol engines) Heater relay (diesel engines) | |
| R5 | Cooling system fan relay (low speed) | |
| R6 | Brake light relay (petrol engines) Heater relay (diesel engines) | |

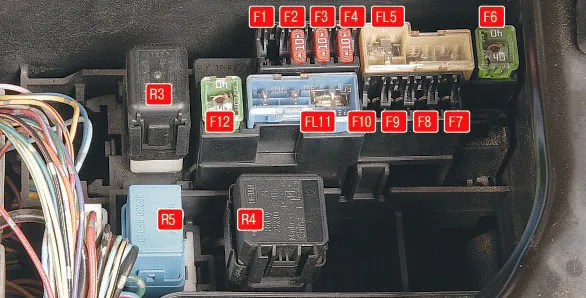

Option 2

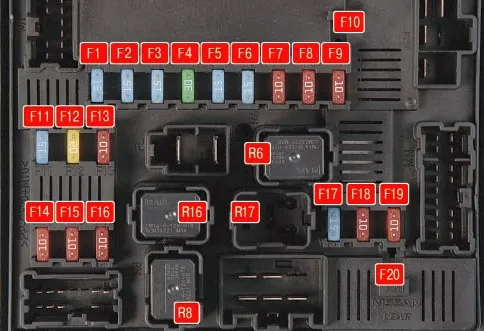

| № | A | Marking |
|---|---|---|
| F1 | 20 | Air cooler turbine (turbodiesel) |
| F2 | 10 | Transmission mode switch unit (all-wheel drive vehicles) |
| F3 | 10 | Generator |
| F4 | 10 | Sound signal |
| FL5 | 60/30 | Electric power steering, headlight washer pump, ABS system |
| F6 | 40 | ABS system, stability control system |
| F7 | 30 | Electric interior heater (for a car with a diesel engine) |
| F8 | 30 | Electric interior heater |
| F9 | 30 | Electric interior heater |
| F10 | Reserve | |
| FL11 | 50/30/40 | Engine cooling system fan, ignition |
| F12 | 40 | Interior electrical equipment control unit |
| Relay | ||
| R3 | Horn relay | |
| R4 | Engine cooling fan relay | |
| R5 | Headlight washer pump relay | |

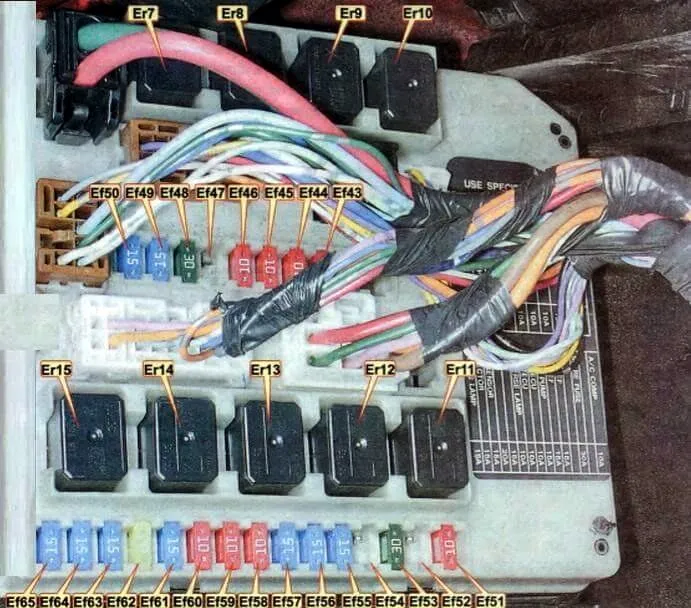

Block B
Option 1
| № | A | Fuse designations |
|---|---|---|
| Ef41 | reserve | |
| Ef42 | reserve | |
| Ef43 | 10 | H/LAMP HI RH – high beam (right block headlight) |
| Ef44 | 10 | H/LAMP HI LH – high beam (left block headlight) |
| Ef45 | 10 | TAIL LAMP – side lighting |
| Ef46 | 10 | ILLUMINATION – illumination |
| Ef47 | reserve | |
| Ef48 | 20 | FR WIPER – front wiper |
| Ef49 | 10 | H/LP LH – low beam (left block headlight) |
| Ef50 | 10 | H/LP RH – low beam (right block headlight) |
| Ef51 | 10 | A/C COMP – air conditioning compressor clutch |
| Ef52 | reserve | |
| Ef53 | 30 | SPARE FUSE – spare fuse |
| Ef54 | reserve | |
| Ef55 | 15 | RR DEF – electric heating of side mirrors and rear window |
| Ef56 | 15 | RR DEF – electric heating of side mirrors and rear window |
| Ef57 | 15 | FUEL PUMP – fuel pump |
| He58 | 10 | A/TECU – automatic transmission operating mode sensor, starter relay (winding) |
| Ef59 | 10 | ABS ECU – Anti-lock Braking System (ABS) |
| Ef60 | 10 | REVERSE LAMP – reversing lights |
| Ef61 | 15 | ETC – Electronic Engine Control Unit (ECU) |
| Ef62 | 15 | EGI – electronic engine control unit (ECU), ignition coils |
| Ef63 | 20 | 02 SENSOR – diagnostic oxygen concentration sensor |
| Ef64 | 15 | INJECTOR – injectors |
| Ef65 | 15 | FR FOG LAMP – front fog lights |
| Relay | ||
| Er7 | FRON FOG – front fog light relay | |
| Er8 | HEAD LAMP LOW – low beam relay | |
| Er9 | ECM – Engine Control Unit (ECU) relay | |
| Although10 | WINDOW DEFOGGER – relay for heating rear window and outside mirrors | |
| Er11 | START – starter relay | |
| Er12 | COOLING FAN 3 – relay of electric fans of cooling system 3 | |
| Er13 | COOLING FAN 2 – relay of electric fans of cooling system 2 | |
| Er14 | COOLING FAN 1 – relay of electric fans of cooling system 1 | |
| Er15 | IGN – ignition relay | |
Option 2
| № | A | Fuse designations |
|---|---|---|
| F1 | 15 | Glass heater |
| F2 | 15 | Glass heater |
| F3 | 15 | Fog lights |
| F4 | 30 | Windshield wiper |
| F5 | 15 | Right headlight low beam bulb |
| F6 | 15 | Left headlight low beam bulb |
| F7 | 10 | Right headlight high beam bulb |
| F8 | 10 | Left headlight high beam bulb |
| F9 | 10 | Parking light bulbs |
| F10 | Reserve | |
| F11 | 15 | Transmission control |
| F12 | 20 | Engine control unit |
| F13 | 10 | Air conditioner compressor |
| F14 | 10 | Reverse light bulbs |
| F15 | 10 | Transmission |
| F16 | 10 | Engine control system |
| F17 | 15 | Fuel pump |
| F18 | 10 | Power system (fuel injectors) |
| F19 | 10 | ABS hydro-electronic unit |
| F20 | Reserve | |
| Relay | ||
| R6 | Ignition system relay | |
| R8 | Tailgate glass heater relay | |
| R16 | Engine cooling fan low speed relay I | |
| R17 | Engine cooling fan high speed relay II | |
Battery terminal block

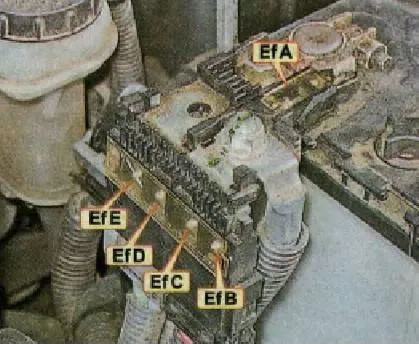

On the positive terminal of the battery there are fuses in the form of high-power fuses.
| № | A | Fuse designations |
|---|---|---|
| EfA | 250/140 | generator, EBfB and EBfC fuse circuits |
| EfB | 100 | fuse blocks in the engine compartment |
| EfC | 100 | lighting, air conditioning |
| EfD | 80/100 | ignition relay, fuse blocks in the engine compartment |
| Yes | 80/100 | fuse blocks in the engine compartment |
| EfN | 60 | glow plug control unit |
This article is for informational purposes only. We would like to remind you once again that the current designation for your car is located on the protective cover.
