Toyota Camry XV 50 (55)The seventh generation of the Camry model range was produced in 2011, 2012, 2013, 2014, 2015, 2016, 2017. During this time, the model was restyled. In this publication, we will show a description of the fuses and relays of the Toyota Camry in the 50/55 body with block diagrams and their locations. Note the cigarette lighter fuse. In conclusion, we offer to download the repair and maintenance manual.

Block in the cabin

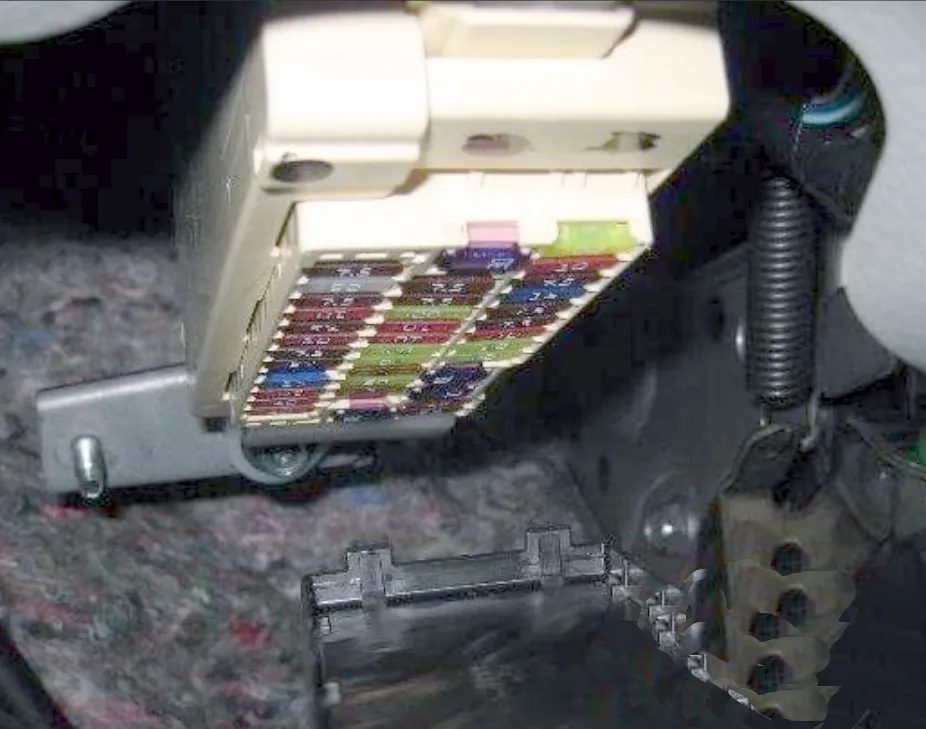

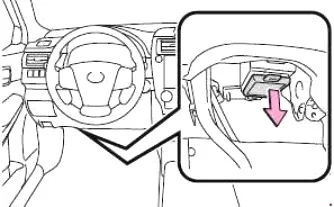

It is located under the instrument panel on the driver’s side.

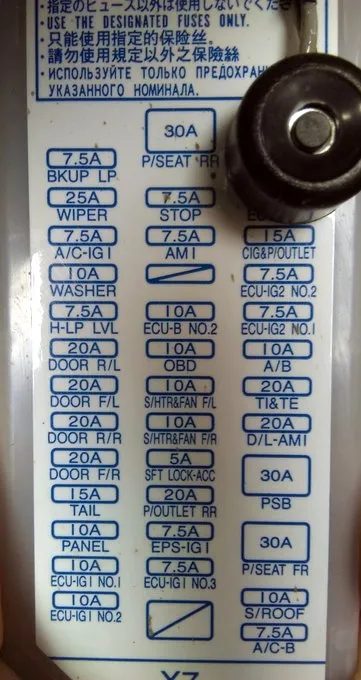

Check the current assignment of the elements with your diagrams on the protective cover.

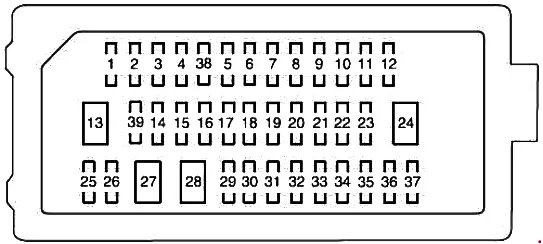

110A ECU-IG1 NO.2 – Headlamp cleaner, Toyota parking sensor, gear lock system, front seat heaters, rear audio switch, rear air conditioning system, rear seat heaters, rear electric seat adjustment, tilt and height adjustment steering column, multiplex communication system, audio system, navigation system, interior rearview mirror, windshield wipers and washer, rear sunshade
210A ECU-IG1 NO.1 – Vehicle Stability Control, Electric Cooling Fans, Rear Window Defogger, Outside Rearview Mirror Defogger, Steering Wheel Sensor, Multi-Port Fuel Injection System/Sequential Multi-Port Fuel Injection System, Headlights (Low Beam), Battery Charging System, Blind Spot Monitor
310A PANEL – Switch illumination, air conditioning system, cigarette lighter, glove box illumination, gear lever illumination, reading lamps, interior light, audio system, navigation system
415A TAIL – Front side lights, rear side lights, number plate light, front fog lights, rear fog lights
57.5A EPS-IG1 – Electric steering drive
20A DOOR R/R – Rear Right Electric Window
67.5A ECU-IG1 NO.3 – Blind Spot Monitor
20A DOOR F/L – Front Left Electric Window
710A S/HTR & FAN F/L – Seat heating
20A DOOR R/L – Rear Left Electric Window
87.5A H-LP LVL – Headlights (low beam)
910A WASHER – Windscreen wipers and washer
107.5A A/C-IG1 – Air Conditioning System
1125A WIPER – Windscreen wipers and washer
127.5A BKUP LP – Reversing lights, multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission, audio system, navigation system
1330A DOOR NO.1 – Window lifters
145A WIPER-S – Cleaners
7.5A EPS-IG1 – Electric steering drive
1520A P/OUTLET RR – Rear socket for electrical appliances
165A SFT LOCK-ACC – Gear Lock System
1720A DOOR R/R – Rear Right Electric Window
10A S/HTR&FAN F/R – Front right seat heaters
1820A DOOR R/L – Rear Left Electric Window
10A S/HTR&FAN F/L – Front left seat heaters
1910A OBD – On-Board Diagnostics
2010A ECU-B NO.2 – Power windows, rear audio switch, rear air conditioning, rear seat heaters, rear seat electric adjustment, rear sunshade
2120A DOOR NO.2 – Window lifters
227.5A AM1 – Starter system, multi-port fuel injection system/sequential multi-port fuel injection system
237.5A STOP – Tail lights, multi-port fuel injection system/sequential multi-port fuel injection system, stability control system, anti-lock braking system, electronically controlled transmission, high-mounted brake light, intelligent keyless entry system, gear lock system
2430A P/SEAT RR – Electric rear seat adjustment
257.5A A/CB – Air Conditioning System
2610A S/ROOF – Hatch
2730A P/SEAT FR – Electric front seat adjustment
2830A PSB – Seat belt with pre-crash system.
2920A D/L-AM1 – Multiplex communication system, all door lock button, trunk release button
3020A TI&TE – Tilt and Height Adjustment Steering Column
3110A A/B – SRS airbag system, front passenger classification system
327.5A ECU-IG2 NO.1 – Multi-port fuel injection system/sequential multi-port fuel injection system
337.5A ECU-IG2 NO.2 – Intelligent Keyless Entry System, Blind Spot Monitor
3415A CIG&P/ OUTLET – Cigarette Lighter
357.5A ECU-ACC – Clock, Rear Audio Switch, Rear Air Conditioning, Rear Seat Heaters, Rear Electric Seat Adjustment, Rear Sunshade, Outside Rearview Mirrors, Multiplex Communication System, Audio System, Navigation System
3610A S/HTR&FAN FI R – Seat heating
3720A S/HTR RR – Rear Seat Heaters
3820A DOOR F/R – Front Right Electric Window
397.5A ECU-IG1 N0.3

The cigarette lighter fuse is marked on the diagram as CIG&P/ OUTLET.

Block under the hood

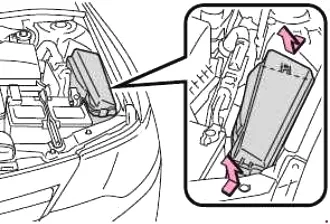

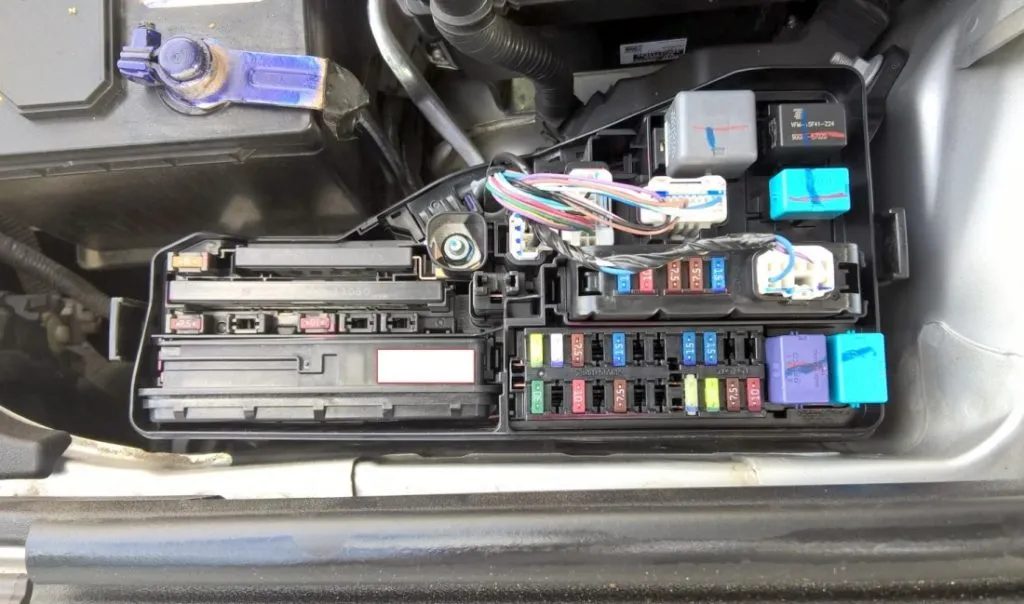

In the engine compartment, the fuse and relay box is located on the left side next to the battery. It is covered with a protective cover.

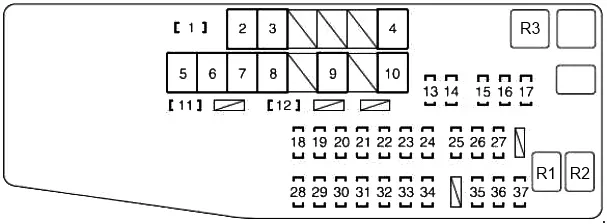

15A METER-IG2 – Measuring instruments
250A 2GR-FE: Electric Cooling Fans
330A H-LPCLN – Headlight Cleaner
450A HTR – Air Conditioning System
5120A ALT – without rear seat heater: Battery charging system
140A ALT – with rear seat heater: Battery charging system
630A ABS NO.2 – Vehicle stability control system
730A ST/AM2 – Starter system, fuses: ECU-IG2 NO.1, A/B, ECU-IG2 NO.2
830A H-LP-MAIN – Fuses: H-LP LH-LO, H-LP RH-LO, MNL H-LP LVL, Headlights (Low Beam)
950A ABS NO.1 – Vehicle stability control system
1080A EPS – Electric Steering
117.5A S-HORN – Fuse: S-HORN
1210A HORN – Horn
1315A EFI NO.2 – Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission
147.5A EFI NO.3 – 2AR-FE: Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission
10A EFI NO.3 – 2GR-FE: Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission
157.5A INJ – Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission
167.5A ECU-IG2 NO.3 – Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission, steering column lock system, electronically controlled transmission
1715A IGN – Starter System
1820A D/L-AM2 – All door locking system
1925A IG2-MAIN – Fuses: IGN, INJ, METER-IG2, ECU-IG2 NO.3, A/B, ECU-IG2 NO.2, ECU-IG2 NO.1
207.5A ALT-S – Battery Charging System
215A MAYDAY
2215A TURN&HAZ – Direction indicators, hazard warning lights, measuring instruments
2310A STRG LOCK – Steering column lock system
2415A AMP – Audio system
2515A H-LP LH-LO Vehicles with halogen headlights: Left headlight (low beam), manual headlight range control
20A H-LP LH-LO – Vehicles with gas discharge headlights: Left headlight (low beam)
2615A H-LP RH-LO – Vehicles with halogen headlights: Right headlight (low beam)
20A H-LP RH-LO – Vehicles with gas discharge headlights: Right headlight (low beam)
277.5A MNL H-LP LVL – Vehicles with HID headlights: Manual headlight leveling system
2830A EFI-MAIN NO.1 – Multiport fuel injection system/sequential multiport fuel injection system, electronically controlled transmission, fuses: EFI NO.2, EFI NO.3, A/F sensor
295A SMART – Intelligent keyless entry system
3010A ETCS – Electronic Throttle Control
3120A TOWING
327.5A EFI NO.1 – Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission, electronically controlled transmission
3320A EFI-MAIN N0.2 – 2AR-FE: Multiport fuel injection system/sequential multiport fuel injection system, electronically controlled transmission
20A A/F – 2GR-FE: Multi-port fuel injection system/sequential multi-port fuel injection system, electronically controlled transmission
347.5A AM 2 – Intelligent Keyless Entry System
3520A RADIO-B – Audio system, navigation system
367.5A DOME – Clock, mirror lighting, interior lighting, reading lights, trunk lighting, door step lighting
3710A ECU-B NO.1 – Multiplex communication system, intelligent keyless entry system, instrument cluster, tilt and height adjustable steering column, steering wheel sensor, remote control, blind spot monitoring system.

Relay

  • R1 – ST – Starter
  • R2 – HORN – Signal relay
  • R3 – H-LP – Headlight relay
