The 2nd generation Volvo S60 was produced in 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 with sedan and station wagon bodies. During this time, the model underwent restyling. In our publication, you will find a description of the Volvo S60 fuses and relays with block diagrams, their locations and photo examples of blocks. Note the fuse responsible for the cigarette lighter.
The purpose of the fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment of your car.
Blocks in the cabin

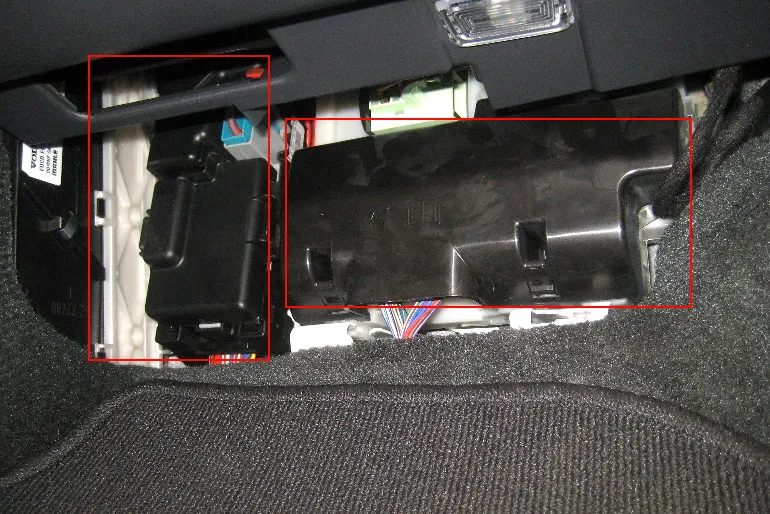

In the car’s interior, under the dashboard on the passenger side, there are 2 blocks with fuses and relays. To access them, you need to remove the interior trim and open the protective cover.

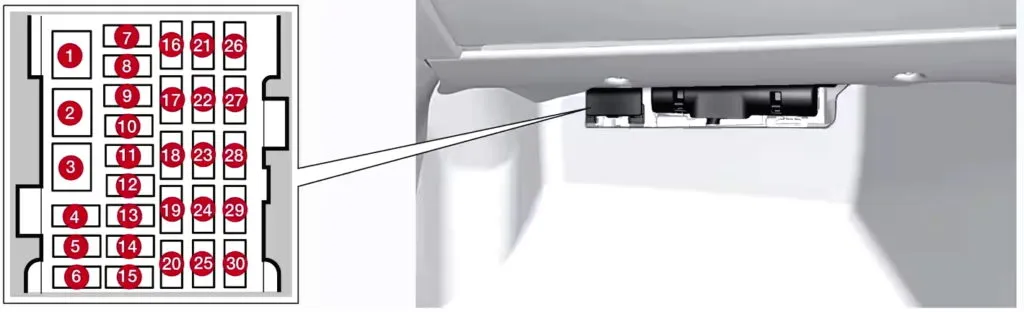

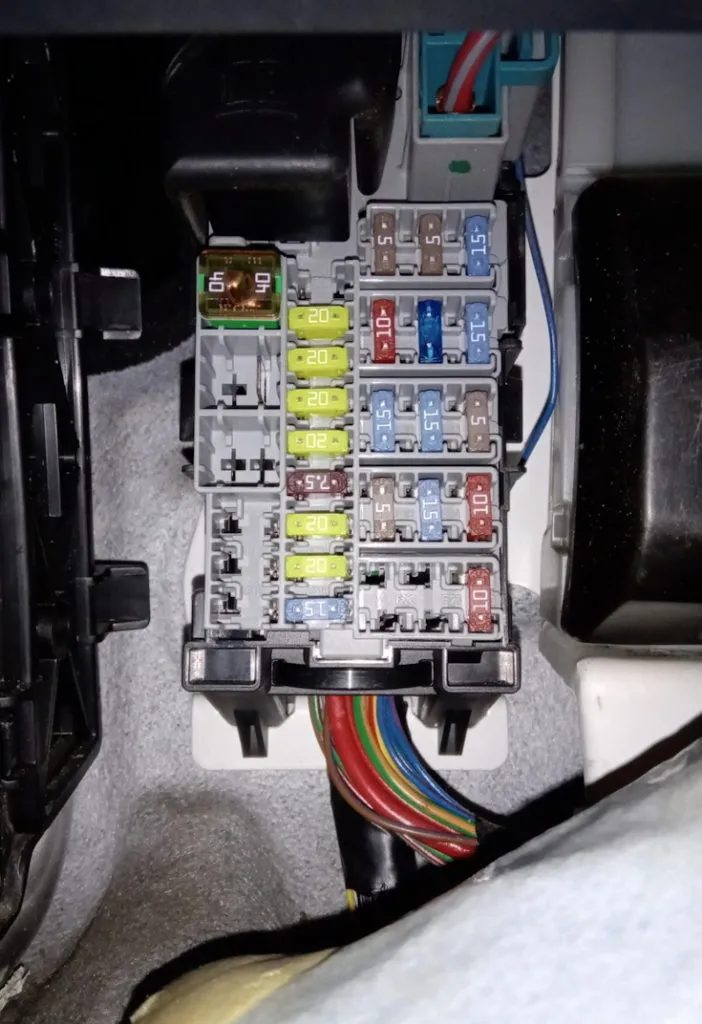

Left block
Photo – example
| 1 | 40A 2011: Primary Fuse, Control Module, Audio, Subwoofer |
| 2012-2018: Audio Control Unit Primary Fuse, Fuses 16-20 Primary Fuse | |
| 2 | 25A 2015-2018: Windscreen Washers |
| 3 | — |
| 4 | — |
| 5 | — |
| 6 | 5A Keyless Door Handle |
| 7 | — |
| 8 | 20A Control panel, driver’s door |
| 9 | 20A Control panel, front passenger door |
| 10 | 20A Control panel, rear passenger door, right |
| 11 | 20A Control panel, rear passenger door, left |
| 12 | 7.5A without key |
| 13 | 20A Driver’s side power seat |
| 14 | 20A Power Passenger Seat |
| 15 | 15A 2011-2012: Folding headrest |
| 16 | 5A Infotainment Control Module or Screen (Some Model Variants) |
| 17 | 10A 2011: Radio, Display, RTI |
| 2012-2018: Audio control unit (amplifier), TV, Digital radio | |
| 18 | 15A 2011: Infotainment System |
| 2012-2018: Audio Control Module or Sensus Control Module (some model variants) | |
| 19 | 5A Telephone, Bluetooth™ |
| 20 | — |
| 21 | 5A Sunroof, Interior Roof Light, Climate Sensor, Air Intake Flap Motors |
| 22 | 15A 2011: Cigarette Lighter , Rear Seat Entertainment (RSE) |
| 2012-2018: 12V socket in console | |
| 23 | 15A Seat heating (passenger side) |
| 24 | 15A Seat heating (driver side) |
| 25 | — |
| 26 | 15A Seat heating rear passenger side right |
| 27 | 15A Rear passenger seat heating left |
| 28 | 5A Parking Assist, Parking Camera, RTI, BLIS |
| 29 | 10A 2011-2012: All Wheel Drive Control Module |
| 15A 2013-2018: All-wheel drive control module | |
| 30 | 10A Active Chassis Four-C |
Fuse number 22 is responsible for the operation of the front cigarette lighter.

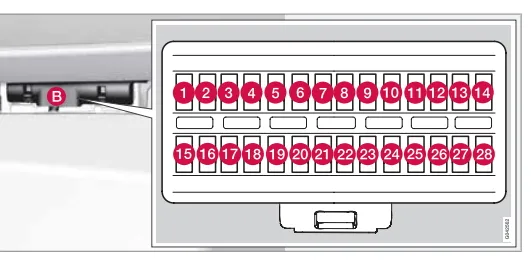

Right block
Option 1
Suitable for models produced in 2011 – 2012.
Scheme
| 1 | — |
| 2 | — |
| 3 | 7.5A Interior Light, Driver’s Seat with Electric Adjustment |
| 4 | 5A Information Display (DIM) |
| 5 | 10A Adaptive Cruise Control, Adaptive Cruise Control, Collision Warning System |
| 6 | 7.5A Interior Light, Rain Sensor |
| 7 | 7.5A Steering Wheel Module |
| 8 | 10A Central locking rear, fuel filler flap |
| 9 | 15A Washer |
| 10 | 15A Windscreen Washers |
| 11 | 10A Opening the trunk lid |
| 12 | — |
| 13 | 20A Fuel Pump |
| 14 | 5A Remote Key Receiver, Alarm, Climate |
| 15 | 15A Steering wheel lock |
| 16 | 5A Alarm/OBDII |
| 17 | — |
| 18 | 10A Airbag |
| 19 | 5A Forward Collision Warning System, Front Radar |
| 20 | 7.5A Accelerator pedal, electric cylinder block heater (diesel), electric outside mirrors, heated rear seats |
| 21 | 15A Infotainment system (ICM), CD and RadioA |
| 22 | 5A Brake light |
| 23 | 20A Sunroof (Sunroof) |
| 24 | 5A Immobilizer |

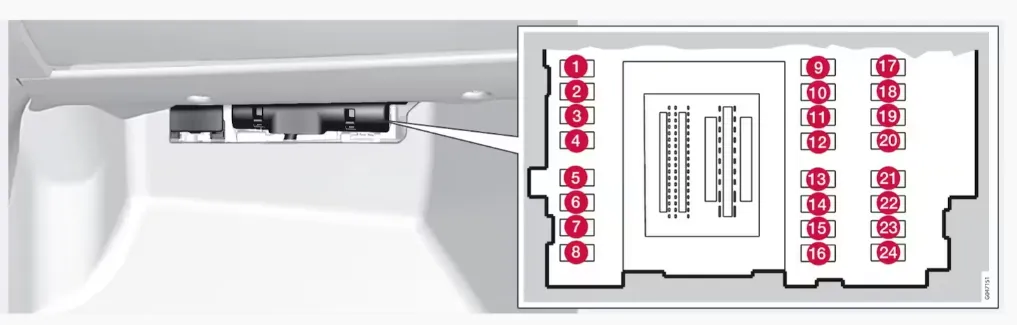

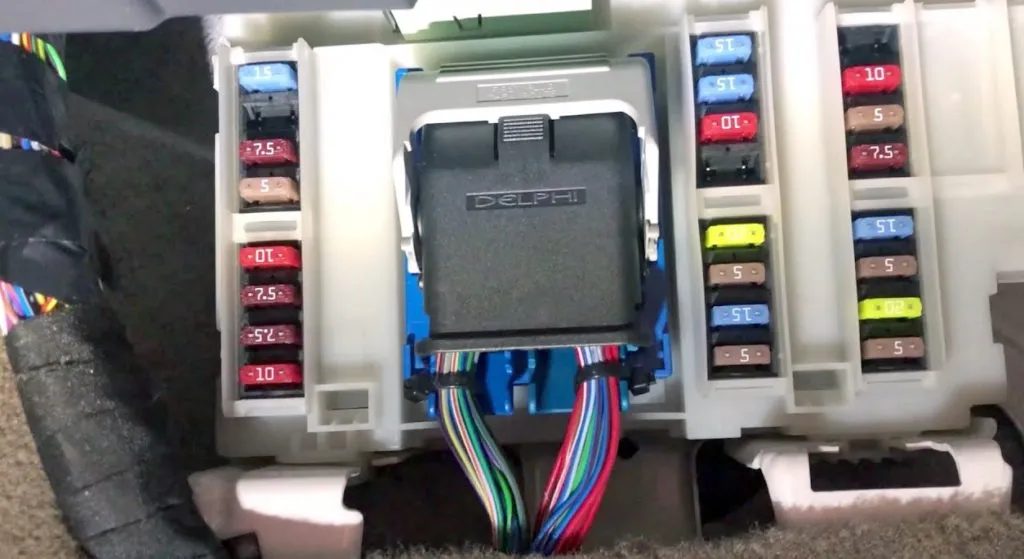

Option 2
Suitable for models released in 2012 – 2018. The block itself will look something like this.
| 1 | Not used |
| 2 | Not used |
| 3 | 7.5A Interior Lighting; Driver’s Door Control Panel, Power Windows; Power Seats, Remote Garage Door Opener |
| 4 | 5A 2012-2013: Display Information (DIM) |
| 2014-2018: Combined instrument cluster | |
| 5 | 10A Adaptive Cruise Control, ACC; Collision Warning System |
| 6 | 7.5A Interior Light; Rain Sensor |
| 7 | 7.5A Steering Wheel Module |
| 8 | 10A Central locking, fuel filler flap |
| 9 | 15A 2014-2018: Heated steering wheel |
| 10 | 15A 2012-2013: Windscreen Washers |
| 2014-2018: Heated windshield | |
| 11 | 10A Unlock, rear door |
| 12 | 10A 2013-2018: Folding headrest |
| 13 | 20A Fuel Pump |
| 14 | 5A Motion Detector for Alarm; Climate Panel |
| 15 | 15A Steering wheel lock |
| 16 | 5A Siren; OBDII Data Link Connector |
| 17 | Not used |
| 18 | 10A Airbags |
| 19 | 5A Collision Warning System |
| 20 | 7.5A Accelerator pedal sensor; Interior rearview mirror dimming; Rear seat heating Electric additional heater |
| 21 | 15A 2014-2018: Infotainment Control Module (Performance); Audio (Performance) |
| 22 | 5A Brake light |
| 23 | 20A Sunroof |
| 24 | 5A Immobilizer |
Blocks under the hood

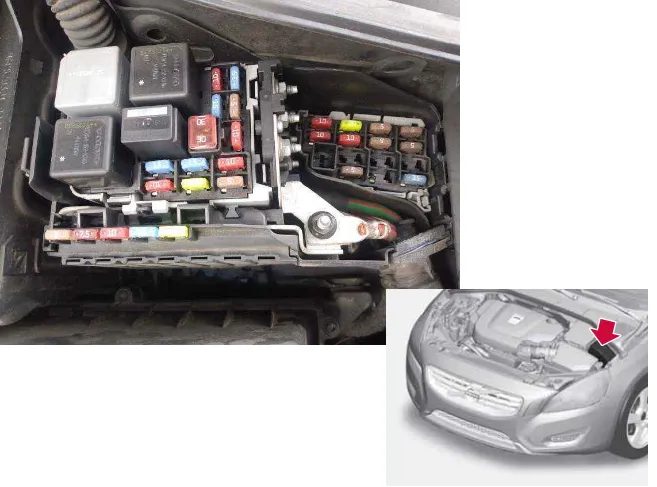

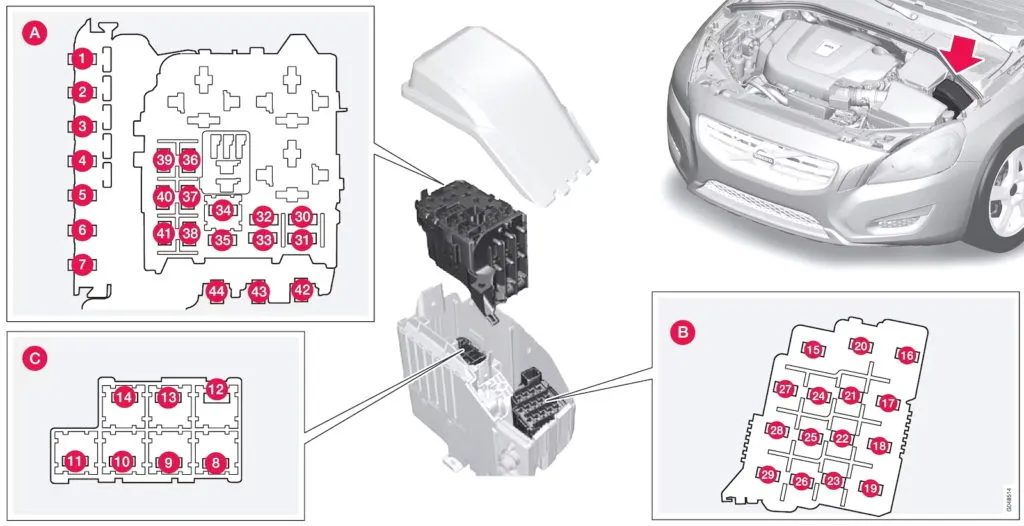

Fuse and relay box
Located next to the battery, on the left side of the engine compartment.
The block itself consists of several sections.

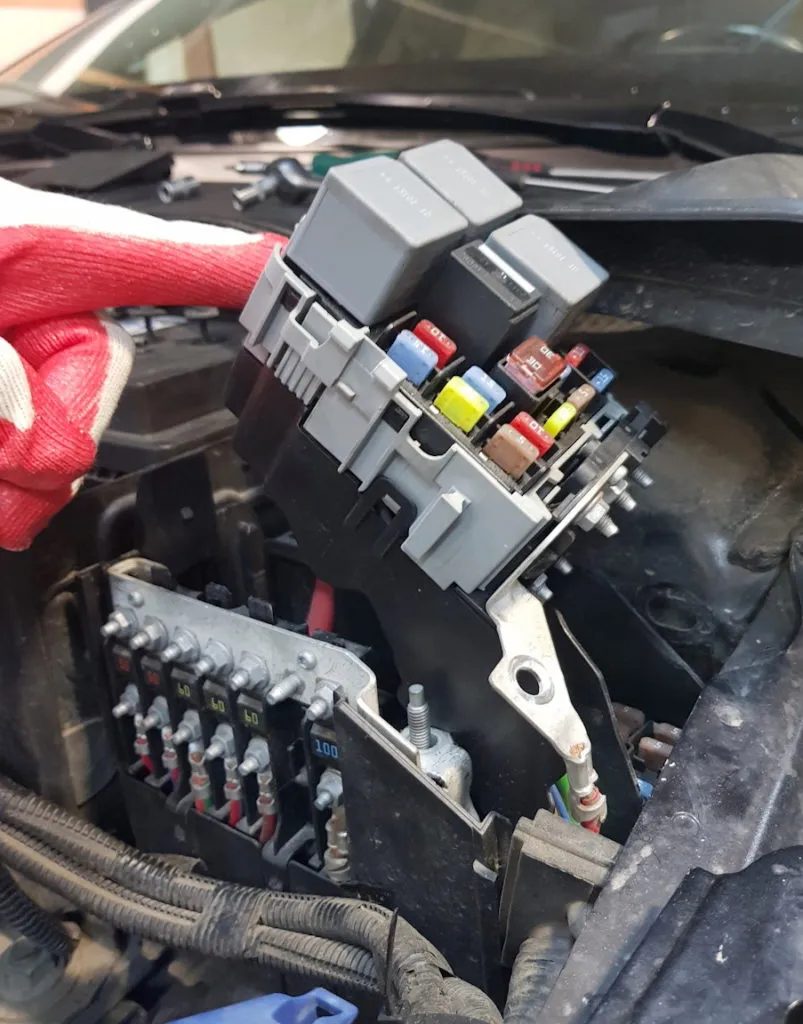

The photo shows an example of access to the lower section.
| 1 | 50A Primary fuse CEM KL30B |
| 2 | 50A Primary fuse CEM KL30A |
| 3 | 60A Primary Fuse RJBA KL30 |
| 4 | 60A Primary fuse CJB KL30 |
| 5 | 60A Primary fuse CJB 15E KL30 |
| 6 | — |
| 7 | 100A PTC Air Preheater |
| 8 | 20A 2011-2013: Headlight washers |
| 40A 2014-2018: Heated windshield, left side | |
| 9 | 30A Windscreen Wipers |
| 10 | 25A Autonomous Heater |
| 11 | 40A Fan |
| 12 | 40A 2014-2018: Heated windshield, right side |
| 13 | 40A ABS pump |
| 14 | 20A ABS Valves |
| 15 | 20A 2014-2018: Headlight washers |
| 16 | 10A Headlight range adjustment, active xenon headlights – ABL |
| 17 | 20A Primary CEM fuse |
| 18 | 5A ABS 15-feed |
| 19 | 5A Speed-sensitive power steering |
| 20 | 10A Engine Control Module, Transmission Control Module, Airbags |
| 21 | 10A Heated Washer Nozzles |
| 22 | 5A 2011-2012: Vacuum pump, 5-cyl. petrol, turbo and GTDI |
| 23 | 5A Headlight control |
| 24 | — |
| 25 | — |
| 26 | — |
| 27 | 5A Relay, Engine Compartment Box |
| 28 | 20A Additional lamps |
| 29 | 15A Horn (Signal) |
| 30 | 10A 2011-2018: Engine Control Module (ECM) |
| 5A 2016-2018, 4-cyl.: Engine Control Module (ECM) | |
| 31 | 15A Gearbox Control Module |
| 32 | 15A 2011-2016: Air Conditioning Compressor, |
| 2012-2018, diesel: Coolant booster pump | |
| 33 | 5A Relay Coils |
| 34 | 30A 2011-2016: Starter relay |
| 35 | 10A Ignition Coils (4-cyl. petrol), Glow Control Module (5-cyl. diesel) |
| 20A Engine Control Module (4-cyl.), Ignition Coils (5-, 6-cyl. Petrol), Capacitor (6-cyl.) | |
| 36 | 2011-2013: Engine Control Module (Gasoline) |
| 2014-2015: Engine Control Unit (petrol except 4-cyl. 2.0 l (does not apply to engine B4204T7)) | |
| 2016: Engine Control Module (5, 6-cyl. gasoline) | |
| 2011-2013: Engine Control Module (Diesel) | |
| 2014-2015: Engine Control Module (1.6L Diesel, 5-cyl. diesel) | |
| 2016-2018: Engine Control Module (5-cyl. diesel) | |
| 2014-2015: Engine Control Module (4-cyl. 2.0L (but applies to engine B4204T7)) | |
| 2016-2018: Engine Control Module (4-cyl.) | |
| 37 | 2011: MAF, valves (5-cyl. diesel) |
| 2012: Mass Air Flow Sensor (5, 6-cyl.), Control Valves (5-cyl. Diesel), Injectors (5, 6-cyl. Petrol), Engine Control Unit (6-cyl.) | |
| 2013-2016: MAF (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6-cyl. petrol); Engine control module (5-cyl. petrol, 6-cyl.) | |
| 2017-2018: Air flow meter (5-cyl. diesel); Control valves (5-cyl. diesel) | |
| 2012-2013: Valves (1.6L petrol), MAF (1.6L petrol), MAF (D4162T), Control valve, fuel consumption (D4162T) | |
| 2014: Valves (1.6L petrol); MAF sensor (1.6L, 4-cyl. 2.0L (Does not apply to B4204T7 engine)); Thermostat (4-cyl. 2.0L petrol (Does not apply to B4204T7 engine)); EVAP valve (4-cyl. 2.0L petrol (Does not apply to B4204T7 engine)); Climate control system cooling valve (4-cyl. 2.0L diesel); EGR cooling pump (4-cyl. 2.0L diesel) MAF sensor (D4162T engine); Fuel supply control valve (D4162T engine) | |
| 2015: Valves (1.6L Petrol); MAF Sensor (1.6L, 4-cyl. 2.0L (Does Not Apply to B4204T7 Engine)); Thermostat (4-cyl. 2.0L Petrol (Does Not Apply to B4204T7 Engine)); EVAP Valve (4-cyl. 2.0L Petrol (Does Not Apply to B4204T7 Engine)); EGR Cooler Pump (4-cyl. 2.0L Diesel), Fuel Supply Regulator Valve (D4162T Engine) | |
| 2016-2018: MAF (4-cyl.); Thermostat (4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. Diesel) | |
| 38 | 2011: Engine Valves |
| 2012: Air Conditioning Compressor (5, 6-cyl.), Engine Valves, Engine Control Module (6-cyl.), Solenoids (6-cyl. non-turbo), Actuator Motors, Intake Manifold (6-cyl. non-turbo), Air Flow Sensor (4-cyl. 2.0 l Petrol), Oil Level Sensor (5-cyl. Diesel), Coolant Pump (D4162T) | |
| 2013: Air Conditioning Electromagnetic Clutch (5, 6-cyl.); Valves, Engine Control Module (6-cyl.) Solenoids (6-cyl. non-turbo); Actuator Motors, Intake Manifold (6-cyl. non-turbo); Mass Air Flow Sensor (4-cyl. 2.0 l Petrol, 5-cyl. Petrol); Oil Level Sensor (5-cyl. Diesel), Coolant Pump (D4162T) | |
| 2014-2015: Air Conditioning Electromagnetic Clutch (5, 6-cyl.); Valves (1.6 L, B4204T7 Engine; 5-cyl., 6-cyl.); Engine Control Module (6-cyl.); Solenoids (6-cyl. non-turbocharged); Actuator Motors, Intake Manifold (6-cyl. non-turbocharged); Mass Air Flow Sensor (B4204T7 Engine; 5-cyl. Petrol); Oil Level Sensor (5-cyl. Diesel) | |
| 2016: Air Conditioning Electromagnetic Clutch (5, 6-cyl.); Valves (5, 6-cyl.); Engine Control Module (6-cyl.); Mass Air Flow Sensor (5-cyl. Petrol); Oil Level Sensor | |
| 2017-2018: Air Conditioning Electromagnetic Clutch (5-cyl. Diesel); Valves (5-cyl. Diesel); Oil Level Sensor | |
| 2014-2015: Valves (4-cyl. 2.0 l (not applicable to engine B4204T7)); Oil pump (4-cyl. 2.0 l petrol (not applicable to engine B4204T7)); Lambdasond, central (4-cyl. 2.0 l petrol (not applicable to engine B4204T7)); Lambdasond, rear (4-cyl. 2.0 l diesel) | |
| 2016-2018: Valves (4-cyl.); Oil pump (4-cyl. petrol); Lambda probe, central (4-cyl. petrol); Lambda probe, rear (4-cyl. diesel) | |
| 39 | 2011: EVAP, Lambda probe, Injection (petrol) |
| 2012-2013: EVAP valve (5, 6-cyl. petrol), lambda probes (5, 6-cyl. petrol) | |
| 2014-2015: Lambda probe, front (4-cyl. 2.0 l (does not apply to B4204T7 engine)); Lambda probe, rear (4-cyl. 2.0 l petrol (does not apply to B4204T7 engine)); EVAP valve (5, 6-cyl. petrol); Lambda probes (5, 6-cyl. petrol) | |
| 2016: Lambda probe, front (4-cyl.); Lambda probe, rear (4-cyl. petrol), EVAP valve (5-, 6-cyl. petrol); Lambda probes (5, 6-cyl.); Control module radiator roller cover (5-cyl. diesel) | |
| 2017-2018: Lambda probe, front (4-cyl.); Lambda probe, rear (4-cyl. petrol) Lambda probes (5-cyl. diesel); Control unit, radiator cap (5-cyl. diesel) | |
| 2011: Lambda probe (4-cylinder petrol, 5-cylinder diesel) | |
| 2012-2013: Lambda-sonds (4-cyl. petrol), Lambda-sond (diesel), Control module, radiator roller cover (manual 5-cyl. 2.0 l diesel) | |
| 2014-2015: Lambda probes (petrol 1.6 l, engine B4204T7); Lambda probe (5-cyl. Diesel); Control unit, radiator cap (diesel 1.6 l, 5-cyl. diesel) | |
| 40 | 2011: Vacuum pump, crankcase valve (5-cyl. turbo, 2.0 GTDI) Diesel filter heater |
| 2012: Vacuum pump (5-cyl. petrol), Crankcase ventilation heater (5-cyl. petrol), Diesel filter heater | |
| 2013-2018: Diesel Filter Heating | |
| 2012: Coolant Pump (1.6L Petrol Start/Stop) | |
| 2013: Coolant pump (1.6 l petrol Start/Stop, 5-cyl petrol Start/Stop); Crankcase ventilation heater (5-cyl petrol); Automatic transmission oil pump (5-cyl petrol Start/Stop) | |
| 2014: Coolant pump (petrol Start/Stop 1.6 l); Crankcase ventilation heater (5-cyl. petrol); Automatic transmission oil pump (5-cyl. petrol Start/Stop) | |
| 2015: Coolant pump (1.6 l, petrol Start/Stop) Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Automatic transmission oil pump (5-cyl. petrol Start/Stop) | |
| 2016: Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Automatic transmission oil pump (5-cyl. petrol Start/Stop) | |
| 2014-2015: Ignition Coils (4-cyl. 2.0L Petrol (Does not apply to B4204T7 engine)) | |
| 2016-2018: Ignition coils (4-cyl. petrol) | |
| 41 | 2011: Crankcase ventilation heater (5-cyl. diesel) |
| 2013-2016: Control unit, radiator shroud (5-cyl. petrol) | |
| 2012: Crankcase ventilation heater (5-cyl. diesel) | |
| 2013-2018: Crankcase ventilation heater (5-cyl. diesel); Automatic transmission oil pump (5-cyl. diesel Start/Stop) | |
| 2014: Air Conditioning Electromagnetic Clutch (4-cyl. 2.0L (Does Not Apply to B4204T7 Engine)); Glow Plug Control Module (4-cyl. 2.0L Diesel); Oil Pump (4-cyl. 2.0L Diesel) | |
| 2015: Air Conditioning Electromagnetic Clutch (4-cyl. 2.0L Diesel); Glow Plug Control Module (4-cyl. 2.0L Diesel); Oil Pump (4-cyl. 2.0L Diesel) | |
| 2015: Air Conditioning Electromagnetic Clutch (4-cyl., 2.0 L, Petrol (Does not apply to B4204T7 engine)) | |
| 2016-2018: Air Conditioning Electromagnetic Clutch (4-cyl.); Glow Plug Control Module (4-cyl. Diesel); Oil Pump (4-cyl. Diesel) | |
| 42 | 70A 2011: Glow Plugs (5-cyl. diesel) |
| 2012-2018: Glow plugs (diesel) | |
| 50A 2014-2015: Coolant Pump (4-cyl. 2.0L petrol (does not apply to B4204T7 engine)) | |
| 60A 2016-2018: Coolant Pump (4-cyl. petrol) | |
| 43 | 60A 2011-2012: Cooling Fan (4-5-cyl. petrol) |
| 2013: Cooling Fan (4-cyl., 5-cyl. petrol) | |
| 2014-2015: Cooling Fan (1.6L, 4-cyl. 2.0L petrol, 5-cyl petrol) | |
| 2016: Cooling Fan (4-5-cyl. petrol) | |
| 2017-2018: Cooling Fan (Petrol) | |
| 80A 2011-2012: Cooling Fan (6-cyl. petrol), (5-cyl. diesel) | |
| 2013: Cooling Fan (6-cyl., 5-cyl. diesel) | |
| 2014-2015: Cooling Fan (6-cyl., 4-cyl. 2.0L diesel, 5-cyl. diesel) | |
| 2016: Cooling Fan (6-cyl., 4-, 5-cyl. diesel) | |
| 2017-2018: Cooling Fan (petrol, depending on fan option), Cooling Fan (diesel) | |
| 44 | 80A 2011: Electro-hydraulic power steering (1.6D) |
| 100A 2011: Electro-hydraulic power steering (other) | |
| 2012-2013: Electro-hydraulic power steering | |
| 2014-2018: Power steering |

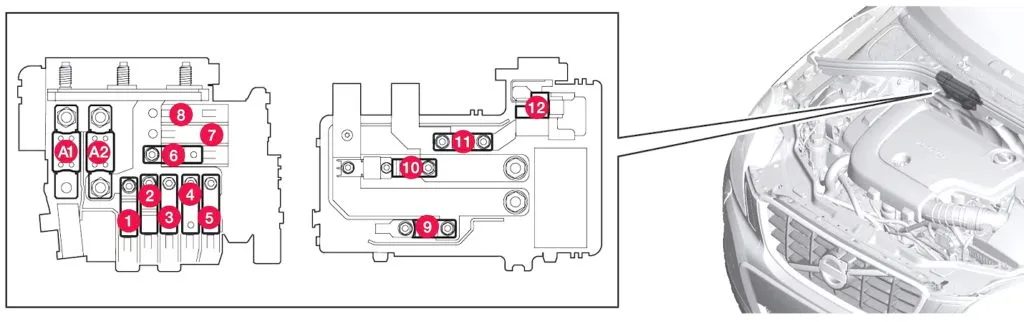

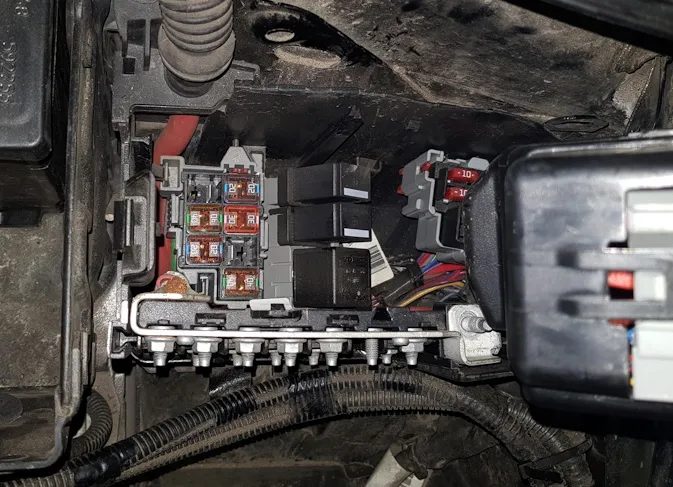

Power fuse box
This fuse box is located in the cold zone of the engine compartment, mainly on vehicles with the Start/Stop function.
Scheme
| A1 | 175A Main fuse for central electrical unit in engine compartment |
| A2 | 175A Central Electronic Module (CEM) Main Fuse under glovebox, Relay/Fuse Box under glovebox, Central Electrical Unit in Luggage Compartment |
| 1 | 100A Electric Auxiliary Heater |
| 2 | 50A Central Electronic Module (CEM) Main Fuse under Glove Box |
| 3 | 60A Main fuse for relay/fuse box under glove box |
| 4 | 60A 2012-2015: Main fuse for central electrical unit in passenger compartment with fuse box A under glove box |
| 2016-2018: Heated windshield | |
| 5 | 60A Main fuse for central electrical unit in cargo area |
| 6 | 40A Fan |
| 7 | — |
| 8 | — |
| 9 | 30A Start Relay |
| 10 | 50A 2012-2015: Internal diode |
| 11 | 70A Battery Support |
| 12 | 15A 2012-2015: Central Electronic Module (CEM) (Backup Battery Reference Voltage) |
| 5A 2016-2018: Central Electronic Module (CEM) (Backup Battery Reference Voltage) |

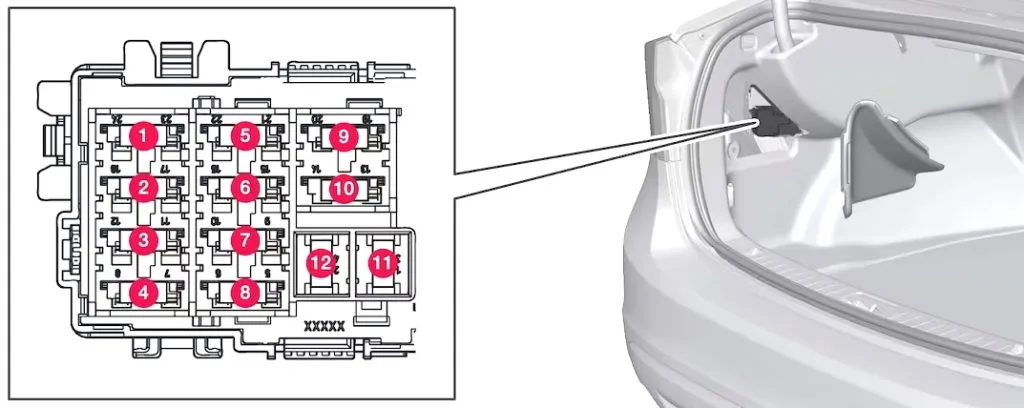

Block in the trunk
In the luggage compartment on the left side behind the protection, another block with fuses is installed.
Scheme
- 30A Electric Parking Brake, Left
- 30A Electric Parking Brake, Right
- 30A Rear Window Defogger
- 15A Trailer Socket 2
- —
- 15A 12V Socket, Cargo Compartment
- —
- —
- —
- —
- 40A Trailer Socket 1
- —
