Toyota Land Cruiser 200 was produced in 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 and 2021. During this time, the model was restyled 2 times. In this article, we will show a description of the fuses and relays of the Toyota Land Cruiser 200 with block diagrams and their locations. Let’s highlight the cigarette lighter fuse.
The purpose of the elements in the blocks may differ from the one shown. Check the purpose of the fuses and relays with your diagrams on the block cover.
Blocks in the cabin
Driver side block

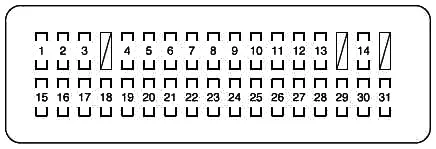

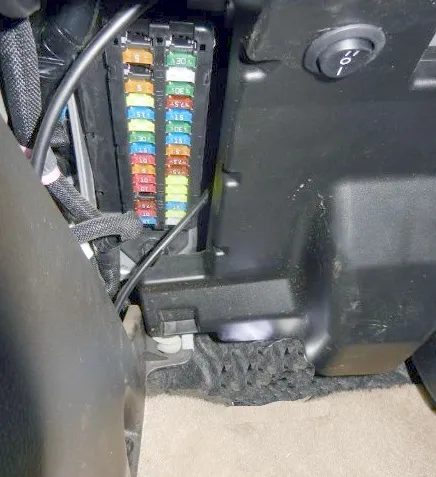

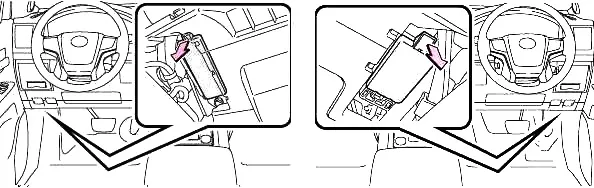

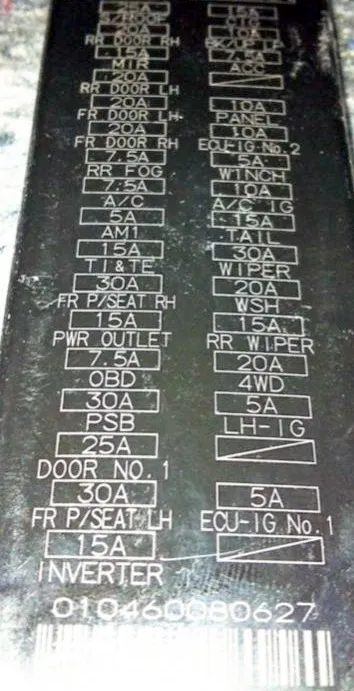

In the passenger compartment, the fuse box on the driver’s side is located under the panel, behind a protective cover.
| 1 | 15A CIG – Cigarette Lighter |
| 2 | 10A BK/UP LP – Reversing Lights, Trailer |
| 3 | 7.5A ACC – Stereo Effect Amplifier Unit, DSS2 ECU, Multi-Function Display Unit, Radio Receiver, Main ECU, Mirror ECU, Intelligent Keyless Entry & Start System, Clock |
| 4 | 10A PANEL – 4WD system, Ashtray, Cigarette lighter, Coolbox, Cruise control, Center differential lock, DAC, Multi-function display unit, Heated seats, Air conditioning system, Glove box light, Hazard warning flasher, Radio, Headlamp cleaner, Headlamp height adjustment, Supplementary heater, Driver position memory system, Mirror ECU, Overhead module, Rollover sensor switch for side curtain airbags, Shift lever switch, Steering wheel switches, VSC, Console switch, PANEL RLY |
| 5 | 10A ECU-IG NO.2 – Air Conditioning, Heater, Overhead Module, ABS, VSC, Steering Sensor, Yaw Rate & G Sensor, J/B ECU, Brake Lights, Sunroof, Clock, EC MIR |
| 6 | 5A WINCH – No circuit |
| 7 | 10A A/C IG – Cooled Compartment, Condenser Fan, Coolant Compressor, MG CL, Rear Window Defogger, RR MGC VLV |
| 8 | 15A TAIL – Tail lights, number plate light, fog lights, rear fog lights, trailer, parking lights |
| 9 | 30A WIPER – Windscreen wiper |
| 10 | 20A WSH – Windscreen Washer |
| 11 | 15A RR WIPER – Rear Windscreen Wiper |
| 12 | 20A 4WD – All-wheel drive system |
| 13 | 5A LH-IG – Alternator, Heated Seats, Heated Windshield Wiper Zone, Seat Belt Pretensioners, Hazard Warning Flasher, Shift Lever Switch |
| 14 | 5A ECU-IG NO.1 – ABS, VSC, Tilt and Length Adjustable Steering Column, Gateway ECU, Shift Lock System, DSS2 ECU, Cruise Control System, Seat Belts with Pre-Crash System, Trailer, Headlamp Washer, Multi-Function Display Unit, Automatic Windshield Wiper ECU, Driver Position Memory System, Power Door Lock System |
| 15 | 25A S/ROOF – Roof hatch |
| 16 | 20A RR DOOR RH – Electric windows (rear right door) |
| 17 | 15A MIR – ECU mirrors, heated outside rearview mirrors |
| 18 | 20A RR DOOR LH – Electric windows (rear left door) |
| 19 | 20A FR DOOR LH – Electric windows (front left door) |
| 20 | 20A FR DOOR RH – Electric windows (front right door) |
| 21 | 7.5A RR FOG – Rear Fog Lights |
| 22 | 7.5A A/C- Air Conditioning System |
| 23 | 5A AM1 – No circuit |
| 24 | 15A TI & TE – Tilt and Reach Steering Wheel Adjustment |
| 25 | 30A FR P/SEAT RH – Front seat adjustment |
| 26 | 15A PWR OUTLET – Electrical socket |
| 27 | 7.5A OBD – Diagnostic connector |
| 28 | 30A PSB – Pre-crash safety belt |
| 29 | 25A DOOR NO.1 – Main ECU |
| 30 | 30A FR P/SEAT LH – Front seat adjustment |
| 31 | 15A INVERTER – Inverter |
Fuses 1 and 26 at 15A are responsible for the operation of the cigarette lighter and additional sockets.
Passenger side block

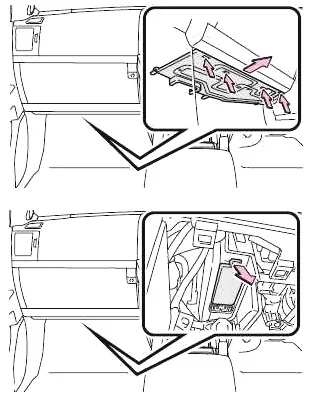

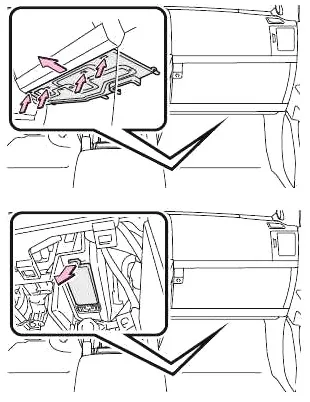

It is located under the glove compartment. To access it, you need to remove the protective cover.
Left hand drive
| 1 | 30A RSF LH |
| 2 | 30A B/DR CLSR RH |
| 3 | 30A B/DR CLSR LH |
| 4 | 30A RSF RH |
| 5 | 20A DOOR DL – Double Locking System |
| 6 | 20A AHC-B |
| 7 | 5A TEL – Telephone, Multimedia |
| 8 | 7.5A TOW BK/UP – Towing |
| 9 | 10A AHC-B NO.2 |
| 10 | VGRS, AHC, tire pressure monitoring system |
| 11 | 10A SEAT-A/C FAN – Seat cooling fans |
| 12 | 20A SEAT-HTR – Seat Heater |
| 13 | 5A AFS |
| 14 | 5A ECU-IG NO.3 – Cruise control |
| 15 | 10A STRG HTR – Heated Steering Wheel |
| 16 | 10A TV – Multifunctional Display Unit |
Blocks under the hood

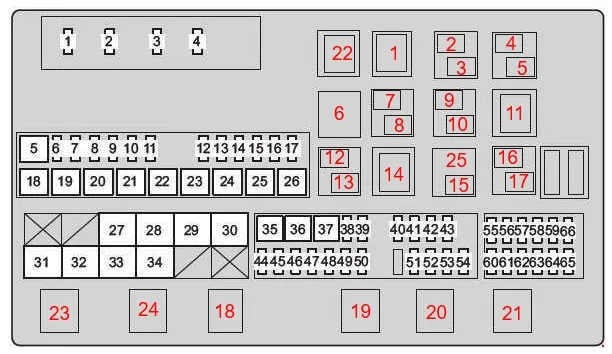

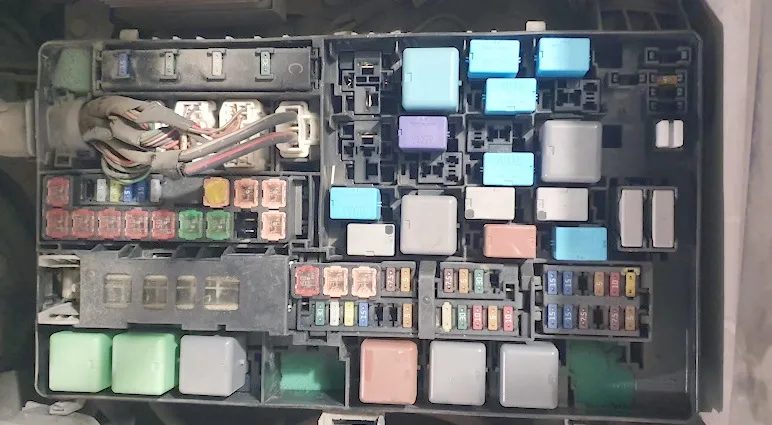

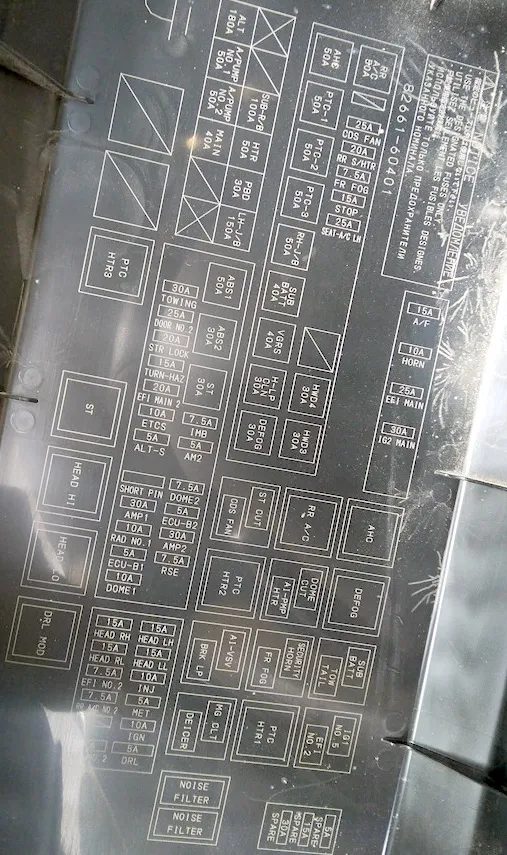

Main block

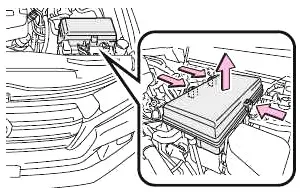

Located on the left side, also covered with a protective cover.
| 1 | 15A A/F*1 – A/F Heating |
| 1 | 15A EFI MAIN2*2 – VNT DRIVER, EFI, EDU |
| 2 | 10A HORN – Horn |
| 3 | 25A EFI MAIN – EFI, A/F heater, fuel pump |
| 4 | 30A IG2 MAIN – Injector, ignition, indication |
| 5 | 50A RR A/C – Heater Controller |
| 6 | 25A SEAT-A/C LH – Seat heating, seat ventilation (up to 2014) |
| 7 | 20A RR S/HTR – Rear Seat Heater (before 2014) |
| 7 | 25A CDS FAN – Condenser Fan (since 2014) |
| 8 | 20A DEICER – Windscreen wiper blade heating (before 2014) |
| 8 | 20A RR S/HTR – Rear Seat Heater (since 2014) |
| 9 | 25A CDS FAN – Condenser Fan (up to 2014) |
| 9 | 7.5A FR FOG – Front fog lights (since 2014) |
| 10 | 30A TOW TAIL – Trailer Lighting (pre 2014) |
| 10 | 15A STOP – Brake lights, additional brake light, brake controller, ABS, VSC, ECU, EFI, trailer connector (since 2014) |
| 11 | 30A RR P/SEAT – Rear seat drive |
| 11 | 25A SEAT-A/C LH – Seat heating, seat ventilation (up to 2014) |
| 12 | 10A ALT-CDS – Alternator Capacitor (before 2014) |
| 13 | 15A FR FOG – Fog lights |
| 14 | 5A SECURITY – Brake lights, high brake light, ABS, VSC, main ECU, EFI, trailer |
| 15 | 25A SEAT-A/C RH – Seat heating, seat ventilation |
| 16 | 15A STOP – Brake lights, additional brake light, ABS, VSC, J/B ECU, EFI, trailer |
| 17 | 30A TOW BRK*1 – Trailer Lighting |
| 17 | 7.5A PWR HTR*2 – Additional heater (before 2014) |
| 18 | 50A RR AUTO A/C – Rear Air Conditioning System (before 2014) |
| 19 | 50A PTC-1 – PTC Heater |
| 20 | 50A PTC-2 – PTC Heater |
| 21 | 50A PTC-3 – PTC Heater |
| 22 | 40A RH-J/B |
| 23 | 40A SUB BATT – Towing |
| 24 | 40A VGRS |
| 25 | 30A H-LP CLN – Headlight Cleaner |
| 26 | 30A DEFOG – Rear Window Defogger |
| 27 | 60A AHC |
| 27 | SUB-R/B (since 2014) |
| 28 | 50A HTR – Front Air Conditioning System |
| 29 | 30A PBD |
| 30 | 150A LH-J/B – Main ECU |
| 31 | 180A ALT – Generator |
| 32 | 50A A/PUMP NO.1*1 |
| 32 | 80A GLOW1*2 – Glow Plugs |
| 33 | 50A A/PUMP NO.2*1 |
| 33 | 80A GLOW2 – Glow Plugs |
| 34 | 40A MAIN – Headlights, daytime running lights, |
| 35 | 50A ABS |
| 36 | 50A ABS |
| 37 | 30A ST – Starting System |
| 38 | 7.5A IMB – Identification Code Module, Intelligent Entry and Push Button Start System, GBS |
| 39 | 5A AM2 – Main ECU |
| 40 | 7.5A DOME2 – Individual mirror lighting, ceiling module |
| 41 | 5A ECU-B2 – Driver Position Memory System |
| 42 | 5A TEL – Multimedia (until 2014) |
| 42 | 30A AMP 2 – Audio system (from 2014) |
| 43 | 7.5A RSE – Rear Seat Entertainment System |
| 44 | 30A TOWING – Towing |
| 45 | 25A DOOR NO.2 – Main ECU |
| 46 | 20A STR LOCK – Steering lock system |
| 47 | 15A TURN-HAZ – Counter, Front Turn Signals, Side Repeaters, Rear Turn Signals, Trailer |
| 48 | 20A EFI MAIN2*1 |
| 48 | 20A F/PUMP*2 – Fuel pump |
| 49 | 10A ETCS |
| 50 | 5A IC-ALT |
| 51 | 30A AMP – Audio system with radio |
| 52 | 10A RAD NO.1 – Navigation system with radio receiver, DSS2 |
| 53 | 5A ECU-B1 – Dual Locking System, Intelligent Entry & Push Button Start System, Overhead Module, Yaw Rate & G Sensor, Tilt & Length Adjustable Steering Column, Meter, Cool Box, ECU Gateway, Steering Sensor, VGRS |
| 54 | 5A DOME1 – Door sill lights, clock |
| 55 | 15A HEAD LH – High beam headlight (left) |
| 56 | 15A HEAD LL – Low beam headlight (left), headlight leveling system |
| 57 | 15A INJ – Injector, ignition |
| 58 | 5A MET – Counter |
| 59 | 10A IGN – Open Loop, SRS Airbag System, ECU Gateway, Smart Entry & Push Button Start, ABS, VSC, Steering Lock, GBS |
| 60 | 15A HEAD RH – High beam headlight (right) |
| 61 | 15A HEAD RL – Low beam headlight (right) |
| 62 | 7.5A EFI NO.2 – AFM, EVP VSV, 02 SSR, AI DRIVER, AI EX VSV, ACIS VSV |
| 63 | 7.5A RR A/C NO.2 – Rear Air Conditioner |
| 64 | 7.5A EFI NO.3*2 – EGR E-VRV B2, D-THROT SOL B2 |
| 65 | 5A DEF NO.2 – Heated exterior rearview mirrors |
| 66 | 5A DRL – Daytime Running Lights |
*1 – Cars with petrol engine
*2 – Cars with diesel engine
Relay
- Rear Window Defogger Relay
- Trailer dimensions
- Auxiliary ignition circuit relay
- Petrol: Fuel Pump Control Unit Relay
- Anti-theft system relay
- Fog light relay
- Start inhibit relay
- Air Conditioner Condenser Fan Motor Relay
- Heater relay
- Brake light relay
- Air conditioning compressor electromagnetic clutch relay
- Windshield Heater Relay
- Heater relay
- Starter relay
- High beam relay
- Low beam traffic light relay
- Suspension control system relay

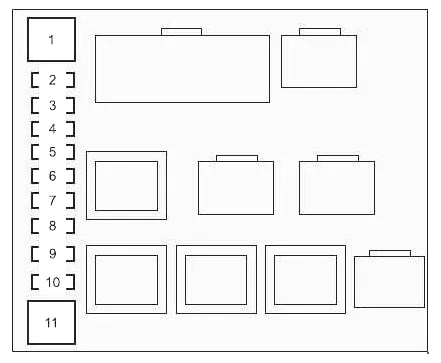

Additional block
| 1 | 30A HWD1 |
| 2 | 30A TOW BRK – Brake Controller |
| 3 | 30A RR P/SEAT |
| 4 | 7.5A PWR HTR |
| 5 | 20A DEICER – Windscreen wiper blade heating |
| 6 | 10A ALT-CDS – Generator Capacitor |
| 7 | 5A SECURITY – Alarm |
| 8 | 25A SEAT A/C RH – Seat Heaters |
| 9 | 10A Al PMP HTR – Fuel Heater |
| 10 | 30A TOW TAIL – Trailer Lighting |
| 11 | 30A HWD2 |
