The Volkswagen Amarok pickup truck was produced in 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016. Then the car was restyling and updated and has been produced since 2017. The Amarok has 3 trim levels – Trendline, Comfortline and Highline with diesel and gasoline engines. In our material you can read the description of the fuse blocks and relays of the Volkswagen Amarok, their diagrams and photos. We will separately note the cigarette lighter fuse.

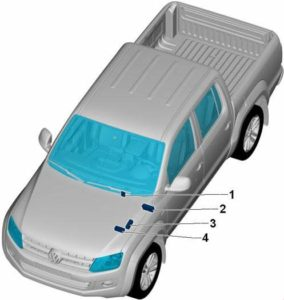

Block arrangement

All Volkswagen Amarok models have the following layout: a main unit with fuses and relays in the passenger compartment and a unit on the battery cover. However, depending on the level of electrical equipment, it is possible to place both an additional unit and individual elements, especially for cars manufactured after 2013.

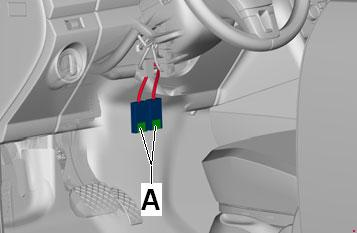

  1. Fuse 1 of the supply fan -S97- and fuse 1 of the ABS control unit
  2. Fuse block C-SC-(72/68 fuses)

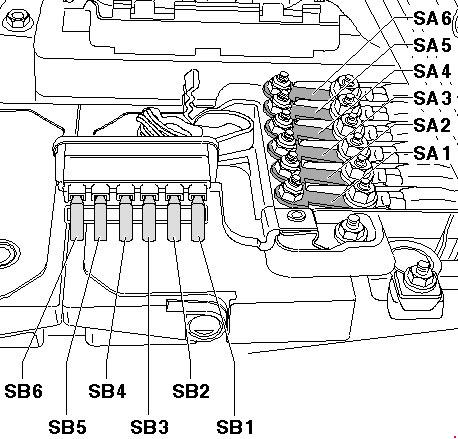

  3. Fuse block on the battery cover (SA)
  4. Fuse block on the battery cover (SB)

Blocks in the cabin

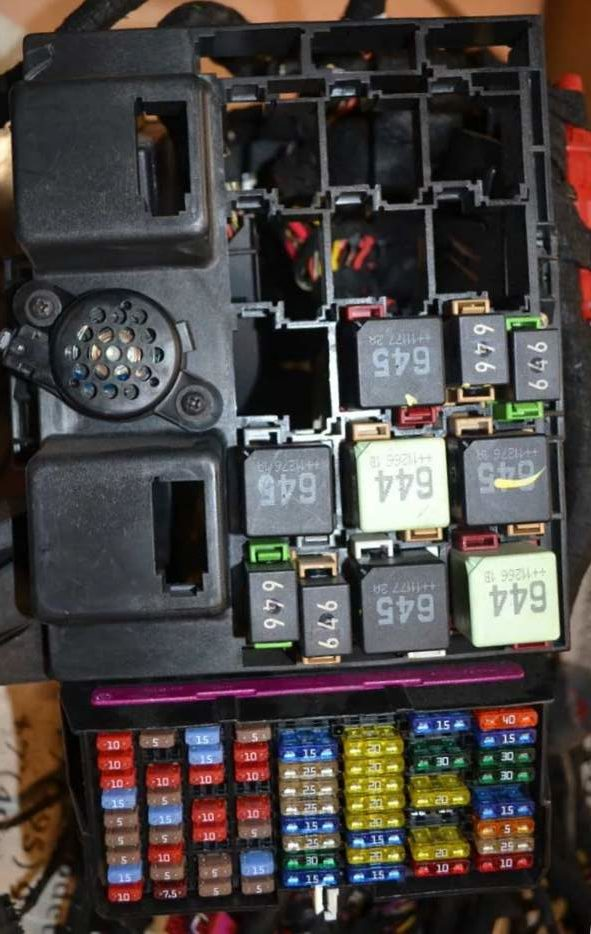

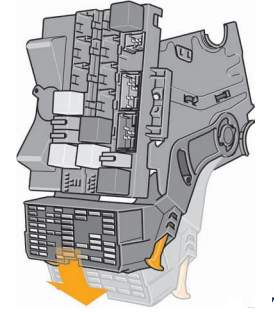

Main fuse block

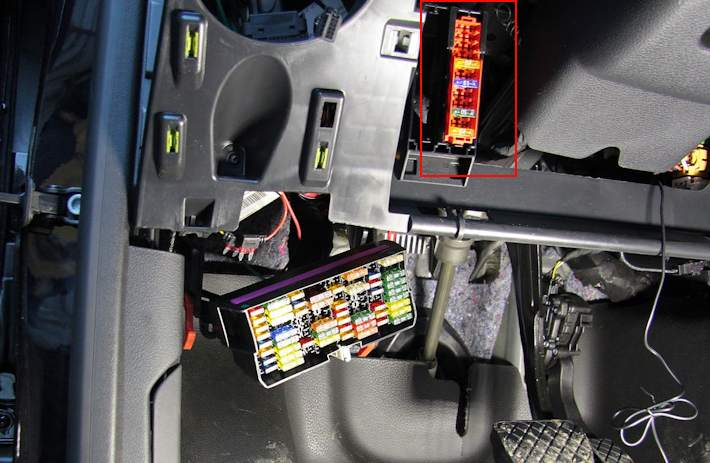

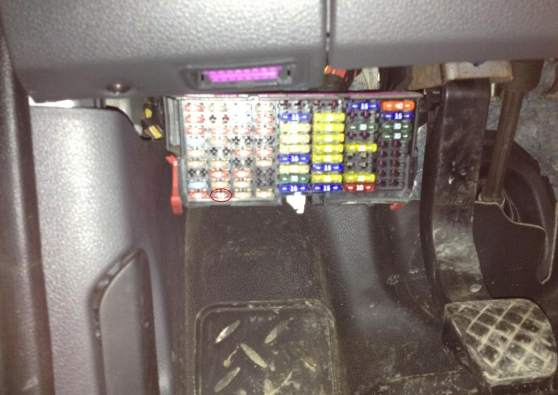

It is located under the driver’s dashboard. To access the fuses, you must release the locking lever. The fuse box can then be lowered.

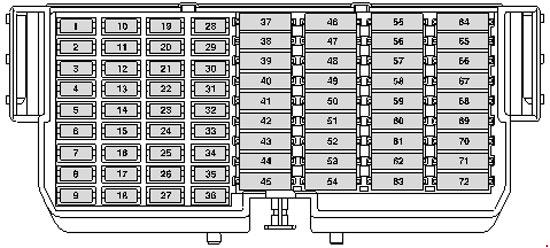

72-fuse block (models before 2013)

Photo example

Description

Option 1.
110A ABS control unit, ASR and ESP off button, Driving program button
210A Left windshield washer jet heating resistor, Steering column switch unit, Wiper switch, Windshield washer pump and headlight cleaning system switch
310A Reverse light switch, Parking assist control unit / 15A Onboard power supply control unit, Reverse light bulbs, External interface
415A On-board network control unit, Turn signal (cl. 49), Brake light (cl. 54)
55A Air flow meter
65A Trailer recognition control unit
75A Interface for external use
85A Ignition and starter switch / 15A Ignition and starter switch
910A Airbag control unit, Front passenger airbag deactivation indicator lamp
105A Engine control unit
1115A Differential lock control unit
1210A Fuel pressure regulator, Fuel metering valve, Turbocharger bypass valve, Boost pressure limit solenoid valve, Adsorber solenoid valve 1, Intake valve timing valve 1, Intake port gate valve
135A Exhaust flap valve, EGR radiator switching valve, Boost pressure limiting solenoid valve
1415A Coolant pump after engine shutdown, Fuel pressure regulator
155A Power supply relay cl. 30, Circulation pump
1610A Rear fog lamp / 5A Voltage stabilizer, Diagnostic data bus interface
175A On-board network control unit
187.5A Washer pump
1915A On-board network control unit, Exterior mirror heating element
2015A On-board network control unit, Internal power supply
2110A On-board network control unit, Interior security system disconnect switch, Interior lighting, Side lights
225A Position tracking system control unit
2310A Engine control unit
2410A Alarm siren
2510A Crankcase Ventilation System Heater Resistor
265A Right daytime running light module lamp
275A Left daytime running light module lamp
285A Light switch, License plate light, Connection 8 in main wiring harness / 15A On-board network control unit, fog lamps, reversing lamps, External interface
2910A Left headlight corrector actuator, Left low beam headlight bulb, External interface / 5A Lighting switch
3010A Left high beam headlight bulb, Instrument cluster control unit, External interface / 5A Starter relay
315A Tiptronic switch, Automatic transmission control unit
3210A Right high beam headlight bulb
335A Exterior mirror position adjuster
3415A Engine control unit
3515A Lambda sensor heating element
365A Fuel pump relay, Power supply relay cl. 30, Clutch pedal switch, Radiator fan control unit, Glow plug control unit
3720A Ignition coil
3815A 12 V socket
3925A Trailer recognition control unit
4025A Trailer recognition control unit
4125A Trailer recognition control unit
4215A Brake light switch, High pressure sensor, Air pollution sensor, Oil level and temperature sensor, Differential lock control unit, Instrument cluster control unit, Parking assistant control unit, Transfer case control unit, Position tracking system control unit, Normal mode indicator lamp on the transfer case control panel, Fuse 16 in fuse block C, Diagnostic connector, Steering column switch unit, Steering wheel angle sensor, Cruise control switch
4325A On-board network control unit, Wiper motor control unit, Wiper motor
4430A On-board network control unit, Rear window heating element
4515A Diagnostic connector, Instrument cluster control unit, Climate control unit, Climatronic control unit, Heater and mode selector switch, Steering wheel switch unit, Spiral cable, Multifunction steering wheel control unit
4625A Transfer case control unit
4720A On-board network control unit, High tone signal, Low tone signal
4820A Driver’s door control unit
4920A Front passenger door control unit
5020A Rear left door control unit
5120A Rear right door control unit
5215A Socket
5320A Fog light bulbs / 25A On-board network control unit
54Lighter 15A
5515A Right headlight corrector actuator, Right dipped beam headlight bulb, Interface for external use / 25A On-board network control unit, Right daytime running light module bulb, Right dipped beam headlight bulb, Interface for external use
5625A Fuel pump control unit
5730A Seat heating button, Seat heating control unit
5815A Tiptronic switch, Automatic transmission control unit, Ignition key removal lock solenoid
5920A 12V socket 2
605A Trailer recognition control unit
615A Trailer recognition control unit
6220A Auxiliary heater control unit, Cooling system pump relay, Auxiliary liquid heater relay, Circulation pump
6310A Cargo platform lighting lamp
6440A Heater and mode selector switch, Climatronic control unit, Air conditioning control unit
6515A Engine control unit
6630A On-board network control unit, Fuel filler flap central locking actuator, Central locking drive
6730A Main unit, Control unit with radio navigation system display, Voltage stabilizer, Data bus diagnostic interface
687.5A Telephone control panel control unit
6915A Interface for external use
705A Interface for external use
7125A Interface for external use
7210A Interface for external use

Fuse number 54 at 15A is responsible for the cigarette lighter.

Option 2.
110A ABS control unit
ASR and ESP deactivation button
Driving program
button Airbag control unit
Front passenger airbag deactivation indicator
light Lighting switch
210A Steering wheel switch unitWiper switchIntermittent wiper switchWindshield washer pump and headlight cleaning system switch
315A Lighting switch
Automatic transmission control unit
Heater and operating mode selection
switch Air conditioning control unit
Front air distribution flap actuator motor potentiometer
Climatronic control unitAuxiliary liquid heater relayCirculation pump
415A Engine control unit
Air flow meter
55A Air flow meter
15A Ignition coil
65A Trailer recognition control unit
75A Interface for external use
815A Ignition and starter switch
Alarm siren
Vehicle position tracking system control unit
95A Cargo platform light lamp
105A Tiptronic switch
Automatic transmission control unit
Air flow meter
Engine control unit
1115A Differential lock control unit
1210A Boost pressure limit solenoid valve
Adsorber solenoid valve 1 Intake
valve timing valve 1
Turbocharger bypass valve Intake
port flap valve
Fuel pressure regulator
Fuel metering valve
137.5A Left seat heating button
Right seat heating button
Left windshield washer jet heating resistor
Right windshield washer jet heating resistor
1415A Fuel pressure regulator -N276
155A Power supply relay cl. 30Circulation pump
1610A Rear fog light indicator lamp
Left fog light lamp
Right fog light lamp
5A Voltage Stabilizer
175A On-board network control unit
187.5A Washer pump
10A Washer pump
1910/15A On-board network control unitDriver’s side exterior mirror heating elementFront passenger’s exterior mirror heating element
2015/5A On-board network control unitInternal nutrition
2115A On-board network control unitInterior security system deactivation switchFront interior lighting lamp
Central interior lighting lamp
Front position light, left
Front position light, right
22Not used
10A Rear view camera control unit
2310A Engine control unit
245A Steering wheel switch unitDipped beam and flasher switch (high beam on)
2510A Crankcase Ventilation System Heater Resistor
265A Right daytime running light module lamp
275A Left daytime running light module lamp
285A B472 Connection 8 in the main wiring harnessLight switchHeadlight leveling control
License plate light, left
Headlight
15A On-board network control unitLeft fog light bulbRight fog light bulb
Right reversing light bulbLeft reversing light bulb
External interface
2910A Left low beam headlight bulb
External interface
5A Light switch
3010A Left high beam headlight bulb
Instrument cluster control unit
Interface for external use
On-board network control unit
315A Interface for external use
3210A Right high beam headlight bulb
335A Exterior mirror position adjuster
3415A Engine control unit
Coolant pump after engine shut-off
3515A Lambda sensor heating element
365A Fuel pump relay
Power supply relay terminal 30
Clutch pedal switch
3720A Ignition coil
Not used
3840A Fuse 28, 29, 50 in fuse box
Fuel pump relay
Headlamp relay
Starter relay
Main relay
Unloading relay cl. 58b
3925A Trailer recognition control unit
4025A Trailer recognition control unit
4141A Trailer recognition control unit
4210/15A Start-stop button
Brake
light switch Reverse light switch
Tachograph
High pressure sensor
Air pollution sensor
Oil level and temperature sensor
Differential lock control unit
Parking assistant control unit
Transfer case control unit
Normal mode indicator lamp
Downshift indicator lamp on the transfer case control panel
Center differential lock indicator lamp on the transfer case control panel
Upper brake light lamp
Diagnostic connectorSteering wheel switch unitSteering wheel angle sensorCruise control switch
Cruise control SET button
Spiral cable
Multifunction steering wheel control unit
4330A On-board network control unitWiper motor control unitWiper motor
25A Lighting switch
30A Voltage StabilizerInstrument cluster control unitFuse 67 in the fuse box
4430A On-board network control unitRear window heating relayRear window heating element
4515/10A Heater and mode selector
switch Diagnostic connector
Instrument cluster control unit
Climatronic control unit
Bitron fan control sensor, front
Rain and light sensor
Interior security system
sensor Telephone control panel control unit Tachograph Tiptronic
switch
Pump 2 extraction lock solenoid Display ceiling panel Additional liquid heater radio receiver



Steering wheel switch unitSpiral cableMultifunction steering wheel control unit
4625/30A Transfer box control unit
4725A On-board network control unitHigh-pitched toneLow tone signal
4830A Driver’s door control unit
4930A Front passenger door control unit
5030A Rear left door control unit
5130A Rear right door control unit
5230A Socket
Cigarette lighter
5325/20A On-board network control unitLeft daytime running light module lampLeft dipped beam headlight bulb
5420A Lighting switch
5515/10A Headlight leveling control
Right dipped beam headlight bulb
External interface
25/20A On-board network control unitRight daytime running light module lampRight dipped beam headlight bulbInterface for external use
5625A Fuel pump control unit
5730/25A Seat heating control unit
5815A Tiptronic switch Automatic
transmission control unit
Ignition key removal lock solenoid
30A On-board network control unitWiper motor control unitWiper motor
5925A 12V socket 2 and 3
6020A Left fog lamp
Right fog lamp
External interface
5A Interface for external use
6130/15A On-board network control unitLeft fog light bulbRight fog light bulbRight reversing light bulbLeft reversing light bulbInterface for external use
6220A Auxiliary heater control unit
Supply fan relay
Electric fuel pump relay 2
Ceiling display panel
Auxiliary liquid heater radio signal receiver
Cooling system pump relay
15A Auxiliary heater control unit
Supply fan relay
Cooling system pump relay
30A Auxiliary heater control unit
Supply fan relay
Electric fuel pump relay 2
Ceiling display panel
Auxiliary liquid heater radio signal receiver
6330A Lighting switch
5A Light switch
Starter relay 1
Starter relay 2
6440A Supply fan
6515A On-board network control unitDirection indicator (Cl. 49)Brake light (cl. 54)
6630A On-board network control unitFuel filler flap central locking actuatorDriver’s door central locking driveFront passenger door central locking driveRear left door central locking driveRear right door central locking drive
6730A Control unit with radio navigation system display
Main unitVoltage stabilizerInstrument cluster control unitControl unit with radio navigation system displayMain unit
25A Main unit
Control unit with radio navigation system display
6840A Heater and mode selector
switch Climate control unitSupply fan separation relayAir conditioning control unit
6915A Interface for external use
70Not used
40/30A Starter Relay 1
Starter Relay 2
7130A Interface for external use
725/10A Interface for external use

In this version, fuse number 52 is responsible for the cigarette lighter.

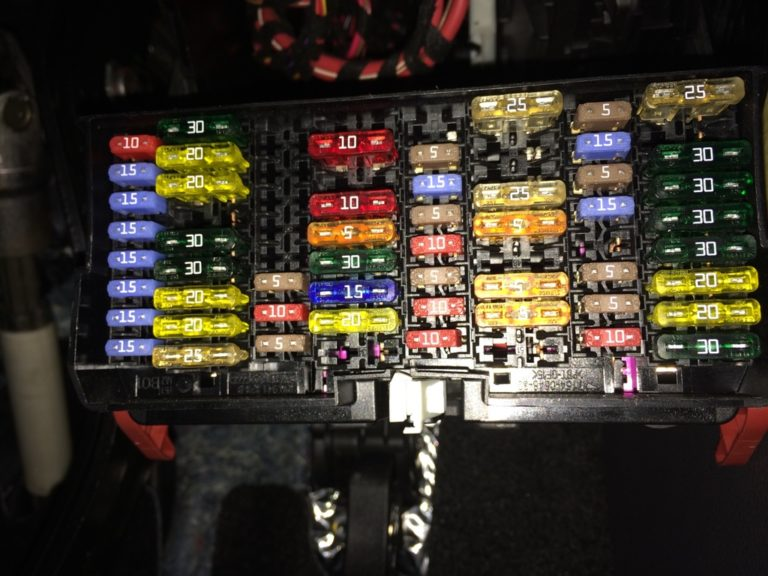

68-fuse block (models from 2013)

Since July 2013, the Volkswagen Amarok has been equipped with a new, 68-pole SC fuse block (under the front panel on the driver’s side). It differs visually from the old 72-pole block primarily in that it alternates vertical rows of smaller fuses (MINI, 8 pieces per row) with larger fuses (ATO, 9 pieces per row). The old 72-pole block initially had 4 rows of MINI fuses, then 4 rows of ATO fuses, 9 pieces in all rows.


Appointment

110A Washer pump
215A Heater and mode selector
switch Bitron fan control sensor, front
Climatronic control unit
Climate control unit Vehicle
position tracking system control unit
Automatic transmission control unitOn-board network control unitInternal nutrition
315A Ignition and starter switch
Vehicle position tracking system control unitOn-board network control unitInternal nutrition
415A Alarm siren
Power supply relay cl. 30Steering wheel switch unitDipped beam and flasher switch (high beam on)
515A Differential lock control unit
615A On-board network control unitLeft fog light bulbRight fog light bulbLeft reversing light bulbRight reversing light bulbInterface for external use
715A On-board network control unitInterior security system deactivation switchFront interior lighting lampCentral interior lighting ceilingFront marker light, leftFront marker light, right
815A Trailer recognition control unit -J345-
940/30A Headlamp relay
Starter relay
Motronic power supply relay
Unloading relay cl. 58b
1020A Trailer recognition control unit
1120A Trailer recognition control unit
1230A Transfer case control unit
1330A Driver’s door control unit
1430A Front passenger door control unit
1520A Cooling system pump relay
Power supply relay cl. 30
Auxiliary heater relay
Auxiliary heater control unit
30A Supply fan relay
Power supply relay cl. 30
Auxiliary heater relay
Auxiliary heater control unit
20A Auxiliary heater control unit
1620A On-board network control unitDirection indicator (Cl. 49)Brake light (cl. 54)
1725A Control unit with radio navigation system display
Main unit
Connector, 8-pin
185A Instrument cluster
1910/5A Left fog lamp bulb
Right fog lamp bulb
Rear fog lamp indicator lamp
205A On-board network control unit
215A Left daytime running light module lamp
Right daytime running light module lamp
2210A Positive connection (58 D1) in the instrument cluster wiring harness
B342 Connection 3 (58d) in the main wiring harness
B472 Connection 8 in the main wiring harness
N2 Connection 1 in the headlight range adjustment wiring harness
R14 Connection 1 (driver’s door open)
235A Clutch pedal switch
Air flow meter
Fuel pump relay
Glow plug control unit
Cooling system pump relay
Radiator fan control unit
Power supply relay cl. 30
Boost pressure limiting solenoid valve Exhaust
gas flap valve
Exhaust gas recirculation radiator switching valve
2410A Fuel pressure regulator
Fuel metering valve
10A Boost pressure limit solenoid valve
Adsorber solenoid valve 1 Intake
valve timing valve 1
Turbocharger bypass valve
Intake port flap valve
255A Coolant pump after engine shutdown
15A Engine control unit
267.5A /10A External interface
Left headlight
Left low beam headlight bulb
2710/15A On-board network control unit
Left headlight
Right headlight
Interface for external useInstrument cluster control unitHigh beam indicator lamp
2810A External interface
Right headlightRight dipped beam headlight bulb
29Not used
10A Tiptronic switch
Tachograph
Ignition key removal solenoid
Additional liquid heater radio signal receiver
Diagnostic connectorSteering wheel switch unitSpiral cableMultifunction steering wheel control unit
305A Interface for external use
Interface for external use
20A Left fog lamp
Right fog lamp
External interface
3115/30A Interface for external useIgnition and starter switchPower supply relay cl. 15On-board network control unitSteering wheel switch unitWindshield washer pump and headlight cleaning system switch
3215A Lambda probe heating element
Lambda probe heating element 1 after the catalytic converter
3315A Ignition coil
20A Air flow meter
Engine control unit
3420A Fuel pump control unitFuel pump that pumps fuel
355A Left seat heating button
Right seat heating button
365A Exterior mirror position adjuster
3715A Interface for external use
385A Tiptronic switch
Automatic transmission control unit -J217-Air flow meter
Engine control unit
Voltage stabilizer
3910A Airbag control unit
Front passenger airbag deactivation indicator lamp
405A Heater and operating mode
selector switch ASR and ESP off
button Driving program button
ABS control unit
Anti-theft alarm relay 1
Instrument cluster
Steering column switch unitSteering wheel angle sensor
4110A Headlight leveling regulator
Trailer recognition control unit Crankcase
ventilation heating resistor Connector
, 8-pin
Electrochromic interior rear-view mirror Left headlight
leveling actuator Right headlight leveling actuator Windshield washer heating element
4210A Start-stop button
Brake light
switch Reverse light switch
Tachograph
High pressure sensor
Air pollution sensor
Oil level and temperature sensor
Differential lock control unit
Parking assistant control
unit Transfer case control unit
Normal mode indicator lamp on the
platform panel
Diagnostic connectorVehicle position tracking system control unitCombination of devicesSteering wheel switch unitCruise control switchCruise control SET buttonSpiral cableMultifunction steering wheel control unit
4325A Socket / Cigarette Lighter
4420A Lighting switch
4525A Seat heating control unit
4625A Socket 12 V 2
Socket 12 V 3
475A Interface for external useInterface for external useIgnition and starter switchPower supply relayOn-board network control unitPower supply relay 2Heater switch and operating mode selector
4825A Control unit with radio navigation system display
Main unit
Connector, 8-pin
495A Light switch
Starter relay 1
Starter relay 2
20A Lighting switch
505A Interface for external use
5130A Starter Relay 1Starter relay 2Starter
525A Interface for external use
535A Control unit for special superstructure
Cargo platform lighting lamp
10/15A Heater and operating mode selector
switch Tachograph
Bitron fan control sensor, front
Climatronic control unit
Air conditioning control unit
545A Instrument cluster
5515A On-board network control unitInterference filterExterior mirror heating element
5610A Rear view camera control unit
575A Engine control unit
585A Light switch
5910A Tiptronic switch
Tachograph
Interior monitoring
sensor Rain and light
sensor Electric fuel pump 2
relay Overhead indicator panel
Telephone control panel control unit
Ignition key removal interlock solenoid
Additional liquid heater radio signal receiver
Diagnostic connector
Control unit for special add-ons
Load platform light
Cooling system pump relay
Power supply relay class 30
Additional heater relaySteering wheel switch unitSpiral cableMultifunction steering wheel control unit
6025A On-board network control unitFuel filler flap central locking actuatorCentral locking drive
6115A Light switch
25A Voltage StabilizerFuse 18, 48 in the fuse box
6230A On-board network control unitRear window heating elementRear window heating relay
6330A On-board network control unitHigh-pitched toneLow tone signalAnti-theft alarm sound
Anti-theft alarm relay 1
Interface for external use
6430A Rear left door control unit
6530A Rear right door control unit
6620A On-board network control unitLeft headlight
6720A On-board network control unitRight headlight
Left reversing light bulb
Right reversing light bulb
6830A On-board network control unitWiper motor control unitWiper motor

Fuse 43 at 25A is responsible for the cigarette lighter.

Additional elements

An additional fuse block or separate elements may be located next to the steering rack.

Purpose of elements

40Heater and mode selector
switch Climate control unit
Supply fan
40ABS control unit

Relay block

It is located on a bracket on the driver’s side under the instrument panel. The relay block bracket is completely hidden by the instrument panel. The SC fuse block is mounted on the same bracket. There may also be an on-board electrical system control unit integrated into the relay/fuse block bracket itself (SC).

Block under the hood

High-power fuses in the form of fuse links (SA) are located under the cover on the battery. It is connected to the positive battery terminal wire. Nearby is the fuse block (SB), protected from water ingress by a special cap.

Scheme

SA decryption

  1. 175A – Generator
  2. 110/175A – Relays and fuses in the cabin
  3. 110A – Relays and fuses in the cabin, 50A – fuses in the cabin or interface for external use
  4. 80/110A Radiator fan control unit
  5. 50A – Glow plug control unit
  6. 80/110A – Fuses in the passenger compartment

Purpose of SB

  1. 40A – ABS control unit, 25A – Main relay
  2. 30A – Fuel Pump Relay, Fuel Pressure Regulator, Fuel Pump 2 Regulator, Fuel Delivery Module
  3. 30A – ABS control unit
  4. 5A – Battery control unit, On-board network control unit
  5. 7.5A – Fan Relay, 30A – High Beam Relay, High Beam Headlight Bulbs, 25/40A – Rear Window Defroster Relay, Hard Top Rear Window Defroster
  6. 40A -Connector, 6-pin or Interface for external use
