Hyundai ix55 in some countries is also known as Hyundai Veracruz . Years of production: 2006, 2007, 2008, 2009, 2010, 2011,2012 and 2013. In our material we will show a description of fuses and relays Hyundai ix55 with photo examples of block execution, their diagrams and locations. Separately, we will note the cigarette lighter fuse.

There may be differences between the presented material and your Hyundai ix55 units. Check the purpose of the elements with the owl diagrams on the back of the protective cover.

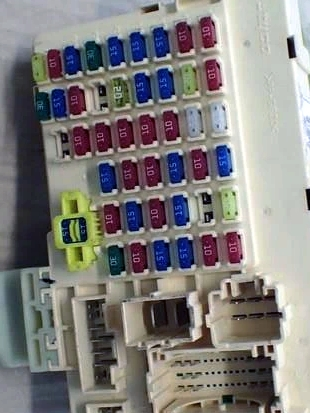

Cabin block

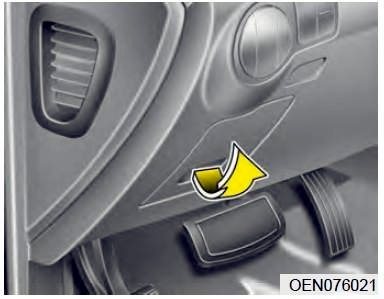

Located under the dashboard behind a protective cover.

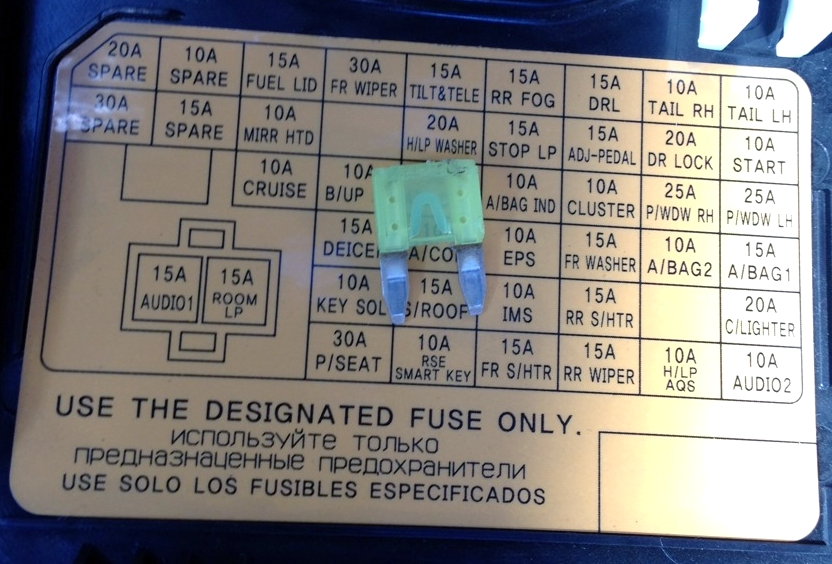

Marking

AUDIO 210A Audio, console and rear socket relay, digital clock, BCM
C/ LIGHTER20A Front cigarette lighter and socket
A/BAG210A Airbags
A/BAG 115A SRS control module
A/BAG IND10A Instrument cluster (airbag warning light)
B/UP LP10A Reverse light relay, TCM, Electro chrome mirror, Reverse alarm control unit
CRUISE10A Multifunction switch, PIC immobilizer module, driver/passenger seat heating switch
ATM CONT10A ATM key lock unit, 4WD ECU, BCM, Multi-function switch, Floor active engine suspension control unit
CLUSTER10A Instrument cluster, Alternator, BCM, PIC immobilizer module
START10A Security alarm relay, power rear door control unit
EPS10A BCM, rheostat, power window master/auxiliary switch
A/CON10A Front A/C control module, fan relay, rear A/C control module, rear A/C relay, rain sensor, sunroof control module, electrochromic mirror
FR S/HTR15A Driver/Passenger Seat Heater Switch
RR S/HTR15A Heated rear window
IMS10A IMS control module, tilt and telescope module, PTC heater relay, power tailgate control module
H/LP, AQS10A Headlight low beam relay, AQS sensor
FR WASHER15A Front windshield wiper relay, front windshield wiper relay
RR WIPER15A Rear window wiper control module, rear window wiper motor
TAIL LH10A Left headlight, Left rear combination lamp, Front fog lamp relay, Tailgate light
TAIL RH10A Right headlight, Rear combination lamp RH, Glove box lamp, Lighting
DR LOCK20A Power window master switch, power tailgate relay, power tailgate actuator
STOP LP15A Brake light switch
H/LP WASHER20A Headlight switch
FUEL LID15A Fuel tank cap switch
RR FOG15A Rear fog lamp relay
FR WIPER30A Front wiper motor
TILT & TELE15A Inclined – telescopic module
DRL15A DCV control module
P/WDW LH25A Driver’s safety window lift control unit, left rear power window lift switch
P/WDW RH25A Front/rear window switch, right
MIRR HTD10A Left/right electric exterior mirror heater, Rear window heater
P/SEAT30A IMS control module, driver/passenger seat manual switch
KEY SOL10A ATM key lock solenoid, 4WD ECU, reverse horn, mechanical steering column lock PIC
DEATH15A Windshield defroster relay
S/ROOF15A Sunroof control module
RSE, SMART KEY10A PIC Immobilizer Module
AUDIO 1 (MEMORY FUSE)15A Audio
ROOM LP (MEMORY FUSE)15A Instrument cluster, power window switch, door lamp, room lamp, data link connector, BCM, door switch
SPARE10A Spare fuse

The cigarette lighter fuse is marked C/LIGHTER at 20A.

Blocks under the hood

Main unit

Located on the left side of the engine compartment, next to the battery

Appointment

IGN 140A Ignition switch (ACC, IG1)
IGN 240A Start relay, ignition switch (IG2, START)
I/P B+150A Fuse (DR LOCK 20A, STOP LP 15A, TAIL LH/RH 10A)
I/P B+250A Fuse (P/SEAT 30A, KEY SOL 10A, SUNROOF 15A, RSE/SMART KEY 10A, DEICER 15A), Memory Fuse (AUDIO1 15A, ROOM LP 15A)
P/ WDW40A Fuse (P/WDW LH/RH 25A)
BLOWER40A Supercharger relay
RR HTD40A Rear window defroster relay, fuse (MIRR HTD 10A)
ECU30A Engine Control Relay (ECU DSL 20A/IGN COIL 20A, ECU2 10A, SNSR1 15A, SNSR2 15A, SNSR3 15A)
ABS 140A ABS/ESP control unit, multi-purpose control connector
ABS 240A ABS/ESP control unit, multi-purpose control connector
TCU 115А TCM
TPMS10A Semi-active engine mount solenoid
B/ ALARM10A Burglar Alarm Sounder Relay
F/PUMP20A Fuel pump relay
T/SIG15А BCM
A/CON10A Air conditioner relay
ECU 110А ECM (GSL)
IGN COIL (GSL)20A Ignition coil #1 ~ #6, capacitor
SNSR 1 (GSL)15A ECM (GSL), mass air flow sensor, oil control valve, immobilizer module, PCSV, VIV
SNSR 2 (GSL)15A Fuel pump relay, oxygen sensor #1 ~ #4
SNSR 3 (GSL)10A Injector #1 ~ #6, condenser/radiator fan relay, air conditioner relay
ECU 2 (GSL)10А ECM (GSL)
ECU DSL20A ECM (DSL), PTC heater relay #1 (DSL)
SNSR 1 (DSL)15A Fuel metering unit, exhaust gas recirculation system drive, immobilizer module, EVGT
SNSR 2 (DSL)15A Fuel pump relay, rail pressure control valve
SNSR 3 (DSL)10A Condenser/radiator fan relay, air conditioning relay, lambda sensor
ECU 2 (DSL)10A Brake light switch (DSL)
H/LP LO RH15A Right headlight relay (low beam)
H/LP LO LH15A Left headlight relay (low beam)
H/LP HI20A Headlight Relay (High)
FR FOG15A Front fog light relay
HORN15A Horn Relay
ABS10A ABS/ESP control unit, ESP switch
DIAG10A Universal Control Connector
ECU 310А ECM
TCU 2/ GLOW10A TCM, brake light switch (GSL), glow plug control module (DSL), fuel filter warning sensor (DSL), air flow sensor (DSL)

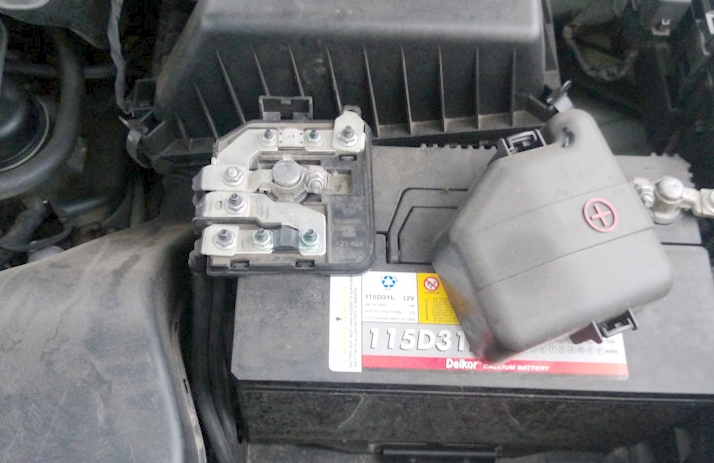

The positive terminal of the battery may also have a power fuse block in the form of high-power fuse links.

Additional unit

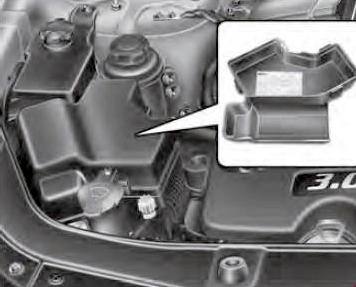

Mounts on the right side of the engine compartment.

Description

GLOW80A Spark Plug Control Module
PTC HTR 150A PTC Heater Relay #1
PTC HTR 250A PTC Heater Relay No. 2
PTC HTR 350A PTC Heater Relay #3
F/FILTER30A Fuel filter heater relay
I/P BOX B+340A Fuse (RR FOG 15A, FUEL LID 15A, FR WIPER 30A, TILT & TELE 15A)
C/FAN40A Condenser Fan Relay #1
R/FAN40A Radiator fan relay
PT/GATE30A Power Rear Door Control Module
RR BLOWER20A Rear air conditioning relay
AMP30A JBL amplifier
P/OUTLET30A Console and Rear Socket Relay
