Fuses and relays Chrysler Voyager (GS; 1995-2000)

This material provides a detailed look at the fuse box diagrams for the Chrysler Voyager (GS; third generation): 1995, 1996, 1997, 1998, 1999, 2000.

The cigarette lighter is controlled by fuses No. 8 (before 1999) or No. 4 (2000) in the engine compartment block and fuse No. 19 (since 1998) in the passenger compartment block.

In the engine compartment

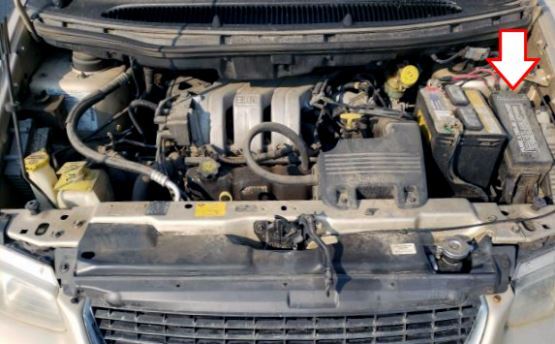

It is located next to the battery, behind the protective cover.

2000 model year

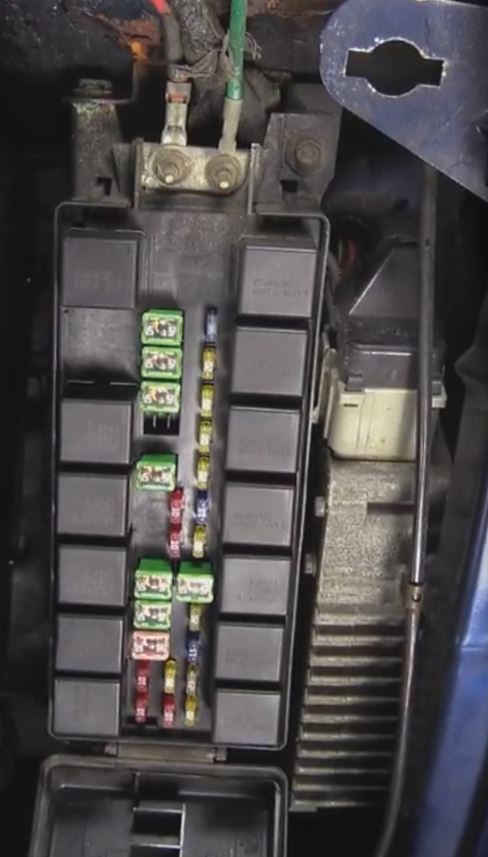

Example of access.

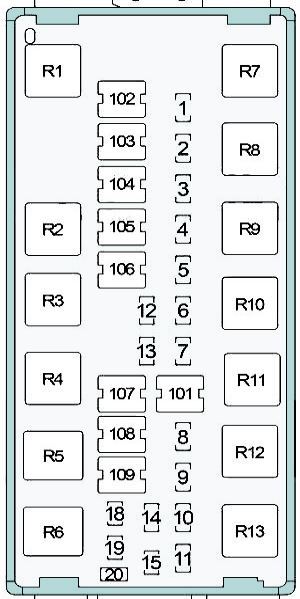

No.	Description	Current, A
R1	Petrol: Gearbox Control
R2	Starter relay
R3	Auxiliary relay / cigarette lighter
R4	Front Cooling Fan Motor Relay
R5	Windscreen wiper relay (on)
R6	Windscreen Wiper Relay (High Speed/Low Speed)
R7	Air Conditioning Compressor Clutch Relay
R8	Diesel: Main Relay
	Petrol: Automatic cut-off relay (main)
R9	Diesel: Fuel heater
	Gasoline: Chrysler Voyager fuel pump relay
R10	Horn relay
R11	Clearance lamps
R12	High beam headlight relay
R13	Low beam headlight relay
1	Air Conditioning Compressor Clutch Relay	15 A
2	Gasoline: Transmission Control Module and Relay	20 A
3	Gasoline: Automatic Shut-Off Relay (Main) –  Heated Oxygen Sensors, Powertrain Control Module, Ignition Coils, Fuel Injectors, Generator	20 A
	Diesel: Diesel Engine Power Relay (Main) – A/C Compressor Clutch Relay, Radiator Fan Relay: #1, #2, #3; Engine Control Module, EGR Valve, Fuel Pump, Generator, Glow Plug Relay: #1, #2	20 A
4	Chrysler Voyager Cigarette Lighter Auxiliary Relay and Fuse	20 A
5	Gasoline: Powertrain Control Module, Fuel Pump Fuse	20 A
	Diesel: Fuel heater	20 A
6	Glove Box Light, Interior Lights & Switch, Power Mirror Switch, Universal Garage Door Opener, Visor/Vanity Mirror Lights, Dome Light Relay –  Key Light Halogen, Headlight Switch, Tailgate Light Spotlight, Dome Light, Center & Rear Dome Light, Reading Light Export    –  Power Fold Mirror Relay, Immobilizer Module w/Sentry Key	15 A
7	Horn relay	20 A
8	Fog light relay, left low beam headlight	20 A
9	Right low beam headlight	15 A
	Export  : Headlight adjustment motor, headlight switch, right headlight	15 A
10	ABS module	25 A
11	Brake light switch	20 A
12	Airbags	10 A
13		10 A
14	Daytime running light module and combined fuse (hazard warning lights, direction indicators)	20 A
15	Body Control Module, Seat and Mirror Memory Module, Message Center, Instrument Cluster, OBD Data Link Connector, Remote Keyless Entry Module, Radio, Ignition Switch –  Diodes #1, #3 and Fuse #2 in Cabin Block	10 A
16	Empty	–
17	Empty	–
18	Left high beam headlight	10 A
19	Right low beam headlight	10 A
	Export  : Headlight switch, right headlight, headlight corrector motor	10 A
20	Empty	–
101	Parking light relay –   fuses #1, #3, #4, #5 in the passenger compartment block	40 A
102	ABS module	40 A
103	Ignition switch – fuses #11 and #12 in the passenger compartment block, automatic switch for the power seat, fuse #15 in the passenger compartment block	40 A
104	Starter relay, ignition switch –  fuses #6, #8, #9, #10, #13, #19, #20, #21 in the passenger compartment unit, body equipment control unit	40 A
105	Diesel: Radiator Fan Relay #3	40 A
106	Petrol: Radiator Fan Relay	40 A
	Diesel: Radiator Fan Relay #2	40 A
107	Front Fan Motor Relay	40 A
108	Rear window defroster relay, fuse #7 in the passenger compartment	40 A
109	Wiper Relay (On) –  Wiper High/Low, Body Control Module, Front Wiper Switch	30 A

1995-1999 model year

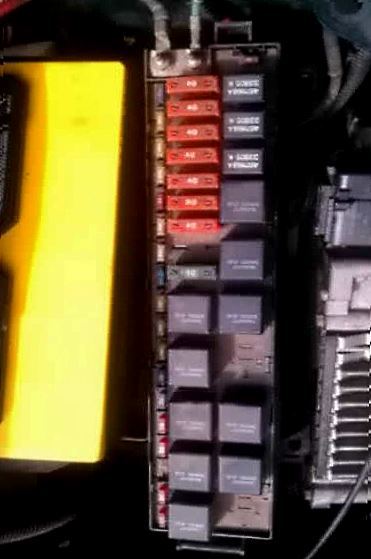

Example of access.

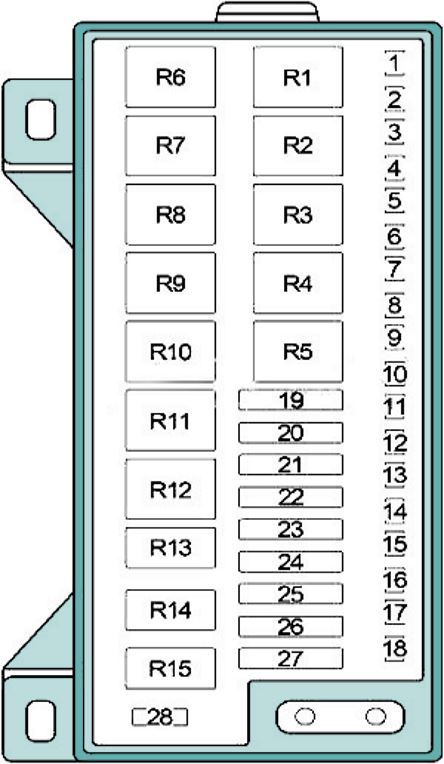

No.	Description	Current, A
R1	Auxiliary relay / cigarette lighter
R2	Windscreen Wiper Relay (High Speed/Low Speed)
R3	Windscreen wiper relay (on)
R4	Headlights – high beam
R5	Headlights – low beam
R6	Empty
R7	Horn relay
R8	Air conditioning compressor clutch relay
R9	Empty
R10	Front Fan Motor Relay
R11	Starter relay
R12	Parking Light Relay
R13	Petrol: Gearbox Control
R14	Gasoline: Fuel Pump Relay
	Diesel: Fuel heater
R15	Petrol: Automatic cut-off relay (main)
	Diesel: Main Relay
1	Airbag control module	10 A
2		10 A
3	Empty	–
4	Left headlight – high beam	10 A
5	Message center, right headlight – high beam	10 A
6	Fog light relay, left headlight – low beam	15 A
	Export  : Left headlight – low beam
7	Right headlight – low beam	15 A
	Export  : Headlight switch, right headlight, headlight range control motor
8	Front and rear power sockets and cigarette lighter	20 A
9	Horn relay	20 A
10	Daytime running lights,  combined fuse – hazard warning lights, direction indicators	20 A
11	Air Conditioning Compressor Clutch Relay	15 A
12	ABS system	25 A
13	Brake light switch	20 A
14	Empty	–
15	Petrol: Gearbox Control Relay	20 A
16	Gasoline: Powertrain Control Module, Fuel Pump Relay, Fuel Tank Module	20 A
	Diesel: Crankcase heater, Fuel heater	20 A
17	Gasoline: Automatic Shut-Off Relay (Main) –  Heated Oxygen Sensors, Powertrain Control Module, Alternator, Fuel Injector, Ignition Coil	20 A
	Diesel: Main Relay – A/C Compressor Clutch, Powertrain Control Unit, Exhaust Gas Recirculation Solenoid Valve, Fuel Pump, Generator, Air Flow Meter, Radiator Fan Relay: #1, #2, #3; Glow Plug Relay	25 A 20 A
18	Dome Light Relay – Halogen Key Light, Headlight Switch, Tailgate Light Spotlight, Interior Lights, Reading Light; Power Mirror Switch, Glove Box Light, Reading Lights & Switch, Visor/Vanity Mirror Lights, Universal Garage Door Opener,     Export  :  Sentry Key Immobilizer Module, Power Fold Mirror Relay, Power Fold Mirror Relay	15 A
19	Wiper Relay (On) – Wiper High/Low Speed, Front Wiper Switch, Body Control Module	30 A
20	Diesel: Radiator Fan #3	40 A
21	Front Fan Relay	40 A
22	Parking light relay,  fuses #1, #3, #4, #5 in the passenger compartment block	40 A
23	Starter relay, ignition switch – fuses  No. 2, No. 6, No. 8, No. 9, No. 10, No. 13, No. 19, No. 20, No. 21 in the passenger compartment block.	40 A
24	Petrol: Radiator Fan	40 A
	Diesel: Radiator Fan #2
25	fABS system	40 A
26	Ignition switch, fuse #15 in the passenger compartment block, automatic switch for the electric seat,	40 A
27	Fuse #7 in the passenger compartment block, rear window heating relay	40 A
28	Radio, Body Control Module, Seat and Mirror Memory Module, Message Center, Instrument Cluster, Keyless Entry, OBD Data Link Connector (DLC), Ignition Switch –   Diodes #1, #3 and Fuse #2 in Cabin	10 A

In the salon

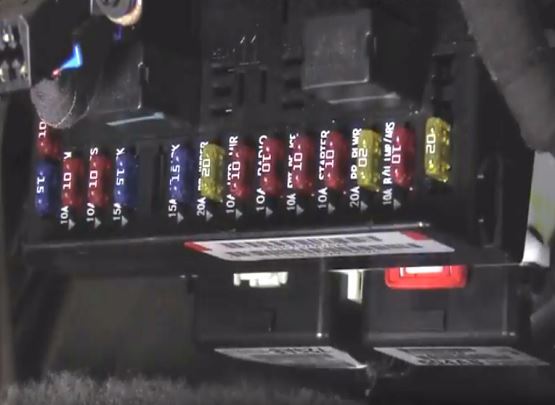

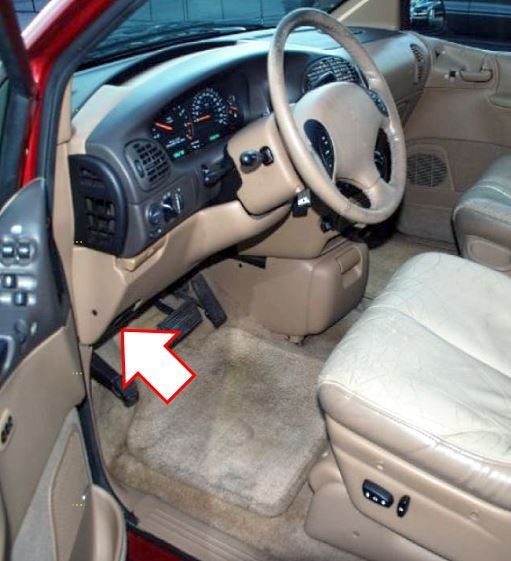

Located on the driver’s side under the dashboard.

Example of access.

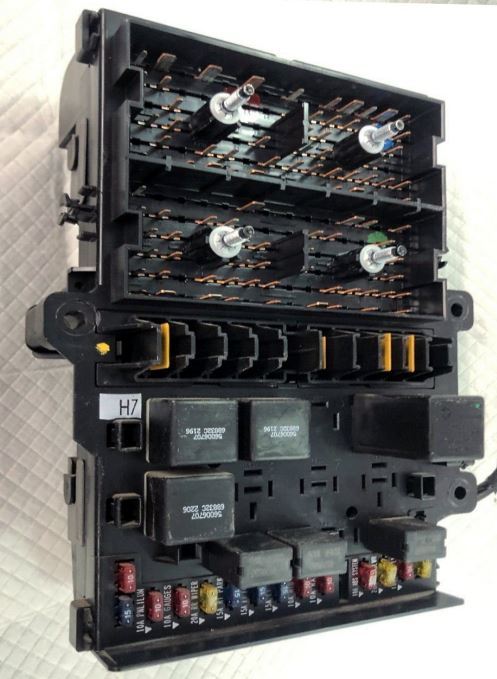

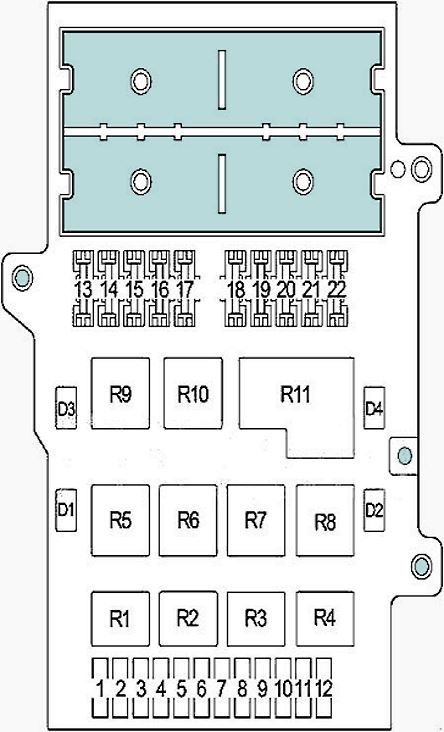

General view.

No.	Description	Current, A
R1	Rear Window Defogger Relay
R2	Beep
R3	Fog light relay
R4	Interior Light Relay
R5	Unlocking the driver’s door
R6	Washer relay
R7	Power folding mirror relay
R8	Relay for folding electric mirrors
R9	Door unlock relay
R10	Door lock relay
R11	DRL module and combined hazard/turn signal relay
1	Body control module	10 A
2	Body control module, instrument cluster, brake shift interlock valve, transmission control module	10 A
3	Since 1998: Trailer Towbar Connector, Trailer – Front Right Side Light and Turn Signal, Right Tail Light Assembly, Fuse #1 in Passenger Compartment	15 A
	up to 1997: Body Control Module, Message Center, Rear Wiper Motor, Air Conditioner Heater Control Module	20 A
4	since 1998: Fog lights	15 A
	up to 1997: Right rear light assembly, front right parking light and turn signal	15 A
5	since 1998: Trailer – front left stop light and turn signal, number plate lamp, left tail light assembly, export – headlamp switch and washer module	15 A
	before 1997: Fog lights	15 A
6	Since 1998: Rear wiper motor, Body control unit, Air conditioning heater control unit, Compass system, Mini trip computer, Message center, Automatic rearview mirror (day/night)	20 A
	up to 1997: left rear light assembly, left front turn signal/side light, number plate light, headlight switch	15 A
7	Driver’s and passenger’s mirrors with electric drive, heated mirrors	10 A
8	Radio	10 A
	Premium: Speaker Relay, Radio
9	1998-1999: Windscreen Wiper/Deicer	15 A
	2000: Windscreen wiper de-icer	10 A
10	since 1998: Starter, Manual Transmission – Clutch Lock Switch, Transmission Control Module	10 A
	before 1997: ABS module	10 A
11	Rear A/C Heater Control Unit	20 A
12	Driver and passenger seat heating switch, Automatic transmission – Park/Neutral position switch, Automatic rearview mirror “day/night”, Combined indicator (turn signals and hazard warning lights) and DRL, ABS, Front blower motor relay, Air conditioner heater control – Rear window defroster, Manual transmission – Reverse lamp switch, Automatic transmission – Gear range sensor (electronic automatic transmission)	10 A
13	Gasoline: Fuse #2 (before 1999) or #13 (2000) in the engine compartment block, fuel pump relay, powertrain control module, fuel vapor recovery system leak detection pump, air conditioning compressor clutch relay, torque converter clutch valve (ATX), EGR valve; Export – Sentry Key Immobilizer	9 A
	Diesel: Engine control unit, fuel heater relay, fuse #2 (before 1999) or #13 (2000) in the engine compartment block, air conditioning compressor clutch relay, speed sensor; export – Sentry Key immobilizer	9 A
14	before 1997: Front left door lock motor	3 A
15	since 1998: Driver’s door release relay, Door release and lock relay, Export – Washer module	9 A
	up to 1997: Rear left sliding door contact, liftgate lock motor	4 A
16	before 1997: Right front and rear door lock motor	6 A
17	before 1997: Front door lock motor	4 A
18	up to 1997: Rear sliding door contact, rear liftgate lock motor	6 A
19	since 1998: Front wiper switch,  cigarette lighter fuse and auxiliary relay,  front and rear washer motor, export only – washer module	9 A
	up to 1997: front and rear window washer motor	6 A
20	since 1998: Electric window switch – driver and passenger side	9 A
	pre 1997: Driver’s side window switch	9 A
21	since 1998: Driver’s side window switch	9 A
	before 1997: Driver and passenger window switch	6 A
22	up to 1997: Gearbox control unit, starter relay, manual transmission clutch interlock switch	3 A
