Toyota Hilux 8th generation was produced in 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 with the designation AN120 / AN130. During this time, the model underwent restyling. In this publication, we will show the locations of electronic control units, describe in detail the purpose of fuses and relays Toyota Hilux 8 with block diagrams and photo examples of their implementation. We will highlight the cigarette lighter fuse. This information will be useful to owners of Toyota Fortuner , since these cars are made on a common base.

This vehicle was supplied worldwide, so different block designs are possible. Check the purpose of the elements with your diagrams on the block cover.

Blocks in the cabin

Location

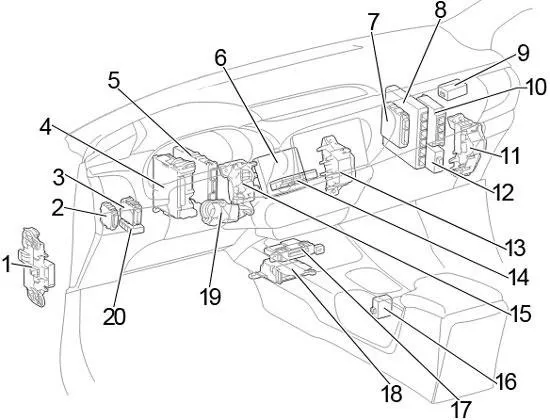

General layout of the units in the cabin

Left hand drive

  1. Relay Block #1
  2. Headlight corrector control unit
  3. Network Gateway Block
  4. Fuse Box / Body Electrical Control Unit
  5. Start-stop system control unit
  6. LHD: Telephone Transceiver
  7. All-wheel drive control unit
  8. Engine control unit
  9. Intelligent Entry System Receiver
    Central Lock Receiver
  10. Gearbox control unit
  11. Relay Block #2
  12. Turbine control unit
  13. Relay Block #3
  14. LHD: Navigation Control Unit
  15. Relay Block #4
  16. Gear selector lock control unit
  17. Air conditioner booster
  18. Airbag control unit
  19. Steering wheel lock actuator
  20. Distribution connector
  21. RHD: Double Door Lock Relay

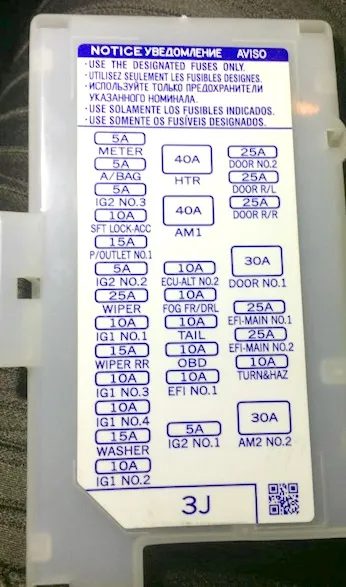

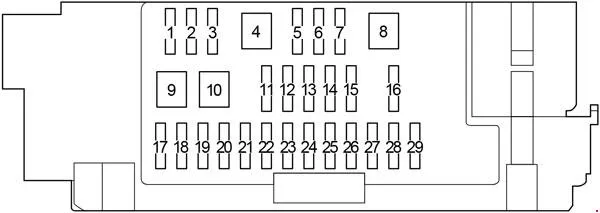

Fuse box

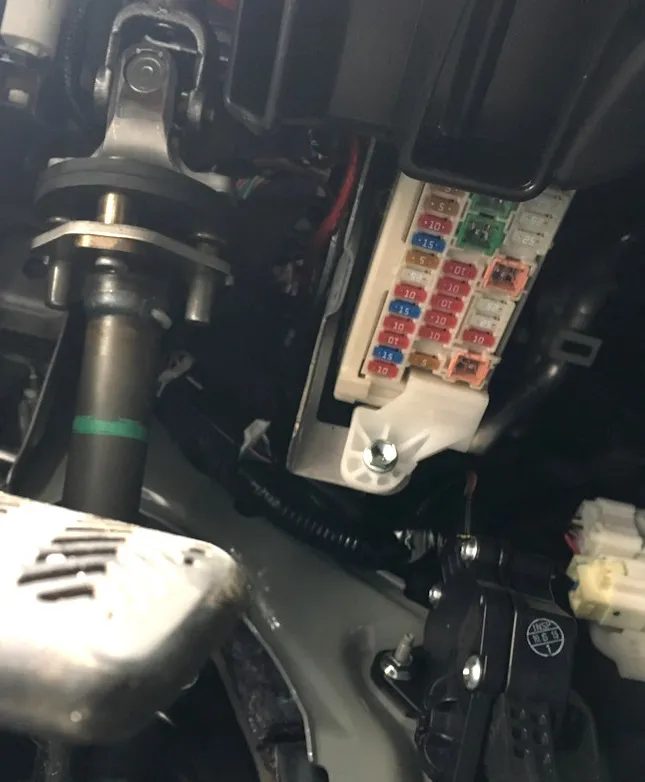

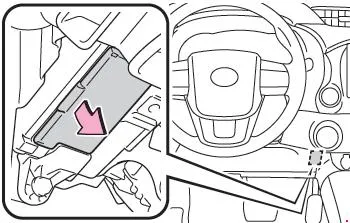

It is located at the bottom of the instrument panel on the left side.

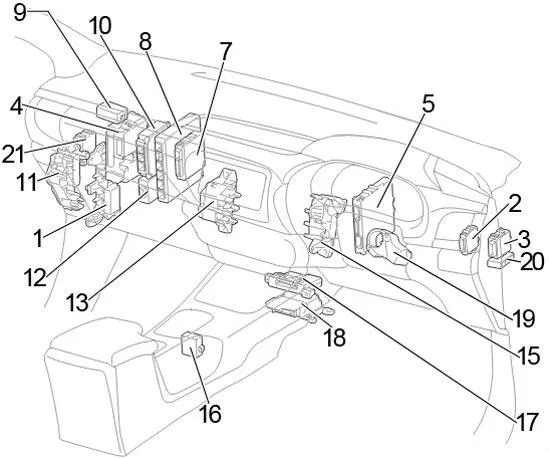

Right hand drive

125A DOOR NO.2 – Window lifters
225A DOOR R/L – Window Lifters
325A DOOR R/R – Window lifters
430A DOOR NO.1 – Window lifters
510A ETCS – 1GR-FE, 1KD-FTV, 2KD-FTV, 1TR-FE, 2TR-FE, 5L-E: Multiport fuel injection system/sequential multiport fuel injection system
25A EFI-MAIN NO.1 – 1GD-FTV, 2GD-FTV: ABS, Air Conditioning, Hill Descent Control, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Hill Descent Control, TRC, VSC
625A EFI-MAIN NO.1 – 1GR-FE, 1KD-FTV, 2KD-FTV, 1TR-FE, 2TR-FE, 5L-E: ABS, Air Conditioning, Hill Descent Control, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Hill Descent Control, TRC, VSC
25A EFI-MAIN NO.2 – 1GD-FTV, 2GD-FTV: Multiport fuel injection system/sequential multiport fuel injection system
710A TURN&HAZ – Direction indicators (hazard warning lights), instrument cluster, central locking, intelligent entry and start system, immobilizer, starting system, steering wheel lock, anti-theft system, wireless control system
830A AM2 NO.2 – Multiport fuel injection system/sequential multiport fuel injection system, intelligent entry and start system, immobilizer, starting system, steering wheel lock, wireless control system
940A HTR – Air Conditioner, Charging System
1040A AM1 – Smart Entry & Start System, Immobilizer, Start System, Steering Wheel Lock, Wireless Control System
1110A TAIL – 1GR-FE, 1KD-FTV, 2KD-FTV, 1TR-FE, 2TR-FE, 5L-E: Side light, courtesy light, automatic light control, charging system, intelligent entry and start system, front fog light, immobilizer, key buzzer, light buzzer, rear fog light, starting system, steering wheel lock, wireless control system
10A ECU-ALT NO.2 – 1GD-FTV, 2GD-FTV: Central locking, power windows, anti-theft system
1210A FOG FR/DRL – Front fog light, headlights, illumination, parking light
1310A ECU-ALT NO.2 – 1GR-FE, 1KD-FTV, 2KD-FTV, 1TR-FE, 2TR-FE, 5L-E: central locking, power windows, anti-theft alarm system
10A TAIL – 1GD-FTV, 2GD-FTV: Side light, backlight, automatic light control, charging system, intelligent entry and start system, front fog light, immobilizer, key buzzer, light buzzer, rear fog light, starting system, steering wheel lock, wireless control system
1410A OBD – Diagnostic connector
1510A EFI NO.1 – ABS, air conditioning, hill descent control, multiport fuel injection system/sequential multiport fuel injection system, hill descent control, start-stop system, TRC, VSC
165A IG2 NO.1 – Multipoint fuel injection system/sequential multipoint fuel injection system
175A METER – Instrument cluster, 4WD, ABS, air conditioning, audio system, charging system, central locking, hill descent control system, multipoint fuel injection system/sequential multipoint fuel injection system, intelligent entry & start system, headlights, headlight range control, headlight washers, hill descent control system, lighting, immobilizer, interior lighting, key buzzer, lane keeping system, light buzzer, navigation, collision avoidance system, monitor, seat belt indicator, airbags, starting system, steering wheel lock, start-stop system, parking light, telematics system, anti-theft system, tire pressure monitoring system, TRC, turn signals (hazard warning lights), VSC, wireless control system
185A A/BAG – Airbags
195A IG2 NO.3 – Charging system, distributed fuel injection system/sequential distributed fuel injection system, immobilizer, body electrical equipment control unit, telematics system
2010A SFT LOCK-ACC – Gear selector lock
2115A P/OUTLET NO.1 – Socket (cigarette lighter)
225A IG2 NO.2 – Smart Entry & Start System, Immobilizer, Starting System, Steering Wheel Lock, Wireless Control System
2325A WIPER – Windscreen wiper
2410A IG1 NO.1 – Audio system, reversing lights, charging system, instrument cluster, multiport fuel injection system/sequential multiport fuel injection system, lane keeping system, navigation, monitor
25–
2610A IG1 NO.3 – ABS, hill descent control, hill start control, start-stop control, TRC, VSC
2710A IG1 NO.4 – Air conditioning, audio system, automatic light control, charging system, instrument cluster, central locking, multipoint fuel injection system/sequential multipoint fuel injection system, intelligent entry & start system, front fog light, headlights, automatic headlight range control, headlight washers, lighting, immobilizer, interior lighting, heated mirrors, body electrical control unit, navigation, socket, power windows, rear fog light, monitor, rear window heating, seat belt indicator, air bags, starting system, steering wheel lock, start-stop system, parking light, anti-theft system, tire pressure monitoring system, wireless remote control system
2815A WASHER – Glass washer
2910A IG1 NO.2 – Charging system, Transmission selector lock

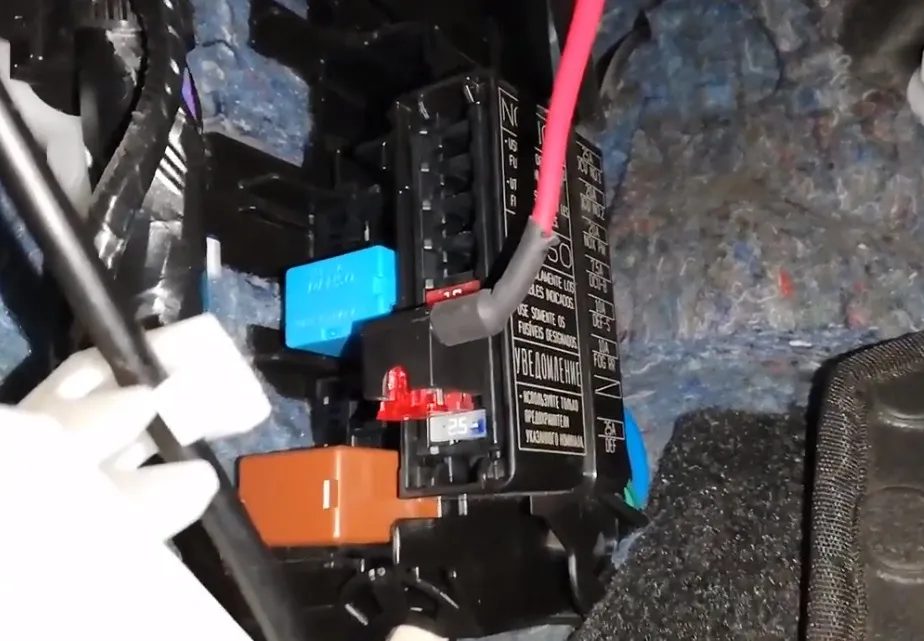

Fuse number 21, 15A, is responsible for the cigarette lighter.

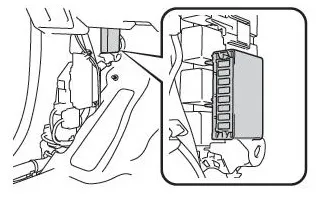

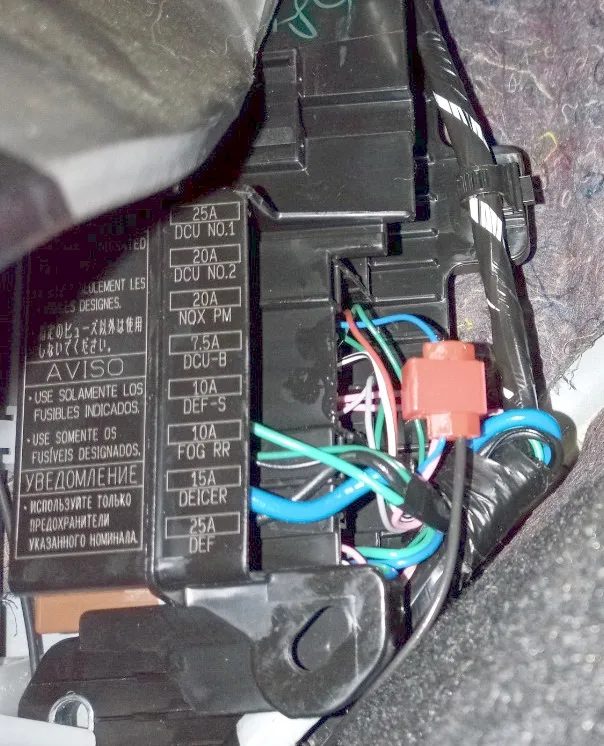

Relay Block #1

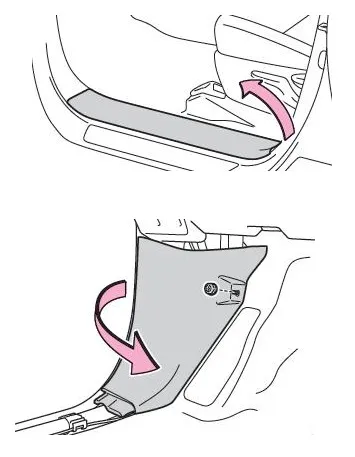

It is located on the left pillar under the protective interior (left-hand drive). To access it, you need to remove the threshold trim. An example of access is in the diagram.

125A DCU NO.1 – Transfer Pump
220A DCU NO.2 – Transfer Pump
320A NOX PM – Nitrogen Oxide Sensor
47.5A DCU-B – Transfer Pump
510A DEF-S – Heated mirrors, multipoint fuel injection system/sequential multipoint fuel injection system
610A FOG RR – Rear Fog Light
715A DEICER – Heated wiper blade parking area
825A DEF – Rear window heating, heated mirrors, multipoint fuel injection system/sequential multipoint fuel injection system

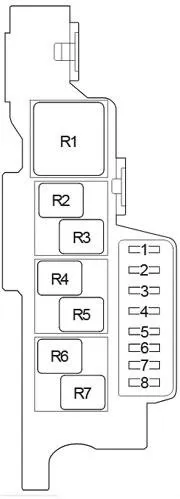

Relay
R1Transfer pump (DCU-MAIN)
R2Nitrogen Oxide Sensor(NOX PM)
R3Heating of the parking area of ​​brushes (DEICER)
R4Rear fog light (FOG RR)
R5–
R6Inverter (INV)
R7Rear window heating, mirror heating (DEF)

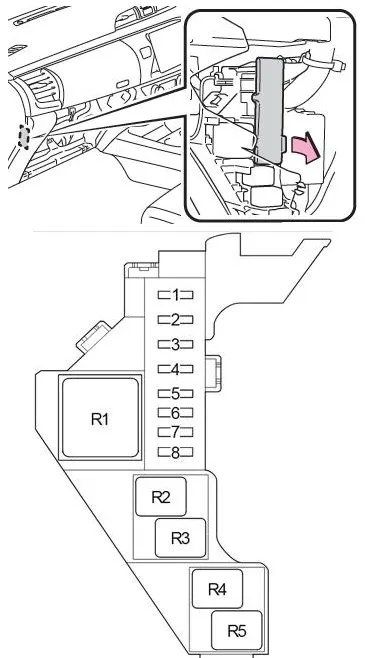

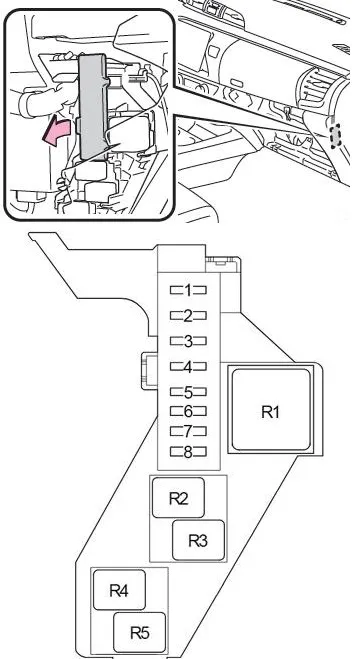

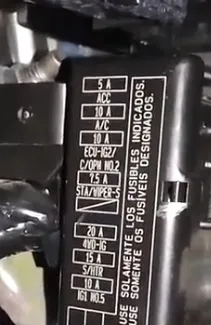

Relay Block #2

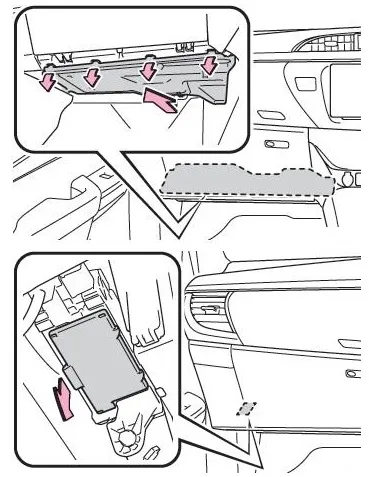

It is installed behind the glove compartment, on the end of the dashboard.

Left hand drive

15A ACC – 4WD, ABS, air conditioning, audio system, charging system, clock, instrument cluster, central locking, hill descent control system, multiport fuel injection system/sequential multiport fuel injection system, intelligent entry & start system, headlights, automatic headlight range control, headlight washers, hill descent control system, lighting, immobilizer, interior lighting, key buzzer, lane keeping system, light buzzer, body electrical control unit, navigation, collision avoidance system, monitor, electric mirrors, seat belt indicator, airbags, starting system, steering wheel lock, start-stop system, parking light, telematics system, anti-theft system, tire pressure monitoring system, TRC, turn signals (hazard warning lights), VSC, wireless control system
210A A/C – Air Conditioner
310A C/OPN NO.2 – Multiport fuel injection system/sequential multiport fuel injection system
47.5A STA/WIPER-S – Starting system, multipoint fuel injection system/sequential multipoint fuel injection system
5–
620A 4WD-IG – All-wheel drive
715A S/HTR – Before August 2017: Heated Seats
15A S/HTR/S/VENT – From August 2017: Heated seats
810A IG1 NO.5 – Air conditioning, lane keeping assist system, collision avoidance system
Relay
R1Heater (HTR)
R2Ignition (IG1 NO.2)
R3Ignition (IG2)
R4LHD: Heated steering wheel (STRG HTR)
R5Air Conditioning (A/C COMP)

Relay Block #3

Scheme

Left hand drive

R1Auxiliary heater (PTC HTR NO.1)
R2Auxiliary heater (PTC HTR NO.3)
R3Auxiliary heater (PTC HTR NO.2)
R4Liquid heater (VISCOUS)
R5–
R6Central locking (D/L NO.1)
R7Central locking (D/L NO.2)
R8RHD: Central locking (D/L NO.2)
R9RHD: –

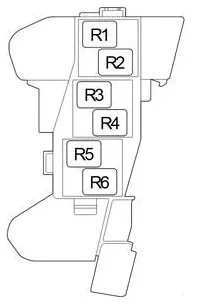

Relay Block #3

Scheme

R1Daytime Running Lights (DRL)
R2Anti-theft system (S-HORN)
R3Front fog light (FOG FR)
R4Side light (TAIL)
R5Interior lighting (DOME CUT)
R6Ignition (IG1 NO.1)

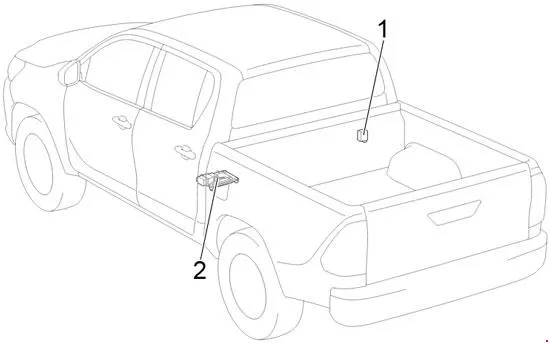

Additional elements

  1. Tire pressure monitoring system receiver (on single cab models, it is located on top above the rear window)
  2. Transfer pump control unit

Blocks under the hood

Location

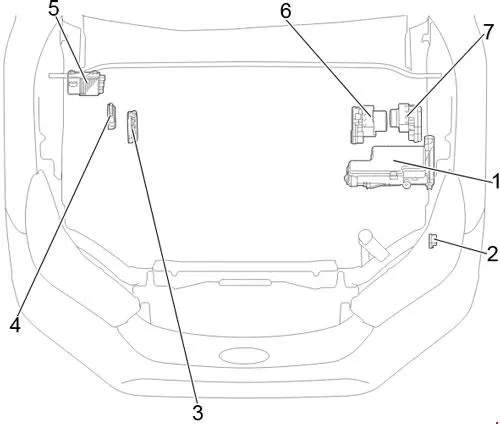

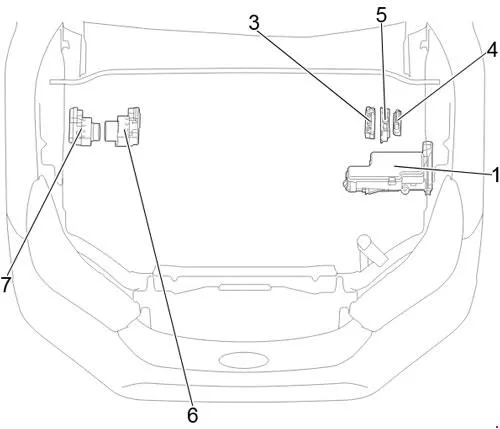

General layout of the blocks under the hood

Left hand drive

  1. Fuse and relay box
  2. LHD: Headlight Washer Relay
  3. Glow Plug Control Unit
  4. Air supply control unit
  5. Injector control unit
  6. Brake actuator (VSC)
  7. Brake actuator (without VSC)

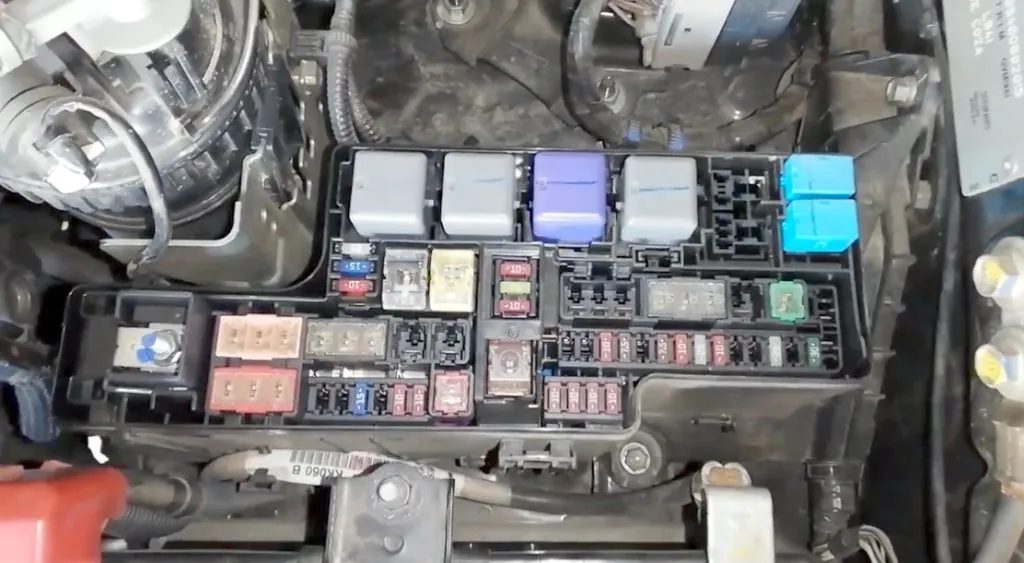

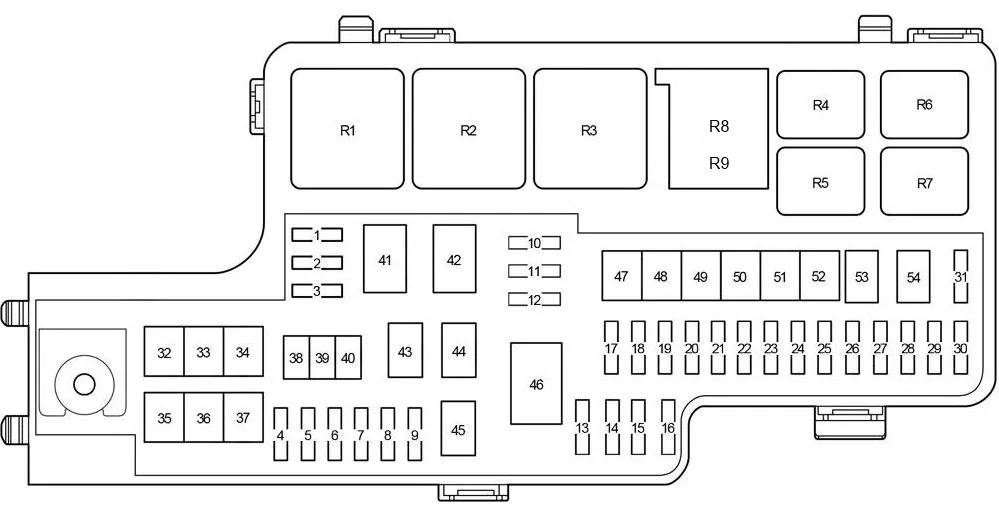

Fuse and relay box

Located on the left side of the engine compartment, next to the battery.

Photo – example

1–
2–
3–
420A INV – Socket (inverter)
510A ECU-ALT NO.1 – Double Lock
6–
710A STOP – From August 2017: Brake lamps, ABS, TRC, VSC, multiport fuel injection system/sequential multiport fuel injection system, charging system, hill descent control system, intelligent entry & start system, hill descent control system, immobilizer, shift selector lock, starting system, steering wheel lock, wireless remote control system
810A STOP – Before August 2017: Brake lamps, ABS, TRC, VSC, multiport fuel injection system/sequential multiport fuel injection system, charging system, hill descent control system, intelligent entry & start system, hill descent control system, immobilizer, shift lock, starting system, steering wheel lock, wireless remote control system
10A STRG HTR – Since August 2017: Heated steering wheel
910A 4WD-ALT – All-wheel drive
1010A ECU-B NO.1 – All-wheel drive, multiport fuel injection system/sequential multiport fuel injection system, ABS, air conditioning, audio system, charging system, clock, instrument cluster, central locking, double locking, hill descent control system, intelligent entry & start system, headlights, headlight range control, headlight washers, hill descent control system, lighting, immobilizer, interior lighting, key buzzer, lane keeping assist system, light buzzer, navigation, collision avoidance system, monitor, seat belt indicator, air bags, starting system, steering wheel lock, start-stop system, parking light, telematics system, anti-theft system, tire pressure monitoring system, TRC, turn signals (hazard warning lights), VSC, wireless control system
1120A RADIO – Audio system, navigation, monitor
1210A DOME – Immobilizer, Smart Entry & Start System, Interior Light, Start System, Steering Wheel Lock, Anti-Theft System, Wireless Control System
1310A H-LP RH-LO – Low beam right
1410A H-LP LH-LO – Low beam left, headlight range control, headlight washers
1510A H-LP RH-HI – High beam right
1610A H-LP LH-HI – Left High Beam
177.5A S-HORN – Anti-theft system
187.5A MAYDAY – Telematics system
1910A HORN – Horn, Smart Entry & Start System, Immobilizer, Starting System, Steering Wheel Lock, Anti-Theft System, Wireless Control System
207.5A EFI-B – Multiport fuel injection system/sequential multiport fuel injection system
217.5A ALT-S/ICS – Charging System
227.5A SMART – Intelligent Entry & Start System, Immobilizer, Start System, Steering Wheel Lock, Wireless Control System
2310A ECU-B NO.3 – Air Conditioner, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Smart Entry & Start System, Immobilizer, Heated Mirrors, Body Control Module, Starting System, Steering Lock, Anti-Theft System, Wireless Remote Control System
241GR-FE, 1TR-FE, 2TR-FE: Air-fuel ratio sensor
20A A/F HTR – 1GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E: Multiport fuel injection system/sequential multiport fuel injection system
2510A STRG LOCK/ AM2 N1 – Multiport fuel injection system/sequential multiport fuel injection system, intelligent entry and start system, immobilizer, starting system, steering wheel lock, wireless control system
2615A INJ – 1GR-FE, 1TR-FE, 2TR-FE: Instrument cluster, multiport fuel injection system/sequential multiport fuel injection system, ignition
30A ST NO.2 – 2GD-FTV with start-stop system: intelligent entry and start system, immobilizer, start system, steering wheel lock, wireless control system
2710A ECU-B NO.2 – Smart Entry & Start System, Immobilizer, Start System, Steering Wheel Lock, Wireless Control System
2825A ECU-B NO.4 – Automatic Light Control, Central Locking, Intelligent Entry & Start System, Front Fog Light, Headlights, Illumination, Immobilizer, Interior Light, Power Windows, Rear Fog Light, Starting System, Steering Lock, Side Light, Anti-Theft System, Wireless Remote Control System
29–
3030A D/C CUT – Fuses: “ECU-B NO.1”, “RADIO”, “DOME”
317.5A ODS – Front Occupant Classification System
3230A P/SEAT – Up to August 2017: Electric seats
30A P/SEAT(D) – From August 2017: Electric seats
3330A PTC HTR NO.2 – Auxiliary Heater
34
3550A ABS NO.1 – ABS, TRC, VSC, hill descent control, hill start control
3630A ABS NO.2 – ABS, TRC, VSC, hill descent control, hill start control
3730A R/BI/P-ALT – Fuses: “IG1 NO.2” Relay: “4WD-IG”, “S/HTR”, “S/HTR/S/VENT”, “IG1 NO.5”
38–
39–
4050A PTC HTR NO.1 – Auxiliary Heater
4180A GLOW – Glow Plugs
4260A J/BB – Fuses: “EFI-MAIN NO.1” Relay, “EFI-MAIN NO.2” Relay, “EFI-MAIN NO.1”, “EFI-MAIN NO.2”, “TURN&HAZ”, “ETCS”, “EFI NO.1”, “AM2 NO.2”
4330A H-LP CLN – Headlight cleaners
4430A CDS FAN/ PTC HTR NO.3 – Air Conditioner, Auxiliary Heater, Cooling Fan
4550A R/B FLOOR-ALT – Fuses: “DEF” Relay, “DEF”, “FOG RR”, “DEICER”, “DEF-S”
46140A ALT – Fuses: “P/W” Relay, “ACC” Relay, “R/B FLOOR-ALT”, “R/BI/P-ALT”, “4WD-ALT”, “INV”, “ABS NO.1”, “ABS NO.2”, “STOP”, “P/SEAT”, “P/SEAT (D)”, “H-LP CLN”, “STRG HTR”, “ECU-ALT NO.1”, “PTC HTR NO.1”, “PTC HTR NO.2”, “CDS FAN/PTC HTR NO.3”, “HTR”, “DOOR R/L”, “DOOR NO.1”, “DOOR R/R”, “DOOR NO.2”, “FOG FR/DRL”, “TAIL”, “OBD”, “ECU-ALT NO.2”, “AM1”, “P/OUTLET NO.1”, “SFT LOCK-ACC”
4740A BBC NO.3 – Start-stop system
48
4940A BBC NO.1 – Start-stop system
5030A ST NO.1 – 1GR-FE, 1TR-FE, 2TR-FE: Smart Entry & Start System, Immobilizer, Start System, Steering Wheel Lock, Wireless Control System
50A ST NO.1 – 1GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E: Smart Entry & Start System, Immobilizer, Start System, Steering Wheel Lock, Wireless Control System
51–
52–
5350A AIR PMP – Secondary Air Pump
50A DCU-MAIN – “DCU-MAIN” relay, fuses: “DCU NO.1”, “DCU NO.2”, “DCU-B”, “NOX PM”
5440A H-LP MAIN – “H-LP” relay, “DIMMER” relay, fuses: “H-LP LH-LO”, “H-LP RH-LO”, “H-LP LH-HI”, “H-LP RH-HI”
Relay
R1Dimmer
R2Headlights (H-LP)
R31GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E: Starter (ST NO.1)
R41GR-FE, 1TR-FE, 2TR-FE: Starter (ST NO.1)
2GD-FTV with start-stop system: Starter (ST NO.2)
R5Stop lamps / cooling system fan (STOP/CDS FAN)
R61GR-FE, 1TR-FE, 2TR-FE: Injectors (INJ)
1GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E: Injectors (EDU)
R7Sound signal
R81GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E: Glow plugs (GLOW)
1GR-FE, 1TR-FE, 2TR-FE: Fuel Pump / Secondary Air Pump (FUEL PMP/AIR PMP HTR)
R91GR-FE, 1TR-FE, 2TR-FE: Air Fuel Ratio Sensor (A/F HTR)

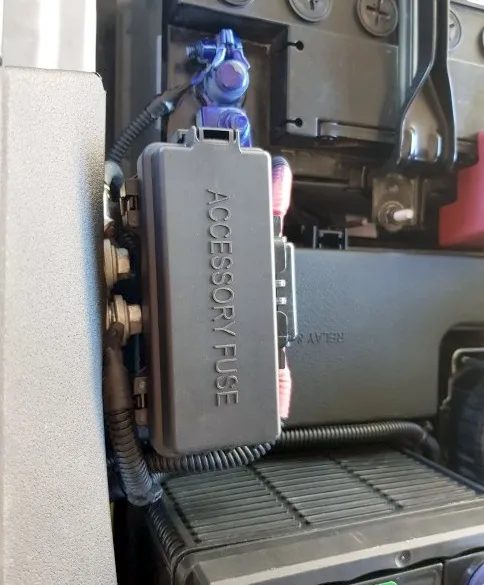

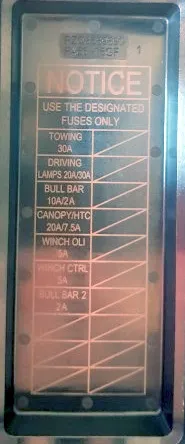

Some models can accommodate an additional fuse box.
