This material provides a detailed look at the fuse box diagrams for the Jeep Compass (second generation; MP): 2016, 2017, 2018, 2019, 2020, 2021, 2022 .

The cigarette lighter is controlled by fuse F94 in the passenger compartment block and fuses F30, F20, F18 in the underhood block.

In the luggage compartment

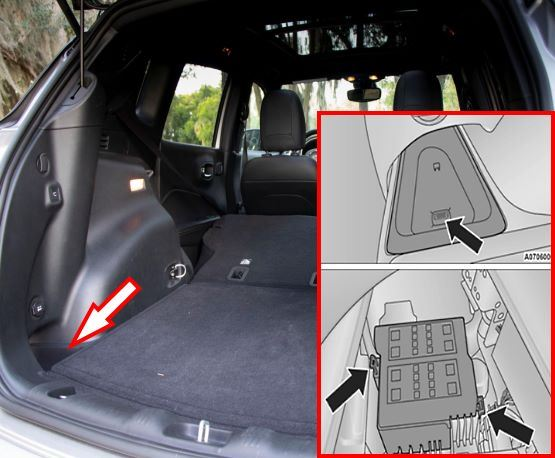

Located behind the inspection hatch on the left rear panel.

Scheme
F1Power inverter30 A
F2Seat position memory module30 A
F3Sunroof20 A
F4Power passenger seat30 A
F5Driver’s side power seat30 A
F6Power seats (power lumbar support)7.5 A
F7Ventilated seats, heated steering wheel15 A
F8Heated seats20 A
Panel #2
F12019–2022: TTM IGN Feed
2016–2018: Trailer External Lighting Controller		10 A
F5Driver’s side exterior lights15 A
F6Exterior lighting on the passenger side15 A
F7TTM Jumper / Battery Power Supply10 A

Additional Maxi fuse holder (electric tailgate 30A / audio 25A), located on the luggage compartment distribution block bracket

In the salon

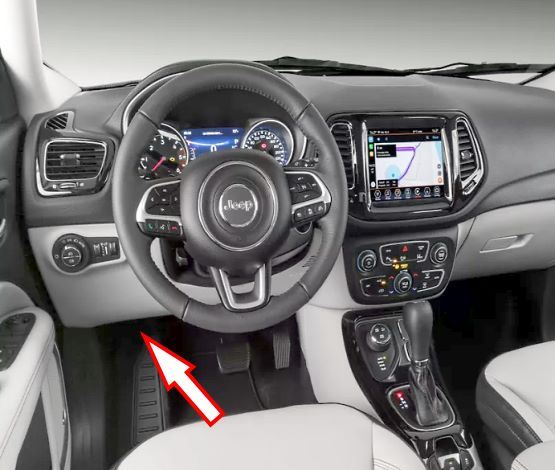

The fuse box is located under the instrument panel on the left side.

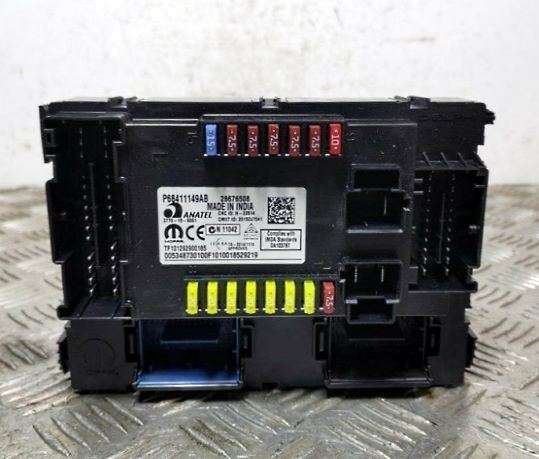

General view.

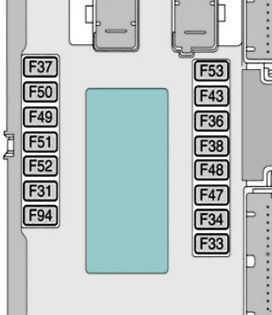

Scheme
No.DescriptionCurrent, A
F31Restraint Restraint System (ORC) Module7.5 A
F33Passenger window lifter20 A
F34Driver’s window motor20 A
F36Power folding mirrors, security alarm/obstacle module, UCI/USB port, radio, VSU, electronic steering lock, climate control module, security gateway/DTV (2019-2021)20 A
F37Powertrain Control Module, Instrument Cluster, Adaptive Cruise Control, ECC Fan (HVAC)10 A
F382019-2022: Opening the rear door, locking/unlocking the doors2016-2018: Locking/unlocking doors20 A
F42Electric power steering, brake system module7.5 A
F43Front and rear washer pump20 A
F47Left rear window lifter20 A
F48Right rear window lift20 A
F49Blind spot monitoring module, parking assistance system, humidity sensor, voltage stabilizer, sunroof, temperature sensor, electronic steering lock, mirror, light and rain sensor, heated seats, start-stop switch (2019-2021)7.5 A
F50Occupant Restraint Controller (ORC)7.5 A
F51Occupant detection module, electronic climate control, rear view camera, headlight adjustment, heated rear window, haptic lane departure, trailer towing7.5 A
F53Electric Parking Brake, Keyless Ignition Module7.5 A
F94Driver’s seat with lumbar adjustment,  12V outlets and cigarette lighter fuse Jeep Compass2016-2018  : ECC Fan (HVAC)15 A

In the engine compartment

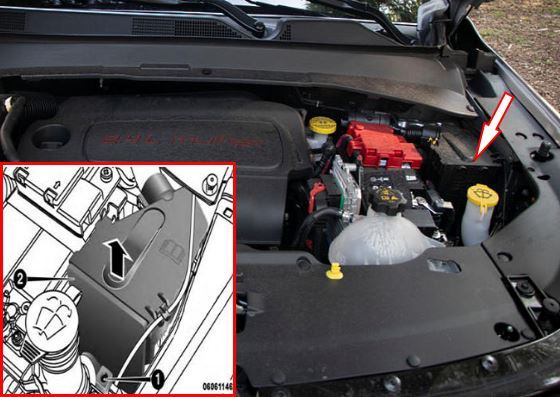

Located on the left side of the engine compartment. Unscrew the screw counterclockwise (1).

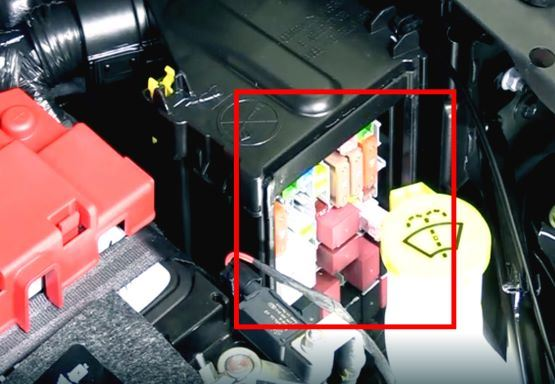

Example of access.

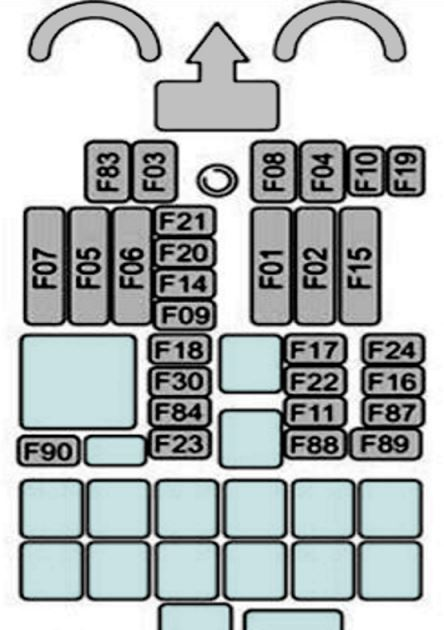

No.DescriptionCurrent, A

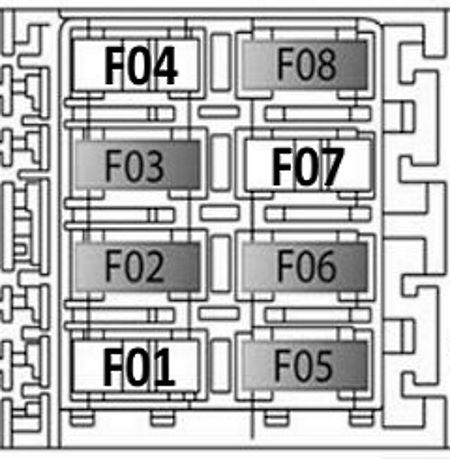

Type “Maxi”
F01On-board computer70 A
F02On-board computer, rear distribution blocks70 A
F06Starter relay40 A
F07Rear distribution block for trailer towing40 A
F15Brake control module pump40 A
F812016-2018: Glow Plug Module60 A
2019-2022: Glow Plug Module, Battery Powered DDCT SDU
Type “Cartridge”
F032016-2018: ECU30A / 20A
2019-2022: ECU, gas discharge lamps
F04Electronic Brake Control Module40 A
F05PTC heater40 A
F08Power Supply for F24, F87, Steering30 A
F82Heating the diesel fuel filter40 A
F83HVAC Fan40 A
Type “Mini”
F092016-2018: Engine Control Module7.5 A
2019-2022: ECM, Radiator Fan Control, TCM
F10Beep20 A
F112016-2018: Nutritional support20 A
2019-2022: Fuel Injectors ECM/PCM/UREA25 A
F14Heater (diesel)7.5 A
2020-2021: LTR Gasoline Cooling Pump15 A
F16Power supply for engine control module, automatic transmission10 A
F17Secondary engine loads10 A
F1812V socket on the rear trunk20 A
F192016-2018: Turning on the air conditioner compressor and fan PWM Rad7.5 A
2019-2022: Air Conditioning Compressor
F20Jeep Compass Main Cigarette Lighter20 A
F21Fuel pump fuse15 A
F222016-2018: (petrol) engine control module  20 A
2019-2021: Gasoline – Ignition Coil, Fuel Injector or Diesel Components15 A
F23Window heater mesh30 A
F24Power supply for the automatic transmission electronic unit15 A
F30Rear 12V socket and cigarette lighter20 A
F84All-wheel drive system30 A
F87Automatic transmission selector5 A
F88Heated exterior mirrors7.5 A
F89Rear window heating30 A
F90IBS (Battery State of Charge) Sensor5 A
FxxDual Battery Control Relay7.5/10 A
