Peugeot 208 replaced the 207 model in production. Although the Peugeot 208 has decreased in size, it has increased space for passengers and luggage. It was produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 and to the present. We will show where the fuse blocks are located in the Peugeot 208, provide a description of the circuits and highlight the cigarette lighter fuse.

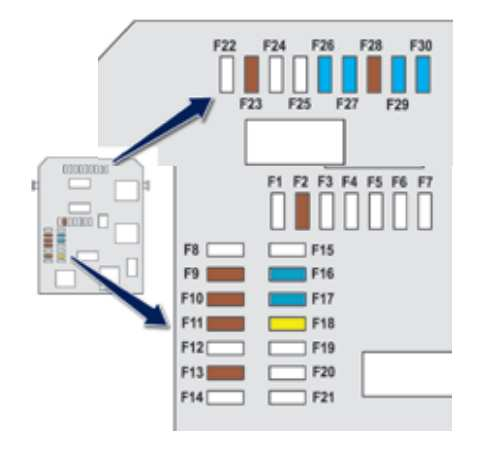

Unit in the instrument panel

It’s located at the bottom left. See the video for an example of how to get to it.

Scheme

Transcript

  • F2 5A Exterior mirrors, headlights, diagnostic connector.
  • F9 5A Security alarm.
  • F10 5A Autonomous on-board telematics unit, trailer electrical system ECU.
  • F11 5A Auto-dimming interior rear-view mirror, additional heating.
  • F13 5A Hi-Fi amplifier, parking assist.
  • F16 15A 12 V socket (front).
  • F17 15A Standard car radio, car radio (non-standard installation).
  • F18 20A Touch screen.
  • F23 5A Glove box light, vanity mirror light, individual ceiling lights.
  • F26 15A Audible signal.
  • F27 15A Windshield washer pump.
  • F28 5A Ignition switch with steering column lock.
  • F29 15A Air conditioning compressor.
  • F30 15A Rear window wiper.

Fuse number 16 at 15A is responsible for the front cigarette lighter.

Fuses in the box

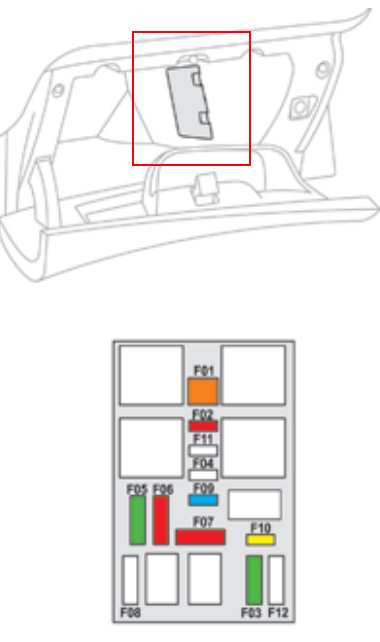

This unit is located in the glove box (glove compartment) and is covered by a protective cover.

Location and layout

Description

F01 40 A Heated rear window.
F02 10 A Heated exterior mirrors.
F03 30 A Front power windows.
F04 – Not used.
F05 30 A Rear power windows.
F06 10 A Folding mirrors.
F07 10 A Folding mirrors.
F08 – Not used.
F09 15 A Heated front seats.
F10 20 A Hi-Fi amplifier.
F11 – Not used.
F12 – Not used.

Fuses in the engine compartment

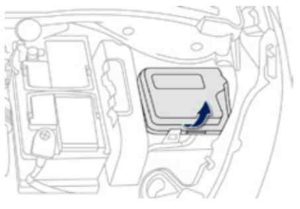

This unit is located under the hood near the battery (on the left).

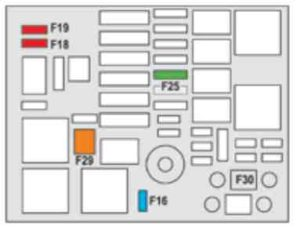

Description

  • F16 15 A Fog lights.
  • F18 10 A Right high beam headlight.
  • F19 10 A Left high beam headlight.
  • F25 30 A Headlight washer relay (non-standard installation).
  • F29 40 A Windscreen wiper motor.
  • F30 80 A Glow plugs (on diesel versions).

Note the large number of relays placed in this location.
