The compact Nissan Micra is a European copy of the Japanese version of the Nissan March . It has been produced since 1982. Currently, the 7th generation is in production. The first has the body marking K10, the second – K11, the third – K12, etc. Officially, this car has not been supplied to Russia since the fourth generation. In our material you can find a description of the fuse and relay boxes of the Nissan Micro for the second (K11) and third (K12) generations, produced in 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 and 2010, as well as their diagrams and a description of the purpose of the elements. Note the fuses responsible for the cigarette lighter.

Description for K12

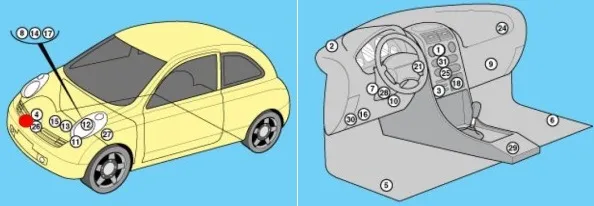

General arrangement

1Air conditioning control unit – behind the heater control panel
2Sunlight sensor (air conditioning system)
3Intake Air Temperature Sensor (Air Conditioner/Heater)
4Shock sensor (SRS)
5Impact sensor, driver’s side – under the seat
6Impact sensor, passenger side – under the seat
7Anti-theft alarm control unit – if installed
8Battery
9Central lock relay – “keyless entry”, if any
10Diagnostic Link Connector (DLC)
11Coolant Heater Relay – Diesel
12Fuse and Relay Box, Engine Bay 1
13Fuse and Relay Box, Engine Bay 2
14Fuse and relay box, engine compartment З
15Fuse and Relay Box, Engine Compartment 4 – Diesel Engine
16Fuse and relay box instrument panel
17Additional fuse (Main250A) – battery
18Heater Fan Motor Resistor – In the Heater Fan Motor
19The sound signal is behind the radiator grille
21Immobilizer transponder – ignition switch
24Multifunctional control unit 2 – functions: central locking, electric windows, hazard warning lights, rear window heater, immobilizer control unit, direction indicators, interior lights, fog lights, rear window wiper, windshield wiper and washer
25Navigation system control unit – in the audio system unit (if available)
26Ambient air temperature sensor
27Start inhibit switch – on the gearbox
28Power steering control unit
29SRS Electronic Control Unit
30Electronic control unit of the gearbox
31Trip computer

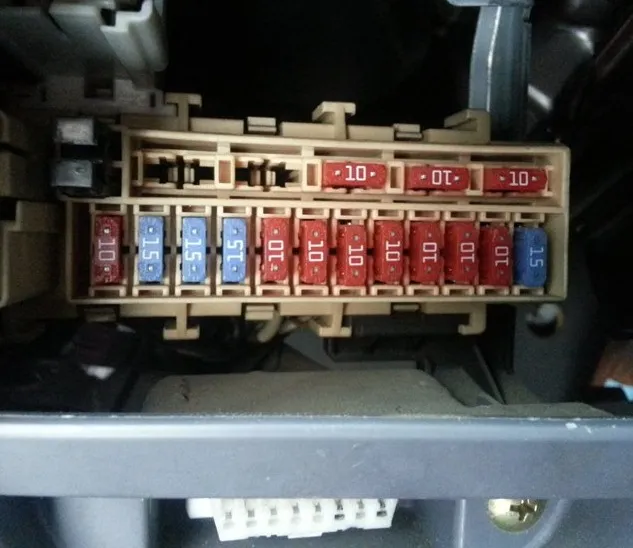

Fuses in the passenger compartment

It is located in the instrument panel next to the steering rack. This unit is covered with a protective cover, on the back of which there will be an up-to-date description.


1Additional equipment relay
2Heater Fan Motor Relay
F1(15A) Windshield wiper
F2(10A) Instrument cluster indicators
F3(10A) SRS system
F4(10A) Multifunctional control unit 1, diagnostic connector
F5(10A) Brake Light Switch (Brake Pedal Position Sensor), ABS System, Brake Lights
F6(10A) Central locking, anti-theft system, air conditioning system
F7(10A) Multifunctional control unit 1
F8(10A) Instrument cluster indicators, data link connector (DLC)
F9(15A) Heater air conditioner
F10(15A) Heater air conditioner
F11(15A) Nissan Micro Cigarette Lighter Fuse
F12(10A) Audio system, navigation system, anti-theft system, electric door mirrors, trip computer
F13(10A) Rear window defroster
F14(10A) Daytime lighting system lamps
F15(10A) Seat heater
F16(10A) Air Conditioner
F17(10A) Anti-theft system, central locking, interior lighting

Fuse number 11, 15A, is responsible for the cigarette lighter.

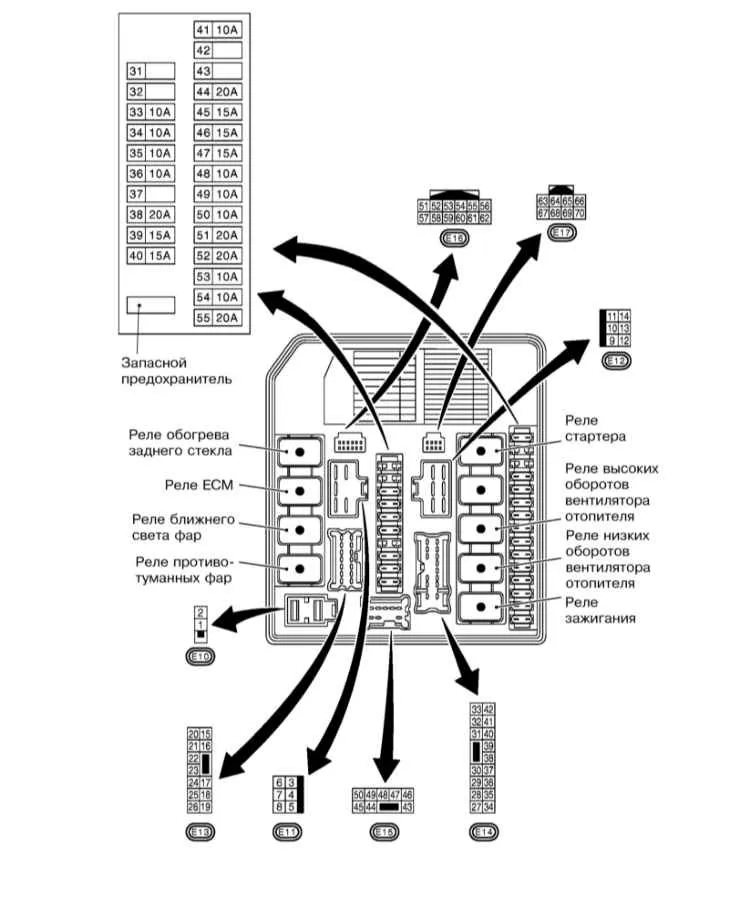

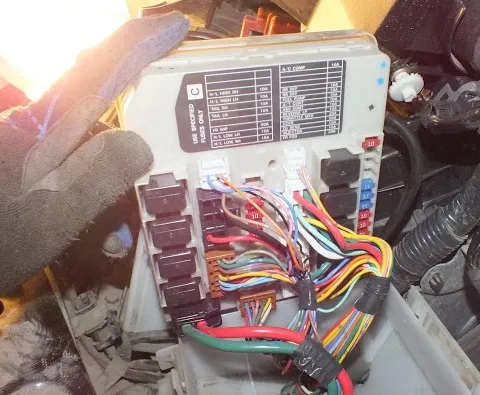

Fuses under the hood

Relay block behind the headlight

F31
F32
F33(10A) Right headlight – high beam, daytime running light system – if any
F34(10A) High beam – left headlight, daytime running light system – if any
F35(10A) Rear right side light
F36(10A) Rear left side light
F37
F38(20A) Windshield wiper
F39(15A) Low beam – left headlight, daytime running light system – if any
F40(15A) Low beam – right headlight, daytime running light system – if available, headlight corrector
F41(10A) Air Conditioner Relay
F42
F43
F44
F45(15A) Rear Window Defogger Relay
F46(15A) Rear Window Defogger Relay
F47(15A) Fuel pump relay
F48(10A) Electronic control unit of the gearbox
F49(10A) Anti-lock braking system (ABS)
F50(10A) Start inhibit switch
F51(20A) Throttle Control Unit Relay
F52(20A) Engine control
F53(10A) Heated Oxygen Sensors
F54(10A) Injectors
F55(20A) Fog lights

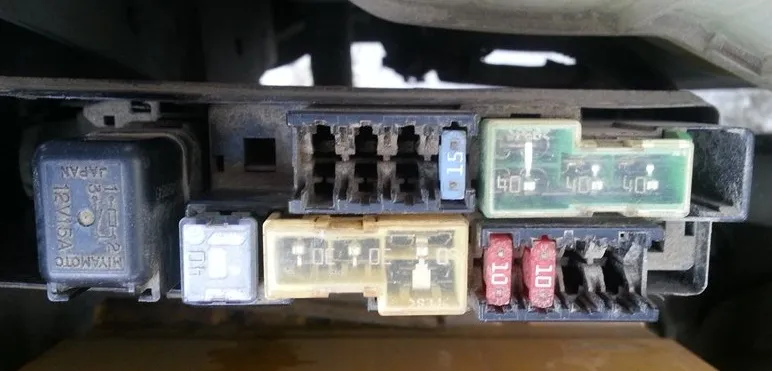

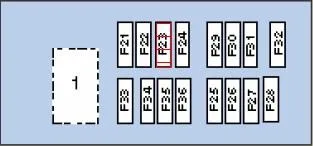

Additional blocks

1Horn relay
F21
F22
F23
F24(15A) Audio system, navigation system
F25(10A) Sound signal
F26(10A) Generator
F27(10A) Daytime lighting system – if any
F28(10A) —
F29(40A) ABS Electronic Control Unit
F30(40A) Cooling system fan motor relay
F31(40A) Ignition switch
F32(40A) Coolant Heater
F33(40A) Multifunctional control unit 1
F34(30A) ABS Electronic Control Unit
F35(30A) Headlight Washer Pump Relay
F36(60A) ABS Electronic Control Unit

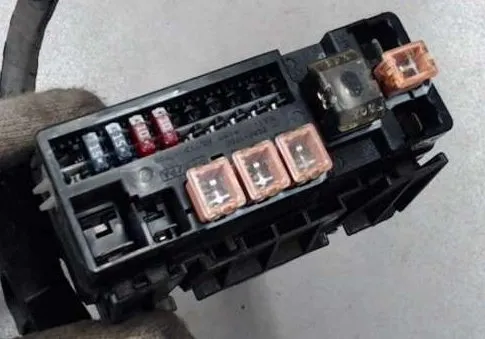

Block 2

High Power Fuse Box Diagram

  • A – 250A Main fuse
  • B – 80A Electronic control unit ABS
  • C – 80A Multifunctional control unit 1
  • D – 60A Fuse/Relay Box – Engine Compartment 1 (F45-F46),(F51-F52), Main Ignition Circuit Relay
  • E – 80A Fuse/Relay Box – Instrument Cluster (F5-F8), (F14), (F17), Aux Relay, Heater Blower Motor Relay

Description for K11

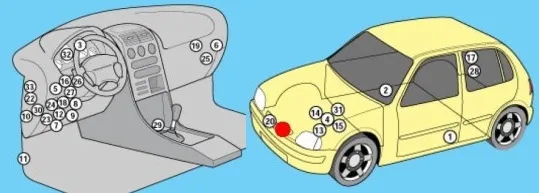

General arrangement

1Side Impact Sensor (SRS), Driver’s Side
2Side Impact Sensor (SRS), Passenger Side
3Audible warning signal/buzzer – instrument cluster
4Battery
5Central locking control unit
6Central locking system signal control unit
7Diagnostic Link Connector (DLC), 14-pin
8Diagnostic connector, 16-pin
9Daytime Lighting Control Unit – If present
10Fog light relay
11Fuel Pump Relay – Right Lower Trim Panel
12Fuse/Relay Box Instrument Panel
13Fuse/Relay Box, Engine Compartment 1
14Fuse/Relay Box, Engine Compartment 2 – Petrol
15Fuse/Relay Box, Engine Compartment 3 – Diesel
16Headlight washer delay relay – if any
17Rear window defroster relay, if present – ​​rear pillar
18Heater Fan Motor Relay
19Heater Fan Motor Resistor
20Sound signal 1
21Sound signal 2
22Horn relay
23Auxiliary ignition circuit relay
24Main Ignition Circuit Relay
25Electronic immobilizer control unit
26Turn signal flasher relay
27Rear Window Wiper Motor Relay – Rear Pillar
28SRS Electronic Control Unit
29Electronic control unit of the gearbox
30Vehicle Speed ​​Sensor Type 1 – Gearbox
31Vehicle Speed ​​Sensor Type2 – Instrument Cluster
32Windshield wiper motor relay

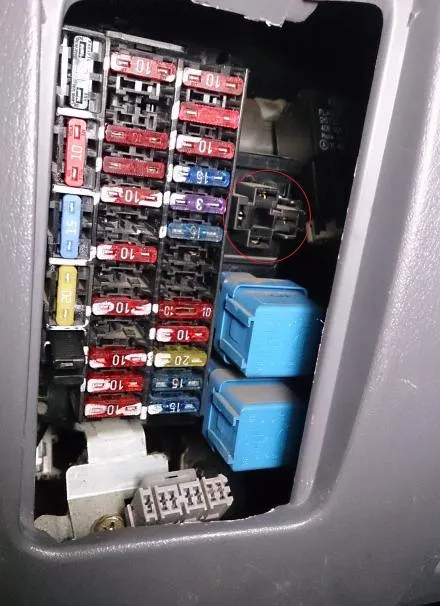

Fuses in the passenger compartment

Located in the instrument panel.

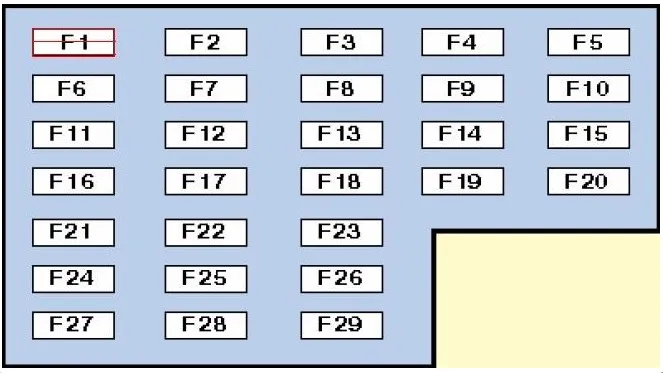

Option 1

F1(20 A) Air conditioner – heater fan electric motor
F2
F3(10A/20A) Rear Window Defogger Switch, Rear Window Defogger Relay
F4(10A) Horn relay
F5(15A) Fog Light Relay
F6(10A) Air conditioning system, start inhibit switch
F7(7.5A) Central lock, idle speed control (ISC) relay – with automatic transmission, diagnostic connector
F8(10A) Rear window defroster relay – if equipped, central locking, central locking signal control unit, daytime running light control unit – if equipped, start inhibit switch (“PVN”), reversing lights
F9(15A) Rear window washer
F10(15A) Audio system
F11(7.5A) Hazard warning switch
F12(7.5A) ABS Electronic Control Unit
F13(15A) Cigarette lighter fuse
F14(10A) Brake lights, ABS
F15(10A) Hazard warning switch
F16(10A) Electronic control unit of the gearbox
F17(15A) Fuel pump relay
F18(10A) Seat heater
F19(20A) Windshield wiper motor, Windshield wiper motor relay
F20(7.5A) Engine management system, immobilizer control unit
F21
F22(10A) SRS Electronic Control Unit
F23(10A) Windshield Washer Cleaner
F24(10A) Solenoid valve for fuel supply shut-off – Diesel, interior lights, instrument cluster, audio system, electronic control unit for gearbox, immobilizer, central lock signal control unit
F25(10A) Glow Plug Control Module – Diesel, EGR Solenoid Valve – Diesel, Immobilizer, Heated Oxygen Sensor, Idle Air Bypass Control Valve
F26(7.5A) Start inhibit switch relay – with automatic transmission, engine management system
F27
F28
F29(15A) Headlight Washer Delay Relay

Fuse number 13, 15A, is responsible for the cigarette lighter.

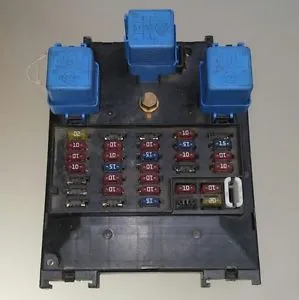

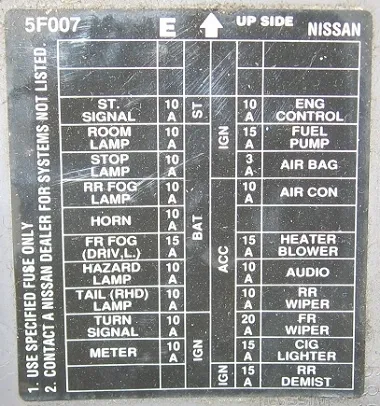

Option 2


Check the diagram against your description on the back of the lid.

  • 10A Starter / Signal
  • 10A Interior lighting
  • 10A Brake Light Bulbs
  • 10A Fog lights
  • 10A Signal
  • 15A Fog lights
  • 10A Emergency alarm
  • 10A Rear lights
  • 10A Turn signals
  • 10A Instrument cluster
  • 10A Engine
  • 15A Fuel pump
  • 3A Fuel pump
  • 10A Air Conditioner
  • 15A Heater Fan
  • 10A Audio system
  • 10A Rear windshield wiper
  • 20A Front windshield wiper
  • 10A Cigarette Lighter
  • 10A Fog lights

In this design, the second fuse from the bottom in the right column for 15A is responsible for the cigarette lighter. On the diagrams, it is designated as CIG LIGHTER.

Fuses under the hood

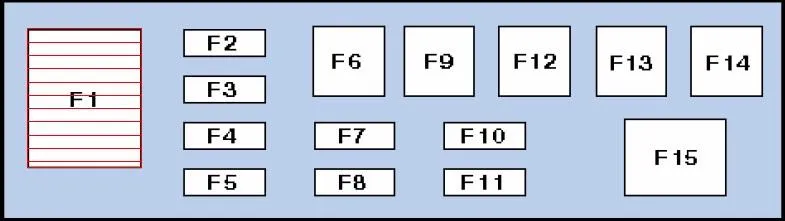

Option 1


F1(30A) Glow Plug Control Unit – Diesel
F2
F3(10A) Rear dimensions
F4(15A) Right headlight
F5(15A) Left headlight
F6(25A) Electric window lifter, central lock control unit
F7(15A) Spare
F8
F9(25A) Cooling system fan motor
F10(10A) Spare
F11(15A) Air Conditioner
F12(30A) Anti-lock braking system (ABS)
F13(30A) Ignition switch
F14(25A) Engine control
F15(65A) Battery Power Distribution

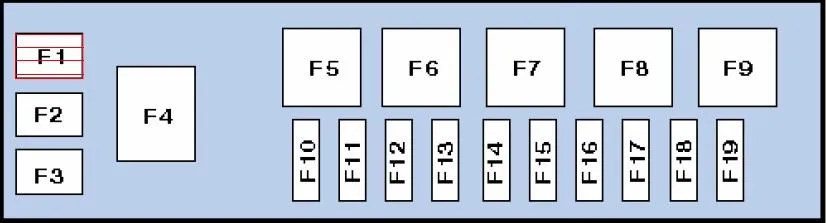

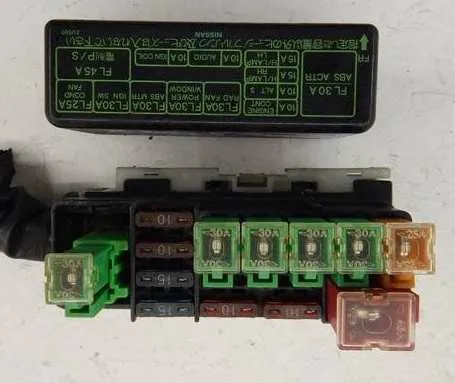

Option 2


F1(40A) ABS Electronic Control Unit
F2(30A) Ignition switch
F3(40A) ABS Electronic Control Unit
F4(80A) Battery Power Distribution
F5(30A) Cooling system fan motor
F6(30A) Electric window lifter, central lock control unit
F7(30A) Engine control
F8
F9(60A) Glow Plug Control Unit – Diesel
F10
F11
F12
F13
F14
F15(10A) Generator
F16(10A) Rear dimensions
F17(15A) Left headlight
F18(15A) Right headlight
F19(15A) Air Conditioner
