Kia Opirus is a premium sedan produced in 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 and 2011 with 3.5 and 3.5-liter gasoline engines. During this time, the car has undergone restyling. In this publication, we will show a description of the fuses and relays of the Kia Opirus with block diagrams and their locations. We will note the fuse responsible for the cigarette lighter.

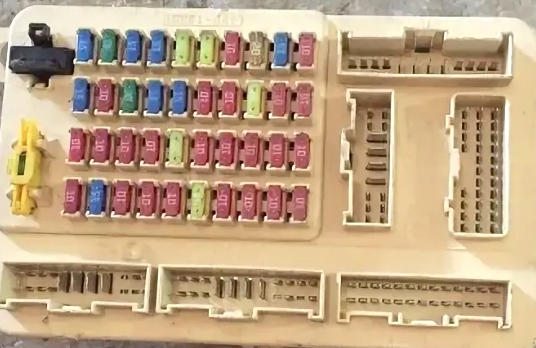

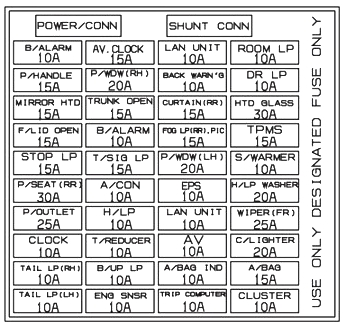

Cabin block

Located under the panel on the driver’s side behind a protective cover.

Description

B/ALARM10A Alarm
A/BAG15A Airbags
C/ LIGHTER20A Cigarette lighter
SA/ HEATER10A Seat heating
PM/DW (RH)20A Windows (right)
P/HANDLE15A Power steering
T/SIG LP15A Turn signal light
HTD GLASS30A Heated mirrors
TRUNK OPEN15A Opening the trunk lid
CLUSTER10A Block
A/BAG IND10A Airbag indicator
P/OUTLET25A Electrical socket
LAN UNIT10A LAN device
CURTAIN (RR)15A Electric blinds (rear)
FOG LP(RR), PIC15A Fog lights (rear), Personal identification card
F/LID OPEN15A Power steering
P/SEAT (RR)30A Seat (rear)
B/ ALARM10A Alarm
STOP LP15A Stop signal
TRIP COMPUTER10A Trip computer
B/UP LP10A Interior light
OF10A AV System
H/LP10A Headlights
A/CON10A Air conditioning system
P/WDW(LH)20A Window regulator (left)
TAIL LP(RH)10A Tail light (right)
BACK WARN’G10A Reverse obstacle warning system
DR LP10A Door opening lamp
MIRROR HTD15A Rearview mirror heater
EN SNSR10A Transmission control system sensor
T/REDUCER10A Seat Belt Tension Attenuator
CLOCK10A Clock
WIPER (FR)25A Wiper (front)
EPS10A Electronic power steering
TAIL LP(LH)10A Tail light (left)
ROOM LP10A Room lamp
OFF, CLOCK15A Audio system, Clock
LAN UNIT10A LAN device
TPMS15A
H/LP WASHER20A Headlight washer
SHUNT CONNSwitch backlight
POWER / CONNVoltage switch

The fuse for the front cigarette lighter is marked as C/LIGHTER, and the fuse for the rear auxiliary socket is marked as P/OUTLET.

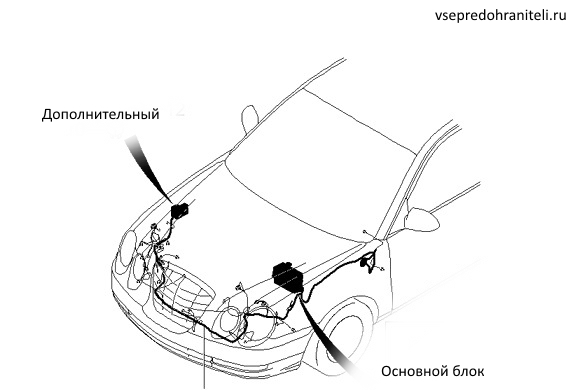

Blocks under the hood

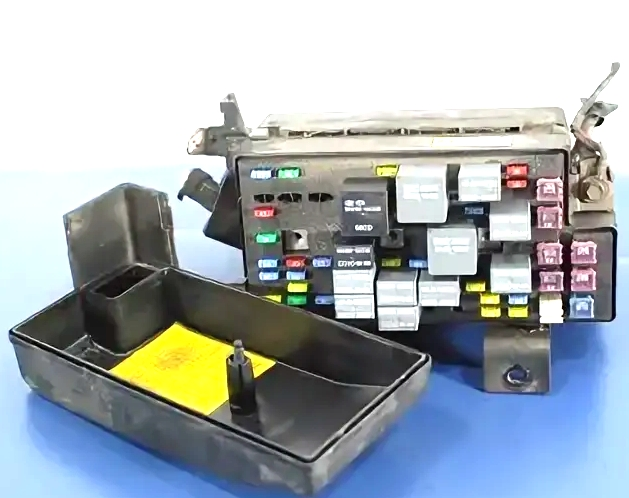

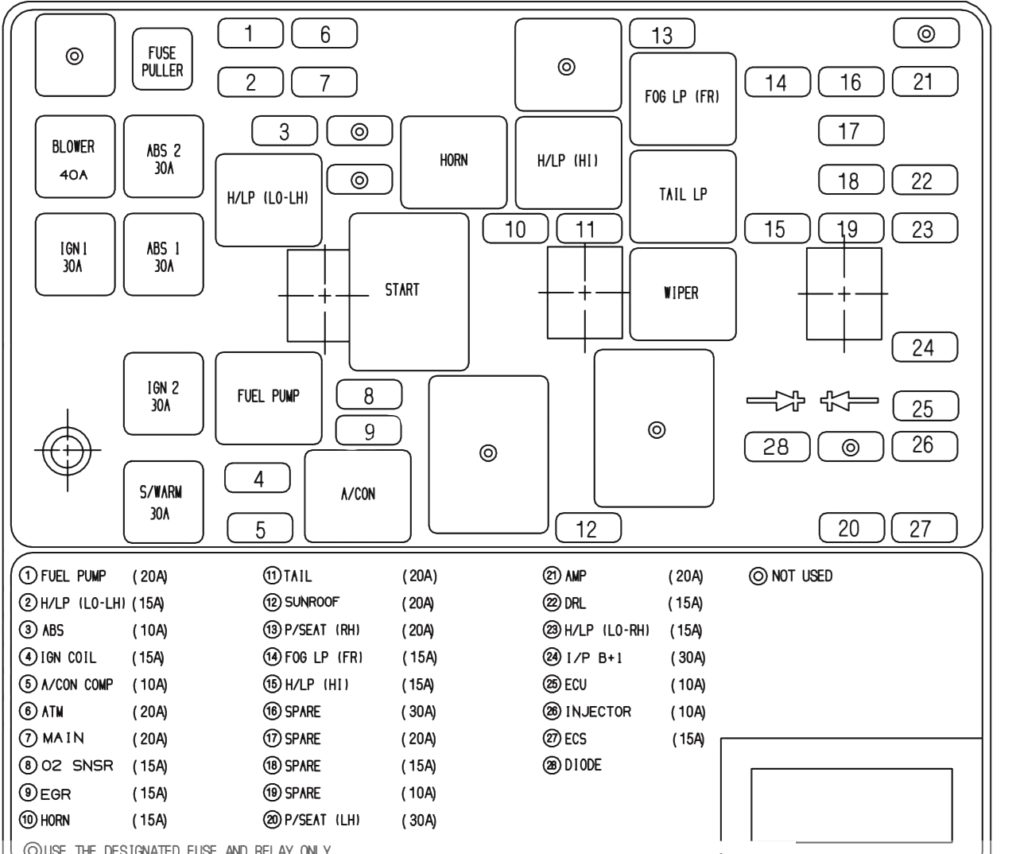

Main unit

Located near the left pillar.

Appointment

1 FUEL PUMP20A Fuel pump
2 H/LP (LO-LH)15A Headlights (lower left)
3 ABS10A Anti-lock braking system
4 IGN COIL15A Ignition coil
5 A/CON COMP10A Air conditioning compressor
6 ATM20A Automatic transmission device relay
7 MAIN20A Engine Control Unit Relay
8 02 SNSR15A Oxygen sensor
9 EGR15A Transmission control system sensor
10 HORN15A Signal
11 TAIL20A Tail light
12 SUNROOF20A Hatch Module
13 P/SEAT (RH)20A Seat device (right)
14 FOG LP (FR)15A Fog lights (front)
15 H/LP (HI)15A Headlights (high beam)
16 SPARE30A Spare fuse
17 SPARE20A Spare fuse
18 SPARE15A Spare fuse
19 SPARE10A Spare fuse
20 P/SEAT (LH)30A Seat device (left)
21 AMP20A Amplifier
22 DRL15A Daytime running lights
23 H/LP (LO-RH)15A Headlights (low beam)
24 1/R B+30A All electrical systems
25 ECU10A Engine control unit
26 INJECTOR10A Injector
27 ECS15A Electronic suspension control
28 DIODEDiode
BLOWER40A Motor fan
IGN 130A Ignition relay
ABS 230A Anti-lock brake system
ABS 130A Anti-lock brake system
IGN 230A Ignition switch
S/WARM30A Seat heating
H/LP (LO-LH)Headlight relay (low beam-left)
FUEL PUMPFuel pump relay
HORNRelay signal
STARTEngine start relay
A/CONAir conditioning repair
H/LP (HI)Headlight relay (high beam-left)
FOG LP (FR)Fog light relay (front)
TAIL LPTaillight relay
WIPERWiper relay
A/CON FAN-2Air conditioning fan relay
WATT60A Alternator, Battery
ALL15A Generator
COOLING60A Cooling fan

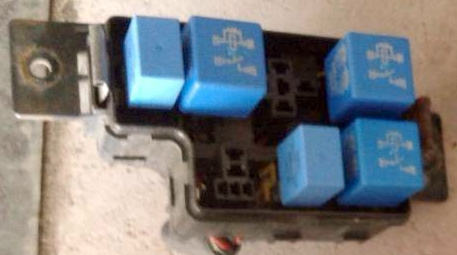

Additional unit

There are mainly relays here (turn signal and emergency alarm relays, etc.), their availability and location depends on the trim level of your Kia Opirius.
