Hyundai Palisade was produced in 2019, 2020, 2021, 2022, 2023, 2024, 2025 as a mid-size crossover from the South Korean automaker Hyundai. In our material you can find a description of the fuses and relays of the Hyundai Palisade with block diagrams, their locations, photos and examples of execution. Let’s highlight the cigarette lighter fuse.

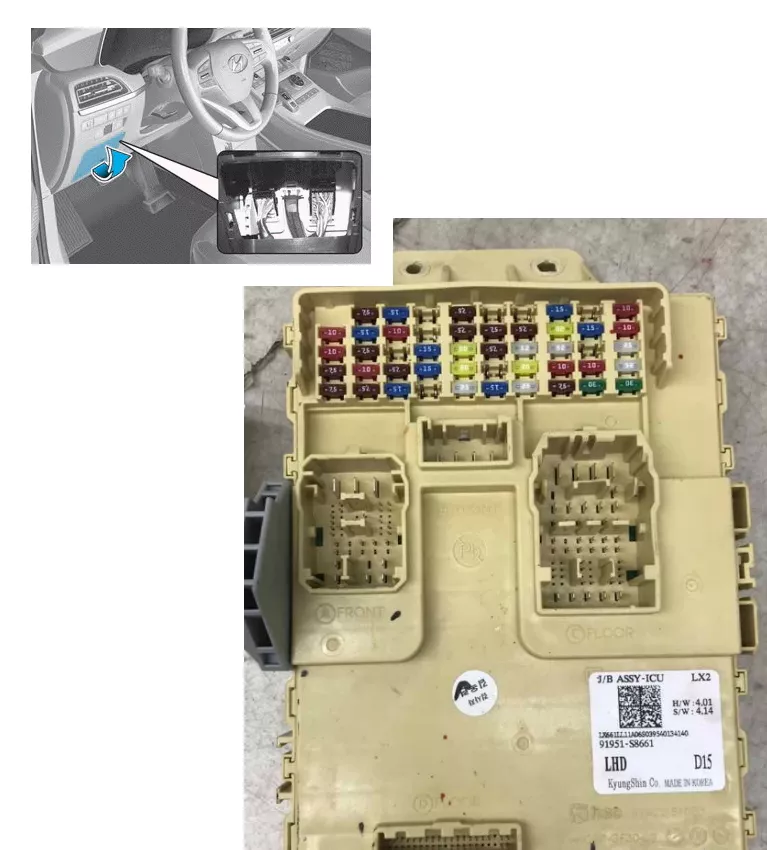

Inside the car, the fuse box is located at the bottom of the instrument panel on the driver’s side, behind a protective cover.

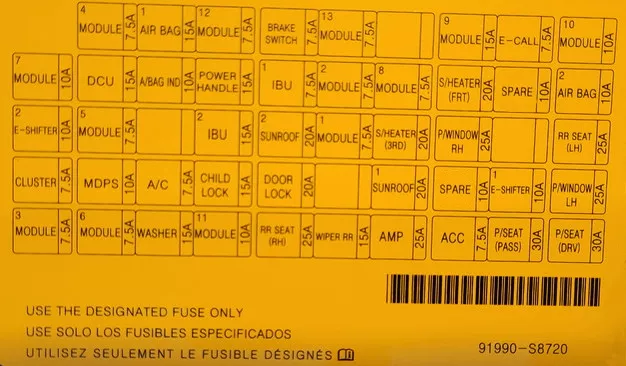

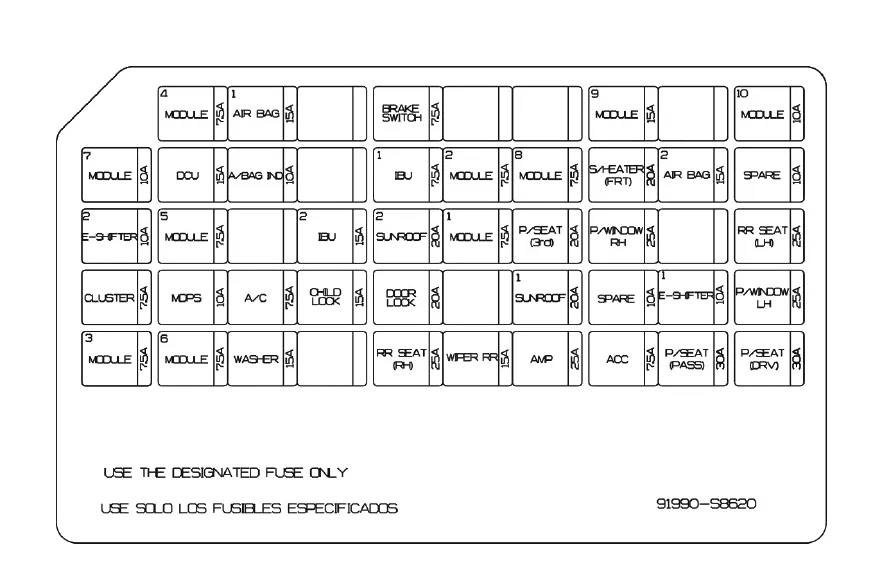

The current fuse diagram for your car will be located on the back of the protective cover. Check the purpose of the elements.
| № | A | Description |
|---|---|---|
| MODULE 4 | 7.5A | Data link connector, brake light switch, driver door module |
| AIR BAG 1 | 15A | SRS control module, occupant detection sensor |
| BRAKE SWITCH | 7.5A | IBU, brake light switch |
| MODULE 9 | 15A | Front air conditioning control module, low voltage DC/DC converter (audio), power rear door assembly, driver IMS control module, head-up display, driver door module, power driver/passenger outside mirror, security indicator, rain sensor, rear passenger alert sensor, rear passenger alert sensor (ROA), third seat folding control module |
| MODULE 10 | 10A | Left/right blind spot warning unit, front console switch, rear air conditioning control module, electrochromic mirror, data link connector, front wireless charger |
| AIR BAG IND | 10A | Seat belt indicator, instrument cluster |
| MOTHER 1 | MOTHER | |
| MODULE 2 | 7.5A | 1st seat heating control module, 1st seat ventilation control module, 2nd left/right seat ventilation control module, 2nd left/right seat heating control module, 3rd seat folding control module, AC inverter socket, inverter unit, surround view monitor unit |
| MODULE 8 | 7.5A | Driver/passenger electronic key exterior handle, driver/passenger exterior mirror, key solenoid, central keypad on the panel (emergency switch) |
| S/HEATER FRT | 20A | 1st air ventilation control module, 1st seat heating control module |
| AIR BAG 2 | 15A | SRS control module |
| E-SHIFTER 2 | 10A | ATM Electronic Shift Lever Switch (SBW), SCU |
| MODULE 5 | 7.5A | Emergency panel switch, IBU, intelligent cruise control radar, ECM 4WD, front console switch, lane keeping assist unit (line) |
| MOTHER 2 | 15A | IBU, ignition switch |
| SUNROOF 2 | 20A | Panoramic sunroof |
| MODULE 1 | 7.5A | MOTHER |
| P/SEAT (3rd) | 20A | Third seat folding control module |
| P/WINDOW RH | 25A | Passenger safety power window module, right rear power window switch |
| RR SEAT (LH) | 25A | 2nd left seat ventilation control module, 2nd left seat heater, control module, 2nd position left seat folding drive |
| CLUSTER | 7.5A | Instrument cluster, head-up display |
| MDPS | 10A | Department of the Ministry of Internal Affairs |
| A/C | 7.5A | E/R junction block (FRT fan relay, RR fan relay, PTC heater relay 1/2), front air conditioning control module |
| CHILD LOCK | 15A | ICM relay unit (child lock/unlock relay) |
| DOOR LOCK | 20A | Door lock relay, door unlock relay, rear door relay, two-turn unlock relay |
| SUNROOF 1 | 20A | Roof hatch |
| E-SHIFTER 1 | 10A | Electronic Shift Lever Switch (SBW), SOU, E/R Junction Box (FUSE -E-SHIFTER 2) |
| P/WINDOW LH | 25A | Driver’s safety power window module, rear power window switch, left |
| MODULE 3 | 7.5A | MOTHER |
| MODULE 6 | 7.5A | Audio, AV and Navigation Head Unit, Low Voltage DC/DC Converter (Audio/AMP), Front/Rear Air Conditioning Control Module, Driver IMS Control Module, Electrochromic Mirror, Front Center Keyboard, 1ST Air Ventilated Seat Control Module, 1ST Seat Heated Control Module, 2nd Left/Right Seat Ventilation Control Module, 2nd Left/Right Seat Heated Control Module, 3rd Seat Folding Control Module. |
| WASHER | 15A | Multifunction switch (washer) |
| RR SEAT (RH) | 25A | 2nd seat ventilation control module, 2nd right seat heating control module, 2nd right seat tilt folding drive |
| WIPER (REAR) | 15A | Rear wiper relay, rear wiper motor |
| AMP | 25A | AMP, DC to DC converter (AMP) |
| ACC | 7.5A | IBU, DC to DC converter (audio/AMP) |
| P/SEAT (PASS) | 30A | Passenger seat manual switch |
| P/SEAT (DRV) | 30A | Driver IMS control module, driver seat manual switch |

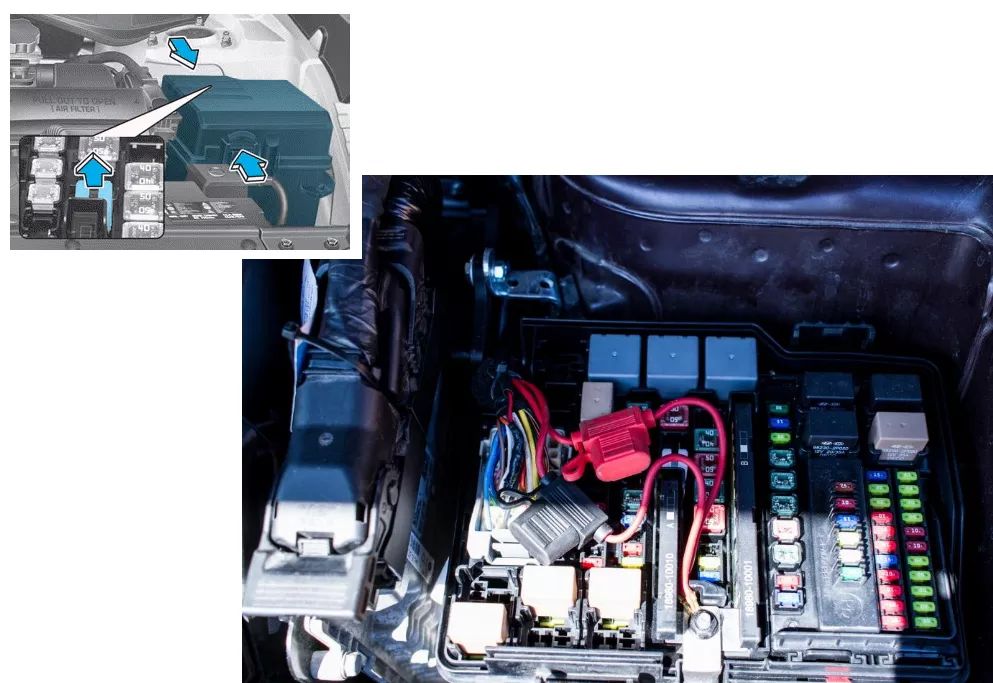

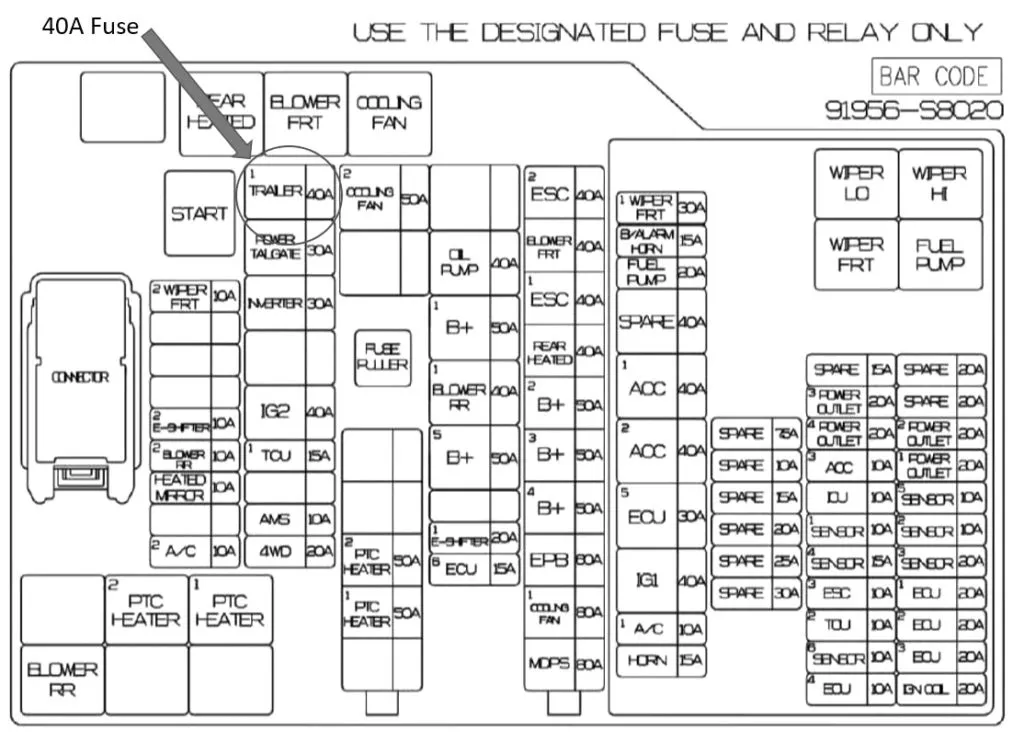

Under the hood, in the engine compartment on the left, is the main unit with fuses and relays.
| № | A | Marking |
|---|---|---|
| MDPS | 80A | Department of the Ministry of Internal Affairs |
| COOLING FAN 1 | 80A | Cooling fan relay (600 W) |
| EPB | 60A | EKU module |
| B+4 | 50A | ICU distribution block (fuse – MODULE 8, S/HEATER FRT, P/WINDOW RH, AMP, SUNROOF) |
| B+3 | 50A | ICU distribution block (fuse – P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS)) |
| B+2 | 50A | Intensive Care Unit Connection Unit (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15) |
| REAR HEATED | 40A | Rear heating relay |
| ESC 1 | 40A | ECU module |
| BLOWER | 40A | Fan relay |
| ESC 2 | 40A | ECU module |
| PTC HEATER 1 | 50A | Heater relay 1 PTC |
| PTC HEATER 2 | 50A | Heater relay 2 PTC |
| B+1 | 50A | ICU connection block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, long-term/short-term load relay) |
| B+5 | 50A | ICU Distribution Block (Fuse – DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, REAR SEAT (RIGHT), SUNROOF 2) |
| INVERTER | 30A | AC inverter |
| POWER LIFTGATE | 30A | Power tailgate module |
| TRAILER 1 | 40A | Trailer lamp |
| IG2 | 40A | Start relay, ICU distribution block (fuse – air conditioning, MACHINE, FUEL (REAR), MODULE 1, MODULE 2, REAR air conditioning) |
| OIL PUMP | 40A | Electronic oil pump module |
| COOLING FAN 2 | 50A | Cooling fan relay |
| HEATED MIRROR | 10A | Driver/passenger power exterior mirror, air conditioning control module |
| A/C 2 | 10A | Air conditioning control module |
| WIPER FRT 2 | 10A | Wiper relay (LO), front wiper motor |
| ECU 6 | 15A | PCM |
| AMS | 10A | Battery sensor |
| E-SHIFTER1 | 20A | Electronic transmission |
| 4WD | 20A | All-wheel drive ECM |
| E-SHIFTER2 | 10A | Electronic transmission |
| BLOWER 2 | 10A | Air conditioning control module |
| BLOWER 1 | 40A | Rear fan relay |
| TCU 1 | 15A | Transmission range switch |
| SENSOR 6 | 15A | Glow relay |
| ECU 3 | 10A | ECU module |
| ICU | 10A | ICU jumper block |
| SENSOR 5 | 10A | Oxygen sensor up #1/#2 |
| IGN COIL | 20A | Ignition coil #1/#2/#3/#4/#5/#6 |
| SENSOR 1 | 10A | Fuel pump relay |
| A/C 1 | 10A | 2.4 GDI: Air conditioning/air conditioning relay |
| WIPER FRT 1 | 30A | Wiper main relay |
| TCU 2 | 10A | TCM, SBW controller |
| ECU 3 | 20A | PCM |
| B/ALARM HORN | 15A | Burglar alarm sounder relay |
| HORN | 15A | Horn relay |
| FUEL PUMP | 20A | Fuel pump relay |
| ECU 1 | 20A | PCM |
| SENSOR 2 | 10A | A/C compressor relay, adjustable intake solenoid valve, oil pump solenoid valve, low oxygen sensor, oil control valve, electronic thermostat heater, purge control solenoid valve |
| ECU 2 | 20A | PCM |
| POWER OUTLET 1 | 20A | Rear power socket 1 |
| POWER OUTLET 2 | 20A | Rear socket 2 |
| ACC 3 | 10A | ICU switching unit (fuse – ACC) |
| ECU 4 | 10A | PCM |
| IG 1 | 40A | PWM relay (IG1) |
| ACC 1 | 40A | Relay ASS 1 |
| ACC 2 | 40A | Relay ASS 2 |
| ECU 5 | 30A | Main relay |
| POWER OUTLET 3 | 20A | Luggage outlet |
| POWER OUTLET 4 | 20A | Front socket (cigarette lighter) |
| SENSOR 4 | 15A | Ignition coil #1/#2/#3/#4/#5/#6, cooling fan controller |
