Hyundai Solaris 2nd generation was produced in 2017, 2018, 2019, 2020, 2021, 2022 mainly with 1.4 and 1.6 liter gasoline engines. During this time, the model has undergone restyling. In this material you will find a description of the fuses and relays of the Hyundai Solaris 2nd generation with block diagrams and their locations. We will separately note the cigarette lighter fuse.

The number of elements in the blocks may differ from the one presented and depends on the level of equipment and year of manufacture. Compare the diagrams with your technical documentation.

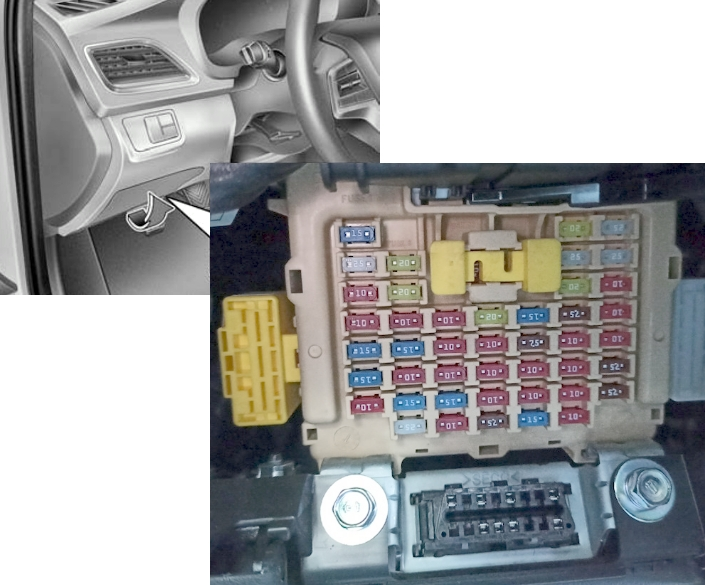

Cabin block

It is located at the bottom of the instrument panel. To access it, remove the protective cover in the direction of the arrow. The diagnostic connector is located there.

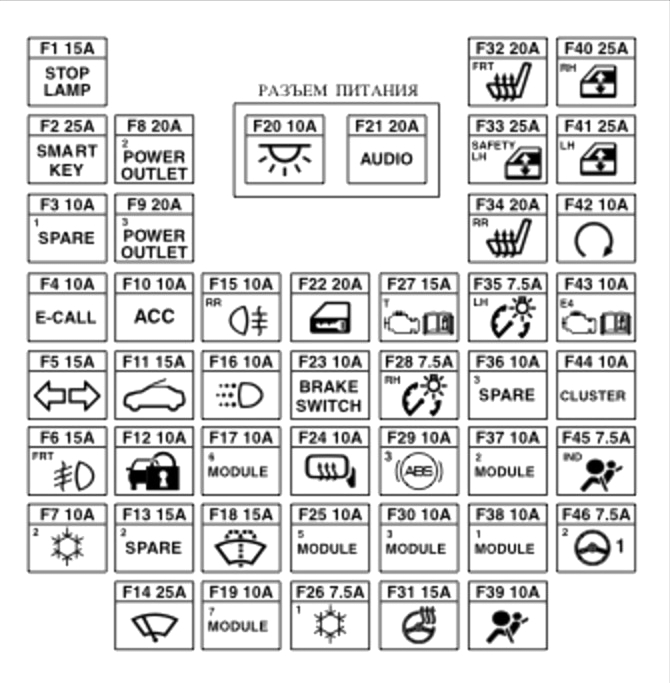

Description

F115A STOP LAMP – Electronic stop light unit (dashboard junction box)
F225A SMART KEY – Smart Key system control unit (electronic key, keyless access)
F310A SPARE1 – Spare
F410A E-CALL – E-Call block (emergency call block)
F515A TURN LAMP – BCM (Body Control Module), SLM (Seat Belt Reminder and Lighting Module)
F615A FRT FOG – Front fog lamp relay (dashboard junction box)
F710A A/CON2 – Air conditioning control unit
F820A P/OUTLET2 – Power outlet (cigarette lighter) No. 1
F920A P/OUTLET3 – Power outlet (cigarette lighter) No. 2
F1010A ACC Rear power outlet relay (cigarette lighter) (instrument panel junction box), exterior mirror adjustment switch, E-Call unit, BCM, SLM unit, audio system (radio), multimedia navigation system
F1115A S/ROOF – Sunroof (top sunroof motor)
F1210A IMMO – Immobilizer module
F1315A SPARE2 – Spare
F1425A WIPER – Multi-function (steering wheel) switch, wiper motor, engine compartment junction box (Relay 6)
F1510A RR FOG – Rear fog lamp relay (dashboard junction box)
F1610A DRL – DRL (Daytime Running Lights) Relay (Dashboard Junction Box)
F1710A MODULE6 – Power window relay (without BCM) (dashboard junction box), windshield washer nozzle heating, Driver/front passenger seat heating control unit, Rear seat heating control unit
F1815A WASHER – Steering wheel switch (washer)
F1910A MODULE7 – BCM (Body Control Module), Interior Light Auto-Off Relay (Dashboard Fuse Box, Auto-Off Relay Version)
F2120A AUDIO – Head unit of the audio system or multimedia navigation system (radio, head unit)
F2220A DR LOCK – Door unlock relay, door lock relay, trunk unlock relay (central locking)
F2310A BRAKE SWITCH – Smart Key system control unit (electronic key, keyless access), brake light switch (end)
F2410A RR HTD Electric exterior mirrors, air conditioning control unit
F2510A M0DULE5 – SLM, BCM, Smart Key system control unit (electronic key, keyless access)
F267.5A A/C0N1 – Air conditioning fan, engine compartment junction box (Relay 2), air conditioning control unit
F2715A ENG T – Selector lever position indicator Automatic transmission: Sport mode switch, transmission mode switch, brake light switch, Manual transmission: engine compartment relay and fuse block, brake light switch
F287.5A TAIL RH – Right headlight, audio system (radio, head unit), instrument panel switch, heated steering wheel, instrument cluster (instrument panel), Multimedia navigation system head unit (radio, head unit), AUX/USB socket, automatic transmission selector position indicator, Rear right combination lamp (in/out)
F2910A ABS3 – ABS control unit (ABS, anti-lock braking system), ESP control unit (dynamic stabilization system)
F3010A MODULE3 – Switch on the left side of the front panel, BCM
F3115A NTO STRG – Heated steering wheel
F3220A FRT S/HTR – Driver/front passenger seat heating control unit
F3325A SAFETY WDW – Driver’s door power window unit with pinch protection
F3420A RR S/FITR – Rear seat heating control unit
F357.5A TAIL LH – Left rear combination lamp (in/out), left/right license plate lamp, left headlight
F3610A SPARE3 – Spare
F3710A MODULE2 – Air conditioning control unit, left/right headlights, audio system or multimedia navigation system main unit (radio, head unit), Driver/front passenger seat heating control unit, steering wheel heating, E-Call unit
F3810A MODULE1 – BCM (body control module), SLM (seat belt reminder and lighting module)
F3910A A/BAG – SRS control unit (airbag system)
F4025A P/WDW RH ​​​​– Main power window switch, front passenger power window switch
F4125A P/WDW LH – Power window main switch
F4210A START – Automatic Transmission (AT): Transmission Mode Switch (Range Shift), Manual Transmission (MT): ECM/PCM, Engine Compartment Junction Box (Relay 1), Smart Key System Control Unit (Electronic Key, Keyless Entry)
F4310A ENG E4 – ECM/PCM, immobilizer unit, Smart Key system control unit (electronic key, keyless access)
F4410A CLUSTER – Instrument cluster
F457.5A A/BAG IND – Instrument cluster
F467.5A MDPS1 – MDPS unit (EUR control unit (electric power steering))

Fuses 8 and 9 at 20A, marked POWER OUTLET, are responsible for the cigarette lighter.

Blocks under the hood

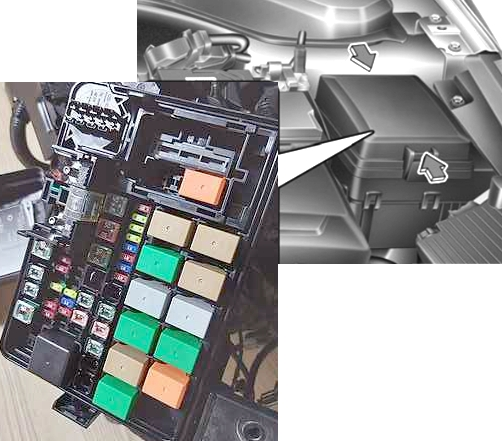

Main unit

Located next to the battery, on the left side of the engine compartment.

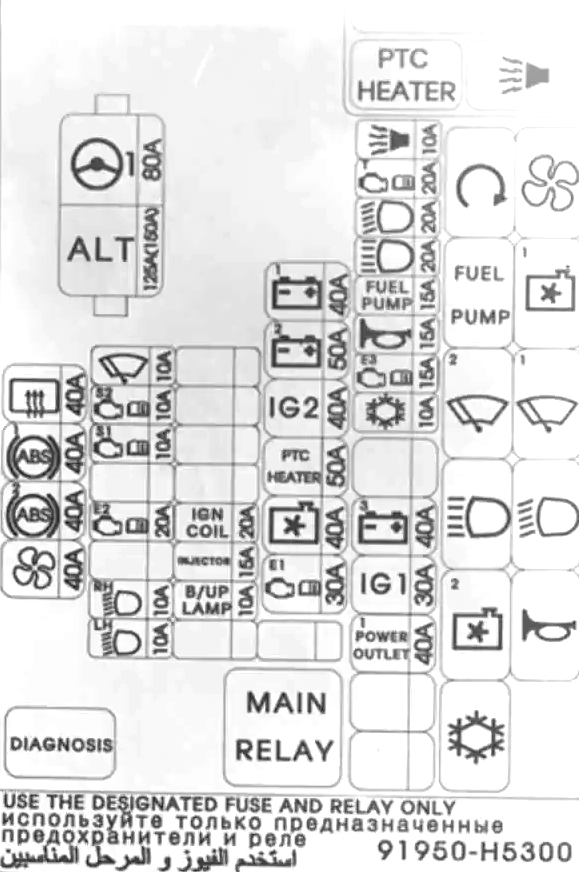

Fuse designations

MDPS180A MDPS unit (EUR control unit (electric power steering))
ALL125/150A Engine compartment junction box (fuse – F3, F4, F5, F6)
RR DEFOG40A Rear window defroster relay (dashboard junction box)
ABS140A ABS/ESP control unit (ABS/ESP, anti-lock braking system)
ABS240A ABS/ESP control unit (ABS/ESP, anti-lock braking system)
BLOWER40A Engine compartment junction box (Relay 2 – Air conditioning fan relay)
WIPER10A Windshield wiper motor (wipers), multifunction switch (steering switch), engine compartment junction box (Relay 6)
ENG S210A Oxygen sensor (upper), oxygen sensor (lower), engine compartment junction box (Relay 4, Relay 9), fuel vapor purge solenoid valve, variable geometry intake system solenoid valve
ENG S110A Oil Control Valve No. 1 (Inlet/Outlet), Engine Compartment Junction Box (Relay 3, Relay 11)
ENGLISH E215A ECM/PCM (engine/transmission control module (ECM))
H/LP RH10A Headlight right
H/LP LH10A Left headlight
IGN COIL20A Ignition coils #1 – 4, capacitor
INJECTOR15A ECM/PCM (engine/transmission control module), injectors #1–4
B/UP LP10A Reverse light switch
BATT140A Instrument panel junction box (fuse — F15, F16, F20, F21, F22, F23)
BATT250A Instrument panel junction box (fuse — F32, F33, F34, power window relay)
IG240A Ignition switch, PDM distribution block (Relay IG2), Relay 1
C/FAN40A Engine radiator cooling fan, engine compartment junction box (Relay 4, Relay 9)
ENGLISH E130A Main relay, engine compartment junction box (fuse – Relay 13)
B/Alarm10A Security alarm siren, additional junction box (Relay 15)
ENGLISH20A PCM (Engine Control Module, ECU)
LO/H LP20A Low beam headlights, engine compartment junction box (Relay 8)
HI/H LP20A High beam headlights, engine compartment junction box (Relay 7)
F/PUMP15A Fuel pump (petrol pump), engine compartment junction box (Relay 3)
HORN15A Horn, engine compartment junction box (Relay 10)
EN E315A ECM/PCM (engine/transmission control module (ECM))
A/CON10A Air conditioning (climate control, electromagnetic clutch of the air conditioning compressor), engine compartment junction box (Relay 11)
BATT340A Instrument panel junction box (fuse — F1, F5, F6, side light relay)
IG130A Ignition switch, PDM relay box (IG1 relay, ACC relay)
P/ OUTLET140A Cigarette lighter, socket, instrument panel junction box (power socket relay)

The fuse marked P/OUTLET1 located in this block may also be responsible for the operation of cigarette lighters or USB sockets.

Relay purpose

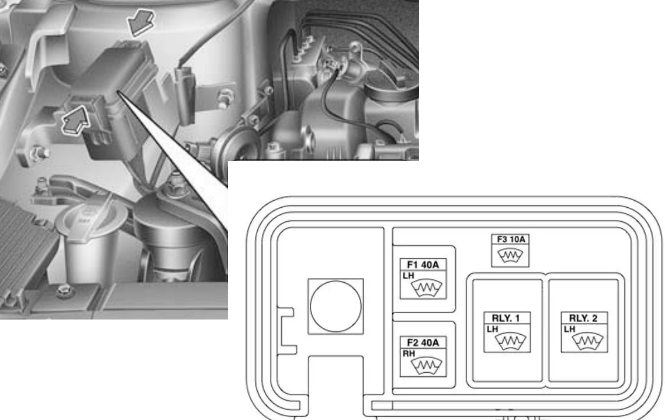

Additional unit

It was mounted in the right side of the engine compartment.

Transcript

  • FR HTD LH – 40A Windshield heating (heating) relay (left side)
  • FR HTD RH – 40A Windshield heating (heating) relay (right side)
  • FR HTD – 10A Front panel switch (windshield heating switch)
  • RLY. – Windshield defroster relay
