The compact crossover Volvo XC60 of the 1st generation was produced in 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 and 2018. During this time, the model was updated. In our material, you will find a description of the fuses and relays of the Volvo XC60 with block diagrams, their locations and photo examples of execution. We will highlight the fuse responsible for the cigarette lighter.
The purpose of fuses and relays may differ from that shown and depends on the region of delivery, year of manufacture and level of electrical equipment of your vehicle.
Blocks in the cabin

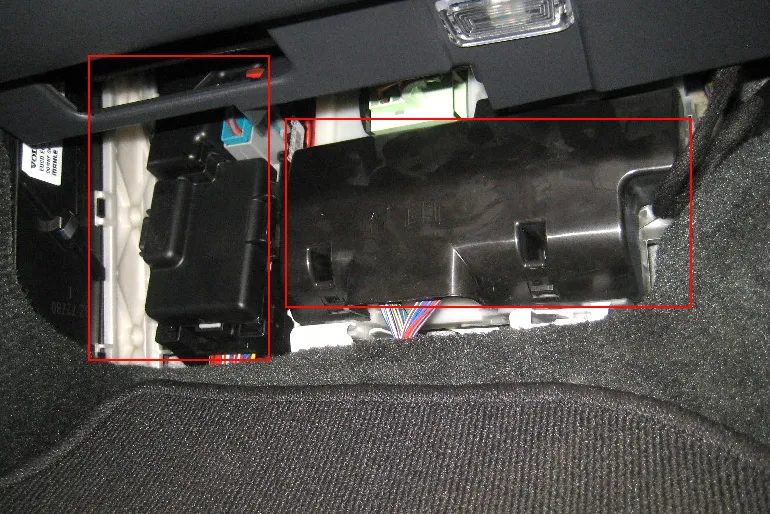

In the car’s interior, under the dashboard on the passenger side, there are 2 blocks with fuses and relays. To access them, you need to remove the interior trim and open the protective cover.

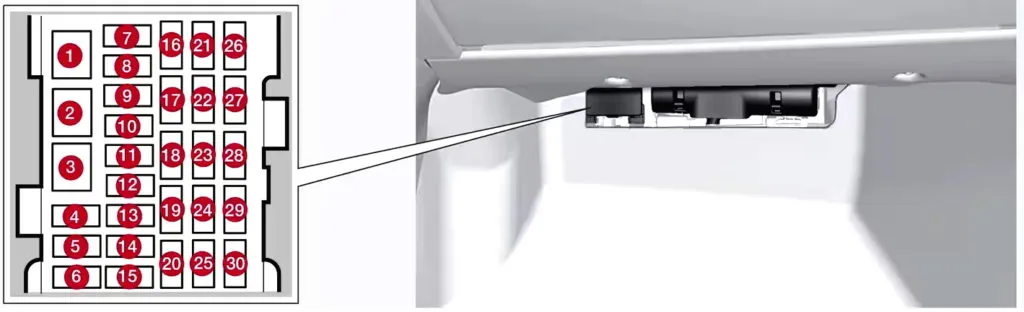

Left block

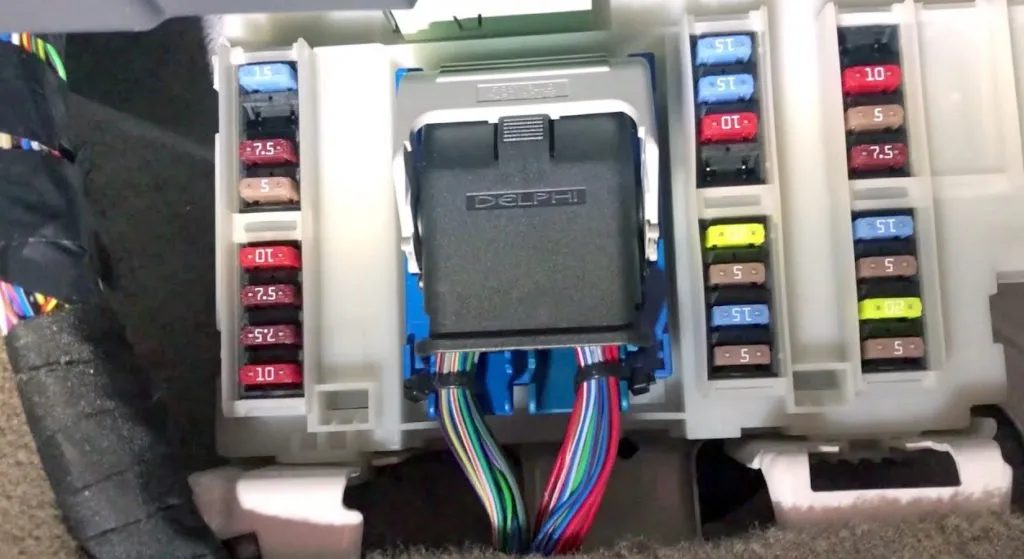

Photo – example
| 1 | 40A Primary fuse for audio control module*; primary fuse for fuses 16-20; Infotainment system |
| 2 | 25A Since 2014: Windscreen washers; rear screen washer |
| 3 | Not used |
| 4 | Not used |
| 5 | Not used |
| 6 | Not used |
| 7 | 15A 12V socket in cargo area |
| 8 | 20A Control panel, driver’s door |
| 9 | 20A Control Panel, Front Passenger Door |
| 10 | 20A Control panel, rear right passenger door |
| 11 | 20A Control panel, rear left passenger door |
| 12 | 20A Keyless Entry System |
| 13 | 20A Driver’s seat with electric adjustment |
| 14 | 20A Passenger seat with electric drive |
| 15 | 15A 2011-2012: Folding headrest |
| 2013-2017: Not used | |
| 16 | 5A 2011: Not used |
| 2012-2017: Information system module or monitor | |
| 17 | 10A Audio module (amplifiers); TV; digital radio |
| 18 | 15A Audio module or Sensus control module |
| 19 | 5A Telematics; Bluetooth |
| 20 | Not used |
| 21 | 5A Panoramic roof with sunblind; ceiling interior light; climate control sensor |
| 22 | 15A 2011: Cigarette Lighter, Rear Seat Entertainment (RSE) |
| 2012-2017: 12V socket in tunnel console | |
| 23 | 15A 2011: Passenger Side Seat Heating |
| 2012-2017: Rear right seat heating | |
| 24 | 15A 2011: Driver’s Side Seat Heating |
| 2012-2017: Rear Left Seat Heating | |
| 25 | Not used |
| 26 | 15A 2011: Rear Right Seat Heating |
| 2012-2017: Front passenger seat heating | |
| 27 | 15A 2011: Rear Left Seat Heating |
| 2012-2017: Driver’s seat heating | |
| 28 | 5A Parking Assist; Parking Camera; BLIS; RTi |
| 29 | 10A 2011-2012: AWD control module |
| 15A 2013-2017: AWD control module | |
| 30 | 10A Active Chassis Four-C |
Fuse number 22 is responsible for the operation of the front cigarette lighter.
Right block

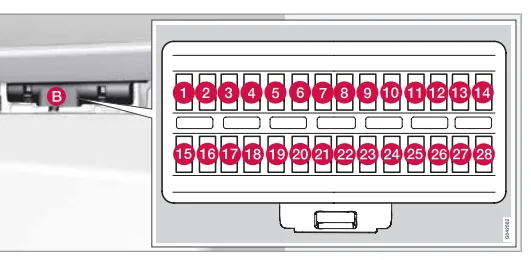

Option 1
Suitable for models produced in 2008 – 2011.

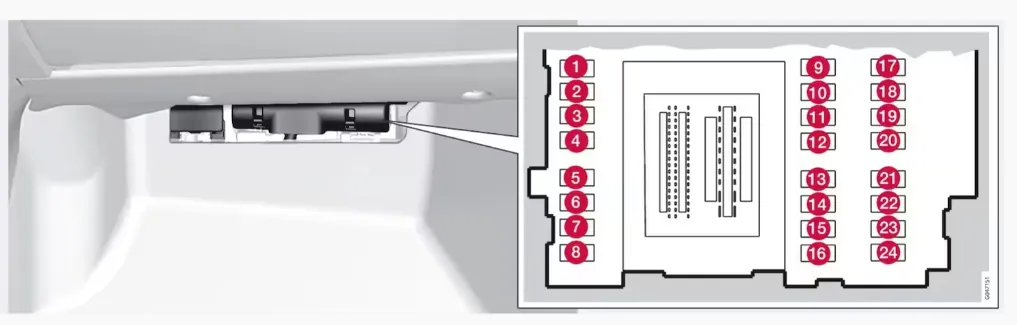

Scheme
| 1 | 5A Rain sensor |
| 2 | 10A SRS System |
| 3 | 5A ABS Brakes |
| 4 | 7.5A Accelerator pedal, air heater (RTS), heated seats |
| 5 | Not used |
| 6 | 15A Display ICM, CD and Radio, RSE system |
| 7 | 7.5A Steering Wheel Module |
| 8 | Not used |
| 9 | 15A High beam |
| 10 | 20A Sunroof |
| 11 | 7.5A Reverse Lights |
| 12 | Not used |
| 13 | 15A Fog light, front |
| 14 | 15A Windscreen Washers |
| 15 | 10A Adaptive Cruise Control, ACC |
| 16 | Not used |
| 17 | 7.5A Ceiling Light, Driver Door Control Panel/Power Passenger Seat |
| 18 | 5A Information display |
| 19 | 5A Driver’s seat with electric drive |
| 20 | 15A Rear Window Wiper |
| 21 | 5A Remote Key Receiver, Alarm Sensors |
| 22 | 20A Fuel Pump |
| 23 | 20A Electric Steering Wheel Lock |
| 24 | Not used |
| 25 | 10A Fuel tank/tailgate lock |
| 26 | 5A Alarm Siren, ECC |
| 27 | 5A Start/Stop button |
| 28 | 5A Brake Light Switch |
Option 2
Suitable for models released in 2011 – 2017. The block itself will look something like this.
| 1 | 15A Rear Window Wiper |
| 2 | Not used |
| 3 | 7.5A Interior lighting; driver’s door window control panel; electric seats |
| 4 | 5A Combination instrument |
| 5 | 10A Adaptive Cruise Control, ACC*; Collision Warning |
| 6 | 7.5A Interior lighting; rain sensor |
| 7 | 7.5A Steering Wheel Module |
| 8 | 10A Central locking, fuel filler cap |
| 9 | 15A 2011-2013: Rear Window Washer |
| 2014-2017: Electrically heated steering wheel | |
| 10 | 15A 2011-2013: Windscreen Washers |
| 2014-2017: Electric heated windshield | |
| 11 | 10A Tailgate Release |
| 12 | 10A 2011: Tailgate Lock |
| 2012: Not used | |
| 2013-2017: Folding headrest | |
| 13 | 20A Fuel Pump |
| 14 | 5A Anti-theft alarm motion sensor; micro-climate panel |
| 15 | 15A Steering wheel lock |
| 16 | 5A Security Alarm Siren; OBDII Diagnostic Socket |
| 17 | Not used |
| 18 | 10A City Safety Airbag |
| 19 | 5A Collision Warning System |
| 20 | 7.5A Accelerator pedal position sensor; Anti-glare function of the interior rearview mirror; Rear seat heating; Additional electric heater |
| 21 | 15A Infotainment (Performance) control module; audio system (Performance) |
| 22 | 5A Brake light |
| 23 | 20A Panoramic roof with sunblind |
| 24 | 5A Start interlock |
Blocks under the hood

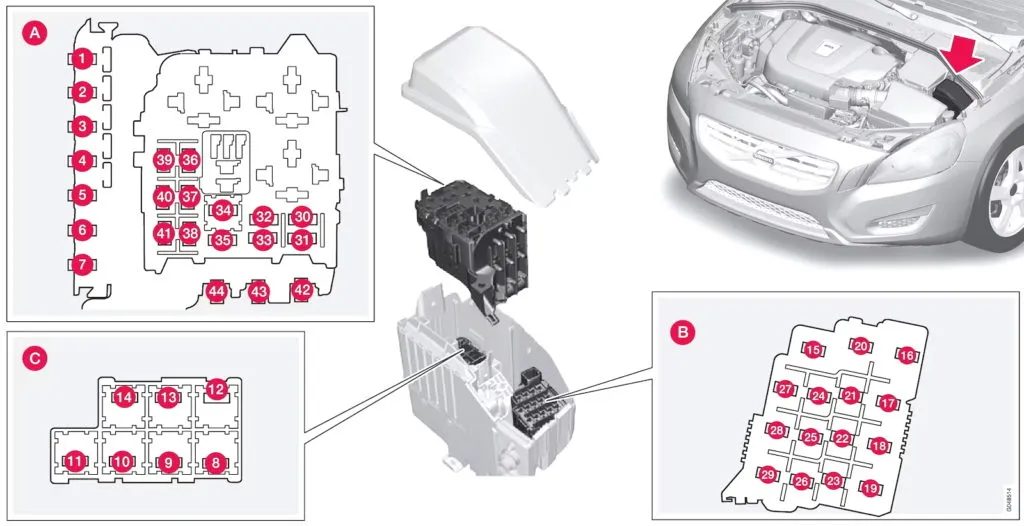

Fuse and relay box

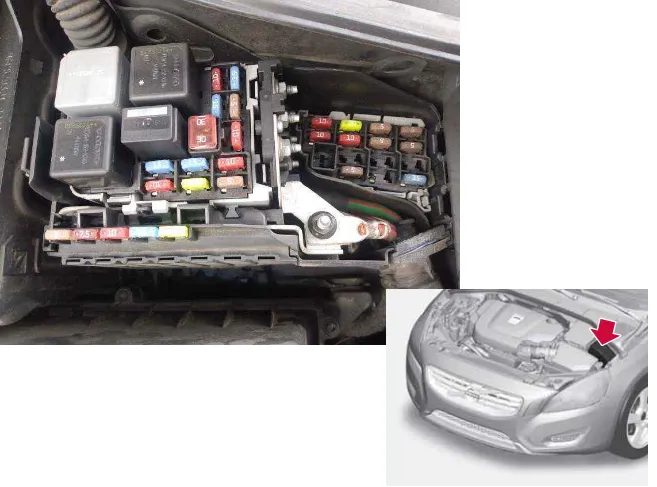

Located next to the battery, on the left side of the engine compartment.
The block itself consists of several sections.

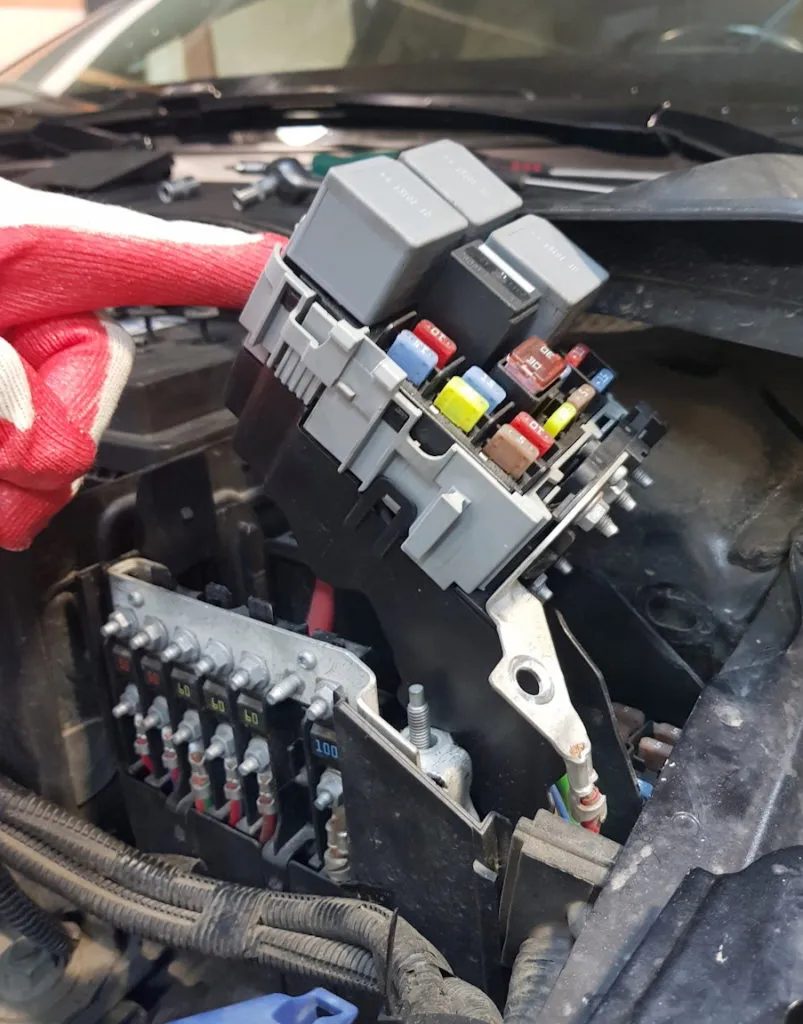

The photo shows an example of access to the lower section.
| 1 | 50A Primary fuse for central electronic module (CEM) with fuse box B under glove box |
| 2 | 50A Primary fuse for central electronic module (CEM) with fuse box B under glove box |
| 3 | 60A Primary fuse for cargo compartment fuse box |
| 4 | 60A Primary fuse for passenger compartment junction box with fuse box A under glove box |
| 5 | 50/60A Primary fuse for passenger compartment junction box with fuse box A under glove box |
| 6 | Not used |
| 7 | 100A RTS Air Preheater |
| 8 | 20A 2008-2011: Not used |
| 20A 2012-2013: Headlight washers | |
| 40A 2014-2017: Heated windshield, left side | |
| 9 | 30A Windscreen Wiper |
| 10 | 25A Parking heater |
| 11 | 40A Cabin Fan |
| 12 | 40A 2008-2013: Not used |
| 2014-2017: Heated windshield, left side | |
| 13 | 40A ABS Pump |
| 14 | 20A ABS Valves |
| 15 | 20A 2008-2013: Not used |
| 2014-2017: Headlight washers | |
| 16 | 10A Headlight height adjustment: Active Xenon headlights – ABL |
| 17 | 20A Primary fuse for central electronic module (CEM) with fuse box B under glove box |
| 18 | 5A 2008-2010: Radar Sensor, ACC Control Module |
| 2011-2017: ABS | |
| 19 | 5A Speed Adaptive Power Steering |
| 20 | 10A Engine Control Module, Transmission Control Module, Air Bags |
| 21 | 10A Heated Washer Nozzles |
| 22 | Not used |
| 23 | 5A Light control knob (light panel) |
| 24 | 15A 2008-2010: Headlight washers |
| 2011-2017: Not used | |
| 25 | 15A 2008-2010: 12V Electrical Socket Front and Rear Seat (Cigarette Lighter) |
| 2011-2017: Not used | |
| 26 | 5A 2008-2010: Sunroof, Overhead Console/ECC |
| 2011-2017: Not used | |
| 27 | 5A 2008-2013: Relay, block in engine compartment |
| 2014-2017: Washer Relay | |
| 28 | 20A Additional lights |
| 29 | 15A Sound signal |
| 30 | 5/10A Engine Control Module, Relay Coil in Engine Management System Main Relay |
| 31 | 15A Gearbox Control Module |
| 32 | 15A A/C electromagnetic clutch (except 5-cyl. diesel and 4-cyl. diesel B4207T7) |
| Coolant pump (5-cyl. diesel Start/Stop and B4207T7) | |
| 33 | 5A 2008-2011: Washer Relay |
| 2012-2017: Relay coil in relay for magnetic clutch A/C (except 5-cyl. diesel); relay coil in coolant pump relay (1.6 petrol, 5-cyl. diesel Start/Stop); relay coils in electrical cabinet in engine compartment cooling area (Start/Stop) | |
| 34 | 30A 2008-2016: Starter relay |
| 2017: Not used | |
| 35 | 20A Ignition coils (5-, 6-cyl. petrol); condenser (6-cyl.), engine control module (4-cyl. 2.0 l) |
| 10A Ignition coils (4-cyl. petrol), glow plug control module (5-cyl. diesel) | |
| 36 | 10A 2008-2013: Engine Control Module (petrol except 4-cyl. 2.0 l) |
| 15A 2008-2013: Engine Control Module (Diesel) | |
| 20A 2014-2017: Engine Control Module (4-cyl.) | |
| 37 | 10A 2008-2013: Air flow meter (4-cyl.), thermostat (4-cyl., petrol), evaporation valve (4-cyl., petrol), coolant pump for EGR (4-cyl., diesel) |
| 15A Air flow meter (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5-, 6-cyl. petrol); Engine control module (5-, 6-cyl. petrol) | |
| 38 | 15A Valves, oil pump (4-cyl., petrol), lambda probe, middle (4-cyl., petrol), lambda probe, rear (4-cyl., diesel) |
| 10A Magnetic clutch A/C (5-, 6-cyl.), valves (5-, 6-cyl.), engine control module (6-cyl.), air flow meter (5-cyl., petrol), oil level sensor | |
| 39 | 15A EVAP valve, lambda probes, injection systems, radiator shutter control module |
| 10A Lambda probes, radiator shutter control module | |
| 40 | 20A Vacuum pump, crankcase ventilation (5-cyl. turbo, 2.0 GTDI) |
| 2008-2009: Diesel fuel filter heater | |
| 15A 2008-2009: Diesel fuel filter heater, crankcase ventilation heater (diesel) | |
| 2014-2017: Ignition Coils | |
| 10A 2010-2013: Crankcase ventilation heater (5-cyl., petrol) | |
| 20A 2010-2013: Diesel filter heater, crankcase ventilation heater (5-cyl. diesel) | |
| 41 | 5A 2008-2010: Not used |
| 2011-2012: Crankcase ventilation heater (diesel) | |
| 2013-2017: Radiator Shutter Control Module (5-cyl. petrol) | |
| 10A 2012-2017: Crankcase ventilation heater (5-cyl. diesel), automatic transmission oil pump (5-cyl. diesel Start/Stop since 2013) | |
| 15A 2014-2017: Electromagnetic clutch A/C (4-cyl. 2.0 lv); Glow plug control module (4-cyl. 2.0 l diesel); Oil pump (4-cyl. 2.0 l diesel) | |
| 42 | 70A Glow Plugs (Diesel) |
| 50A 2014-2017: Coolant Pump (4-cyl. 2.0 L petrol) | |
| 43 | 60A 2011-2017: Cooling Fan (4- and 5-cyl. petrol) |
| 80A 2011-2017: Cooling fan (6-cyl. petrol), (4-cyl. 2.0 l and 5-cyl. diesel) | |
| 44 | 80A 2008-2010: Cooling Fan |
| 2011-2017: Electro-hydraulic servo steering (1.6D) | |
| 100A 2011-2017: Servo amplifier |
In section A, the starter, washer or air conditioner relays can be installed.
Power fuse box

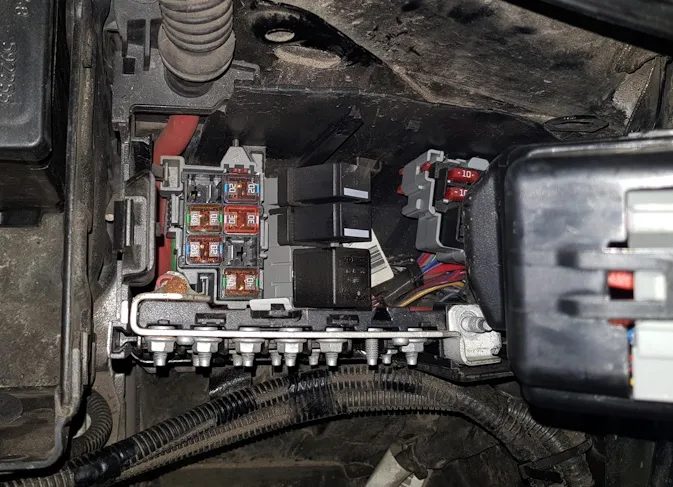

This fuse box is located in the cold zone of the engine compartment, mainly on vehicles with the Start/Stop function.

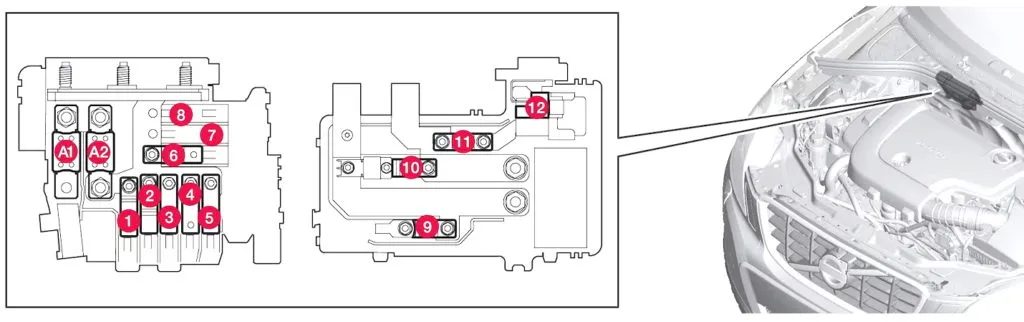

Scheme
| A1 | 175A Main fuse for the distribution box in the engine compartment |
| A2 | 175A Main fuse for central electronic module (CEM) with fuse box B under glove box, distribution box in passenger compartment with fuse box A under glove box, distribution box in cargo area |
| 1 | 100A Additional Electric Heater |
| 2 | 50A Primary fuse for central electronic module (CEM) with fuse box B under glove box |
| 3 | 60A Primary fuse for passenger compartment junction box with fuse box A under glove box |
| 4 | 60A Primary fuse for passenger compartment junction box with fuse box A under glove box |
| 5 | 60A Primary fuse for cargo compartment fuse box |
| 6 | 40A Cabin Fan |
| 7 | Not used |
| 8 | Not used |
| 9 | 30A Starter Relay |
| 10 | 50A Internal diode |
| 11 | 70A Auxiliary Battery |
| 12 | 15A Central Electronic Module (CEM) (auxiliary battery reference voltage) |
| 5A 2016-2017: Central Electronic Module (CEM) (auxiliary battery reference voltage) |
Block in the trunk

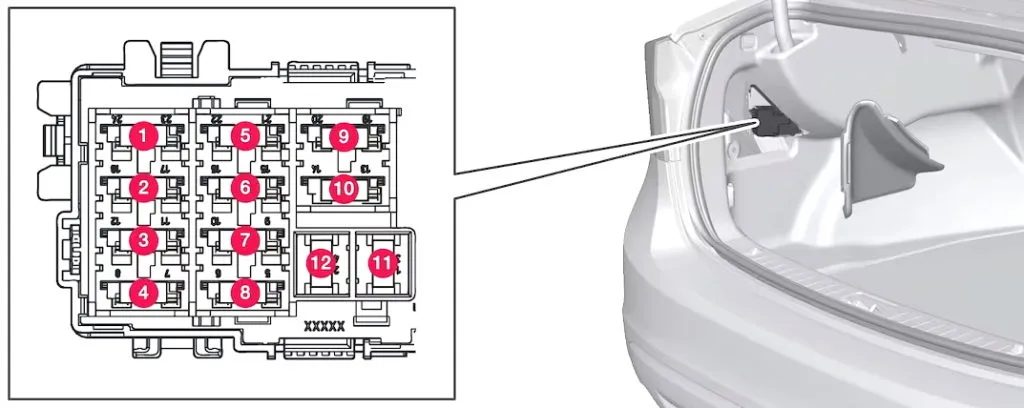

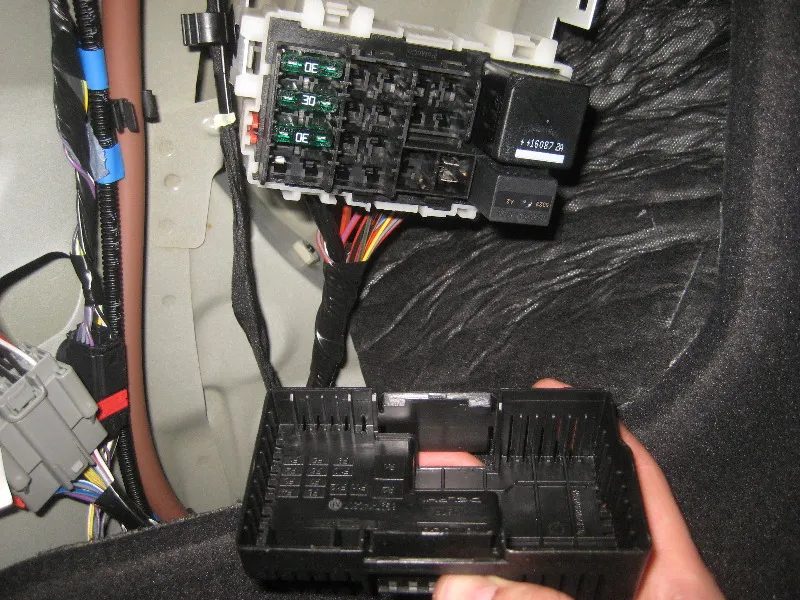

In the luggage compartment on the left side behind the protection, another block with fuses and relays is installed.
It can consist of one or three sections.
Scheme
| 1 | |
| 1 | 25A 2008-2010: Control panel, driver’s door |
| 30A 2011-2017: Electric Parking Brake Left | |
| 2 | 25A 2008-2010: Control panel, passenger door |
| 30A 2011-2017: Electric Parking Brake Right | |
| 3 | 25A 2008-2010: Control panel in left rear door |
| 30A 2011-2017: Rear window with electric heating | |
| 4 | 25A 2008-2010: Control panel in the right rear door |
| 15A 2011-2017: Trailer Socket 2 | |
| 5 | 20A 2008-2010: Not used |
| 2011-2017: POT (automatic opening of the tailgate) | |
| 6 | 15A 2008-2010: 12V socket in luggage compartment |
| 2011-2017: Not used | |
| 7 | 30A 2008-2010: Rear window with electric heating |
| 2011-2017: Not used | |
| 8 | Not used |
| 9 | 15A 2008-2010: Trailer Socket 2 |
| 2011-2017: Not used | |
| 10 | 25A 2008-2010: Power Seat Driver Side |
| 2011-2017: Not used | |
| 11 | 40A Trailer Socket 1 |
| 12 | 30A 2008-2010: ROT (automatic opening of the tailgate) |
| 2011-2017: Not used | |
| 2 | |
| 1 | 5A Parking Assistance, Parking Assistance Camera |
| 2 | 15A Four-C Control Module |
| 3 | 15A Driver’s side front seat heating |
| 4 | 15A Front passenger seat heating |
| 5 | 15A Seat heating, right rear |
| 6 | 10A AWD Control Module |
| 7 | 15A Seat heating, left rear |
| 8 | Not used |
| 9 | 25A Power Seat Passenger Side |
| 10 | 20A Keyless Drive |
| 11 | 30A Electric Parking Brake Left |
| 12 | 30A Electric Parking Brake Right |
| 3 | |
| 1 | 10A RTI Display |
| 2 | Not used |
| 3 | 25A Low Frequency Speakers |
| 4 | 5A DAB Radio |
| 5 | 25A Audio Amplifiers |
| 6 | 15A Audio System |
| 7 | 5A Phone, Bluetooth |
| 8 | Not used |
| 9 | Not used |
| 10 | Not used |
| 11 | Not used |
| 12 | Not used |
