Fuses and relays Jeep Liberty (KJ; 2002-2007)

This material provides a detailed look at the fuse box diagrams for the Jeep Liberty (first generation; KJ): 2002, 2003, 2004, 2005, 2006, 2007.

Fuses #3 and #16 in the passenger compartment block are responsible for the cigarette lighter.

In the engine compartment

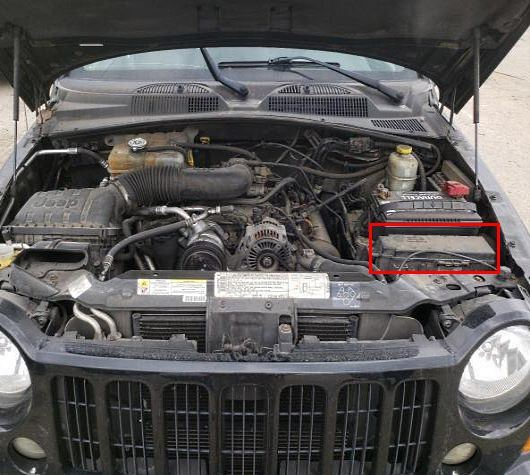

It is located next to the battery, behind the plastic cover.

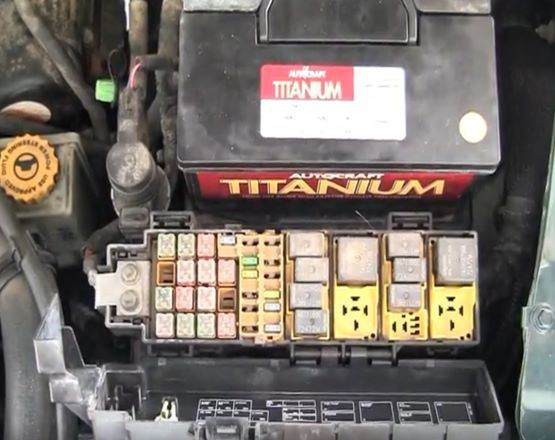

Example of access.

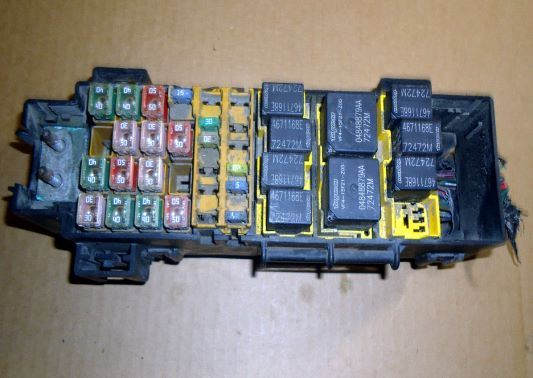

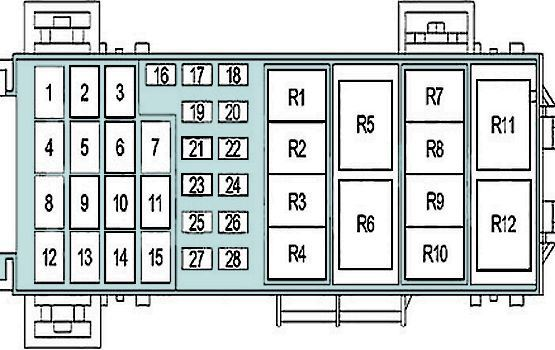

General view of the block.

No.	Description	Current, A
R1	Diesel: Fuel heaterGasoline: Jeep Liberty Fuel Pump Relay
R2	Starter relay
R3	Windscreen wiper (on/off)
R4	Windscreen wiper (high speed/low speed)
R5	Fan motor
R6	Diesel: Glow Plug Preheater (No. 1)Gasoline: High speed radiator fan
R7	Air conditioning compressor clutch
R8	Diesel: Cabin heater
R9	M/T: Clutch Switch LockA/T: Transmission Control
R10	Empty
R11	Automatic shutdown
R12	Diesel: Glow Plug Heater (No. 2)Petrol: Low speed radiator fan
1	Fan Motor Relay	40 A
2	Radiator Fan Relay (High/Low Speed)	30/40A
3	Daytime Running Lights (DRL), Parking Light Relay, High Beam Relay, Fuses (inside): #32, #33, #CB3	50 A
4	ABS module	40 A
5	Gasoline+A/T: Powertrain Control Module, Transmission Solenoid/Pressure Switch Assembly, Variable Rail Pressure Sensor	20 A
5	Diesel+A/T: Transmission Control Module, Transmission Solenoid/TRS Assembly	30 A
6	Automatic cut-off relay (ignition coils (3.7L), coil guide (2.4L), fuse: No. 26)	30 A
6	Automatic shutdown relay (fuses: No. 16, No. 26)	30 A
7	Passenger compartment fuse box: #11, #12, #30, #34	50 A
8	Starter relay, passenger compartment fuse box: #24, #25, #37, #38, #39	40 A
9	Fuse box in the passenger compartment: No. 6, No. 16, No. 17, No. 18, No. 19	50 A
10	Trailer Tow Relay	30 A
11	Diesel: Fuel heater	20 A
12	Light panel switch	30 A
13	Window lifter	40 A
14	Ignition Switch/Passenger Compartment Fuse Box: #13, #14, #21, #24, #25, #31, #32, #36, #37, #38, #39, #CB1	40 A
15	Low beam relay, passenger compartment fuse box: #2, #11, #31	50 A
16	Diesel: Radiator Fan Low/High Speed Relay, Cabin Heater Relay, Vacuum Reservoir Valve, Boost Pressure Valve, A/C Compressor Clutch Relay, Glow Plug Module, Engine Control Module, Air Flow Control Module/EGR Valve	15 A
17	Empty	–
18	Empty	–
19	Rear Window Defogger Relay	30 A
20	Empty	–
21	Interior heater relay (diesel), air conditioning compressor clutch relay	20 A
22	Empty	–
23	Empty	–
24	Gasoline: Fuel Pump Fuse, Powertrain Control Module	20 A
25	ABS module	20 A
26	Diesel: Engine Control ModuleGasoline: Powertrain Control Module, Fuel Injectors	25 A
27	Empty	–
28	Starter relay	15 A

In the salon

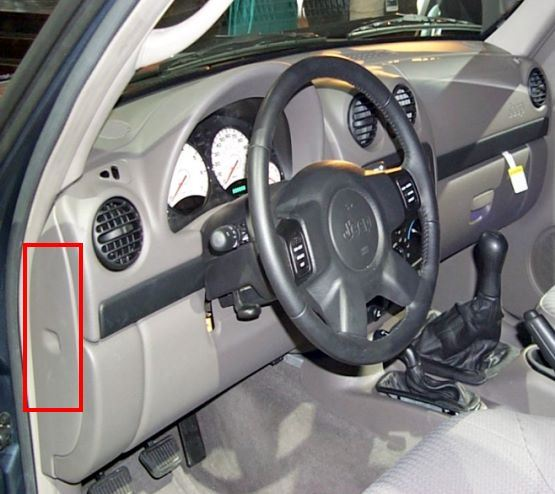

Located on the left end of the instrument panel, behind the plastic cover.

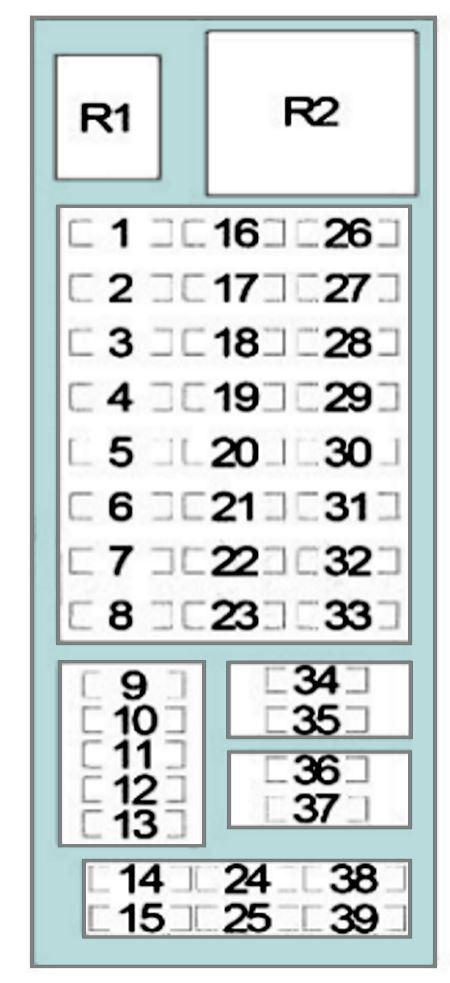

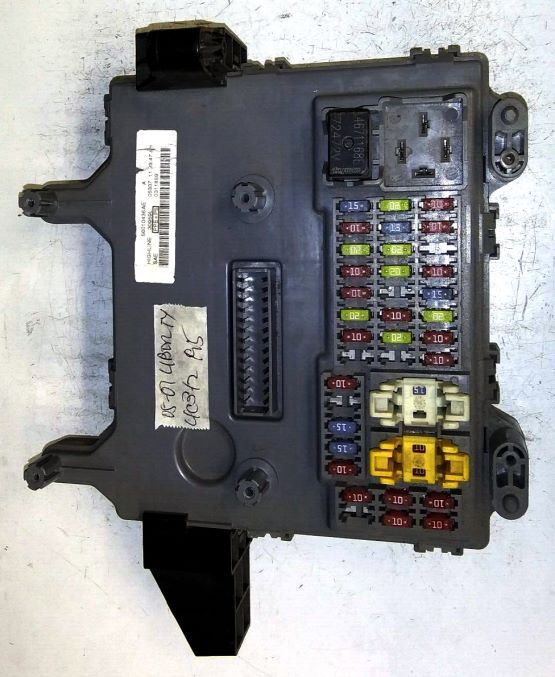

General view of the block (front side).

No.	Description	Ampere
R1	High beam headlight relay
R2	Daytime running lights (DRL)
1	Horn, sunroof, electric windows	15 A
2	Rear fog light	10 A
3	Jeep Liberty Cigarette Lighter Fuse	20 A
4	Right low beam headlight	10 A
5	Left Low Beam Headlight / Light Panel Switch	10 A
6	Door Lock Control Module	20 A
7	Export: left rear/brake light, number plate light,US: Left Front Parking/Turn Signal, Left Rear/Brake Light, License Light, Left Side Marker Light	10 A
8	Empty	–
9	Export: Right Tail/Brake Light, Trailer Tow Socket, Right Leveling Motor, Light Panel Switch, Headlamp Leveling Switch, Instrument ClusterUS: Instrument cluster, right side light, right front park/turn light, right rear/brake light, trailer tow socket	10 A
10	Empty	–
11	Hazard switch/combination flasher (direction indicators)	15 A
12	Brake light switch	15 A
13	BCM, Compass Mini-Trip Computer, Instrument Cluster, Automatic Day/Night Mirror, Passenger Air Bag On/Off Indicator, Sentry Key Remote Entry Module	10 A
14	Diesel: Engine Control Module, Transmission Control Module, Mass Air Flow SensorGasoline: Powertrain Control Module, Fuel Pump Relay, Radiator Fan High/Slow Speed Relay, A/C Compressor Clutch Relay	10 A
15	Empty	–
16	Rear 12V socket / rear cigarette lighter	20 A
17	Rear wiper motor	15 A
18	Radio	20 A
19	Front fog lights, trailer brake light relay	20 A
20	Empty	–
21	Radio, BCM, Left/Right Door Lock Switch	10 A
22	Hatch, antenna module	20 A
23	Empty	–
24	Fan motor, fuel heater	10 A
25	Air conditioner heater control unit, air flow mixing flap actuator, seat heating switches, electric mirror switch, trailer tow relay	10 A
26	Right high beam headlight	10 A
27	Left high beam headlight	10 A
28	Empty	–
29	Air Conditioner Heater Control/Heated Mirror	10 A
30	Seat heating module	15 A
31	Empty	–
32	Windscreen wiper switch/front and rear wipers	10 A
33	Data Link Connector (DLC), Sentry Key Remote Entry Module	10 A
34	Interior light, instrument cluster, hazard warning lights, radio, intrusion sensor module, left and right visor/vanity table light, hands-free module, overhead map/reading light, trunk light, Compass mini trip computer	15 A
35	Empty	–
36	Occupant Presence Module/Airbag	10 A
37	airbags	10 A
38	Switch assembly, ABS, tire pressure monitoring system	10 A
39	Hazard Warning/Combination Flasher Switch, Rear Window Defogger Relay, Transmission Range Sensor (3.7L+AT), Transmission/TRS Valve Assy (2.8L+AT), Reverse Light Switch (M/T)	10 A

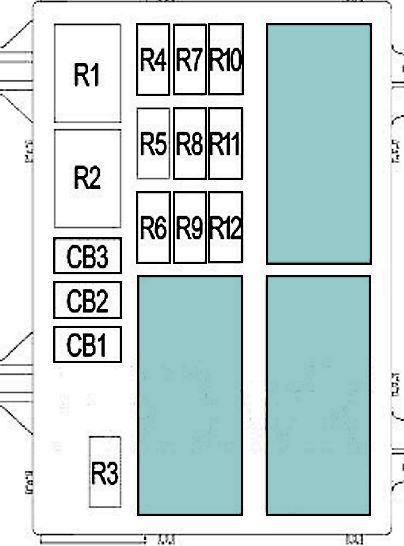

R1	Window lifter relay
R2	Rear window heating
R3	Low beam relay
R4	Electric sunroof
R5	Front Fog Light Relay
R6	Lock
R7	Empty
R8	Horn relay
R9	Passenger Door Unlock Relay
R10	Rear fog light
R11	Parking Light Relay
R12	Unlocking the driver’s door
CB1	Power Seat Relay	25 A
CB2	Empty	–
CB3	Front Wiper Relay (On/Off – Fast/Slow), Front Wiper Motor	20 A
