Fuses Chrysler Pacifica ( 2016-2020)

This material provides a detailed look at the fuse diagrams of the Chrysler Pacifica (second generation): 2016, 2017, 2018, 2019, 2020 with gasoline and hybrid engines.

Fuses #60, #85 are responsible for the cigarette lighter.

In the engine compartment

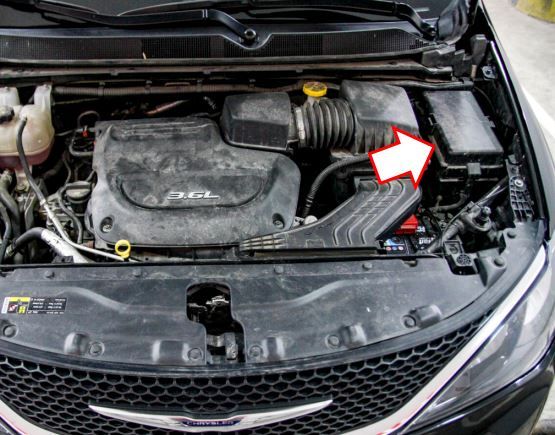

There is ONLY ONE  fuse box in the car   it is located on the left side of the engine compartment.

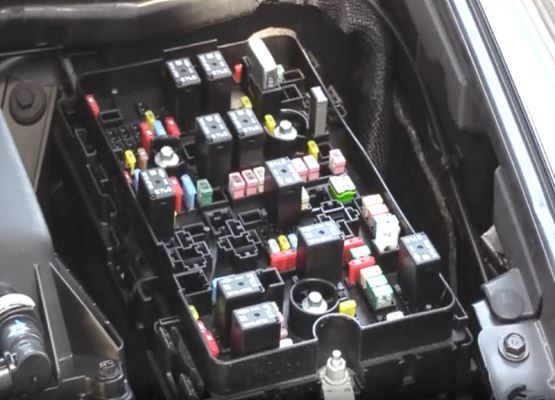

To access the fuses, remove the protective cover.

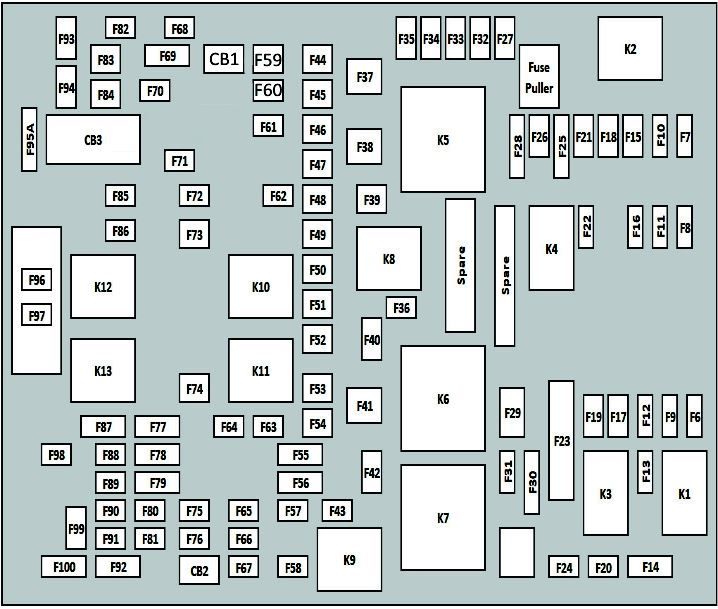

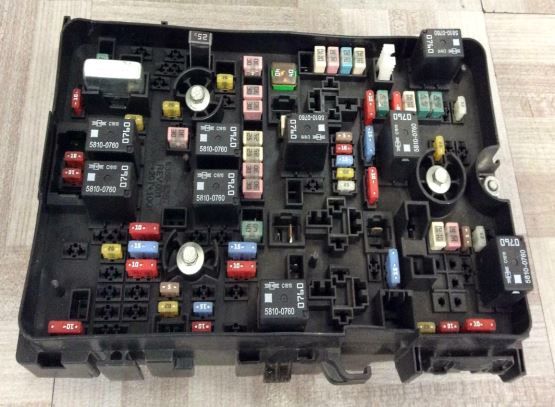

General view.

No.	Description	Current, A
Automatic switches
CB1	since 2018: Electric driver’s seat	25 A
CB2	since 2018: Electric passenger seat	25 A
CB3	since 2018 (petrol only): Locking rear and front electric windows	25 A
Cartridge fuses
F15	Central lock	40 A
F17	Petrol Engine: Starter Hybrid: Empty	30 A
F18	Outdoor Lighting #1	40 A
F19	Petrol engine: Electromagnetic drive left seats 2nd row hybrid: empty	25 A
F21	Petrol engine: Electromagnetic drive of the right seats of the 2nd row (25 A) Hybrid: Integrated power module – Gearbox lock in the “Park” position (20 A)	25A / 20A
F26	Heating, Ventilation and Air Conditioning – Front Blower Motor	40 A
F27	Right rear sliding door	25 A
F32	Electronic control unit	20 A
F33	Rear Door Electric Drive Module	30 A
F34	Left rear door control unit	25 A
F35	Hatch control unit	25 A
F37	Outdoor Lighting #2	40 A
F38	Gasoline Engine: Vacuum Cleaner (60A) Hybrid: Empty	60 A
F39	Heating, Ventilation, Air Conditioning – Fan Motor	25 A
F40	Petrol Engine: Empty Hybrid: Gearbox Oil Pump (20A)	20 A
F42	Petrol Engine: Folding Seat Module 30A Hybrid: Empty	30 A
F44	Salon lighting	30 A
F45	Power inverter	30 A
F46	Driver’s door module with electric drive	30 A
F47	Passenger door module with electric drive	30 A
F48	Petrol Engine: Empty Hybrid: Electronic Brake Control Unit – Motor	40 A
F49	Rear left sliding door module	25 A
F50	Rear right door control unit	25 A
F51	Front windshield wiper	30 A
F52	Petrol Engine: Brake Vacuum Pump (30A) Hybrid: No	30 A
F54	Electronic Stability Control – ECU and Valves	40 A
F59	Petrol: 7-pin trailer towing socket – where fitted Hybrid: blank	30 A
F73	Rear window heating (electronic lighting)	30 A
F74	Petrol Engine: Trailer Towing – Backup Hybrid: No	20 A
F83	Petrol Engine: Park Lights – If Equipped (20A) Hybrid: Gearbox – Oil Pump 1 (30A)	20A / 30A
F84	Petrol engine up to 2017: Electronic stability control – motor pump (40 A) Hybrid: empty	40 A
F94	Petrol engine – up to 2017: Empty; since 2018: Electronic stability control – pump motor Hybrid: Electronic stability control – pump motor	40 A
F99	Petrol engine – up to 2017: Electric brake module, trailer towing; from 2018: trailer towing module Hybrid: empty	30 A
Fuses
F06	Petrol Engine: Empty Hybrid Engine: Low Temperature Active Pump (15A)	15 A
F07	Ignition Coil / Fuel Injector	25 A
F08	Petrol Engine: Empty Hybrid Engine: Booster	25 A
F09	Petrol Engine: Booster Hybrid Engine: Empty	25 A
F10	Petrol engine: Empty Hybrid engine: High temperature auxiliary pump and high voltage electric coolant heater (15A) on	15 A
F11	Gasoline Engine: Empty Hybrid Engine: Evaporative Emission System Check, Fuel Tank Shutoff Valve (5A/15A)	5 A / 15 A
F12	Battery Sensor (IBS)	5 A
F13	Hybrid: Empty Gasoline Engine Since 2018: ECM – ESS Only (10A)	* / 10 A
F14	Petrol: ECM Hybrid: Media Center 1, 2, 3 & Lumbar Switch	10 A
F16	ECM	20 A
F20	A/C Compressor Clutch Hybrid : Low Temperature Passive Pump	10 A
F22	Empty	–
F23	Empty	–
F24	Rear wiper	20 A
F25	Petrol: HANDSFREE system left and right rear door, active grille shutter, electric mirrors Hybrid: Hands-free system (locking module left and rear door), active grille shutter	10 A
F28	Diagnostic port, AUX port, USB port, USB port for video	10 A
F29	Empty	–
F30	Petrol engine: Media center 1, 2, Seat lumbar adjustment Hybrid: Electronic control unit, Integrated power module	15 A
F31	Petrol engine: Empty Hybrid: 3-way, 4-way valves (10A)	* / 10 A
F36	Empty	–
F41	Empty	–
F43	Chrysler Pacifica Fuel Pump Fuse	20 A
F53	Empty	–
F55	Keyless ignition, DVD, voice recognition module, RF hub, electronic steering wheel lock	15 A
F56	Petrol: Front and rear HVAC control module, ESP, Electronic Steering Lock (ESL), from 2018 – Occupant Detection Module Hybrid: Occupant Detection Module, Electronic Steering Lock, Electric Stability Program, ESP, Electronic Brake Control Module	10 A
F57	Petrol Engine: Empty Hybrid: Integrated Power Module – Primary Power Source	20 A
F58	Empty	–
F60	SOCKETS FOR ADDITIONAL EQUIPMENT IN THE TRUNK	20 A
F61	Petrol: Trailer Towing – Right Brake Light & Direction Indicator – Hybrid : Empty	20 A
F62	Petrol Engine: No Hybrid: PIM – Power Management	20 A
F63	Petrol: Left brake light and trailer indicator – if equipped (20A) Hybrid – up to 2017: no; since 2018: HV Elect Coolant HTR Enable (5A)	20 A / 5 A
F64	Petrol Engine: Right HID Headlight Hybrid: Empty	15 A
F65	Empty	–
F66	instrument panel	15 A
F67	Parking sensors, interior temperature sensor, humidity sensor, driver assistance system module (DASM), haptic lane feedback module	10 A
F68	Empty	–
F69	Gasoline Engine: Empty Hybrid: Battery Control Module – Backup (15A)	15 A
F70	Petrol Engine: Empty Hybrid: EAC (5A)	5 A
F71	Beep	20 A
F72	Petrol: Heated Mirrors – Where Equipped (10A) Hybrid: Empty	10 A
F75	Rear Integrated Circuit, Overhead Console	5 A
F76	Uconnect, Telematics	20 A
F77	CRVMM, rear entertainment screen, media center,  USB charging port for 3rd and 2nd row  , sunroof, rain sensor	10 A
F78	E-Shifter, transmission control module, instrument cluster	15 A
F79	Front and rear heating, ventilation and air conditioning, STEERING COLUMN CONTROL UNIT, Integrated control system, Electric parking brake	10 A
F80	Petrol Engine: Empty Hybrid: Integrated Charging Module	5 A
F81	Petrol Engine: Empty Hybrid: AMP	5 A
F82	Empty	–
F85	Chrysler Pacifica Cigarette Lighter Fuse	20 A
F86	Empty	–
F87	Empty	–
F88	Heated front seats	20 A
F89	Heated rear seats	20 A
F90	Petrol Engine: Empty Hybrid: Electronic Brake Control Module – ECU (5A)	5 A
F91	Heated steering wheel, ventilated front seats	20 A
F92	since 2018: Security Gateway (5A)	5 A
F93	Empty	–
F95	USB charging port	10 A
F96	Airbag module – passive safety system controller	10 A
F97		10 A
F98	Petrol Engine: Left Xenon Headlight Hybrid: No	15 A
F100	Vehicle temperature sensor, Automatic headlight adjustment, LBSS, Regenerative braking systems, Central image processing module, humidity sensor, rear camera	10 A
