Nissan Qashqai 2nd generation was produced in 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 and was designated as J11 . Qashqai + 2 is a 7-seater version of Qashqai, with an extended base. In this material, we will show a description of the fuses and relays of the Nissan Qashqai j11 2nd generation with block diagrams, photographs and their locations. Separately, we highlight the fuses responsible for the cigarette lighter.
Blocks in the cabin

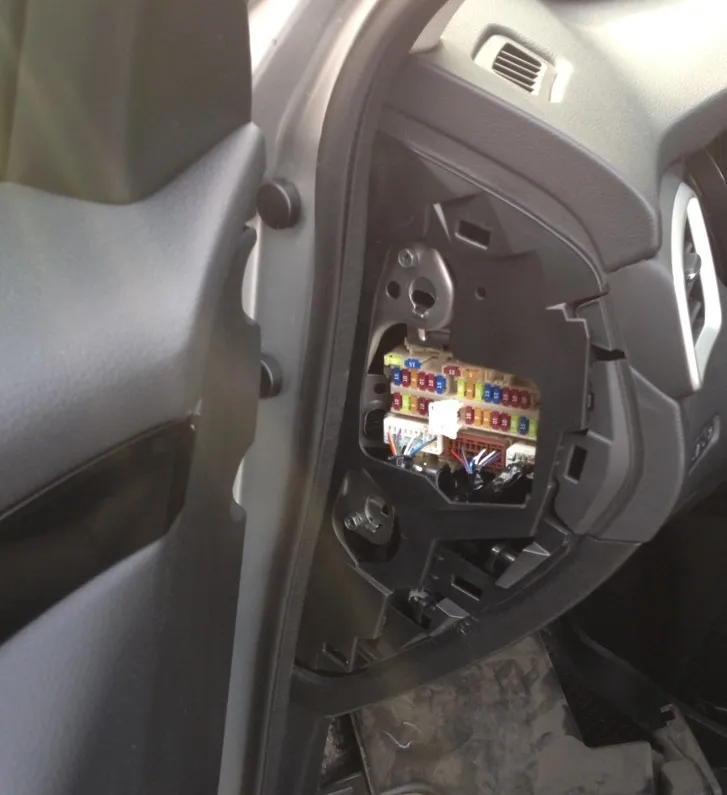

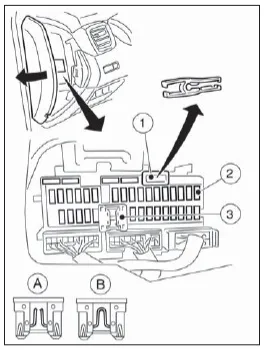

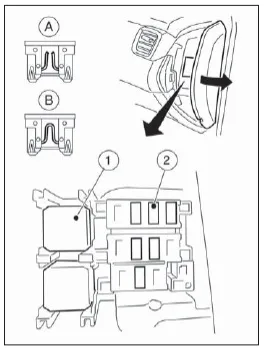

In the Nissan Qashqai j11 cabin, 2 main blocks with fuses can be installed: on the left and right sides of the instrument panel (at the end, behind the protective cover.)
Right block (may be absent)

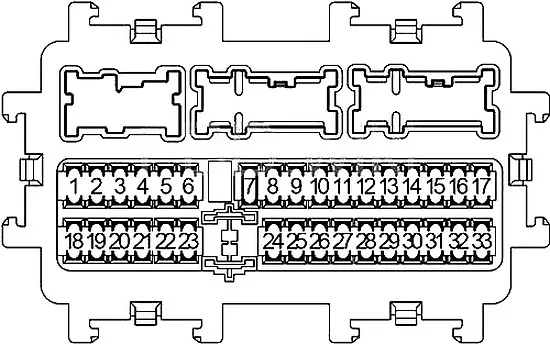

Main block

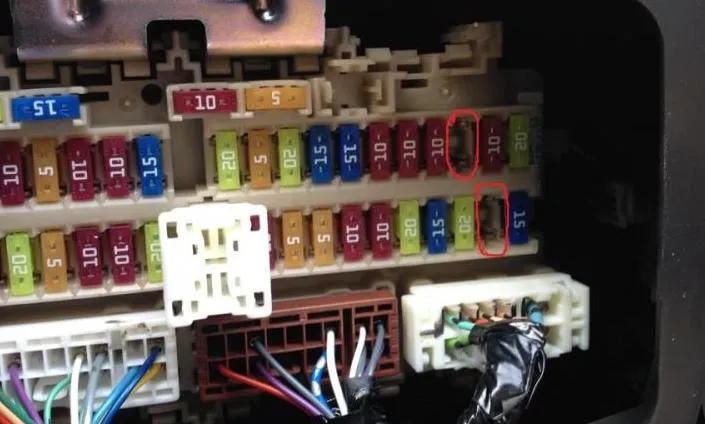

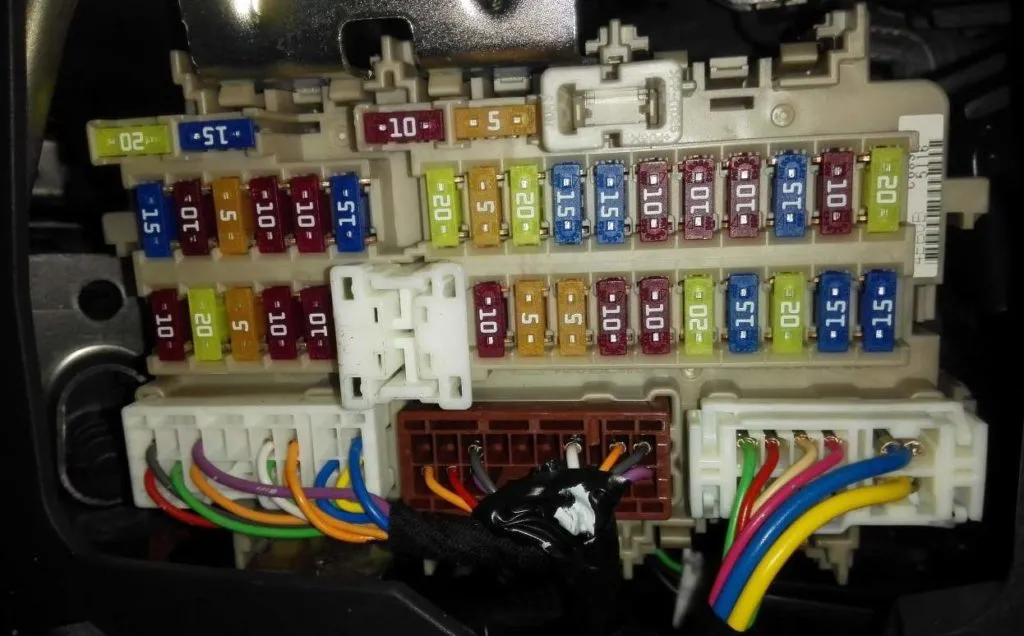

Photo example
The top row contains spare fuses.

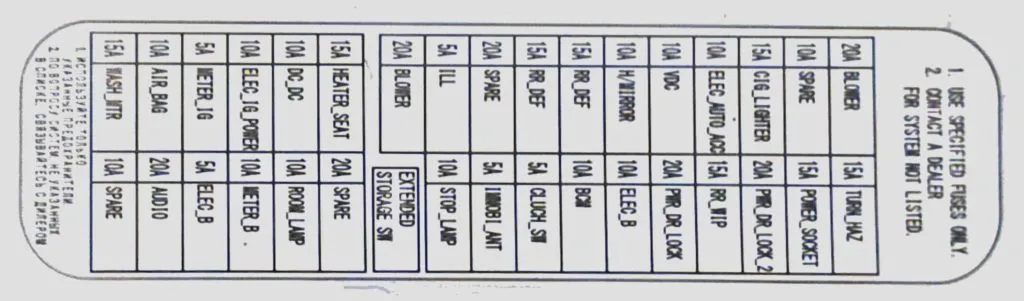

Diagram from the back of the lid
| 1 | 15A Windscreen Washer |
| 2 | 10A Airbags |
| 3 | 5A Instrument cluster |
| 4 | 10A Parking Sensor Control Unit, PTC Relay 1, PTC Relay 2, PTC Relay 3, Front Camera, Instrument Panel/Switch Light, Audio System, Fuel Heater Relay, Diagnostic Connector, Brake Light Switch, Distance Sensor, Rear View Mirror, EPS Control Unit, Multi-Function Switch, Chassis Control Module, All-Wheel Drive, Electric Parking Brake, Steering Angle Sensor, Navigation Control Unit, Around View Camera |
| 5 | 10A DC/DC Converter, VDC |
| 6 | 15A Heated Seats |
| 7 | 20A Heater, A/C Booster, Engine Restart Baypass Control |
| 8 | 5A Rear left side light, left stop light, number plate light, glove compartment light, headlight range control, audio system, navigation control unit |
| 9 | – |
| 10 | 15A Rear window heating |
| 11 | 15A Rear window heating |
| 12 | 10A Heated Mirrors |
| 13 | 10A ABS |
| 14 | 10A Brake light switch, A/C control unit, Mirror control unit, A/C booster, Curtain, Brake pedal switch |
| 15 | 15A 1.2L HR with CVT, 1.6L MR16DDT, R9M (Euro3): Socket/cigarette lighter, interior light relay |
| 20A except ↑: Socket/cigarette lighter, interior lighting relay | |
| 16 | – |
| 17 | 20A Heater Motor, Resistor, A/C Booster |
| 18 | – |
| 19 | 20A Audio system, navigation control unit, all-round camera |
| 20 | 5A Body Control Module (BCM), Siren, Multi-Function Switch |
| 21 | 10A Instrument cluster |
| 22 | 10A Interior Light Relay |
| 23 | – |
| 24 | 10A Brake Light Switch, Body Control Module (BCM) |
| 25 | 5A All-wheel drive, anti-theft system antenna amplifier |
| 26 | 5A Clutch Lock Switch |
| 27 | 10A Body Control Module (BCM), Multi-Function Switch |
| 28 | 10A Electric Parking Brake, Diagnostic Socket, All Wheel Drive, Instrument Panel/Switch Lights, Power Window Relay, Mirror Fold Relay, Mirror Open Relay |
| 29 | 20A 1.2L HR w/CVT, 1.6L MR16DDT, R9M (Euro3): Body Control Module (BCM) |
| 15A except ↑: Body Control Module (BCM) | |
| 30 | 15A Central locking, body control module (BCM) |
| 31 | 20A 1.2L HR w/CVT, 1.6L MR16DDT, R9M (Euro3): Windscreen wiper, body control module (BCM) |
| 15A except ↑: Windscreen wiper, body control module (BCM) | |
| 32 | 15A 1.2L HR w/CVT, 1.6L MR16DDT, R9M (Euro3): Rear Power Socket/Cigarette Lighter |
| 20A except ↑: Rear socket/cigarette lighter | |
| 33 | 15A 1.2L HR with CVT, 1.6L MR16DDT, R9M (Euro3): Hazard warning lights and direction indicators |
| 10A except ↑: Hazard warning lights and direction indicators |
Fuses 15 (front) and 32 (rear) are responsible for the cigarette lighters.

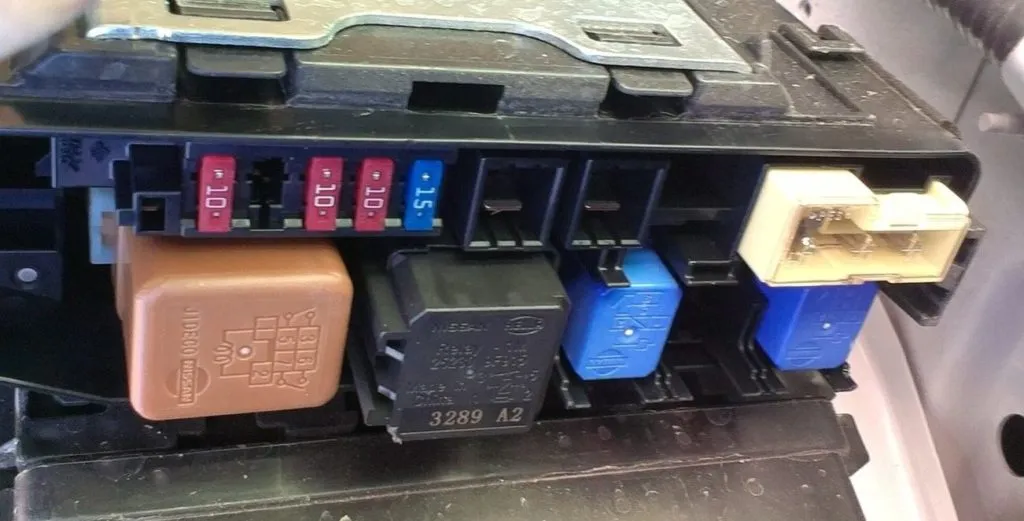

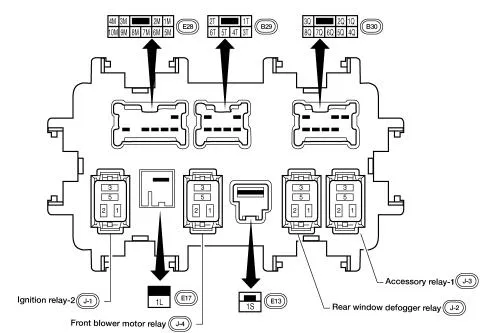

The individual relay elements are located on the back side of the unit.
- Ignition system relay
- Front Engine Fan Relay
- Rear Fog Light Relay
- Auxiliary relay

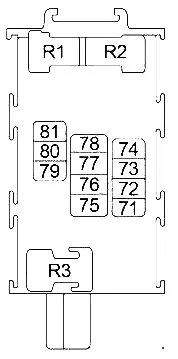

Additional block
| 71 | 10A Steering wheel angle sensor |
| 72 | 10A Instrument cluster |
| 73 | 10A Audio system, navigation control unit, all-round camera |
| 74 | 10A Transmission Control Module (TCM) |
| 75 | – |
| 76 | 10A Air Conditioner Control Unit, Air Conditioner Amplifier |
| 77 | 10A ABS |
| 78 | – |
| 79 | 10A Oil Pump Relay |
| 80 | 20A Audio system, navigation control unit, all-round camera |
| 81 | 10A Transmission Control Module (TCM) |
| R1 | Auxiliary relay |
| R2 | Ignition |
Some additional elements may be installed separately, under the panel. For example, fuses: Oil pump relay and Transmission Control Module (TCM).
Blocks under the hood
Mounting blocks

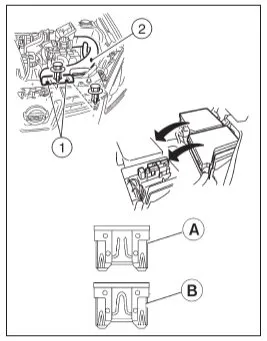

They are located in the engine compartment on the left side, under the air intake pipe. An example of access is shown in the figure.

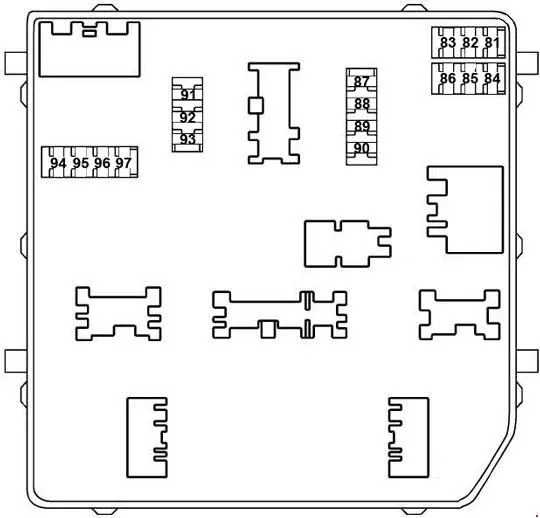

Block A

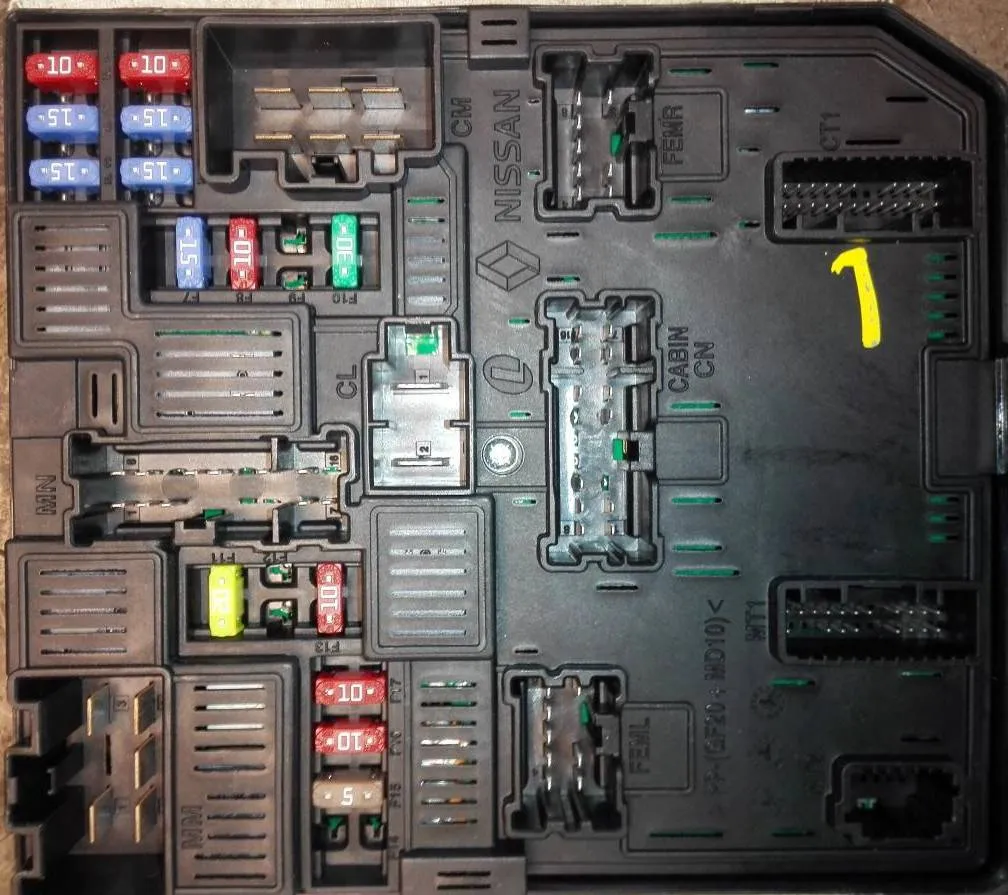

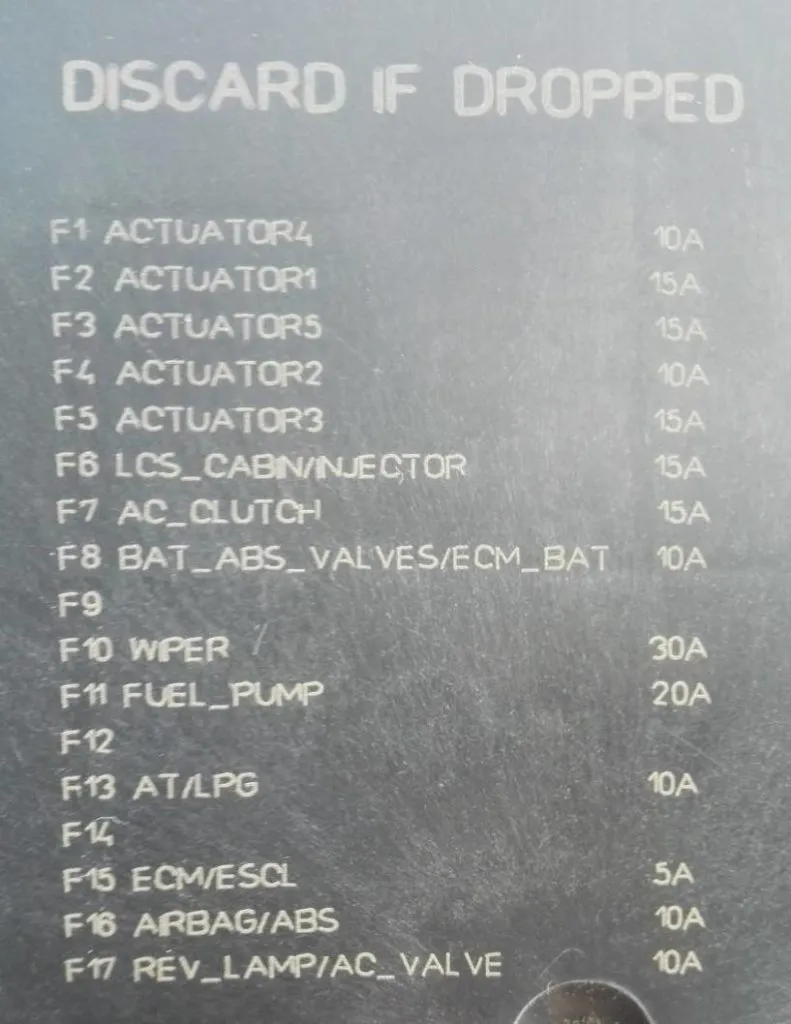

Photo of the 1st assembly block
| 81 | 10A Engine Control Unit |
| 82 | 15A Engine Control Unit, |
| 83 | 15A Throttle, Engine Control Module, EVAP Canister Valve, MAF Sensor, Ignition Coils, Main Relay, Exhaust Valve, Inlet Valve, High Pressure Fuel Pump, Injectors, Engine Compartment Fuse Box, Air Fuel Ratio Sensor, Fuel Heater, Water in Fuel Sensor, Coolant Bypass Valve |
| 84 | 10A Engine Control Unit, Intake Manifold Valve, Timing Outlet Valve, Timing Inlet Valve, Timing Intermediate Valve |
| 85 | 15A Air Fuel Ratio Sensor, Heated Oxygen Sensor, Turbocharger Valve, Engine Control Module, Glow Plug Control Module |
| 86 | 15A Injectors, ignition coils, fuse box |
| 87 | 15A Air Conditioning Compressor Relay |
| 88 | Not used |
| 89 | Not used |
| 90 | 30A Front Wiper Relay, Front Wiper Motor |
| 91 | 20A Fuel Pump Relay |
| 92 | Not used |
| 93 | 10A Engine Control Module, Transmission Control Module, Transmission Range Sensor, Engine Compartment Fuse Box, Neutral Position Sensor, Primary Speed Sensor, Secondary Speed Sensor, RPM Sensor, Reverse/Neutral Sensor |
| 94 | Not used |
| 95 | 5A Steering Wheel Lock Unit |
| 96 | 10A Restart Relay (Start-Stop) |
| 97 | 10A Front Right Combination Light, Front Left Combination Light, Compressor, Transmission Range Sensor, Engine Compartment Fuse Box, Neutral Position Switch, Reverse Speed Switch, Reverse/Neutral Switch |

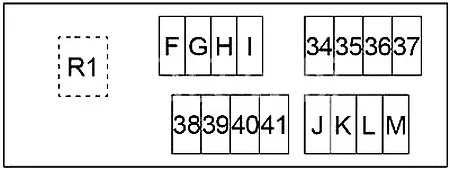

Block B

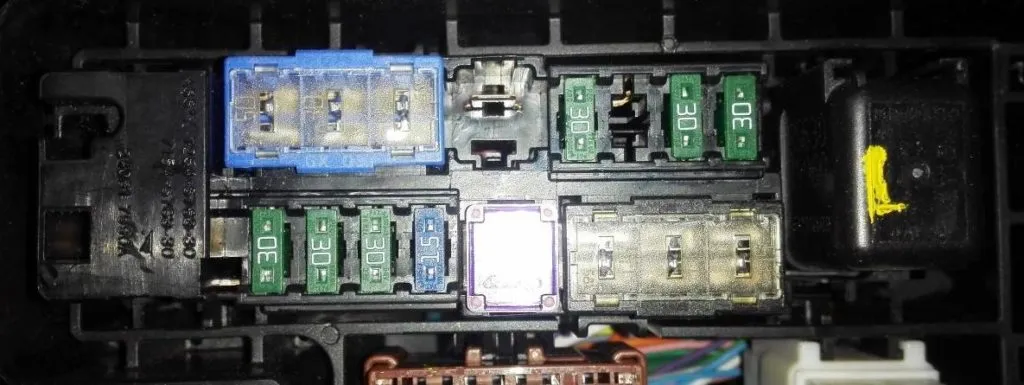

Photo of the 2nd mounting block
| 34 | 15A Horn Relay |
| 35 | 30A Diesel: PTC Relay 2 |
| 36 | 30A Diesel: PTC Relay 3 |
| 37 | 30A Diesel: PTC Relay 1 |
| 38 | 30A Electric Parking Brake |
| 39 | 30A Optional socket |
| 40 | – |
| 41 | 30A Electric Parking Brake |
| F | 50A ESP |
| G | 30A ABS |
| H | 50A ESP |
| I | 30A Headlight Washer Relay |
| J | – |
| K | 40A ABS |
| L | 30A Starter relay, ignition relay (fuses: “1”, “2”, “3”, “4”, “10”, “11”, “12”) |
| M | 50A Power Window Relay, Power Window, Curtain, Power Seats |
| R1 | Horn relay |
Blocks under the headlight

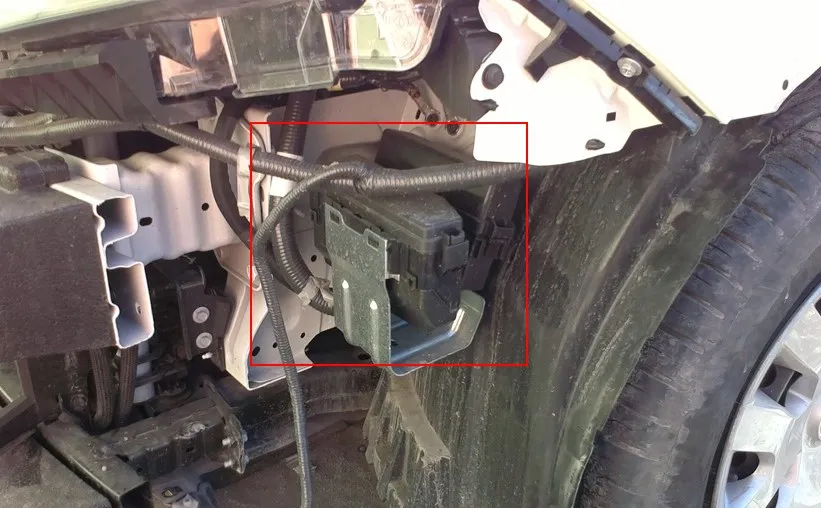

Additional blocks with fuses and relays can be installed behind the bumper, under the left headlight.
Fuel_heater – fuel heating, RAD_FAN – radiator fan.

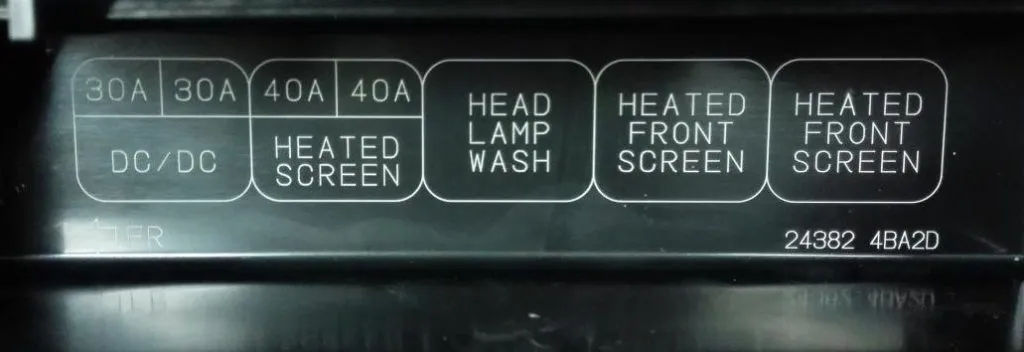

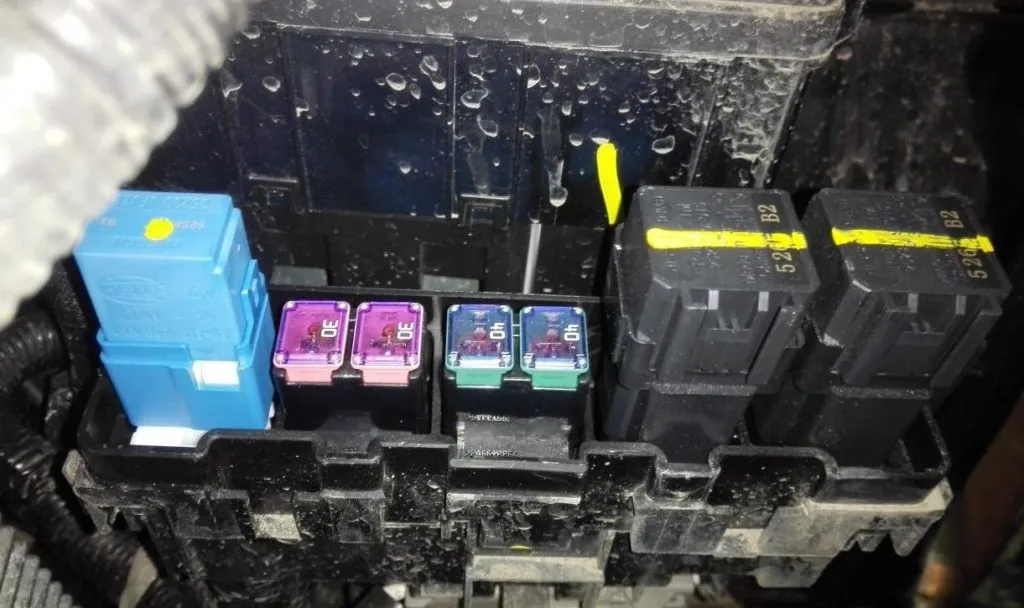

Block 2 – photography
| HEATED SCREEN | Glass heating |
| H/LAMP WASHER RELAY | Headlight Washer Relay |
| ANTI-THEFT HORN RELAY | Anti-theft alarm horn relay |
| HEATED FRONT SCREEN RELAY | Windshield heating relay |

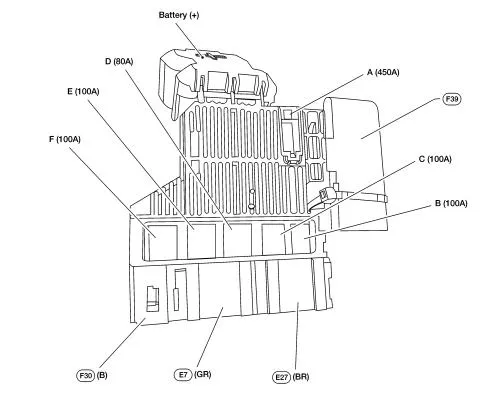

Battery powered block
It is located on the positive terminal of the battery and consists of high-power fuse links.
| A | 450A Starter, Engine Restart Baypass Relay |
| B | 450A Generator |
| C | 100A Auxiliary relay (fuses: “13”, “14”, “15”), rear window defogger relay (fuses: “10”, “11”, “12”), heater relay (fuses: “7”, “17”), front wiper relay, right headlight, right rear light, front right fog light, fuses: “19”, “20”, “21”, “22”, “24”, “25”, “26”, “27”, “28”, “29”, “30”, “31”, “32”, “33”, “57”, “58”, “U” |
| D | 100A Ignition relay (fuses: “56”, “61”, “63”, “65”, “67”), air conditioner relay, engine cooling fan relay 1, left headlight, left rear light, front left fog light, fuses: “P”, “Q” |
| E | 50A Fuses: “R”, “S”, “T”, “42”, “44”, “45”, “46” |
| U | 100A Right headlight, right rear light, front right fog light, glow plug control unit, thermo plunger control unit, fuse: “58” |
| V | 100A Fuses: “F”, “G”, “H”, “I”, “K”, “L”, “M”, “34”, “35”, “36”, “37”, “38”, “39”, “41”, “N”, “O”, |
