Suzuki Grand Vitara represents the third generation of the Vitara model range. In this publication you will find a description of the fuse and relay blocks of the Suzuki Grand Vitara, produced in 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014. We will show where these blocks are located, their diagrams and photo examples of execution. We will highlight the fuse responsible for the cigarette lighter.

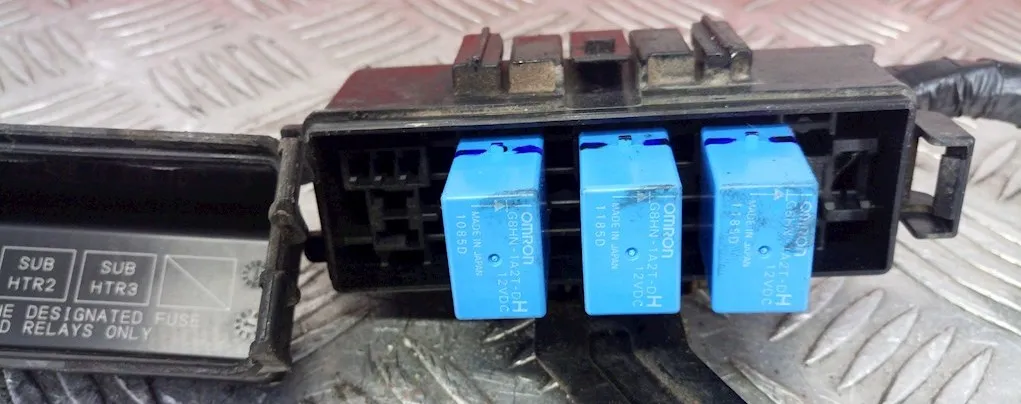

Blocks under the hood

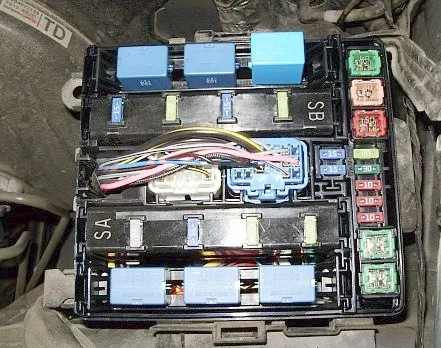

Main unit
Located on the left side, next to the rack. Covered with a protective cover.

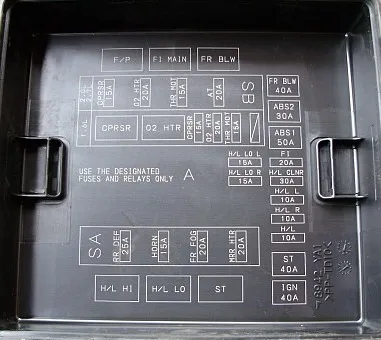

The actual purpose of the fuses and relays will be presented in the form of a diagram on the back of the cover.

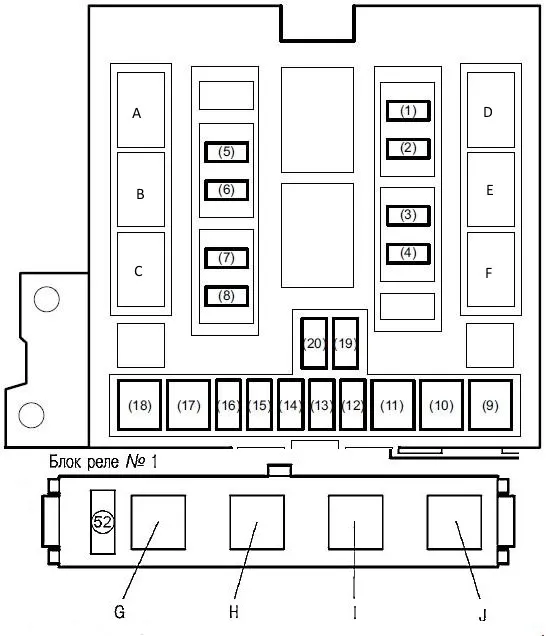

| № | Current | Fuse description |
|---|---|---|
| 1 | 15 | Air conditioner electromagnetic clutch |
| 2 | 20 | Oxygen sensor heater |
| 3 | 15 | Electric throttle actuator |
| 4 | 20 | Automatic transmission |
| 5 | 25 | Rear window heater |
| 6 | 15 | Sound signal |
| 7 | 20 | Fog lights |
| 8 | 20 | Mirror heater |
| 19 | 15 | Left headlight (low beam), left gas discharge headlight, low beam headlight relay |
| 20 | 15 | Right headlight (low beam), right gas discharge headlight, low beam headlight relay |
| 9 | 40 | Heater fan |
| 10 | 30 | ABS control unit 2, ESP control unit |
| 11 | 50 | ABS control unit 1, ESP control unit |
| 12 | 20 | Main relay |
| 13 | 30 | Electric headlight washer pump |
| 14 | 10 | Left headlight (high beam) |
| 15 | 10 | Right headlight (high beam) |
| 16 | 10 | Headlight high beam relay, headlight low beam relay |
| 17 | 40 | ST starter |
| 18 | 40 | Ignition switch IGN |
| Relay | ||
| A | Headlight high beam relay | |
| B | Headlight low beam relay | |
| C | Starter relay | |
| D | Fuel pump relay | |
| AND | The main thing | |
| F | Heater fan motor | |
| G | Electric throttle actuator | |
| H | Cooling system fan motor No. 1, 2, 3 | |
| I | ||
| J | ||
| K | Brake light relay | |

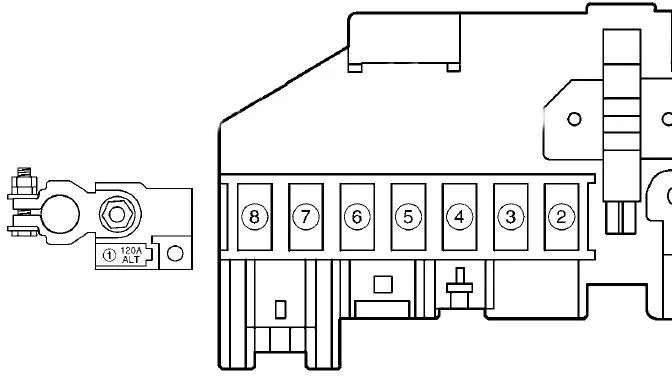

Additional unit

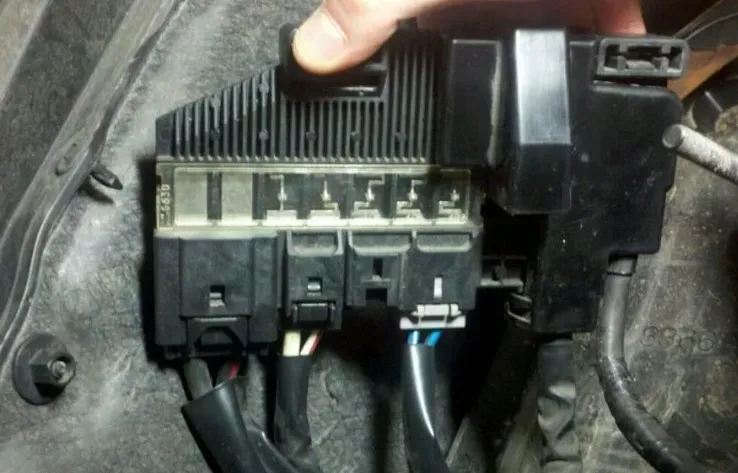

It is located not far from the battery and consists of power fuses.
| № | Current | Fuse description |
|---|---|---|
| 1 | 120/80 | All circuits, battery, fuse block #1 |
| 2 | 30/40 | Cooling system fan motor relay #2 and #1 |
| 3 | ||
| 4 | 40 | 4WD control unit |
| 5 | 50 | Ignition switch |
| 6 | 60 | Fuse block No. 2, headlight low beam relay, mounting block |
| 7 | Integrated relay unit #1, integrated relay unit #2, fuse unit #2 | |
| 8 | Fuse block #2 |

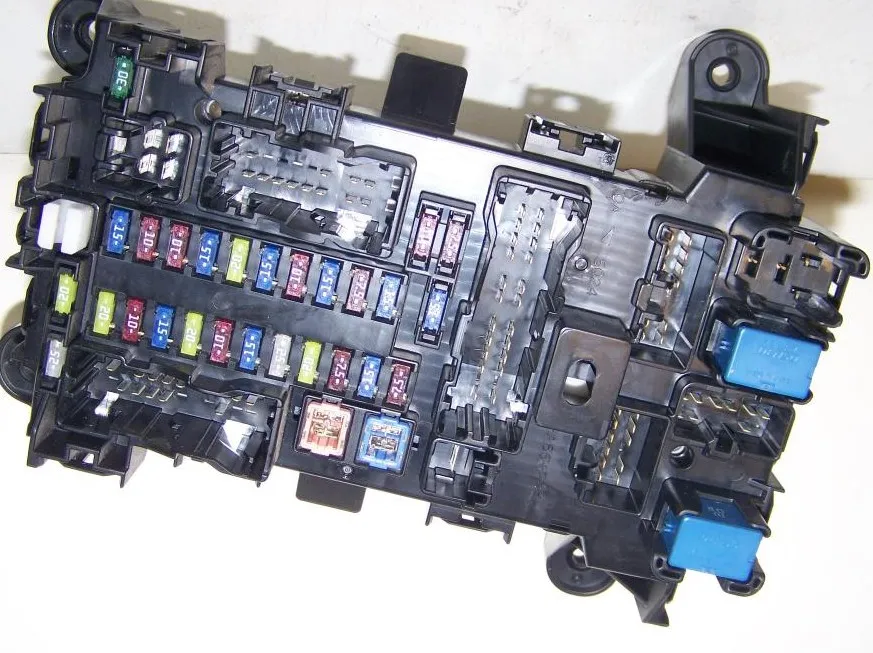

Cabin block

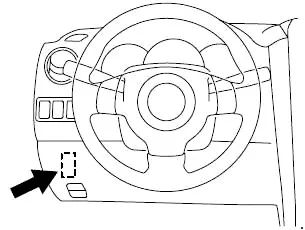

Mounts on the left pillar, on the driver’s side, under the dashboard.
The current diagram will be printed on the protective cover of the unit.

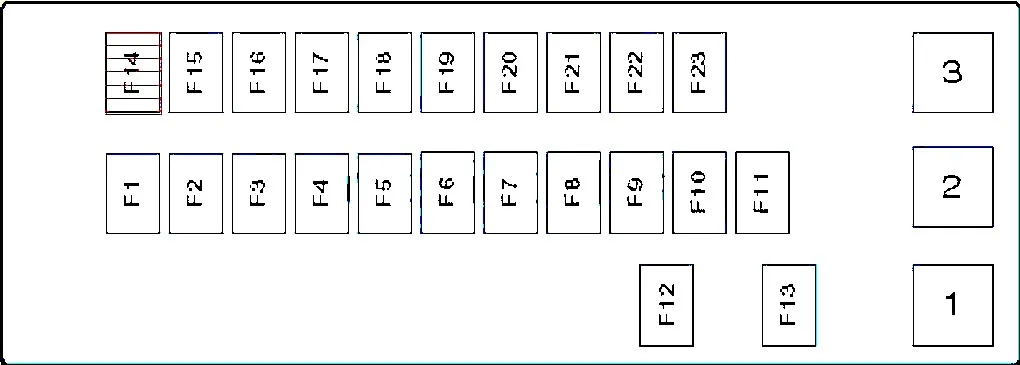

| № | Current | Fuse description |
|---|---|---|
| F1 | 20 | Generator, ignition coils, engine ECU |
| F2 | 10 | Electrical control unit, instrument cluster |
| F3 | 15 | Electrical control unit, display, audio system |
| F4 | 20 | Central lock |
| F5 | 10 | Rear dimensions |
| F6 | 15 | Interior light bulb |
| F7 | 25 | Luke |
| F8 | 20 | Electronic engine control unit ECM |
| F9 | 7,5 | Launch system |
| F10 | 15 | Hazard warning light, Turn signal relay-interrupter |
| F11 | 7,5 | Cosmetic mirror light lamp |
| F12 | 30 | Electric window lifters |
| F13 | 20 | Electric window lifters |
| F14 | 15 | Airbag |
| F15 | 10 | ABS, ESP control unit, steering wheel angle sensor |
| F16 | 10 | Reversing light, selector position sensor, headlight range control switch |
| F17 | 15 | Cooling system fan motor relays #1, #2 and #3 |
| F18 | 20 | Windshield wiper |
| F19 | 15 | Cigarette lighter fuse , charging connector |
| F20 | 10 | Cruise control, Brake light switch |
| F21 | 15 | Charging connector |
| F22 | 7,5 | Rear fog lights, Combination switch |
| F23 | 15 | Stop signs |
| Relay | ||
| 1 | Rear clearance relay | |
| 2 | Auxiliary ignition circuit relay | |
| 3 | Gear selector lock relay (range “P”) | |
Fuse number 19 at 15A is responsible for the front cigarette lighter, and fuse number 21 at 15A is responsible for the additional sockets.
