Kia Ceed 3rd generation was produced in 2018, 2019, 2020, 2021, 2022 and is currently produced with hatchback and station wagon bodies. In this article, we will show the location of the blocks and a detailed description of the fuses and relays of the Kia Ceed 3 with their diagrams and photos. We will highlight the fuse responsible for the cigarette lighter.

The number of elements in the blocks and their purpose may differ from that shown and depends on the year of manufacture and model configuration.

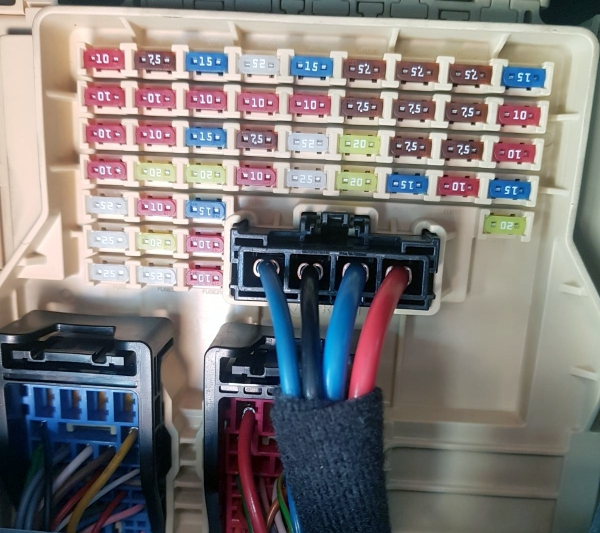

Cabin block

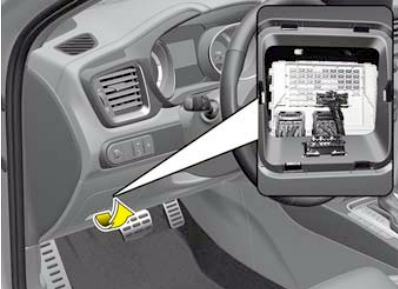

It is located under the dashboard on the driver’s side behind a protective cover.

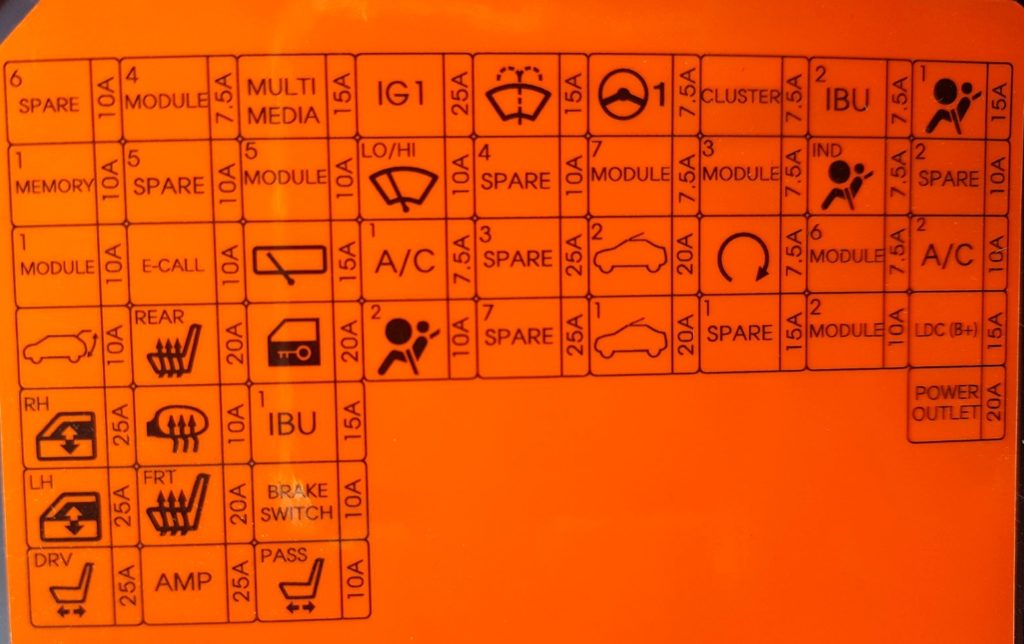

On the back of which the current purpose will be written in the form of a diagram.

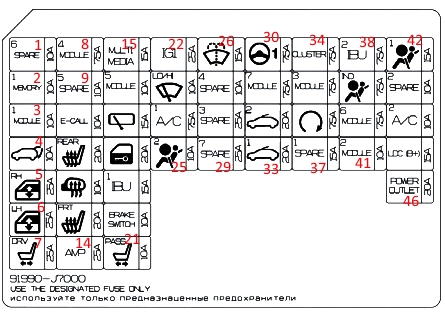

Scheme

Description

110A Reserve
210A Driver IMS (Integrated Memory System) module, air conditioning control module, power tailgate module
310A Active air damper module, diagnostic connector, instrument cluster, hazard warning switch, ICM (integrated module) relay unit (exterior mirror folding/unfolding relay), automatic light sensor and photo sensor, console switch, external smart key handle
410A Tailgate relay
525A Right window lifter
625A Left window lifter
725A Driver’s Seat Memory System (IMS) Module, Driver’s Seat Manual Switch
87.5A Intelligent Parking Assist Control Module, Shock Absorber Switch, Integrated Body Electrical Control Unit (IBU)
910A Reserve
1010A Emergency call module of the ERA-GLONASS system
1120A Rear seat heating control module
1210A Driver/passenger side power exterior rearview mirror, air conditioning control module
1320A Front seat heating
1425A Audio system audio signal amplifier, amplifier (AMP)
1515A Low Voltage DC-DC Converter (Audio System/AMP (Amplifier)), Audio, Audio/Video and Navigation Head Unit
1610A Electric parking brake, rear seat heating control module, ERA-GLONASS emergency call module, electrochromatic mirror, audio, audio/video and navigation main control unit, automatic transmission shift lever illumination, air conditioning control module (audio system/AMP (amplifier)), front seat heating control module, front seat ventilation control module, driver’s seat position memory system module (IMS), headlight switching on the left/right side handle
1715A Rear wiper
1820A Door lock
1915A Integrated Body Electrical Control Unit (IBU)
2010A Integrated Body Control Unit (IBU), brake light switch
2110A Front seat heating control module, front seat ventilation control module
2225A Ignition, Engine compartment connector panel (fuse – ECU5, SENSOR4, ABS3, TCU2)
2310A Windshield wiper
247.5A Air conditioner
2510A Airbag
2615A Windshield washer
2710A Reserve
2825A Reserve
2925A Reserve
307.5A Electric power steering
317.5A Rear seat heating control module, front seat heating control module, front seat ventilation control module, nozzle heater, engine compartment connector panel (headlight high beam relay, headlight relay), DCU relay (dosage control unit), cooling fan motor
3220A Roof hatch
3320A Roof hatch
347.5A Instrument cluster
357.5A Sport mode switch, brake light switch,
367.5A Start
3715A Reserve
387.5A Integrated Body Electrical Control Unit (IBU)
397.5A Airbag indicator
407.5A Integrated Body Electrical Control Unit (IBU)
4110A Audio, Audio/Video and Navigation Main Control Unit, Low Voltage DC/DC Converter (Audio System/AMP (Amplifier))
4215A Passive safety system control module
4310A Reserve
4410A Engine compartment connector panel (FAN relay), air conditioning control module, fan resistor, fan motor,
4515A Audio, Audio/Video and Navigation Main Control Unit, Air Conditioning Control Module, Low Voltage DC/DC Converter, (Audio System/AMP (Amplifier))
4620A Cigarette lighter, socket on the handle on the left side

Fuse number 46 at 20A is responsible for the cigarette lighter.

Block under the hood

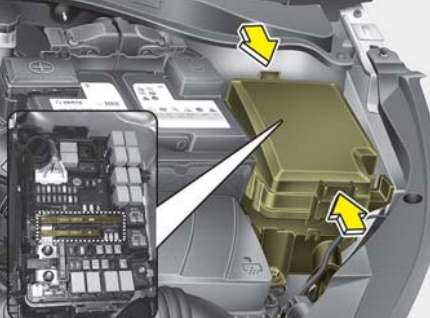

Located in the left side of the engine compartment.

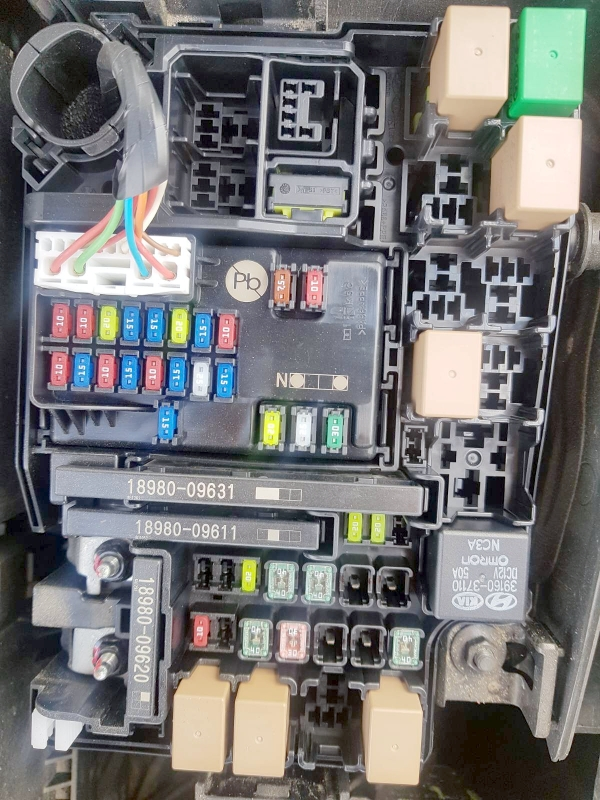

Photo – example

Scheme

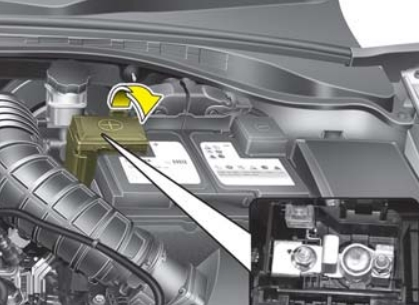

There is a separate high-power fuse in the form of a fuse insert on the positive terminal of the battery.
