Fuse and relay box diagram:
- Chrysler 300/300C (2005-2010)
- Dodge Charger (2006-2010)
- Dodge Magnum 2005-2008

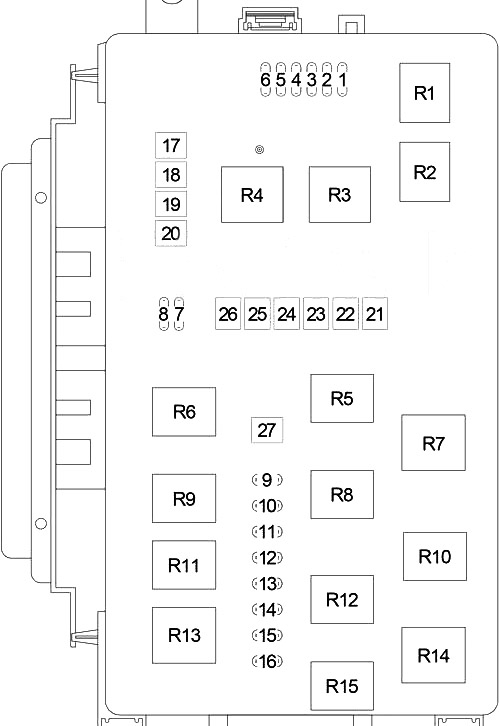

Engine Compartment Fuse Box Diagram

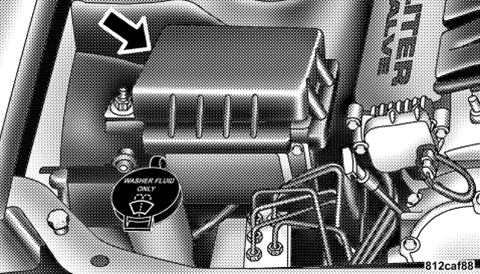

The front power distribution center is located in the engine compartment.
| No. | A | Protected component |
|---|---|---|
| 1 | 20 | HID: Left High Intensity Discharge Lamp |
| 2 | 20 | HID: High Intensity Discharge Lamp Right |
| 3 | 15 | Adjustable pedal relay (except memory) |
| 4 | 20 | Horn relay, front control unit, air conditioning compressor clutch (petrol) |
| 5 | 20 | HID: Headlight Washer Relay |
| 20 | Cluster (2005) | |
| 20 | Police: Underhood lamp | |
| 6 | 15 | Front control module |
| 7 | 20 | Front fog light, front control unit |
| 8 | 15 | Parking Light Relay (Front Parking Light/Turn Light, Front/Rear Parking Light, Parking Light, Tail/Stop Light, or Tail/Stop/Parking Light), Front Control Module |
| 9 | 15 | Front control module |
| 10 | 5 | Transmission Control Module, Starter Relay, Engine Control Module (Diesel) |
| 11 | 15 | SRT8: Transmission Control Module |
| 20 | except SRT8: Transmission Control Module | |
| 12 | — | — |
| 13 | — | — |
| 14 | 20 | SRT8: Transmission Control Module |
| 25 | except SRT8: Transmission Control Module | |
| 20 | 2005: Transmission Control Module | |
| 25 | Diesel: Engine Control Module, PTC Relay #1, PTC Relay #2, PTC Relay #3 | |
| 15 | 25 | Gasoline (except SRT8): Fuel Injector, Ignition Coil, Ignition Capacitor, Short Stroke Valve Solenoid (3.5L) |
| 20 | 2005: Fuel injector, ignition coil, ignition capacitor | |
| 20 | SRT8: Fuel Injector, Ignition Coil, Ignition Capacitor | |
| 25 | Diesel: Engine Control Module, Glow Plug Module, Oxygen Sensor, Intake Vortex Motor Servomotor, Crankcase Ventilation Heater, EGR Valve, Boost Pressure Servomotor, A/C Compressor Clutch, Fuel Pump Relay, | |
| 16 | 15 | Diesel: Engine Control Module |
| 20 | 2005: Transmission Control Module | |
| 17 | 30 | ABS |
| 18 | 30 | Windscreen wiper on/off relay |
| 19 | 50 | Radiator Fan Relay (High), Radiator Fan Control Relay (High/Low), Front Control Module |
| 20 | 20 | Starter relay |
| 21 | 50 | ABS |
| 22 | 40 | Radiator Fan Control Relay, A/C Compressor Clutch |
| 23 | 50 | HID: High Power Discharge Lamp Relay (Fuse (Engine Compartment): “1”, “2”) |
| 24 | 60 | AWD / SRT / Diesel: Radiator Fan |
| 25 | 30 | Front control module |
| 26 | 20 | RLE: Gearbox Control Relay |
| 20 | Diesel: A/C Compressor Clutch Relay | |
| 27 | 30 | Front control module |
| Relay | ||
| R1 | Horn | |
| R2 | Gasoline: Air Conditioning Compressor Clutch | |
| R3 | Radiator Fan Control (High/Low) | |
| R4 | Radiator Fan (High) | |
| R5 | Windscreen Wiper On/Off | |
| R6 | RLE: Transmission Control | |
| R7 | Radiator Fan Control | |
| R8 | Windscreen wiper High / Low | |
| R9 | Starter | |
| R10 | Adjustable pedals (except memory) | |
| R11 | Park lamp | |
| R12 | Front fog light | |
| R13 | Automatic shutdown | |
| R14 | High Intensity Discharge Relay | |
| R15 | — | |

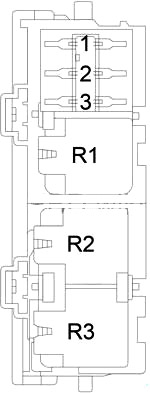

Relay block (diesel)
| No. | A | Protected component |
|---|---|---|
| 1 | 50 | PTC Relay No.1 |
| 2 | 50 | PTC Relay #2 |
| 3 | 50 | PTC Relay #3 |
| Relay | ||
| R1 | PTC #3 | |
| R2 | PTC #2 | |
| R3 | PTC #1 | |

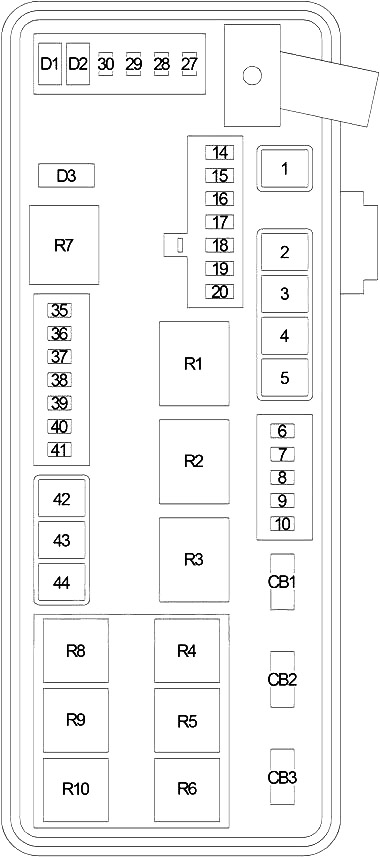

Fuse box diagram in the luggage compartment

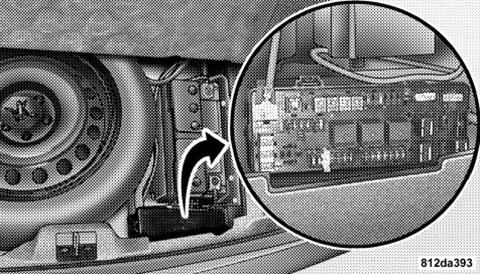

The rear power distribution center is located in the rear compartment under the spare tire access panel.
| No. | A | Protected component |
|---|---|---|
| 1 | 60 | Fuse (luggage compartment): “14”, “36”, “38”, “44” |
| 2 | 40 | Engine compartment fuse box (fuse link 14) |
| 3 | 20 | Police: Dome Light |
| 4 | 40 | Engine compartment fuse box (fuse link 14) |
| 5 | 30 | except SRT8: Seat Heating Module, Zener Diode, Fuse (Luggage Compartment): “30” |
| 40 | SRT8: Seat Heating Module, Zener Diode, Fuse (Luggage Compartment): “30” | |
| 6 | 20 | Fuel pump relay |
| 7 | 20 | SRT8: Subwoofer Amplifier |
| 15 | Police: Spotlight (right) | |
| 8 | 15 | Data Link Connector, Occupant Classification System (LHD), Ignition Switch (Engine Control Module (Diesel), Transmission Control Module, Steering Column Lock Module (RHD), Fuel Pump Relay (Gasoline), Fuse (Luggage Compartment): “27”, “29”, “40”, Diode #1) |
| 9 | 20 | Socket – Console |
| 10 | 10 | Export: Rear Fog Light Relay |
| 15 | Police: Spotlight (left) | |
| 14 | 10 | Air Conditioner/Heater Control, Remote Security Key Module (LHD), Cluster, Intrusion Transceiver Module (RHD) |
| 15 | 20 | Brake module (trailer towing) |
| 16 | 20 | Magnum (300C Touring): Rear Power Socket |
| 17 | 20 | Key combination, steering column module (RHD) lock, remote security key module (RHD) |
| 18 | 20 | Lighter |
| 19 | 10 | Brake light switch, brake light lock relay (except MK25E) |
| 20 | 20 | Magnum (300C Touring): Rear Wiper Relay |
| 27 | 10 | Occupant Classification System, Occupant Safety Controller Module |
| 28 | 10 | except SRT8: Passenger Safety Controller Module |
| 5 | SRT8: Passenger Seat Controller Module | |
| 29 | 5 | Brake light switch, key combination, security key remote control module, mass air flow sensor (diesel), ABS, front control module, transmission control module (petrol), engine control module (diesel) |
| 30 | 10 | Driver/Passenger Door Module, Mirror Switch, Steering Control Module, Police/Taxi Interface Module |
| 35 | 5 | Mirror Switch (Except Memory), Passenger Express Window/Door Lock Switch (Except Base), Illuminated Antenna Amplifier, Headlight Flasher (Police), Police Relay No. 1, Police Relay No. 2, Police Relay No. 3, Electronic Overhead Module (Export), Rain Sensor (Export) |
| 36 | 20 | Radio, hands-free module, satellite receiver, monitor/DVD multimedia system, traffic information receiver module (export) |
| 37 | 15 | NAG1: Gearbox Control Module |
| 38 | 5 | Cargo Light (except Magnum), Analog Clock Module, Electronic Ceiling Module, Siren (RHD) |
| 39 | 10 | Heated mirror |
| 40 | 5 | except SRT8: Left/Right Seat Heater Switch, A/C Heater Control, Inside Rearview Mirror |
| 10 | SRT8: Left/Right Heated Seat Switch, A/C Heater Control, Inside Rearview Mirror | |
| 5 | Police: Bank Switch | |
| 41 | 10 | A/C Heater Control, Tire Pressure Sensor, Headlight Level Sensor L/R (Export), Parl Assist Module, Headlight Leveling Module (Export), Left/Right High Brightness Discharge Lamp (Export) |
| 42 | 30 | Front Fan Motor (MTC), Front Fan Module (ATC) |
| 43 | 30 | Rear window heating |
| 44 | 20 | Front control unit, sunroof motor/module, radio amplifier |
| Automatic switch | ||
| CB1 | 25 | Driver’s seat switch (except memory), memory seat module, combination (except power/memory seat) |
| CB2 | 25 | Passenger seat switch |
| CB3 | 25 | Except SRT8: Driver/Passenger Door/Window/Door Lock Switch (Base), Driver/Passenger Door Module (Except Base), Driver Express Window/Door Lock Switch (Except Base) |
| 30 | SRT8: Driver/Passenger Door/Window/Door Lock Switch (Base), Driver/Passenger Door Module (Except Base), Driver Express Window/Door Switch (Except Base) | |
| Diode | ||
| D1 | NAG1: Gearbox Control Relay | |
| D2 | Front control module | |
| D3 | Zener | |
| Relay | ||
| R1 | Launch | |
| R2 | Rear window heating | |
| R3 | Delay for accessories | |
| R4 | NAG1: Transmission Control | |
| R5 | Export: Rear Fog Light | |
| R6 | Magnum (300C Touring): Rear Wiper | |
| R7 | — | |
| R8 | Brake light blocking (except MK25E) | |
| R9 | Fuel pump | |
| R10 | — | |
