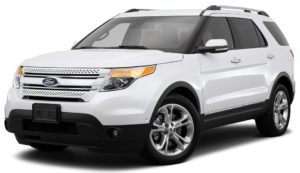

Ford Explorer is a mid-size crossover. It has been produced from 1990 to the present in five generations. In this article, we will show a description of the fuse and relay blocks of the 5th generation Ford Explorer, which was produced in 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019. During this period, the Ford Explorer was updated twice.

The manufacturer reserves the right to make changes to the technical characteristics, specifications and equipment of any model, so there is no one general description for all Ford Explorer cars. Check the purpose of the elements with your technical documentation, and in case of difficulty, contact your dealer.

Cabin block

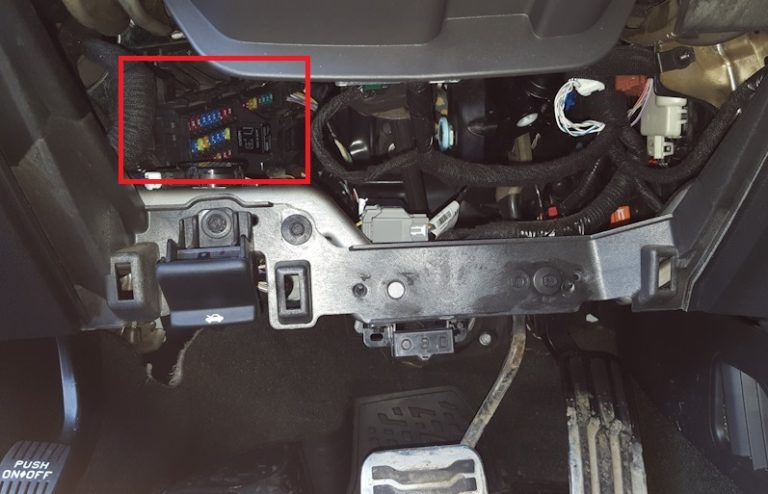

It is located under the dashboard on the driver’s side and is covered by a protective cover.

It will also have the current diagram printed on it.

Option 1

For cars manufactured before 2015.

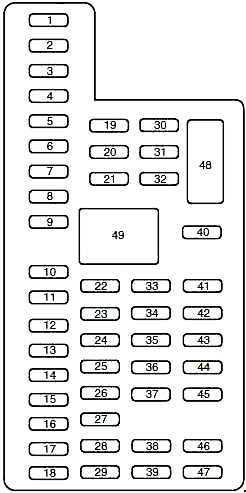

Scheme

Description

130A Driver’s side front window with one-touch function
215A Not used (spare)
330A Front passenger window with one-touch function
410A Interior lights that are switched on on demand (ceiling console, second row, luggage compartment), glove box lamp, second and third row seat folding lights, sun visor lights
520A Amplifier
65A Reserve
77.5A Power supply for the seat position memory logic module
810A Reserve
910A 4-inch radio display (SYNC), power liftgate logic module, electronic processing panel
1010A Auxiliary equipment operating mode/power mode relay (wipers, rear window washer), rain sensor
1110A Instrument panel, head-up display
1215A Footwell lights (ceiling console, second row, luggage compartment), underside lights, console compartment LED, background lighting
1315A Right turn signal lamps/right turn signal lamps/trailer brake lights (TT)
1415A Left turn signal lamps, left turn signal lamps/trailer brake lights (TT)
1515A Reversing lights, brake lights, additional brake light
1610A Dipped beam headlights (right)
1710A Low beam headlights (left)
1810A Keyboard illumination, Brake Select Inhibit (BSI), Start button indicator, Passive Anti-Theft System (PATS), Power to start the Powertrain Control Module (PCM), Power to move the rear seat in height
1920A Seat memory power supply
2020A Locks
2110A Intelligent Access (IA), Keypad
2220A Horn Relay
2315A Steering wheel control module, intelligent access (IA), headlight switch
2415A Data connector, steering wheel control module
2515A Unlocking the tailgate
265A Radio Frequency Module
2720A Intelligent Access Module
2815A Ignition switch, push-button start
2920A Radio, Global Positioning System (GPS) module
3015A Front position lights
315A Trailer brake system controller
3215A 110V AC power outlet, power folding mirror, power mirrors, one-touch front windows, door lock illumination, memory switch illumination
3310A Driver and passenger presence recognition system sensor
3410A Blind spot monitor, rear view camera, rear parking assist
355A head-up display, climate control humidity sensor, terrain adaptation system, hill descent assist switch, headlight switch sensor
3610A Heated steering wheel
3710A Airbag and seat belt restraint system control module
3810A Auto-dimming rearview mirror, electric sunroof
3915A High beam lamp shutters
4010A Rear position lights, license plate lights, trailer position lights
417.5A Overdrive cancellation, towing/cargo mode
425A Reserve
4310A Reserve
4410A Reserve
455A Reserve
4610A Climate control module
4715A Fog lights, power supply for turn signals in the right and left mirrors
4830A Circuit Breaker: Rear Power Windows, Passenger Power Window, One-Push Down (Driver Side Only), Driver Door Power Window Switch
49Auxiliary equipment power off delay relay (body systems control unit)

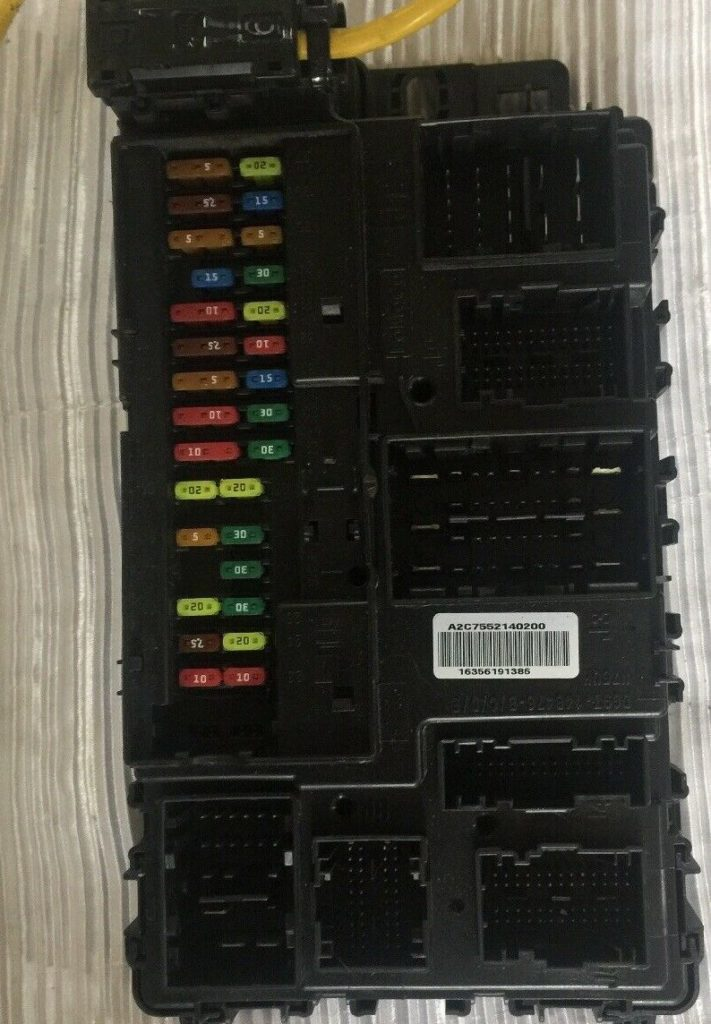

Option 2

For cars manufactured since 2015.

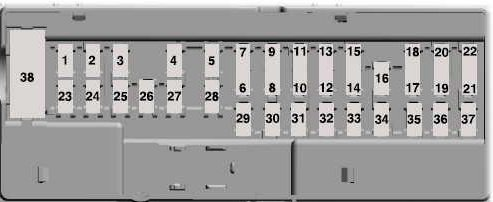

Scheme

Marking

110A Interior lights, Battery discharge prevention system
27.5A Seat control switch with memory position (electric)
320A Driver’s door unlock relay
45A Additional electronic brake controller
520A Heated rear seat module
bReserve
7Reserve
8Reserve
9Reserve
105A Securicode keyless entry keypad, Automatic liftgate
115A Rear climate control module
127.5A Front climate control module
137.5A Instrument panel Intelligent data link, Steering column control system module
14Reserve
1510A Intelligent Data Link Connector Power, Ceiling Display
16Reserve
175A Processing panel with electronics
185A Car start button, Ignition lock (switch) Key lock
197.5A Transmission control switch (towing function)
20Reserve
215A Terrain control system switch, Ceiling display, Humidity sensor
225A Driver/Passenger Classification Sensor
2310A Auxiliary equipment off delay power supply circuit, Power windows, Sunroof, Mirror relay, DC inverter, Window/sunroof control switch illumination
2420A Central locking relay
2530A Left front window motor with intelligent control, Door module
2630A Right front window motor with intelligent control, Door module
2730A Luke
2820A Amplifier Sony, 10-channel
2930A Amplifier Sony, 14-channel
30Reserve
31Reserve
3210A SYNC, GPS Module, Display, RF Radio Receiver
3320A Radio receiver
3430A Run/Start Relay
355A Airbag and seat belt system control module
3615A Lane Departure Warning Module, Automatic High Beam, Electric Mirrors, Heated Rear Seats
3720A Heated steering wheel
3830A Left front window motor, Electric rear window motors

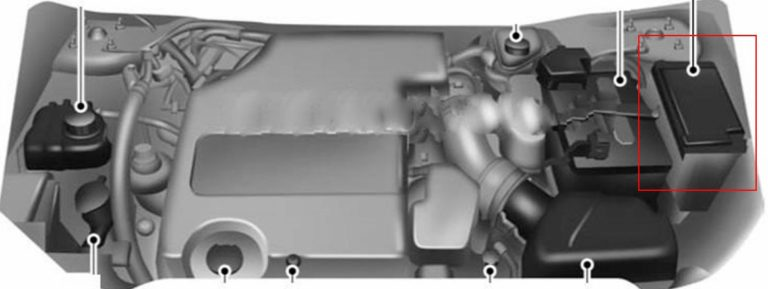

Block under the hood

It is located in a compartment with a rechargeable battery and is covered with a protective cover.

Option 1

For cars manufactured before 2015.

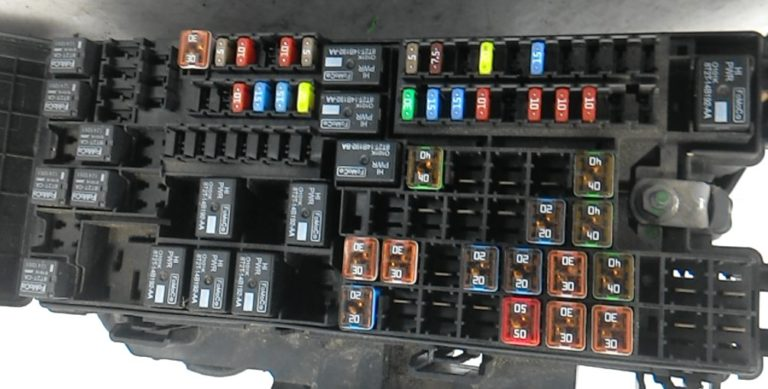

Photo – example

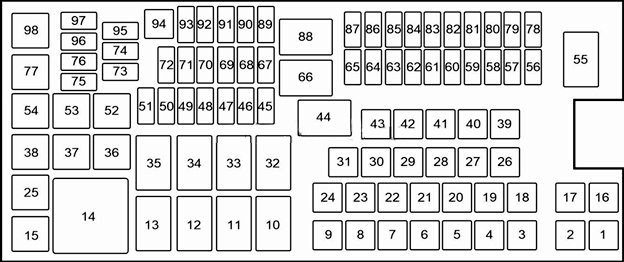

Scheme

Appointment

Fuses

1Reserve
2Reserve
330A Trailer brake control module
430A Wipers, windshield washer
550A Anti-lock brake system (ABS) pump
6Reserve
730A Power liftgate
820A Transparent hatch
920A Power Socket 2 (Rear Console)
16Reserve
1740A 110V AC Power Socket
1840A Front blower fan motor
1930A Starter
2020A Power socket 1 (cigarette lighter)
2120A Power socket 3 (luggage compartment)
2230A Third row seat module
2330A Power driver’s seat, memory module
2430A Towed trailer battery charging relay (TT)
2640A Rear window heater, heated mirrors
2720A Power circuit (console)
2830A Seat climate control
2940A Engine cooling fan 1 high speed mode power supply circuit, engine cooling fan 1 and 2 low speed mode primary fuse
3040A Engine cooling fan 2 high speed mode circuit fuse
3125A Secondary fuse for low speed mode circuit of engine cooling fans 1 and 2
3940A Electric motor of the additional blowing fan
40Reserve
4130A Rear seat heating
4230A Passenger seat
4340A ABS Valves
455A Rain sensor
46Reserve
47Reserve
48Reserve
49Reserve
5015A heated mirrors
51Reserve
5615A Transmission Control Module
5720A Left headlight with high intensity discharge lamp
5810A Generator Sensor
5910A Brake on/off switch (VGO)
6010A Trailer backup lights
6120A Unlocking the second row seat
6210A Air conditioner clutch
6315A Trailer turn signal/brake light bulbs (TT)
6415A Rear wipers
6530A Fuel pump
6720A Vehicle power supply (VPWR) 2 (powertrain elements that affect the toxicity of exhaust gases)
6820A VPWR 4 (ignition coils)
6920A VPWR 1 (RSM)
7010A VPWR 3 (coil), all-wheel drive module, variable air conditioning (A/C) compressor control
71Reserve
72Reserve
73Reserve
74Reserve
75Reserve
76Reserve
7820A Right headlight with gas discharge lamps
795A Adaptive Cruise Control (ACC) System
80Reserve
81Reserve
8215A Rear window washer
83Reserve
8420A Trailer marker lights
85Reserve
867.5A Constant power supply to the PCM, PCM relay, adsorber ventilation solenoid valve
875A Starting relay winding
895A Front air conditioning fan relay coil, electric power steering (EPAS) module
9010A PCM, PMM, ECM (2.0L engine)
9110A Auxiliary equipment power supply mode
9210A ABS module, factory removal and refilling
935A Rear blower motor, rear window heater, trailer battery charge relay (TT)
9430A Passenger compartment fuse panel operation/start
95Reserve
96Reserve
97Reserve

Fuses numbers 9, 20, and 21 at 20A are responsible for cigarette lighters and sockets.

Relay

10Third row rear seat unlock relay
11Rear window heater relay
12Towed trailer battery charging relay.
13Starter relay
14Engine cooling fan 2 high speed mode relay
15Fuel pump relay
25Not used
32Additional fan motor relay.
33Relay 2 low speed modes of engine cooling fan 1 and 2
34Blower fan motor relay
35Engine cooling fan 1 high speed mode relay, engine cooling fan 1 and 2 low speed mode relay
36Not used
37Right turn signal/trailer brake light relay
38Trailer reversing light relay
44Rear window washer relay
52Not used
53Trailer left turn signal/brake light relay
54Not used
55Slag cleaner relay
66Powertrain Control Module (PCM) Relay
77Trailer marker light relay
88Start relays
98Air conditioner compressor clutch relay.

Option 2

For cars manufactured since 2015.

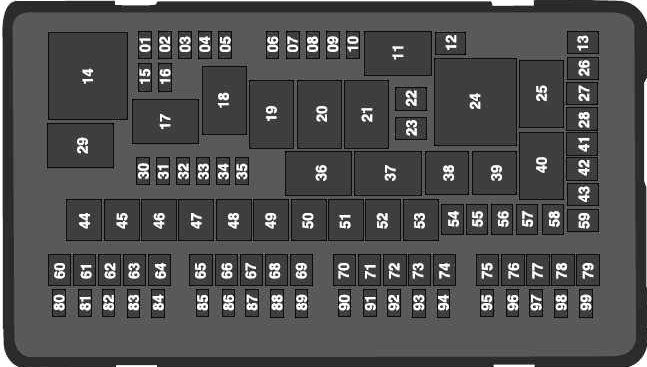

Scheme

Transcript

Fuses

120A Power supply to the powertrain control module
220A Engine Emissions (MIL)
320A Air conditioning clutch control relay coil, VACC, Active louver grille
420A Ignition coils
5Reserve
6Reserve
7Reserve
8Reserve
9Reserve
1015A heated mirrors
1240A Heated rear window
13Reserve
1520A Horn relay power supply
1610A Air conditioning clutch relay power supply
2225A Electric fan relay #2
23Reserve
24Reserve
25Reserve
2630A Anti-lock brake system valves
2730A Trailer battery charging circuit relay power supply
28Reserve
3010A Headlight leveling adjustment
3110A Electric power steering
3210A Anti-lock brake system module
3310A Powertrain Control Module (ISPR)
3410A Blind Spot Monitoring System, Adaptive Cruise Control System, Front View Camera, Rear View Camera
35Reserve
4140A Rear blower fan motor
42Reserve
4340A Front blower fan motor
4450A Voltage Quality Module Bus
4540A Electric fan relay #1
4630A Trailer brake controller
47Reserve
4850A Bus RP1 of the body systems control unit
49Reserve
5050A Bus RP2 of the body systems control unit
5150A Electric fan relay #3
5260A Anti-lock brake system pump
53Reserve
54Reserve
55Reserve
5640A Power Inverter
57Reserve
58Reserve
59Reserve
6020A Power outlet (front pull-out compartment)
61Reserve
6220A Power outlet (dashboard)
6330A Fuel pump
64Reserve
6520A Power outlet (2nd row) (without USB charger)
66Reserve
6720A Power outlet (luggage compartment)
68Reserve
6930A Power tailgate
7020A Left and right trailer brake lights and turn signals
71Reserve
7230A Heated and cooled seats
7330A Driver seat module, Driver seat actuator power supply
7430A Power supply for the electric passenger seat drive
7530A Front wiper motor
76Reserve
77Reserve
7830A 3rd row power folding seat relay
7930A Starter Relay
80Reserve
8110A Trailer reversing light relay
8220A Steering column lock
8310A Brake pedal position switch
84Reserve
855A 2nd row USB charger (if available)
86Reserve
87Reserve
88Reserve
89Reserve
90Reserve
91Reserve
9215A Driver’s multi-circuit seat unit relay
9310A Generator Sensor
9415A Rear window washer relay
9515A Rear window wiper relay
9610A Power supply to the powertrain control module relay coil
975A Rain sensor
9820A 2nd row folding seat motors
9920A Trailer parking light relay

Fuses 60, 62, 65, and 67 at 20A and 85 at 5A are responsible for cigarette lighters and USB sockets.

Relay

11Electronic cooling system fan relay #3 on the right side
14Powertrain control module relay
17Heated rear window and heated mirror relay.
18Rear fan motor relay
19Not used
20Left side cooling fan relay
21Cooling fan series/parallel relay
29Run/Start Relay
36Electric fan relay
37Trailer battery charging circuit relay
38Air conditioning compressor clutch relay
39Horn relay
40Not used
