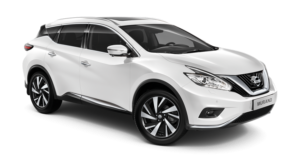

Nissan Murano is a full-fledged crossover. Currently, the 3rd generation is in production. The first is designated – z50 and was produced in 2002, 2003, 2004, 2005, 2006 and 2007. The second in 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 and is marked z51. During this period, the car has been restyled several times. In our material, you will find a description of the fuses and relays of the Nissan Murano z50 and z51. For clarity, we will also show photographs and diagrams of the blocks with the purpose of the elements.

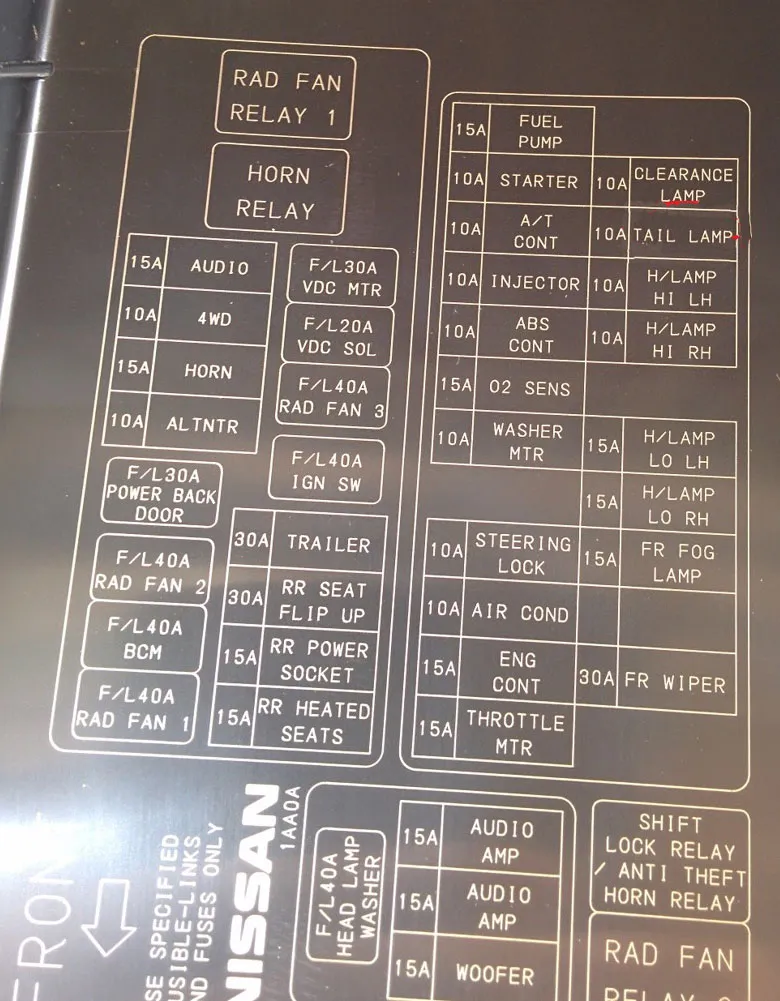

The car was delivered to many regions of the world with different configurations. Check the purpose of the elements with the diagrams on the back of the protective cover to get an up-to-date description of the fuses.
Description for Murano Z50

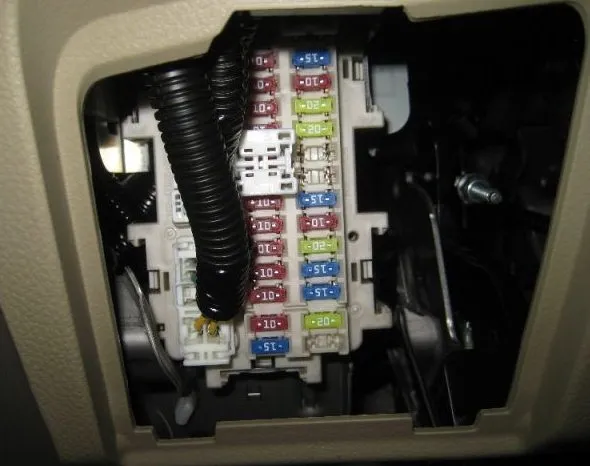

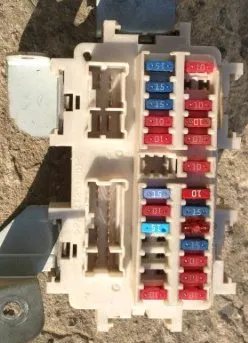

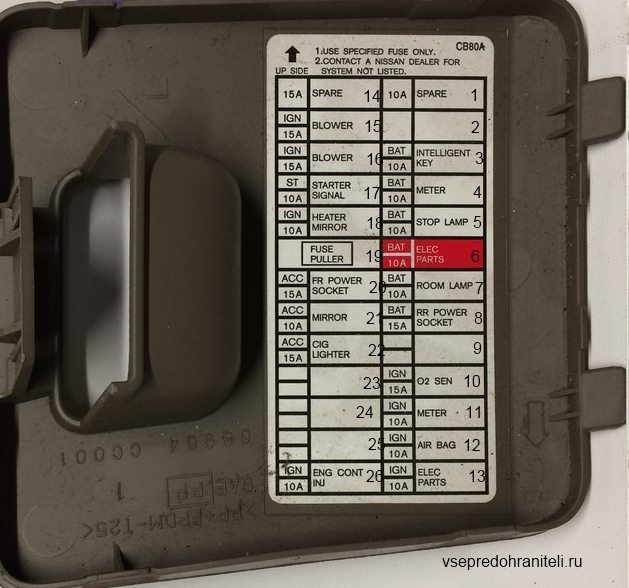

Block in the cabin
It is located in the instrument panel on the left side.
- 10A – Spare
- –
- 10A – Intelligent Key
- 10A – Instrument panel
- 15A – Brake light bulbs
- 10A – Electrical equipment
- 10A – Interior light
- 15A – Rear socket
- –
- 15A – Lambda probe (oxygen sensor)
- 10A – Instrument panel
- 10A – Airbags
- 10A – Electronic components
- 15A – Spare
- 10A – Fan
- 10A – Fan
- 10A – Starter
- 10A – Heated mirrors
- –
- 15A – Front socket
- 10A – Electric mirrors
- 15A – Cigarette lighter
- –
- –
- –
- 10A – Engine management system
Fuse number 22 for 15A is responsible for the cigarette lighter.

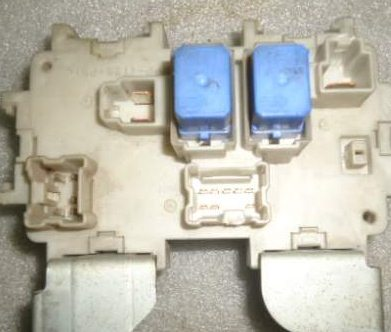

On the side there may be a heater fan relay and an auxiliary ignition circuit relay.
Blocks under the hood

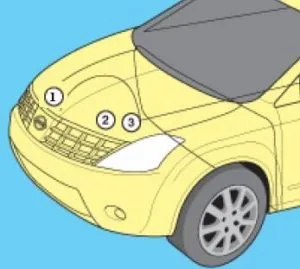

Under the hood, the blocks can be located in 3 places.

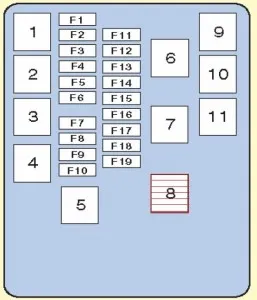

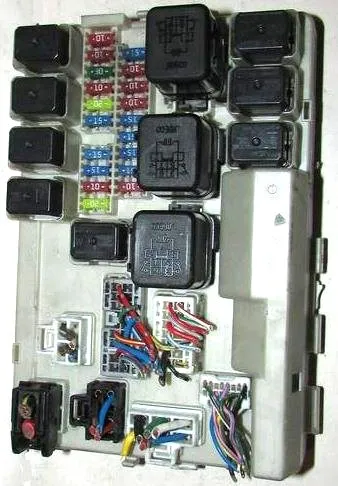

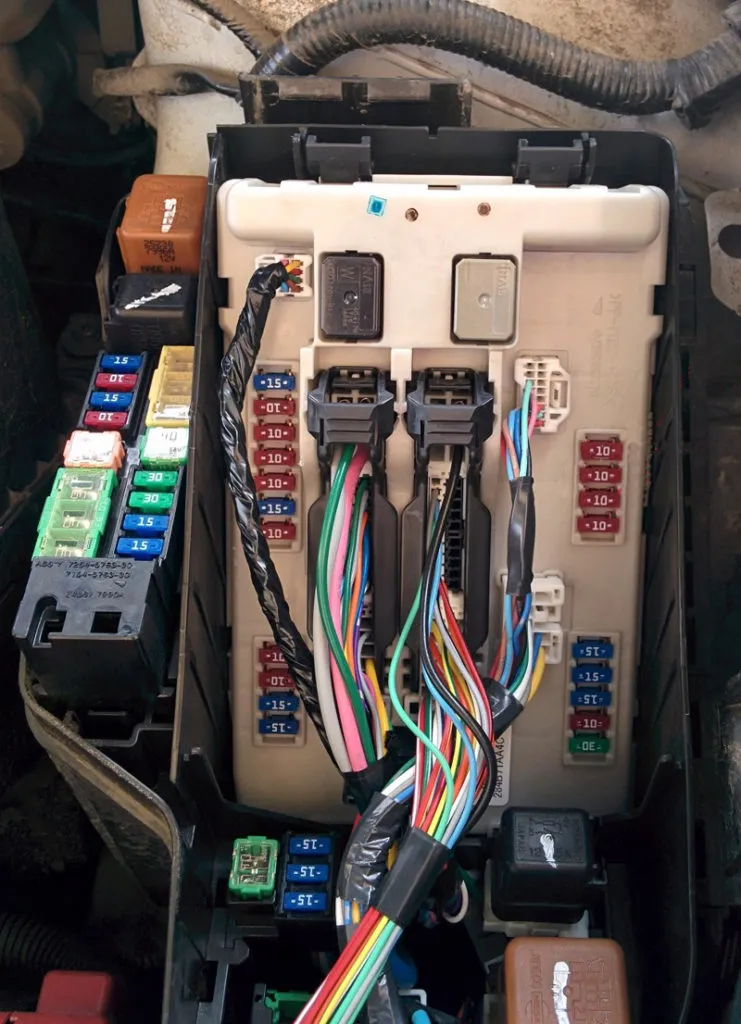

Fuse and relay box
Located on the right side member, turned on its side.
| 1 | Engine Management System Relay |
| 2 | High beam headlight relay |
| 3 | Low beam headlight relay |
| 4 | Starter relay |
| 5 | Main Ignition Circuit Relay |
| 6 | |
| 7 | |
| 8 | |
| 9 | Throttle Control Unit Relay |
| 10 | Fuel pump relay |
| 11 | Fog light relay |
| F1 | (10A) |
| F2 | (10A) Right headlight |
| F3 | (30A) Windshield wiper/washer |
| F4 | (10A) Left headlight |
| F5 | (20A) Rear window defroster |
| F6 | (15A) Right headlight |
| F7 | (15 A) |
| F8 | (15A) |
| F9 | (10A) Air Conditioner |
| F10 | (20A) Rear window defroster |
| F11 | (15A) Fuel pump |
| F12 | (10A) |
| F13 | (10A) Transmission Control |
| F14 | (10A) |
| F15 | — |
| F16 | (15A) Left headlight |
| F17 | (15A) Engine Management System |
| F18 | (15A) Fog lights |
| F19 | — |

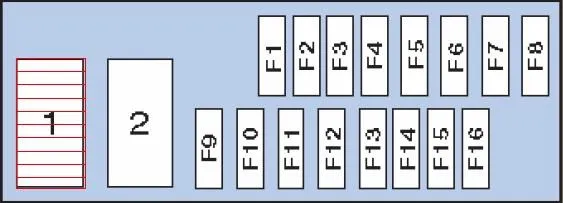

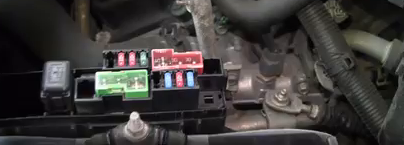

Fuse box near the battery
Location
| 1 | Headlight washer relay |
| 2 | Horn relay |
| F1 | — |
| F2 | (10A) Sound signal |
| F3 | (10A) Generator |
| F4 | (30A) Trailer electrical equipment socket |
| F5 | (50A) |
| F6 | — |
| F7 | (30A) ABS/ESP system |
| F8 | (40A) Headlight washers |
| F9 | (50A) ABS/ESP system |
| F10 | (40A) Cooling system fan motor |
| F11 | (40A) Cooling system fan motor |
| F12 | (40A) Ignition switch circuits |
| F13 | (10A) Rear door opening drive |
| F14 | (15A) Seat heater |
| F15 | (10A) 4WD control system |
| F16 | (15 A) |

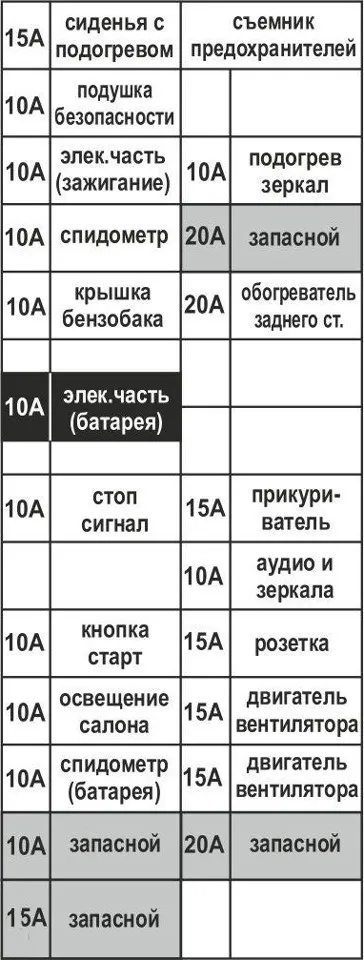

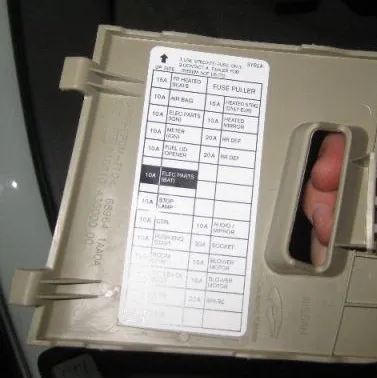

Block in the cabin
Check with your description! The cigarette lighter is controlled by a 15A fuse, seventh from the bottom, right row.
Blocks under the hood
