Honda CR-V 5th generation was produced in 2017, 2018, 2019, 2020, 2021, 2022. During this time, the model has been updated. In our material you will find a description of the fuses and relays of the Honda CRV 5 with block diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.
Cabin block

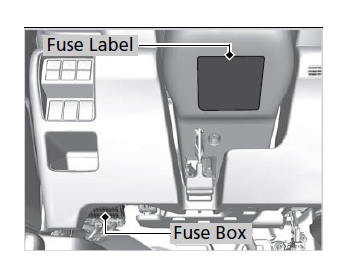

Inside the car, the main fuse box is located under the dashboard on the driver’s side. The current diagram will be located nearby, under the steering wheel.

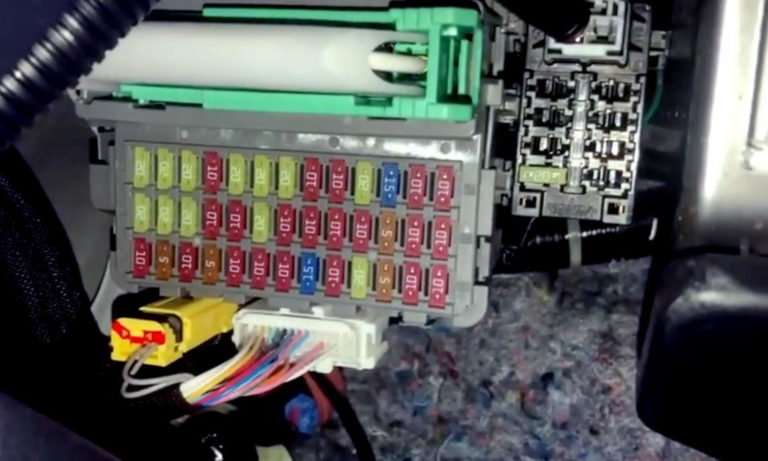

The block itself will look something like this.

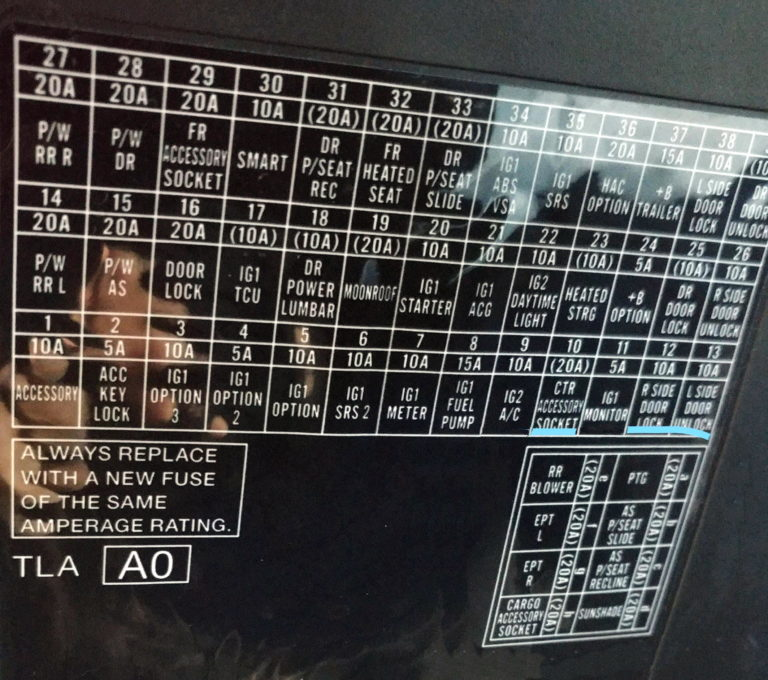

Scheme with purpose
Description
| 1 | 10A Accessory |
| 2 | 5A Castle |
| 3 | 10A Option |
| 4 | 5A Option 2 (with intelligent entry system) |
| 4 | 10A Transmission (without intelligent entry system) |
| 5 | 10A Option |
| 6 | 10A SRS indicator |
| 7 | 10A Devices |
| 8 | 15A Fuel pump |
| 9 | 10A air conditioner |
| 10 | 20A Accessory socket / cigarette lighter (center console) |
| 11 | 5A Engine control |
| 12 | 10A Passenger door lock |
| 13 | 10A Driver’s side door lock |
| 14 | 20A Driver’s side rear window regulator |
| 15 | 10A Front passenger window regulator |
| 16 | 20A Lock |
| 17 | 10A Transmission (with intelligent entry system) |
| 17 | 5A Option 2 (without smart entry system) |
| 18 | 10A Front driver’s support (optional) |
| 19 | 20A Sunroof (optional) |
| 20 | 10A Starter |
| 21 | 10A AGC |
| 22 | 10A Daytime running light |
| 23 | 10A Heated steering wheel (option) |
| 24 | 5A Option |
| 25 | 10A Driver’s door lock |
| 26 | 10A Passenger side door unlocking |
| 27 | 20A Rear passenger window regulator |
| 28 | 20A Driver’s window regulator |
| 29 | 20A Front accessory socket (cigarette lighter) |
| 30 | 10A Smart Entry (with Smart Entry system) |
| 30 | 5A STS (without intelligent access) |
| 31 | 20A Driver’s seat with electric tilt (option) |
| 32 | 20A Heated front seat (option) |
| 33 | 20A Electric sliding driver’s seat (option) |
| 34 | 10A ABS/VSA |
| 35 | 10A SRS |
| 36 | 20A HAC (optional) |
| 37 | 15A Trailer (optional) |
| 38 | 10A Driver’s side door lock |
| 39 | 10A Driver’s door unlock |
| a | 20A Electric tailgate closer (option) |
| b | 20A Electric sliding passenger seat (option) |
| c | 20A Passenger seat with electric tilt (option) |
| d | 20A Panoramic blind motor |
| and | 20A Rear fan |
| f | 20A EPT L |
| g | 20A EPT R |
| h | 20A Accessory socket (luggage compartment) |
Fuses 10 and 29 are responsible for the operation of cigarette lighters.
Block under the hood

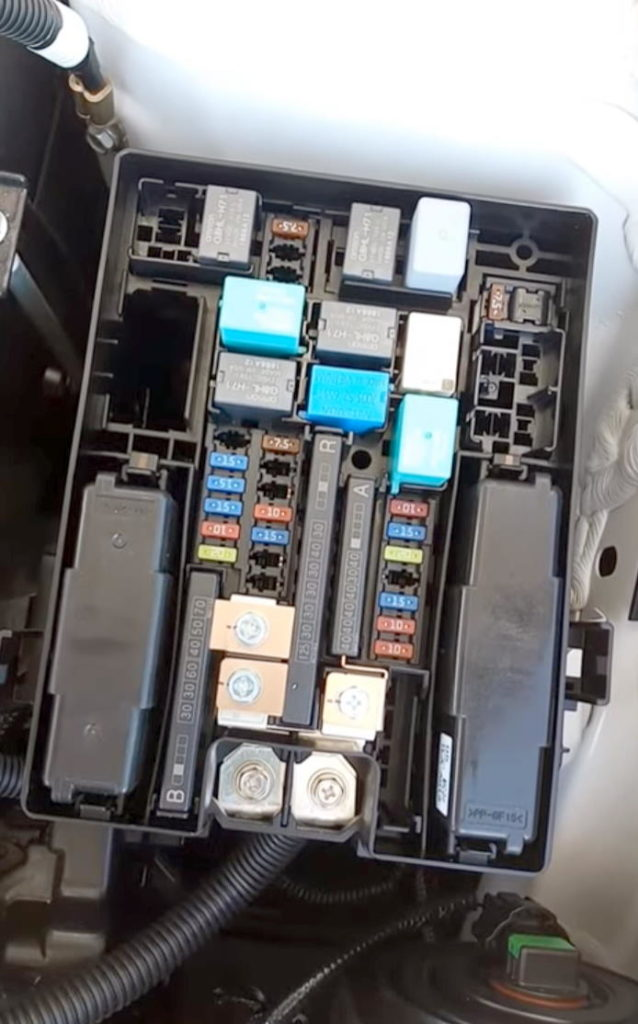

Under the hood, on the left side, next to the battery, is the main unit with fuses and relays.

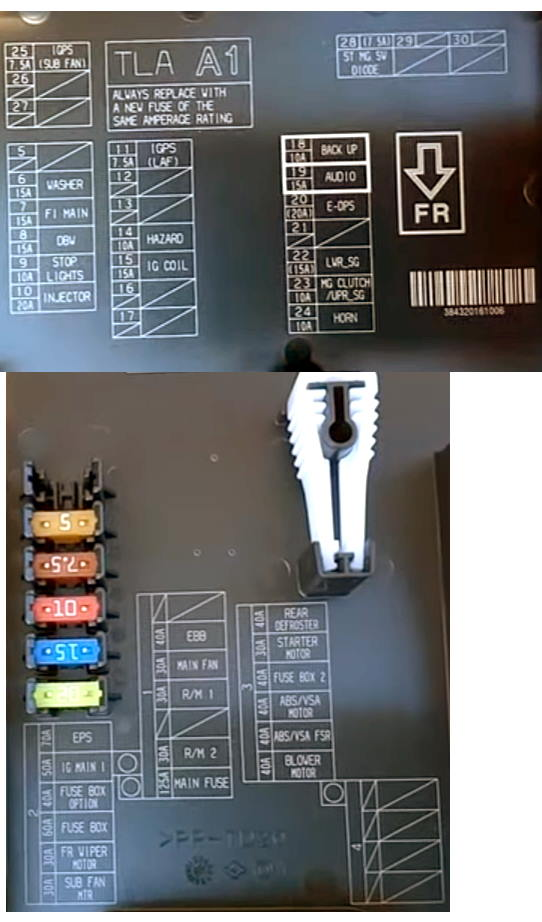

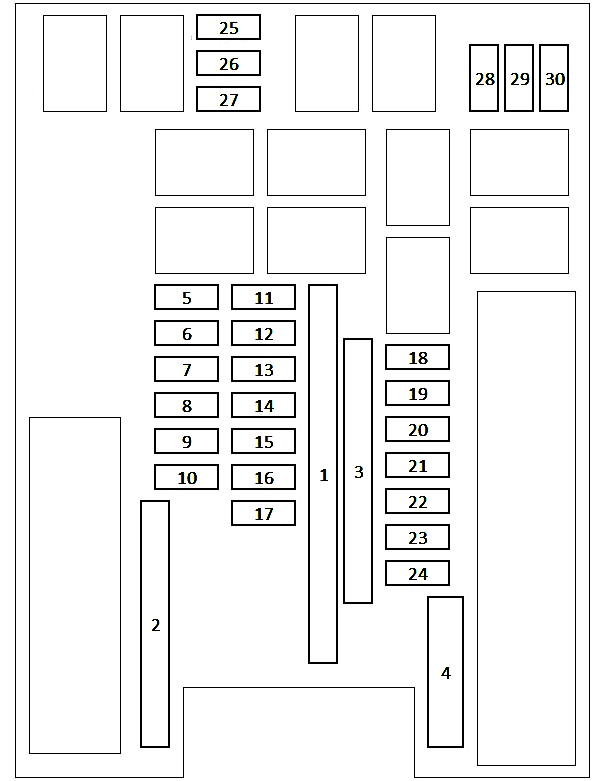

Example of a circuit from the block cover
Transcript
| 1 | 30A Audio AMP (optional) / 40A OP BLOCK 2 |
| 1 | Not used / 40A ESB |
| 1 | 40A Electric brake booster / ABS/VSA FSR |
| 1 | 30A Main fan motor |
| 1 | 30A Relay Module 1 |
| 1 | 30A IG Main 2 (with intelligent entry system) |
| 1 | Not used (without smart entry system) |
| 1 | 30A Relay Module 2 |
| 1 | 125/150A Battery |
| 2 | 70А EPS |
| 2 | Ignition Main 1 ((30 A (with smart access system) / 50 A (without smart access system))) |
| 2 | 40A Fuse box (optional) / ENGINE ABS/VSA |
| 2 | 60A Fuse block 1 |
| 2 | 30A Front wiper motor |
| 2 | 30A Auxiliary fan motor |
| 3 | 40A Rear defroster |
| 3 | 30A Starter |
| 3 | 40A Fuse Block 2 |
| 3 | 40A ABS/VSA Engine |
| 3 | 40A ABS/VCA FSR |
| 3 | 40A Fan motor |
| 4 | 40A Additional unit 1 (optional) |
| 4 | Not used (Canadian models without power seat). (without smart entry system) |
| 4 | 40A Additional unit 2 (optional) |
| 4 | Not used (without smart entry system) |
| 4 | 40A Power rear door (option) |
| 4 | Not used (Canadian models without power seat). (without smart entry system) |
| 5 | 7.5A VB ACT (with intelligent entry system) |
| 5 | Not used (without smart entry system) |
| 6 | 15A Washer |
| 7 | 15A FI Main |
| 8 | 15A FI Sub (with intelligent entry system) / DBW (without intelligent entry system) |
| 9 | 10A Stop signals |
| 10 | 20A Injector |
| 11 | 7.5А LAF |
| 12 | 10A FI ECU (with intelligent entry system) |
| 12 | Not used (without smart entry system) |
| 13 | 15A Front wiper de-icer (Canadian models) |
| 13 | Not used (USA models) |
| 14 | 10A Emergency alarm |
| 15 | 15A Ignition coil |
| 16 | 15A Transmission (with intelligent entry system) |
| 16 | Not used (without smart entry system) |
| 17 | Not used |
| 18 | 10A Backup |
| 19 | 15A Audio |
| 20 | 20A E-DPS (optional) |
| 21 | 20A Heated rear seat (Canadian models with heated rear seat) |
| 21 | Not used (models without rear seat heating) |
| 22 | 15A Front fog lights (option) (USA and Canada models with power seat) |
| 22 | 15A Lower curtain grille (Canada models without power seat) |
| 23 | 10A Air conditioning compressor/upper damper grille |
| 24 | 10A Signal |
| 25 | 7.5A Cooling fan |
| 26 | Not used |
| 27 | Not used |
| 28 | Not used (with smart entry system) |
| 28 | 7.5A Magnetic switch ST (without smart access) |
| 29 | Not used |
| 30 | Not used |
