Fuses and relays Chrysler PT Cruiser (2000-2005)

This material provides a detailed look at the fuse box diagrams for the Chrysler PT Cruiser (first generation): 2000, 2001, 2002, 2003, 2004, 2005 .

Fuse #20 in the engine compartment block is responsible for the socket and cigarette lighter.

In the engine compartment

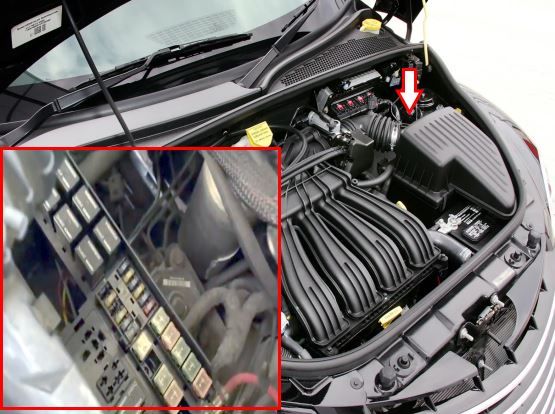

The fuse box is located next to the air filter, behind the protective cover.

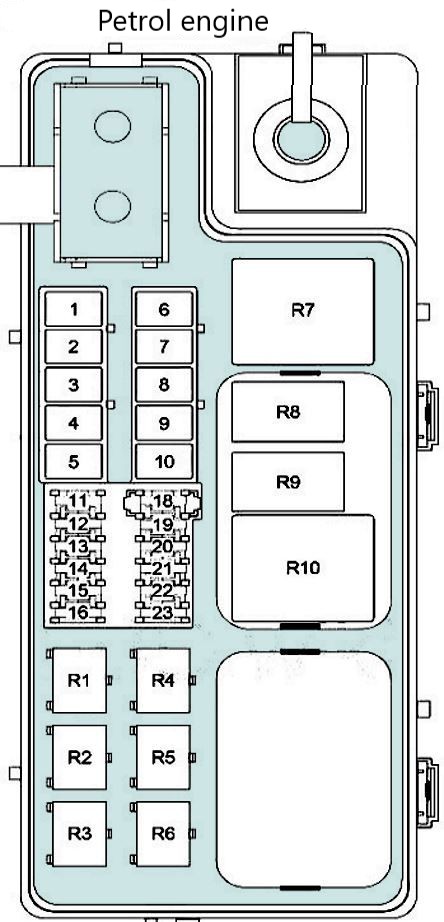

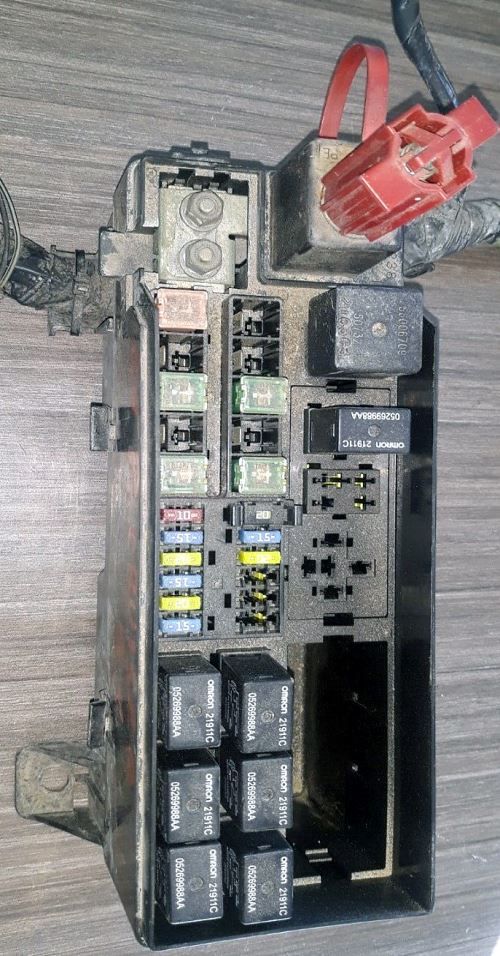

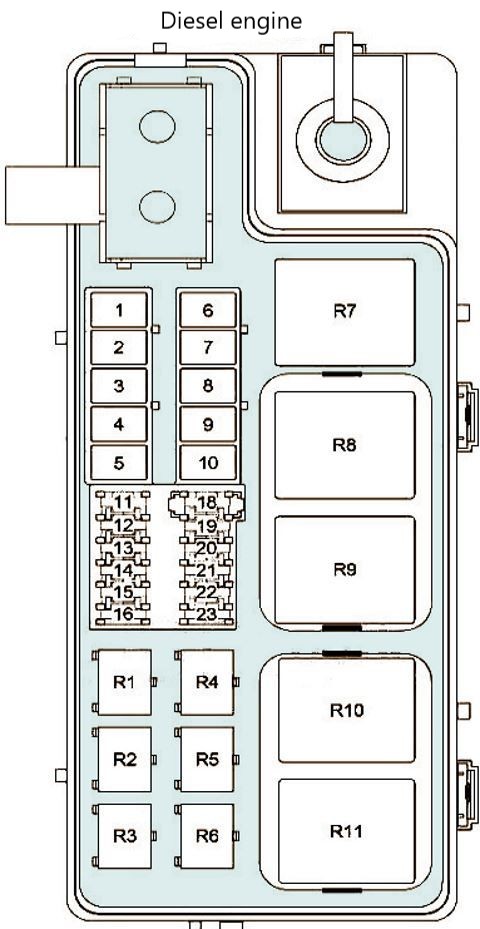

General view (petrol engine).

No.	Description	Current, A
R1	Horn relay
R2	Fuel pump relay
R3	Main relay – automatic shutdown
R4	Starter relay
R5	Air Conditioning Compressor Clutch Relay
R6	except 2.4 Turbo: (High Speed) Cooling Fan
R7	(Low Speed) Cooling Fan Relay
R8	Petrol: Gearbox Control
	Diesel: Cabin Heater (#2)
R9	Gasoline: empty
	Diesel: Cabin Heater (#1)
R10	Gasoline: empty
	Diesel: Glow Plug Relay
	2.4 Turbo: Cooling Fan (High Speed)
R11	Diesel: Fuel heater
1	Ignition switch –  transmission control module, gasoline – powertrain control module or diesel – engine control module, fuses #9-16 in the passenger compartment; Starter relay	30 A
2	ABS module	40 A
3	Ignition switch –  fuses #5, #6, #7, #CB2 of the passenger compartment block	40 A
4	Fuses #4, #17 in the passenger compartment block; Seat heating relay	40/20/30 A
5	except 2.4 Turbo: Cooling Fan (High Speed), Cooling Fan (Low Speed)	40 A
	2.4 Turbo: Cooling Fan (Low Speed)
6	Power Seat Switch	20 A
	2.4 Turbo: Cooling Fan (High Speed)	50 A
7	ABS module	20 / 30 A
8	Fuse #18 in the passenger compartment block, rear window heater	40 A
9	Diesel: Cabin Heater Relay #1	40 A
10	Fuses #1, #2, #3, #СВ1 in the passenger compartment block	40 A
11	Air Conditioning Compressor Clutch Relay	10 A
12	ABS, brake light switch, center brake light, brake lights; Petrol: powertrain control module; Diesel: engine control module	15 A
13	Petrol: Main Relay (Automatic Shutdown) –  Alternator, O2 Sensor, Noise Suppressor, Ignition Coils, Fuel Injectors, 2.4 Turbo: Cooling Fan Valve & Motor; PCM, Fuel Pump Relay, Data Link Connector (DLC)	20 A
	Diesel: Main Relay (Automatic Shutdown) –  Cabin Heater #1 & #2, Fuel Heater Relay, A/C Compressor Clutch Relay, Glow Plug Relay, Cooling Fan Relay (High Speed), Wastegate Valve, Swirl Valve, Cooling Fan (Low Speed), EGR Valve, Fuel Pump Relay, Camshaft Position Sensor, Alternator, Fuel Pressure Valve, MAF Sensor; Data Link Connector (DLC), Engine Control Module
14	Beep	15 A
15	Gearbox Control – Relay & Module, Pressure Sensor Assembly, Gearbox Valve	20 A
16	Headlights – high beam	15 A
17	Empty	–
18	Reading lights, radio, intrusion sensor, dome light, table lights, trunk light, overhead console module, immobilizer system with Sentry key, power mirror switch, instrument cluster, hazard warning lights, remote keyless entry control unit	15 A
	Fuse #13 in the passenger compartment, Radio, Alarm	20 A
19	Multifunctional switch	15 A
20	Front and rear sockets, ignition switch, cigarette lighter fuse Chrysler PT Cruiser	20 A
21	Diesel: Pump Relay – Fuel Pump Module, Fuel Heater Relay, PCV Heater	15 A
22	Headlight Switch –  Instrument Cluster and Fog Lights	20 A
23	Empty	–

In the salon

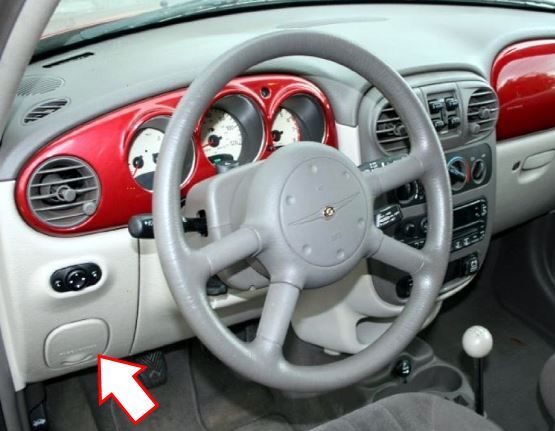

Located on the left side of the dashboard, behind the cover.

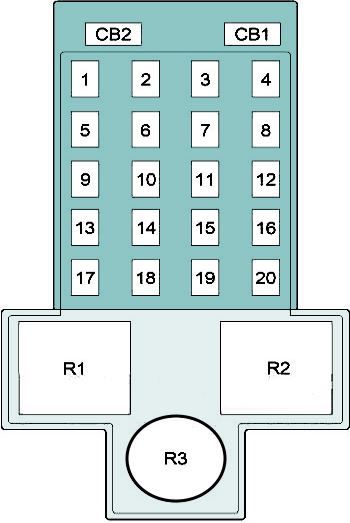

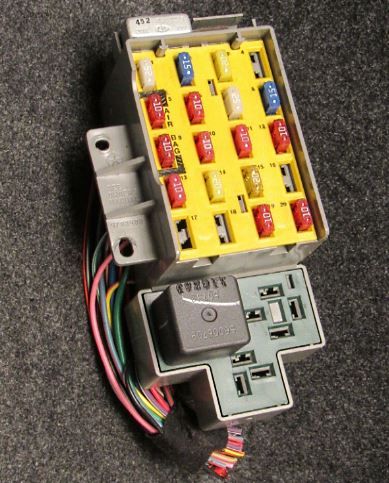

General view.

No.	Description	Current, A
R1	Heated seats (right hand drive) / headlights (left hand drive)	–
R2	Heated seats (LHD) / Headlights (RHD)	–
R3	Empty	–
CB1	Headlight switch (before 2001)	25 A
CB2	Convertible: Driver and Passenger Window Regulator Module, Front Window Regulator Switch	20 A
1	Up to 2001: Remote Keyless Entry Module (Multi-Function Switch, Instrument Cluster, Radio, Tail & Brake Light, Door Lock Switch, Power Mirror Switch, Front Parking Light/Turn Signal Lights, Left/Right Lapel Module, Rear Turn Signal Lights, License Plate Light)	10 A
	?: Headlight switch, fuses #8, #19, #20, headlight relay, keyless entry module, instrument cluster, fuse #16 in the underhood block.	25 A
2	Headlight switch (door lock switch, remote keyless entry module, instrument cluster, front parking lamps and turn signals, license plate lamp, tail lamp and brake lamp, power mirror switch)	15 A
3	Remote Keyless Entry Module (Instrument Cluster, Multifunction Switch, Radio, Rear Brake Light, Door Lock Switch, Power Mirror Switch, Left & Right Lapel Module, Front Turn Signal & Parking Light, Rear Turn Signal Light, License Plate Light)	20 A
4	?: Power Seat Switch; Up to 2001: Driver Seat Heating Module, Driver Seat Heating Switch	20 A
5	Airbag Control Module: Supplemental Restraint System Controller	10 A
6	Head Seat Relay, Rear Window Defogger Switch; Manual Transmission: Reverse Light Switch; Automatic Transmission: Transmission Range Sensor	10 A
7	Fan motor	25 A
8	?: Headlight switch –  front fog lights, instrument cluster before 2001: Headlight switch –  front fog lights, instrument cluster  , headlight relay –  high beam	15 A
9	Airbag control module: SRS controller, left or right side impact airbag control unit	10 A
10	Remote keyless entry system, instrument cluster, immobilizer Sentry Key	10 A
11	ABS module; Petrol  : Powertrain control module, fuel pump relay; Diesel  : Engine control module;  1.6L  : Evaporative emission control system/purge valve; 2.4L Turbo  : Throttle inlet pressure valve	10 A
12	A/C Compressor Clutch Relay, Leak Detection Pump; Except 2.4L Turbo : Cooling Fan Relay (High Speed), Cooling Fan Relay (Low Speed); Automatic Transmission : Brake Shift Interlock Valve, Transmission Control Module	10 A
13	pre 2001: Radio ?: Intrusion Sensor, Interior Lamp, Power Mirror Switch, Vanity Lamps, Overhead Console Module, Instrument Cluster, Trunk Lamp, Sentry Key Immobilizer System, Keyless Entry Module	10 A
14	Convertible: Driver and passenger power windows, Compass system, radio, temperature mirror module; ?: Reading lights, Radio, Overhead console module, Satellite radio, Sunroof, Rearview mirror, Antenna, Hands-free system; up to 2001: Overhead console module, Sunroof	20 A
15	Multi-function switch, front wiper motor and wiper/washer switch, rear wiper switch and motor	20 A
16	?: Powertrain Control Module, Instrument Cluster, Autostick Switch	10 A
17	up to 2001: heated passenger seat: module and switch	20 A
	?: Seat Heater Relay – Seat Heater Module, Driver and Passenger Seat Heater Switch	15 A
18	Heated mirror	10 A
19	Right low beam headlight	10 A
20	Left and right loop module, headlight adjustment switch, left low beam headlight	10 A
