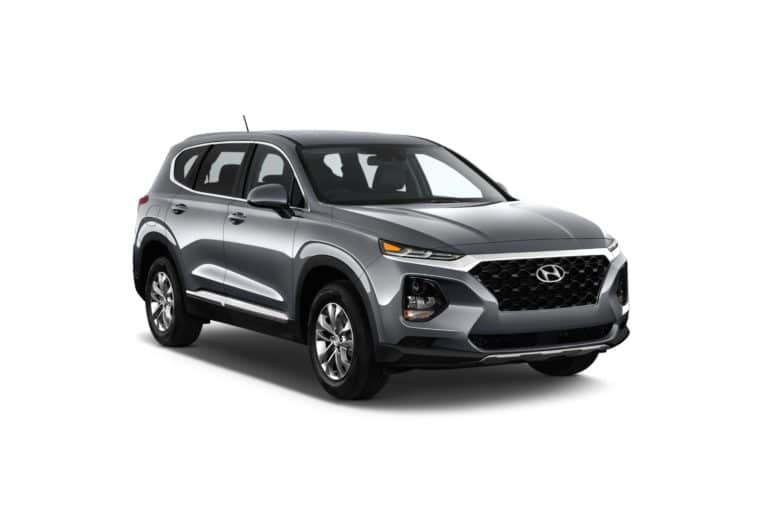

Hyundai Santa Fe 4th generation was introduced in 2018. It was produced in 2019, 2020, 2021 and to the present. In this publication you will find a description of the fuses and relays of the Hyundai Santa Fe 4th generation with block diagrams and their locations. We note the cigarette lighter fuse.

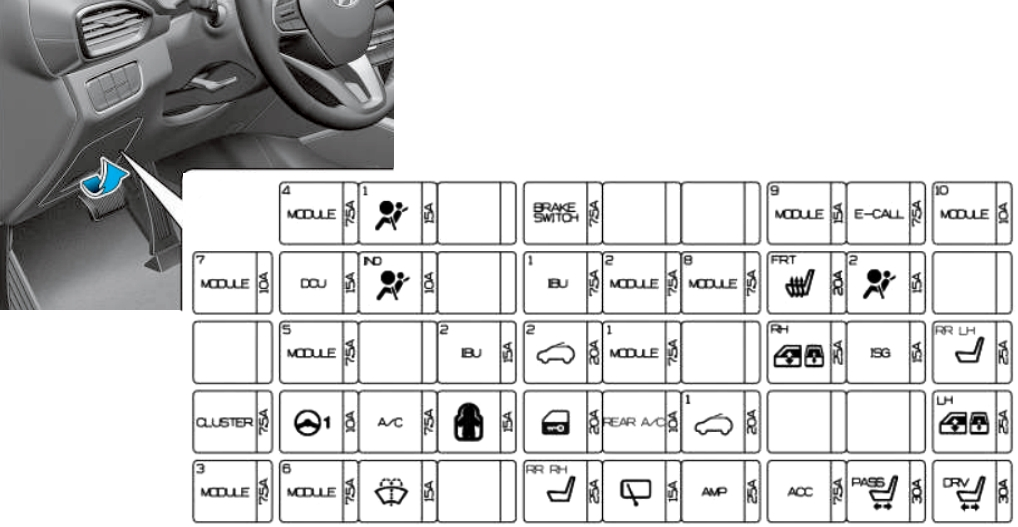

Cabin block

It is located under the driver’s panel.

Scheme

Description

MODULE 47.5A Data connector, brake light switch, driver door module
AIR BAG 115A SRS control module, occupant detection sensor
BRAKE SWITCH7.5A IBU, brake light switch
MODULE 915A Audio, AV and Navigation Head Unit, Instrument Cluster, Air Conditioning Control Module, Low Voltage DC Converter (Audio/Amplifier), Head-Up Display, Rain Sensor, Rear Occupant Alert (ROA) Sensor, Driver IMS Control Module, Driver Door Module, Driver/Passenger Power Outside Mirror, Power Tailgate Module
MODULE 1010A Data transfer connector, left/right blind spot warning unit, front wireless charger, rear air conditioning control module, electro chrome mirror
AIR BAG IND10A Air conditioning control module, instrument cluster
MOTHER 17.5A MOTHER
MODULE 27.5A Surround view monitor, AC inverter output, AC inverter, left/right rear seat heater, front seat ventilation control module, front seat heater control module
MODULE 87.5A Hazard warning switch, key solenoid, driver/passenger smart key exterior handle
S/HEATER FRT20A Front air ventilation control module, front seat heater control module
AIR BAG 215A SRS control module
MODULE 57.5A Lane Departure Warning Unit, Emergency Landing Switch, IBU, Console Switch, ATM Gear Lever Indicator, All-Wheel Drive ECU, Sport Mode Switch
MOTHER 215A IBU, Ignition switch
SUNROOF 220A Panoramic sunroof
MODULE 17.5A MOTHER
P/WINDOW RH25A Passenger safety power window module, passenger power window switch, rear right power window switch
ISG15A Low Voltage DC/DC Converter (AMP), Instrument Cluster, Air Conditioning Control Module, Audio/Video and Navigation Head-Up Display
RR SEAT (LH)25A Rear left seat heater, rear seat folding switch, left
CLUSTER7.5A Instrument cluster, head-up display
MDPS10A MDPS Block
A/C7.5A E/R junction block (fan relay), SUB junction block (heater PTC relay 1/2), air conditioning control module, cluster ionizer
CHILD LOCK15A ICM relay block (child lock/unlock relay)
DOOR LOCK20A Door lock relay, door unlock relay, lift door relay, two-turn unlock relay
REAR A/C10A Rear air conditioning control module, rear fan motor, air conditioning control module
SUNROOF 120A Panoramic sunroof
P/WINDOW LH25A Driver’s safety power window module, rear window switch, left
MODULE 37.5A MOTHER
MODULE 67.5A Audio, Audio/Video and Navigation Head Unit, Low Voltage DC Converter (Audio/Amplifier), Air Conditioning Control Module, Electro Chrome Mirror, Center Lower Panel Switch, Driver IMS Control Module, Left/Right Rear Seat Heater, Front Air Ventilation Control Module, Front Seat Heater Control Module
WASHER15A Multifunction Switch
RR SEAT (RH)25A Rear right seat heating, rear seat folding switch, right
WIPER (REAR)15A Rear wiper relay, rear wiper motor
AMP25A AMP, low voltage DC-DC converter (AMP)
ACC7.5A Surround View Monitor, AMP, IBU, Front Wireless Charger, Front USB Charger, Low Voltage DC Converter (Audio/AMP), Audio, Audio/Video and Navigation Head Unit, Rear USB Charger, Left/Right
P/SEAT (PASS)30A Manual switch on passenger seat
P/SEAT (DRV)30A Driver IMS Control Module, Driver Seat Manual Switch

Blocks under the hood

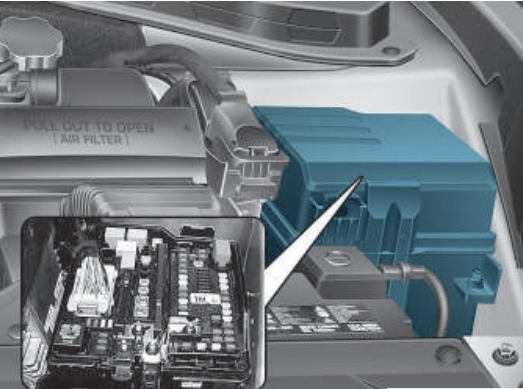

Main unit

Located in the right side of the engine compartment.

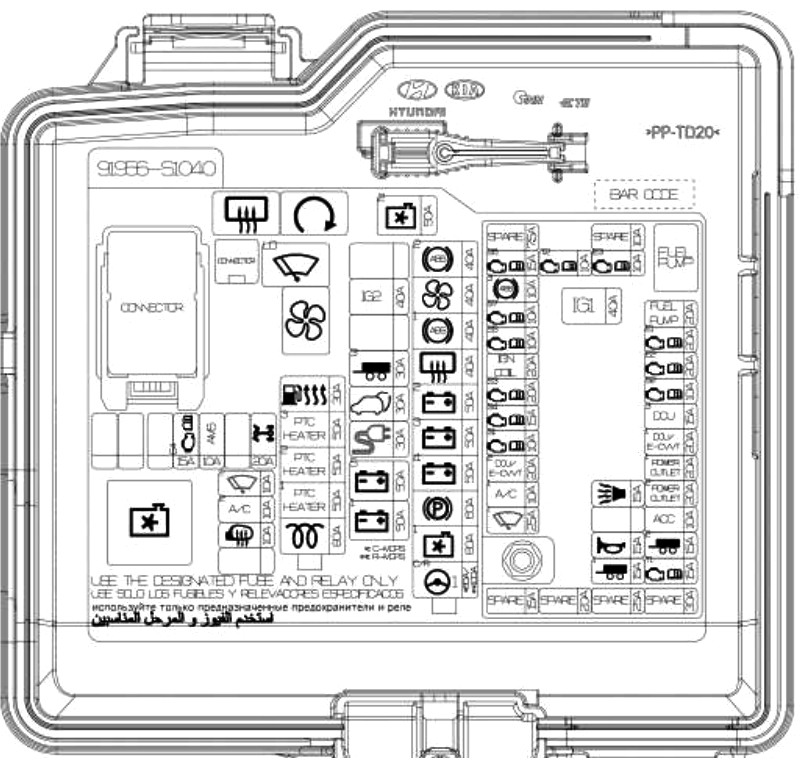

Marking

MDPS80A MDPS Block
EPB60A ESC Module
B+450A ICU Distribution Block (Fuse – MODULE 8, S/HEATER FRT, P/WINDOW RH, AMR SUNROOF)
B+350A ICU distribution block (fuse – P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS))
B+250A ICU Connection Unit (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15)
REAR HEATED40A Rear heater relay
ABS 140A ESC Module
BLOWER40A Fan Relay
ABS 240A ESC Module
PTC HEATER 150A SUB Junction Box (PTC Heater Relay 1)
PTC HEATER 250A SUB Junction Box (PTC Heater Relay 2)
B+150A ICU Connection Unit (IPS 1 / IPS 2 / IPS 3 / IPS 5 / IPS 6 / IPS 7, long / short-term load latching relay)
B+550A ICU Distribution Block (Fuse – DOOR LOCK, IBU 1, IBU 2, BRAKE SWITCH, CHILD LOCK, REAR SEAT (RIGHT), SUNROOF 2)
INVERTER30A AC Inverter Unit
POWER TAILGATE30A Power Tailgate Module
TRAILER 330A Trailer lamp
IG240A Start relay, ICU junction block (fuse – air conditioning, washer, wiper (REAR), MODULE 1, MODULE 2, REAR NUMBER)
OIL PUMP40A Electronic Oil Pump Module
COOLING FAN 250A Cooling fan relay
HEATED MIRROR10A Driver/passenger power exterior mirror, air conditioning control module
A/C 210A Air Conditioning Control Module
WIPER FRT 210A Wiper relay (LO), front wiper motor
ECU 415А PCM
AMS10A Battery Sensor
VACUUM PUMP20A Vacuum pump
4WD20A All Wheel Drive ECM
SENSOR 615A Electronic oil pump module, vacuum pump (2.0 T-GDI)
ABS 310A ESC Module
SENSOR 710A Smart Radar Cruise Control
SENSOR 510A Adsorber closing valve, E/R connection block (cooling fan relay)
IGN COIL20A Ignition Coil #1/#2/#3/#4
SENSOR 110A Fuel pump relay, adjustable intake solenoid valve, purge control solenoid valve, oil control valve
E-CVVT 220A PCM
A/C 110A Air conditioner relay
WIPER FRT 125A Wiper main relay
TCU 210A Transmission range switch
ECU 310А PCM
B/ALARM HORN15A Burglar Alarm Horn Relay, Horn Relay
HORN15A Horn Relay
FUEL PUMP20A Fuel pump relay
ECU 120A PCM
SENSOR 210A A/C compressor relay, oxygen sensor (up/down)
E-CVVT 120A PCM
POWER OUTLET 120A Front socket
POWER OUTLET 220A Rear socket
ACC10A ICU Distribution Block (Fuse – ACC)
TCU 115А PCM
IG 140A PDM Relay (IG1)

The cigarette lighter and auxiliary socket fuses are marked POWER OUTLET.

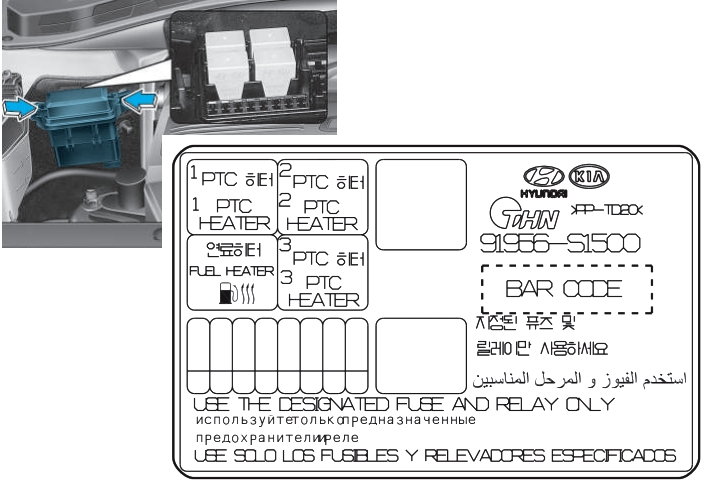

Additional unit

Installed on diesel models.

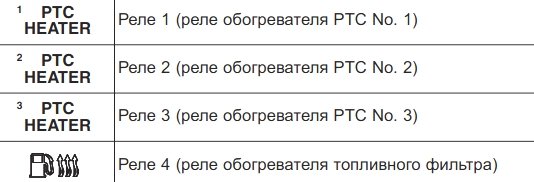

Scheme
