Renault Clio 4th generation was produced in 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 in hatchback and station wagon body (Renault Clio Sports Tourer) with both petrol and diesel engines. During this time, the model was updated. In this post, we will present a description of the fuses and relays of Renault Clio 4 with block diagrams, their locations and photo examples of execution. We will highlight the fuse responsible for the cigarette lighter.
The purpose of the fuses and relays may differ from that shown and depends on the year of manufacture and the level of electrical equipment of your car.
Block in the cabin

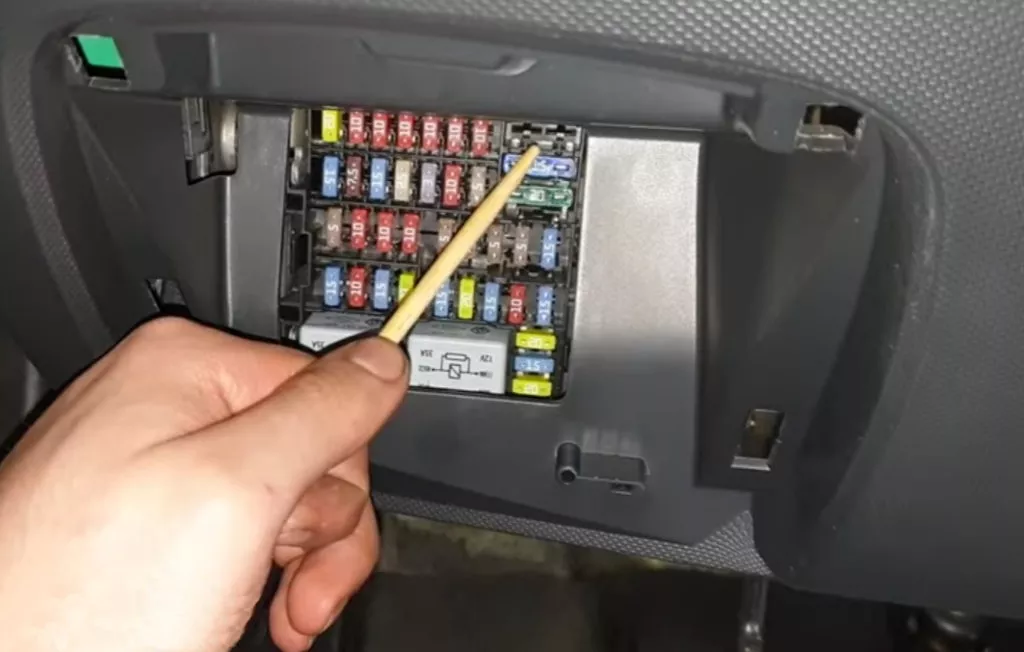

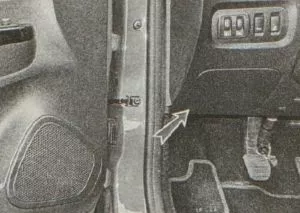

In the car’s interior, the fuse and relay box is located under the instrument panel on the left side behind a protective cover. To access it, you need to remove the protective cover.

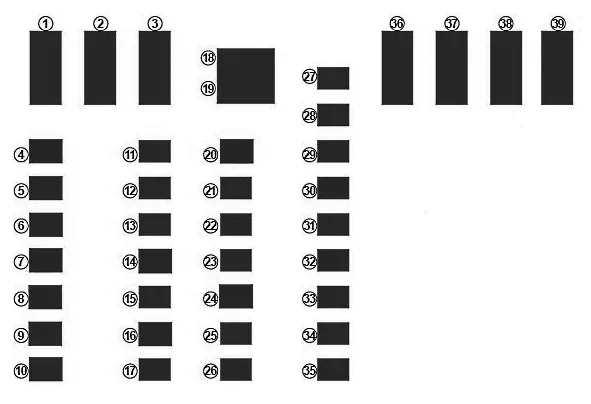

The block itself will look something like this.
| No. | Description |
|---|---|
| 1 | Windscreen wiper, steering column switches |
| 2 | Front left daytime running lights, right side lights, left high beam headlight, right low beam headlight, front fog lights |
| 3 | Interior lighting, number plate lighting, fog lights |
| 4 | Right side lights, rear side lights |
| 5 | Left side lights, front side lights |
| 6 | Low beam, front right daytime running light, left side lights, right high beam |
| 7 | Low beam headlight |
| 8 | Right high beam headlight |
| 9 | Left high beam headlight, steering |
| 10 | Steering column controls, speed limiter/cruise control, interior rearview mirror, seat belt warning module, parking sensor, auxiliary heating, headlight range adjustment, rear window defroster |
| 11 | Central door lock, rain and light sensor, steering wheel angle sensor, car start button, electric rear windows |
| 12 | Interior light, trunk light, air conditioning, electric windows |
| 13 | ABS-ESC, brake switch |
| 14 | Steering column controls, brake switch |
| 15 | Beep |
| 16 | Rear fog lights |
| 17 | Cigarette lighter fuse |
| 18 | Radio and multimedia, diagnostic connector |
| 19 | Power steering |
| 20 | GPL |
| 21 | Airbag, electric steering column lock |
| 22 | Injection, start, fuel module (fuel pump fuse Renault Clio 4) |
| 23 | Brake switch, rear window wiper, interior ECU |
| 24 | Daytime running lights |
| 25 | Electric headlight adjustment, rear window, heating, parking sensor, cruise control, car radio, heated seats, seat belt warning |
| 26 | Automatic transmission |
| 27 | Reversing light, rear wiper, interior ECU, automatic transmission |
| 28 | Dashboard |
| 29 | Steering Column Controls, Alarm |
| 30 | Air conditioning, steering column controls, energy ECU |
| 31 | Windscreen wipers, rear reversing lights, energy control unit |
| 32 | Central locking of opening elements |
| 33 | Direction indicators |
| 34 | Interior ECU, hands-free access |
| 35 | interior lighting, electric windows, air conditioning, electric rear view mirrors, brake lights, ABS system, ECU |
| 36 | Towbar connector – depends on the configuration |
| 37 | Heated seats – depends on the configuration |
| 38 | Rear window heating – depends on the configuration |
| 39 | Electric rear view mirrors – depends on the configuration |
Fuse 17 to 15A is responsible for the operation of the cigarette lighter.
Some relays, such as window lifters, may be installed at the bottom.
Block under the hood

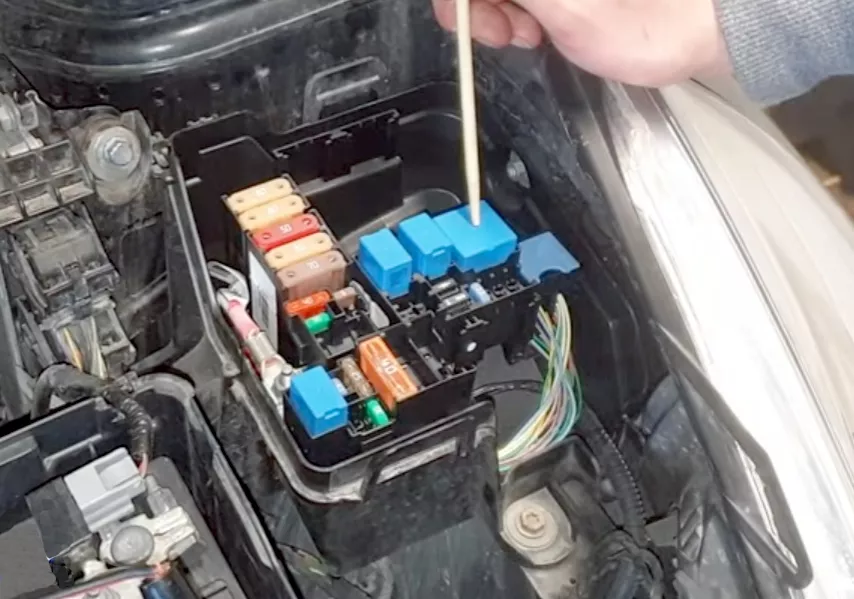

In the engine compartment, under the hood, there is a block with fuses and relays, installed on the left side and also covered with a protective cover.

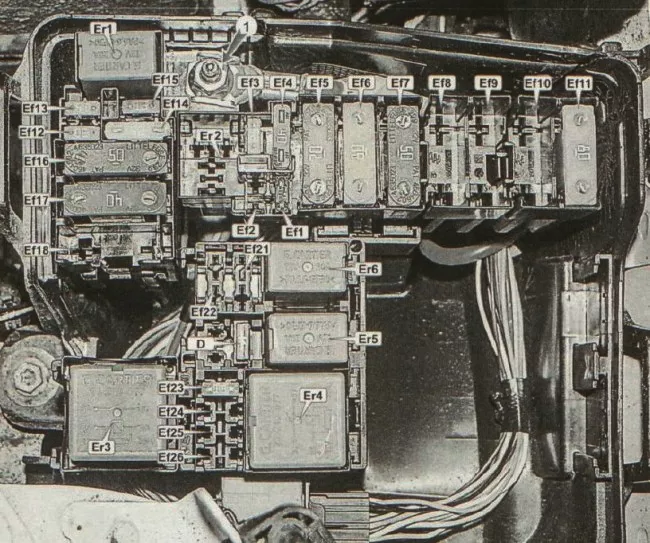

| No. | A | Designation of fuses |
|---|---|---|
| Ef1 | 5A | Washer nozzle heating 7.5A Electrical equipment control unit |
| Ef2 | Reserve | |
| Ef3 | 25/30A | ABS/ESP Electronic Stability Program Control Unit |
| Ef4 | 40A | Rear window defroster, exterior mirror defrosters, fuse circuits F38 and F47 |
| Ef5 | 20A/70A | Passenger compartment fuse and relay box, fuse circuits F5/ F23/ F24/ F25/ F26/ F27/ F42/ F44 |
| Ef6 | 80A | Fuse and relay box in the passenger compartment, Heater heating element relay |
| Ef7 | 50A | ABS/ESP stability control unit / 50A Power supply for fuse F7, F9 in the passenger compartment unit |
| Ef8 | Reserve | |
| Ef9 | 80A | Additional heater |
| Ef10 | 40A | Heated windshield, right side |
| Ef11 | 40A | Heated windshield, left side |
| Ef12 | 30A | Starter |
| Ef13 | 15A | Automatic transmission control unit |
| Ef14 | 25A | Injection ECU and engine circuit protection, power supply to fuse F5, engine injectors, fuel gauge, fuel pump, ignition coils |
| Ef15 | 15A | A/C Compressor Clutch Relay, A/C Compressor Clutch |
| Ef16 | 50A | Electric fan of the cooling system |
| Ef17 | 40A | Electric fan for cooling the working fluid of automatic transmission |
| Ef18 | 80A | Electric power steering pump |
| Ef19 | Reserve | |
| Ef20 | Reserve | |
| Ef21 | Reserve | |
| Ef22 | Reserve | |
| Ef23 | 15A | Engine management system, Fan control unit, Air conditioning compressor relay control. |
| Ef24 | Reserve | |
| Ef25 | Reserve | |
| Ef26 | Reserve | |
| D | AC Compressor Clutch Diode | |
| Relay | ||
| Er1 | Starter relay | |
| Er1 | Reverse light relay | |
| Er2 | Security alarm siren relay | |
| Er3 | Starter relay | |
| Er3 | Cooling Fan Relay | |
| Er3 | Reverse light relay | |
| Er4 | Engine Management System Main Relay | |
| Er5 | Air conditioning compressor electromagnetic clutch relay | |
| Er6 | Fuel pump relay | |
