The 2nd generation Hyundai i30 was produced in 2012, 2013, 2014, 2015, 2016 and 2017. In this material you will find a description of the fuses and relays of the second generation Hyundai i30 with block diagrams and photo examples of their implementation. Let’s highlight the cigarette lighter fuse.

The purpose of the fuses and relays may differ from the one presented. Check the designations with your diagrams on the back of the protective cover. This arrangement of the blocks is also typical for the 3rd generation Hyundai i30.

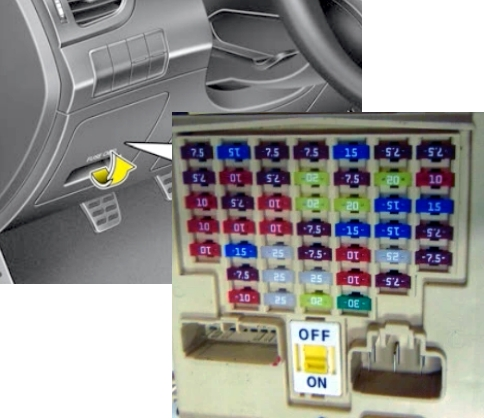

Cabin block

Located under the dashboard on the driver’s side.

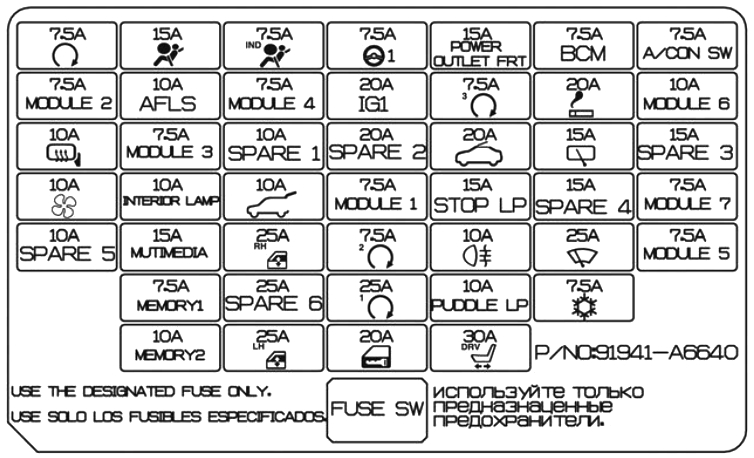

Description

CIGAR LIGHT20A Cigarette lighter on console, rear power outlet
MODULE 17.5A Sport mode switch, power exterior mirror switch
MODULE 47.5A Gear shift lever indicator, multi-function diagnostic connector, electro chrome rearview mirror, air conditioning ECU, headlight range control actuator (left/right side), water sensor in fuel filter (D4FD)
MODULE 37.5A Instrument cluster, VCM unit, tire pressure monitoring unit, audio system, driver/passenger seat belt warning unit
POWER OUTLET15A Front power socket
HTD MIRR10A Driver/passenger side power exterior mirror, air conditioning ECU, ECU
WIPER FRT25A ICM relay block (rain sensor relay), multifunction switch, fuse and relay box in the engine compartment (relay 7), windshield wiper motor
A/CON7.5A air conditioning ECU, fuse box and relay in the engine compartment (relay 4)
P/WDW LH25A Electric window regulator Left
TAIL GATE10A Trunk lid, rear view camera opening drive
P/SEAT DRV30A Driver’s manual switch
MODULE27.5A Lane Keeping Assist Module, ICM Relay Block (NAS Relay), Electric Parking Brake Module, Rear View Camera Module
WIPER RR15A Rear wiper relay, rear wiper motor, multifunction switch
STOP LAMP15A Brake light switch, ICM relay block (NAS relay)
P/WDW RH25A Electric window regulator Right
PDM 27.5A Electronic key control unit, start and stop button
MODULE 57.5A EMS unit (headlight washer relay), ionizer unit, panoramic sunroof, DC converter, DSL unit (PTK relay), fuse and relay box in the engine compartment (relay), driver/passenger seat heating module
IG120A Fuse and relay box in the engine compartment (fuse F)
MODULE 610A Power exterior mirror switch, audio system, audio-visual head unit with navigation, digital clock, DC converter
MDPS7.5A EPS ECU
DR LOCK20A Door lock/unlock relay, ICM relay block (dead lock relay), passenger/driver side door lock actuator, fuel filler flap actuator, left/right door lock actuator
INTERIOR LAMP10A Glove box lamp, left/right illumination lamp, overhead console lamp assembly, interior lighting lamp, trunk lighting lamp, door opening sensor
MULTIMEDIA15A Audio system, audiovisual head unit with navigation, DC converter (audio system)
A/BAG15A SRS ECU
MEMORY 17.5A Ultrasonic Security Alarm Sensor
A/BAG IND7.5A Instrument cluster
PDM 37.5A electronic key ECU, ultrasonic alarm sensor
MEMORY 210A Power exterior mirror switch, tire pressure monitoring module, VCM, automatic lighting sensor, instrument cluster, on-board self-diagnosis system, digital clock, air conditioning ECU
PDM 125A electronic key ECU
START7.5A Without start button: fuse and relay box in the engine compartment (relay), ignition switch, transmission range selector with start button: EBUD/RSM, transmission range selector
SUNROOF20A Panoramic sunroof
BCM7.5A VSM, electronic key ECU
A/CON SW7.5A air conditioning ECU
AFL10A Adaptive Headlight Correction System ECU
MODULE 77.5A VSM, electronic key ECU
FOG LAMP RR10A Rear fog light
PUDDLE LAMP10A Driver/passenger power exterior mirror

The cigarette lighter fuse is marked as cigarettes or CIGAR, POWER OUTLET – additional sockets.

Blocks under the hood

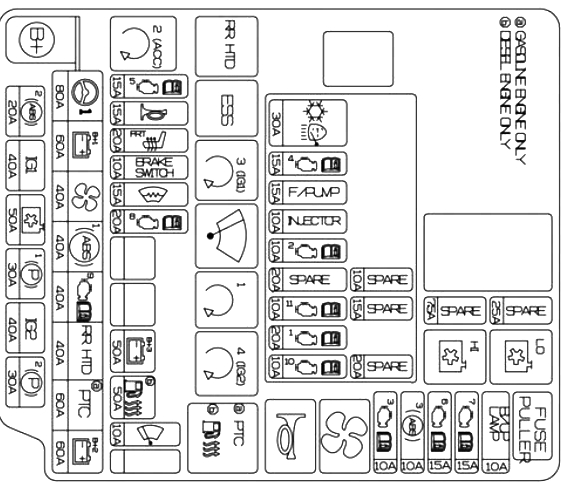

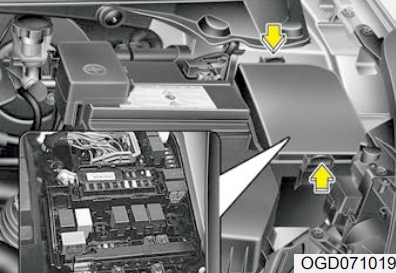

Main unit

Located next to the battery.

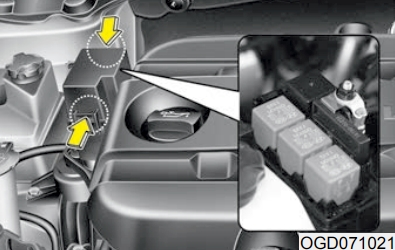

Additional unit

Installed on models with a diesel engine.

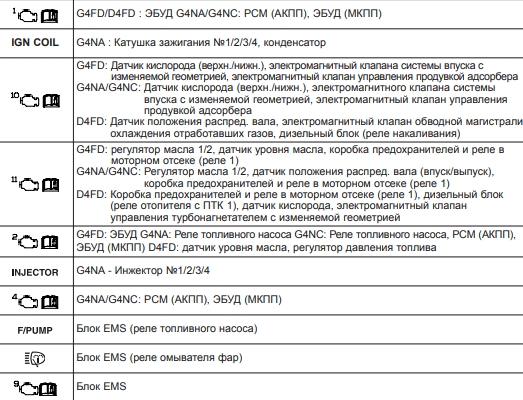

Transcript

  • 80A – glow plugs
  • RTS – additional heater/preheater
