Hyundai Sonata 6 (YF) of the 6th generation was produced in 2010, 2011, 2012, 2013 and 2014. In this publication you will find a description of the fuses and relays of the Hyundai Sonata 6 with block diagrams, photo examples of execution and locations. Let’s highlight the fuse responsible for the cigarette lighter.

Check the purpose of the elements and their parameters in the blocks with your diagrams or other technical documentation.

Cabin block

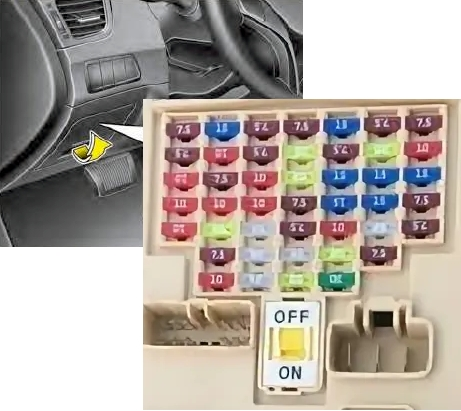

Located under the instrument panel behind a protective cover.

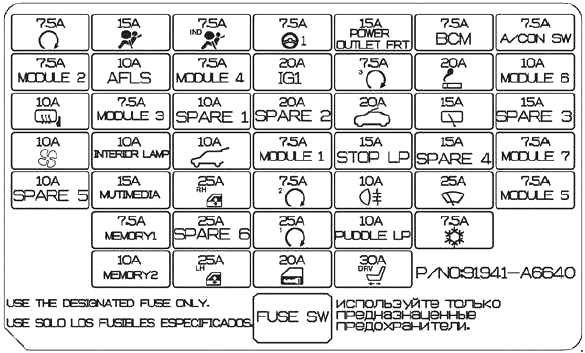

Example of block cover designation

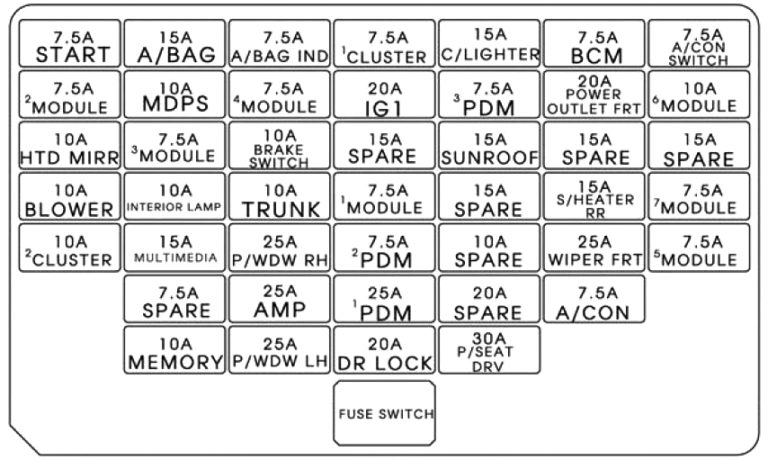

Scheme

Fuse designations

START7.5A Without Smart Key system: ICM relay block (Alarm relay), With Smart Key system: Automatic transmission mode switch, ECM, E/R fuse and relay block (Start 1 relay), Smart Key system control module
A/BAG15A SRS passive safety system control module, Occupant mass classification sensor
A/BAG IND7.5A Instrument panel
MDPS7.5A EPS Power Steering Control Module
POWER OUTLET15A Power outlet (sockets)
BCM7.5A Smart Key System Control Module, BCM
A/CON SW7.5A Air conditioning control module
MODULE 27.5A Electro chrome mirror, ESC system switch
SPARE 1Reserve
MODULE 47.5A Rear parking assist sensor Left/Right (Inner/Outer), Air conditioning control module (Climate control), Automatic transmission selector position indicator
IG120A Fuse and Relay Box E/R (Fuse – TCU 1, ECU 3, ABS 3)
PDM37.5A Smart Key system control module
C/LIGHTER20A Cigarette lighter
MODULE 610A Outside mirror adjustment switch, Audio, Audio and navigation head unit module, Digital clock
HTD MIRR10A Outside mirror adjustment switch Driver/Passenger, Air conditioning control module
MODULE 37.5A Audio systems, Tire pressure monitoring system module, Digital clock, BCM, Instrument panel, Driver and passenger seat heating module
SUNROOF15A Roof hatch
S/HEATER RR RH15A Rear seat heating switch, Right
BLOWER10A Air Conditioning Control Module (Manual Air Conditioning), ECM/PCM, Blower Resistor
IOD 110A Trunk lamp, Individual lighting lamp Left/Right, Interior lamp, Overhead console lamp, Ignition switch III. and Door ajar warning switch (Without Smart Key system)
TRUNK10A Trunk lid relay
MODULE 17.5A Transmission shift to Sport mode (automatic transmission), Key solenoid (Without Smart Key system)
S/HEATER RR LH15A Rear seat heating switch, Left
MODULE 77.5A Smart Key System Control Module, BCM
IOD 220A Audio Systems, A/V and Navigation Head Unit Module
P/WDW RH25A Power window relay, Right
PDM27.5A Smart Key System Control Module, Start Stop Button Switch
WIPER FRT25A Fuse and Relay Block ICM (Rain Sensor Relay), Multifunction Switch, Wiper Motor, Fuse and Relay Block E/R (Wiper Relay)
MODULE 57.5A Ionizer (Climate control), Rain sensor, Sunroof
AMP 125A AMP (amplifier)
PDM 125A Smart Key System Control Module
A/CON7.5A Air Conditioning Control Module, Fuse and Relay Box E/R (Fan Relay)
IOD 410A Tire Pressure Monitoring System Module, BCM, Auto Headlamp Photo Sensor, Instrument Cluster, DLC, Distribution Block Upgrade Connector, Electro-Chrome Mirror, A/C Control Module, Digital Clock
P/WDW LH25A Left Window Power Relay, Window Power Security Module
DR LOCK20A Door Lock Relay, Door Unlock Relay, Fuse and Relay Block ICM (Turn Signal Relay)
P/SEAT DRV30A Driver’s manual seat adjustment switch

The fuses marked C/LIGHTER and POWER OUTLET are responsible for the cigarette lighter or additional sockets.

Blocks under the hood

Main unit

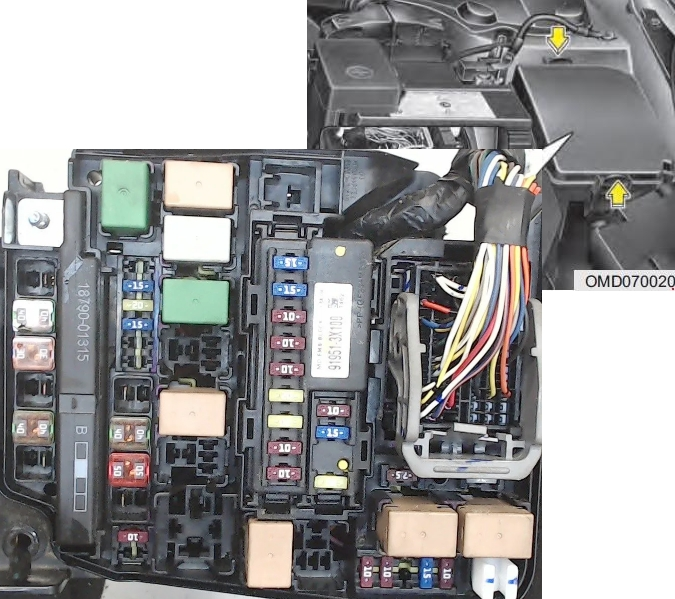

Located in the left side of the engine compartment.

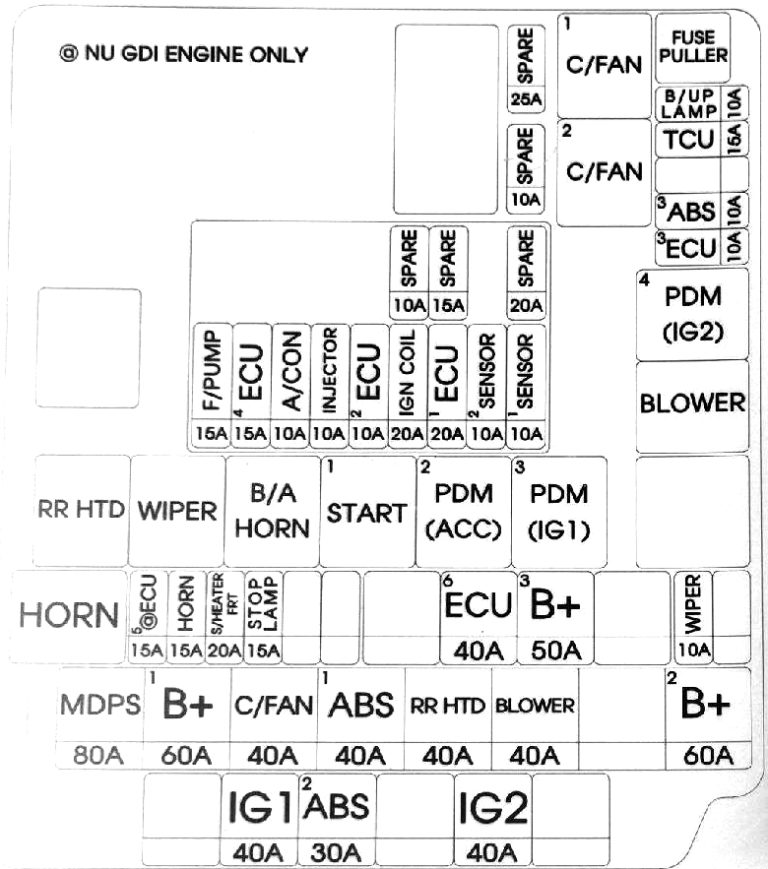

Scheme with purpose

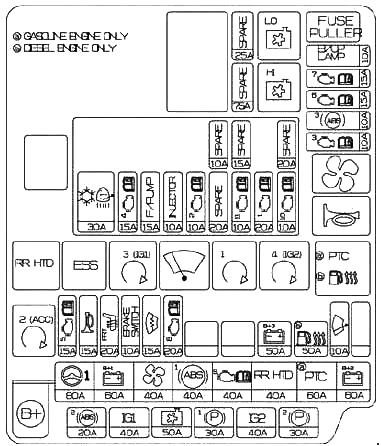

Scheme

Fuse description

MDPS80A EPS system control module
B+160A Distribution Block (ARISU 1 (4CH), IPS 1, Fuse – P/WDW LH, P/WDW RH, TRUNK, AMP 1)
C/FAN40A Cooling Fan Relay (Low), Cooling Fan Relay (High)
ABS 140A ESC Module, Multifunctional Diagnostic Connector
RR HTD40A Seat heating relay
BLOWER40A Cooling system fan relay
B+260A Distribution block (Turn signal horn relay, ARISU 2 (4CH), IPS (1CH), IPS (2CH), Fuses – P/SEAT DRV, SUNROOF [HATCH])
B/UP LP10A Electro Chromium Mirror, Audio/Video (A/V) and Navigation Head Unit Module, Tail Light Combination (Inner) Left/Right, Brake Light Switch, BCM, Instrument Cluster
TCU 115A Vehicle speed sensor, Automatic transmission mode switch
ABS310A ESC system module, Multifunction diagnostic connector
ECU310A Brake light switch, ECM, automatic transmission – PCM
WIPER10A Rain sensor, ECM, automatic transmission – PCM
B+350A Distribution Block (Fuses – MODULE 1, PDM 1, PDM 2, DR LOCK)
EMS40A EMS Unit (Engine Control Relay, Fuses – ECU 4, A/CON, F/PUMP)
STOP LP15A Brake light switch, Smart Key system control module
S/HEATER FRT20A Driver and passenger seat heating control module
HORN15A Horn Relay
IG240A Without Smart Key system: Ignition switch, Start relay 1, With Smart Key system: PDM relay 4 (IG2), Start relay 1
ABS 230A ESC system module, Multifunction diagnostic connector
IG 140A Without Smart Key system: Ignition switch, With Smart Key system: PDM relay 3 (IG1), PDM relay 2 (ACC)
F/PUMP15A Fuel pump relay
ECU 415A PCM (automatic transmission), ECM (manual transmission)
A/CON10A Air conditioning compressor relay
INJECTOR10A Fuel injectors #1 / #2 / #3 / #4, A/C compressor relay, Fuel pump relay
ECU 210A PCM (automatic transmission), ECM (manual transmission)
IGN COIL120A Ignition Coils #1 / #2 / #3 / #4, Capacitor
SENSOR 210A Immobilizer System Module Camshaft Position Sensor #1 /#2
SENSOR 110A Oxygen Sensor (Upper/Lower), Fuel Tank Auxiliary Shutoff Valve, Intake Manifold Length Solenoid Valve, Variable Valve Timing Oil Pressure Control Valve #1/#2, Evaporative Emission Solenoid Valve, Engine Cooling Fan Relay (Low), Engine Cooling Fan Relay (High)
SPAREReserve

Relay decoding

There may be high-capacity fuses on the positive terminal of the battery.

Additional unit

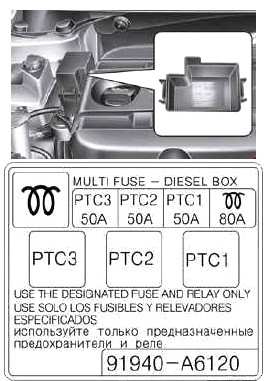

Installed on diesel models of the Sonata 6 in the right part of the engine compartment.

Purpose of elements

  • 80A GLOW – glow plugs
  • 50A RTS – additional heater / heater
